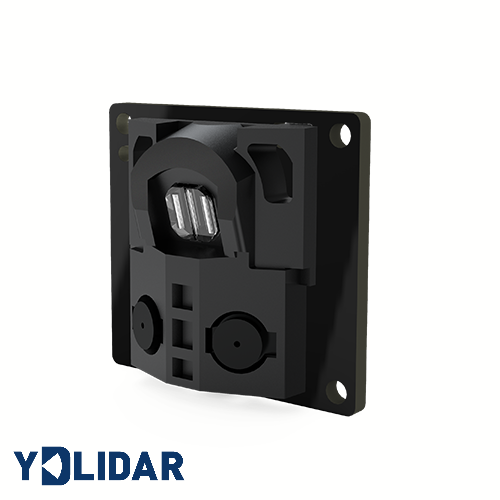

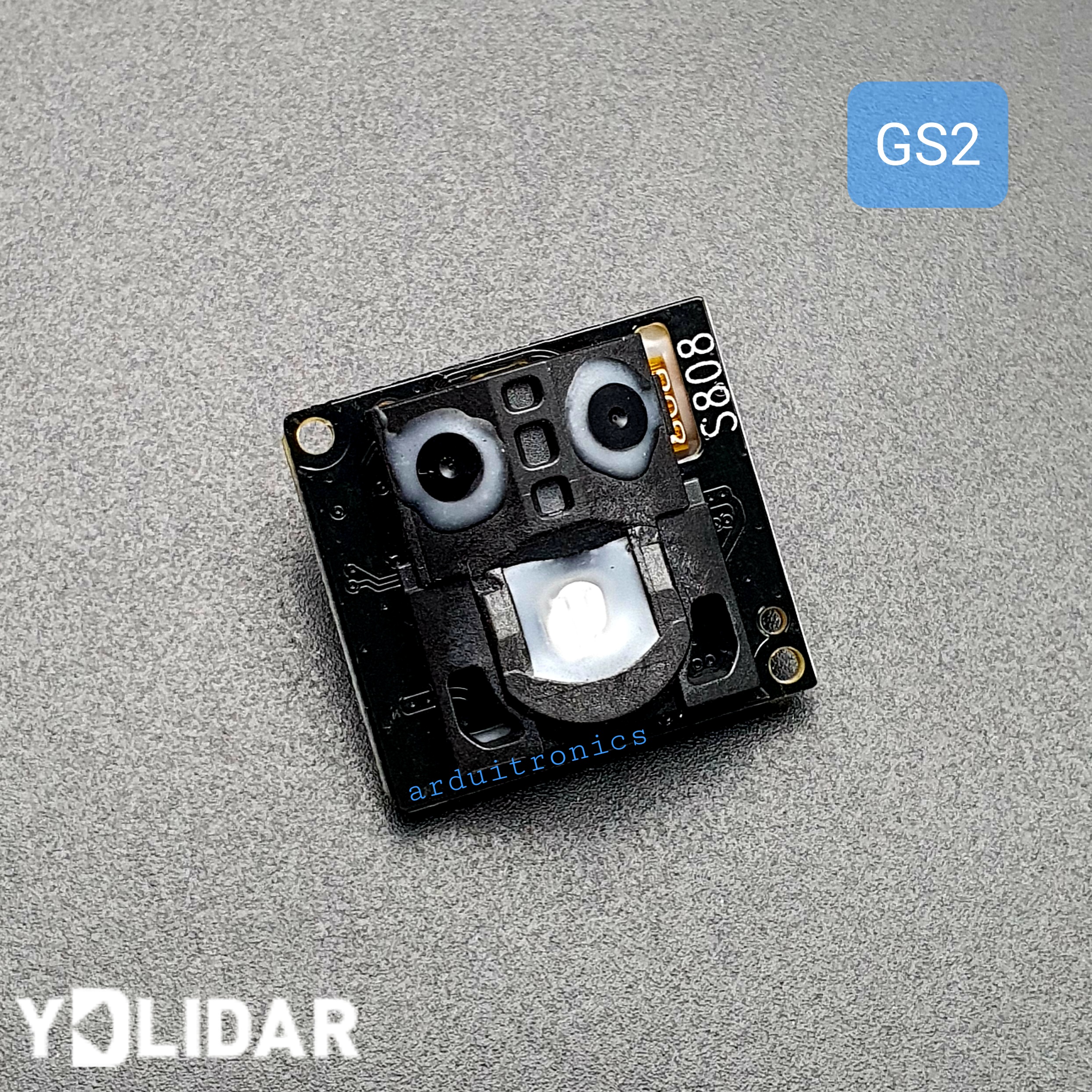

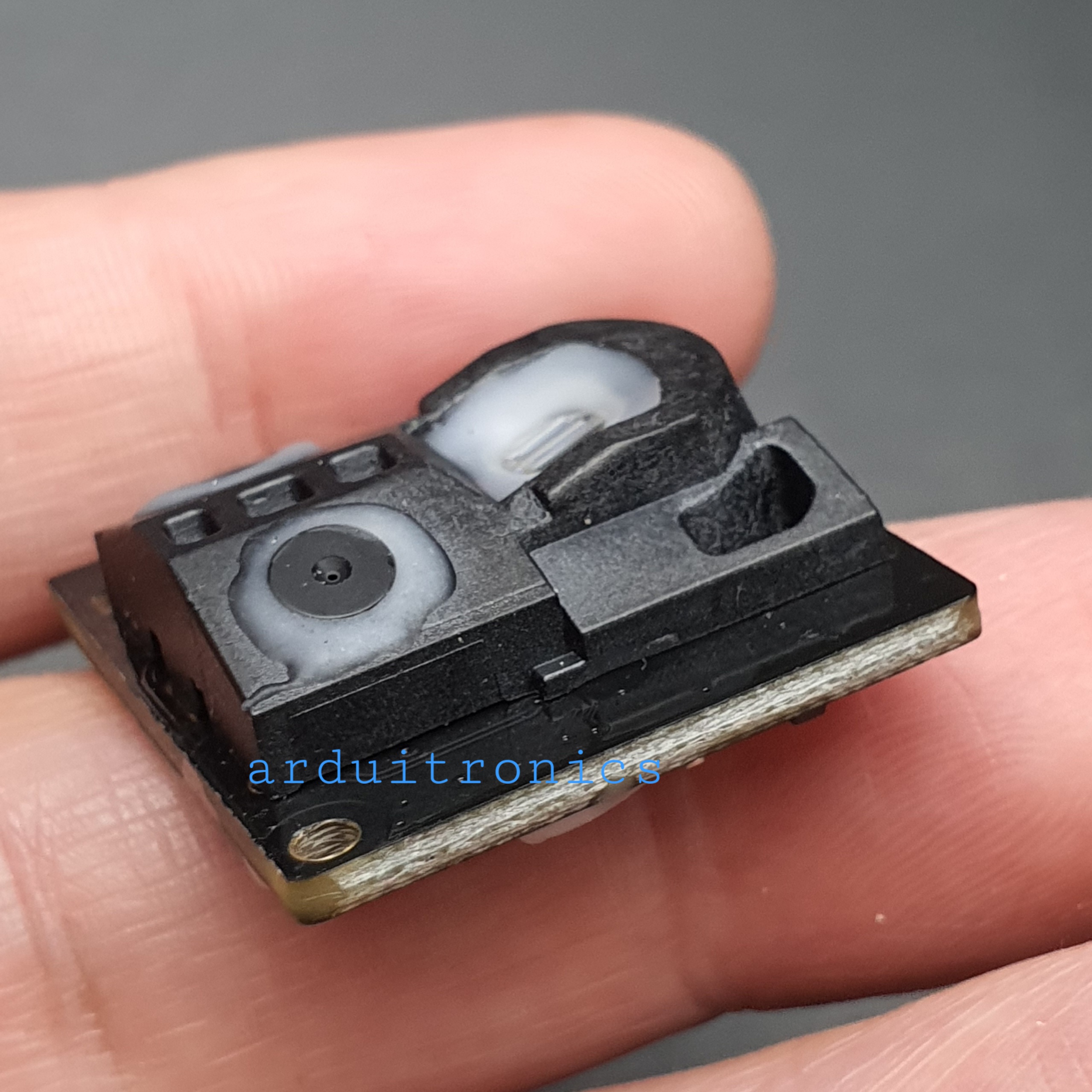

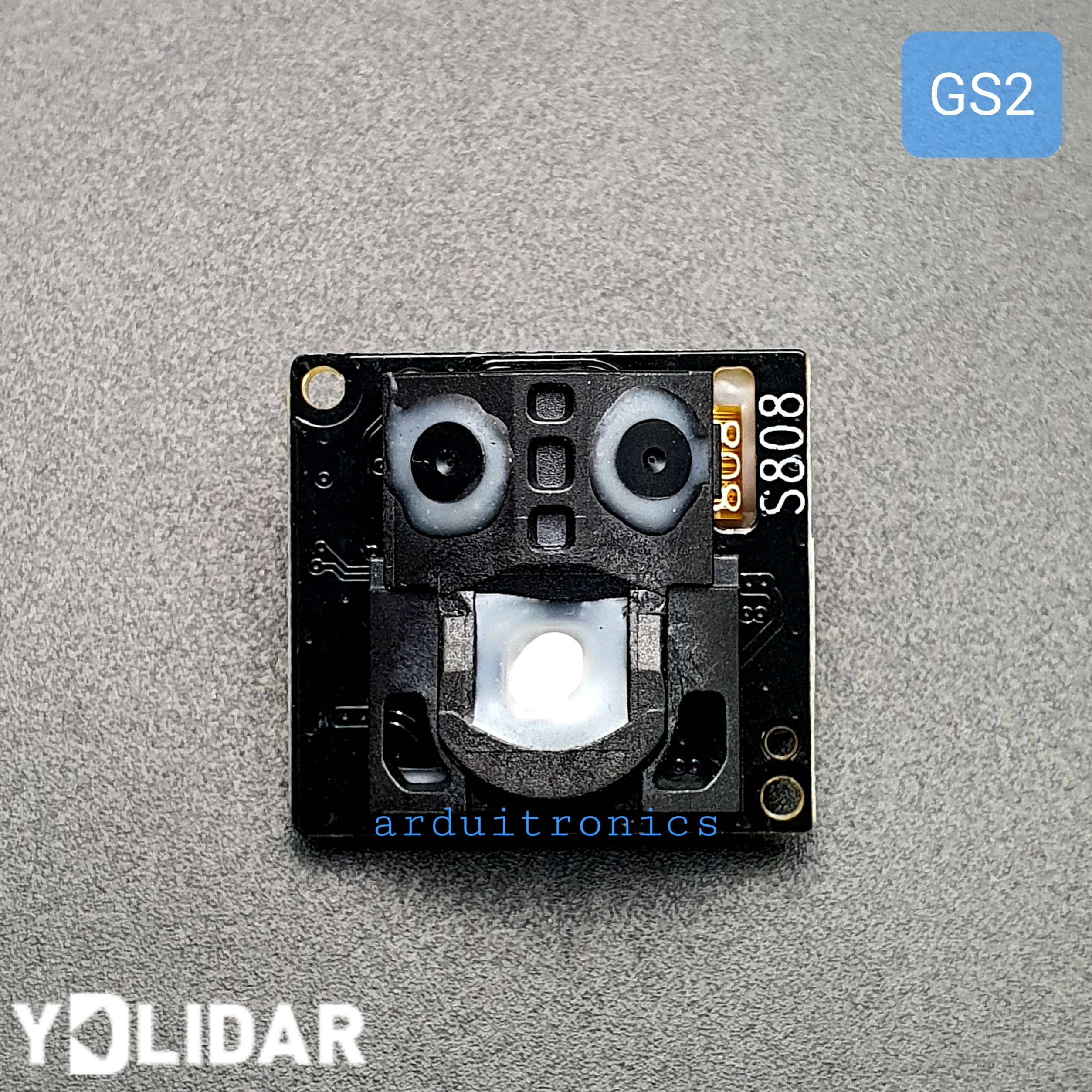

YDLIDAR GS2 Solid State Lidar – FOV 100-degree (25mm - 300mm)

YDLIDAR GS2 is a Linear array solid LiDAR (hereinafter referred to as GS2). Based on the principle of Triangulation, it is equipped with related optics, electricity, and algorithm design, to achieve 100 degrees high-precision laser distance measurement, and output point cloud data of the scanning environment. It can be used for robot obstacle avoidance, path planning, etc.

Product Features

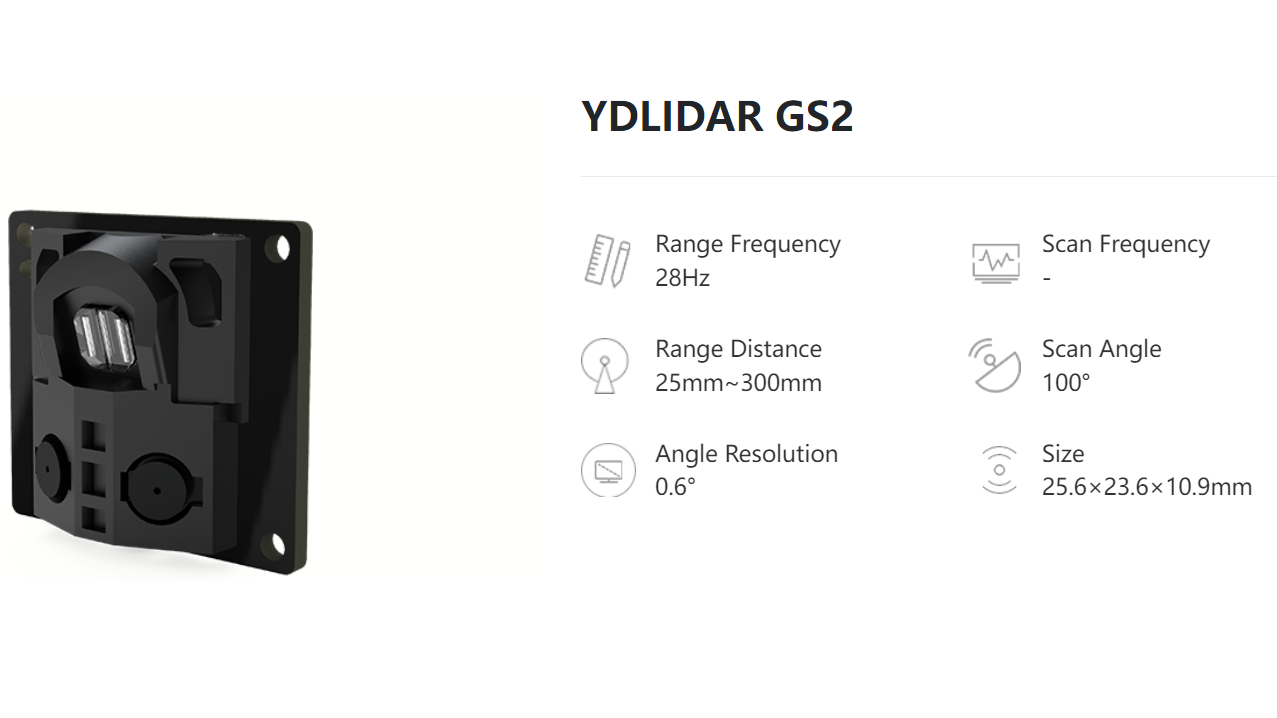

• High accuracy, stable performance
• High resolution of ranging angle, up to 0.6 degrees
• Good obstacle avoidance effect, the smallest object with a diameter of 3mm can be detected
• Wide detection range, no blind zone in combination, FOV up to 100 degrees
• Small detection range blind area, detectable distance is 25mm~300mm
• Class I eye safety
• 10,000 hours Service life

Download
- Datasheet
- User Manual
- Development Manual
- SDK
- Tools
- ROS Driver and Software

Product Introduction

Ultra wide FOV to assist robot vacuum cleaner through blind spots

Field of View up to 100 degrees, Wide range of detection. YDLIDAR provides 808nm and 850nm two waveband options, and the detection signals do not interfere with each other. Two FOVs for better scanning results.

Obstacle avoidance along the wall with performance improvement

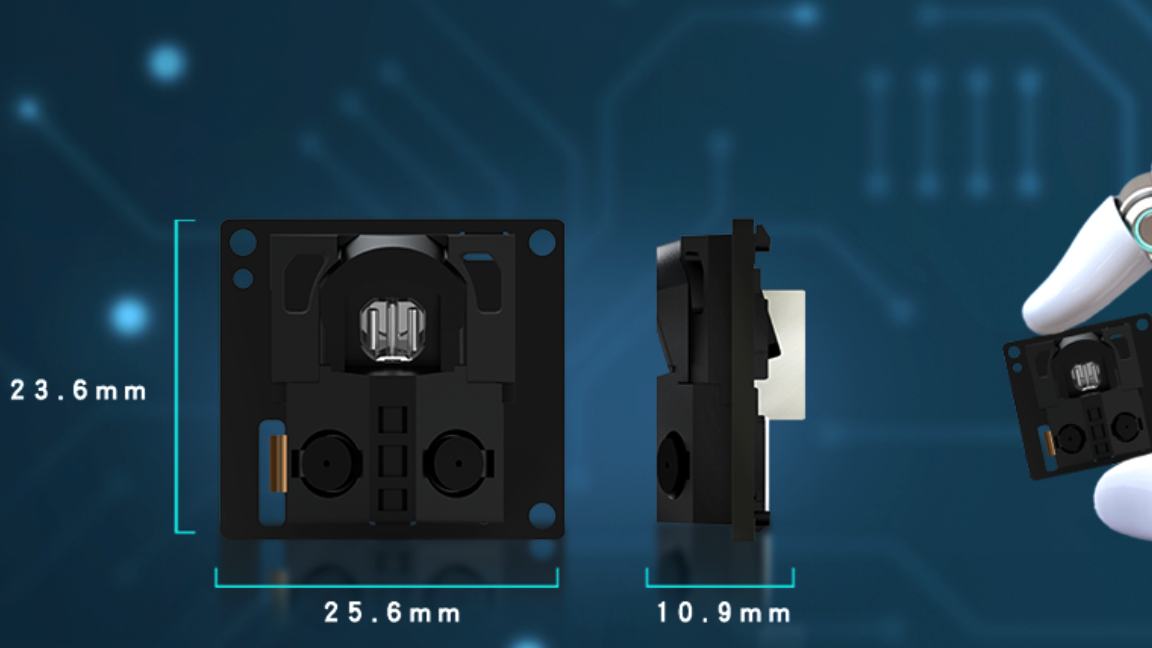

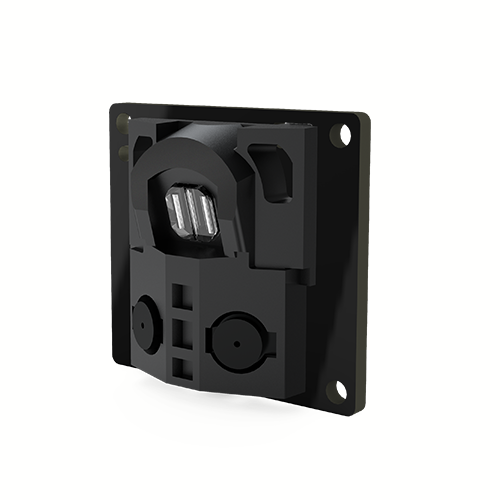

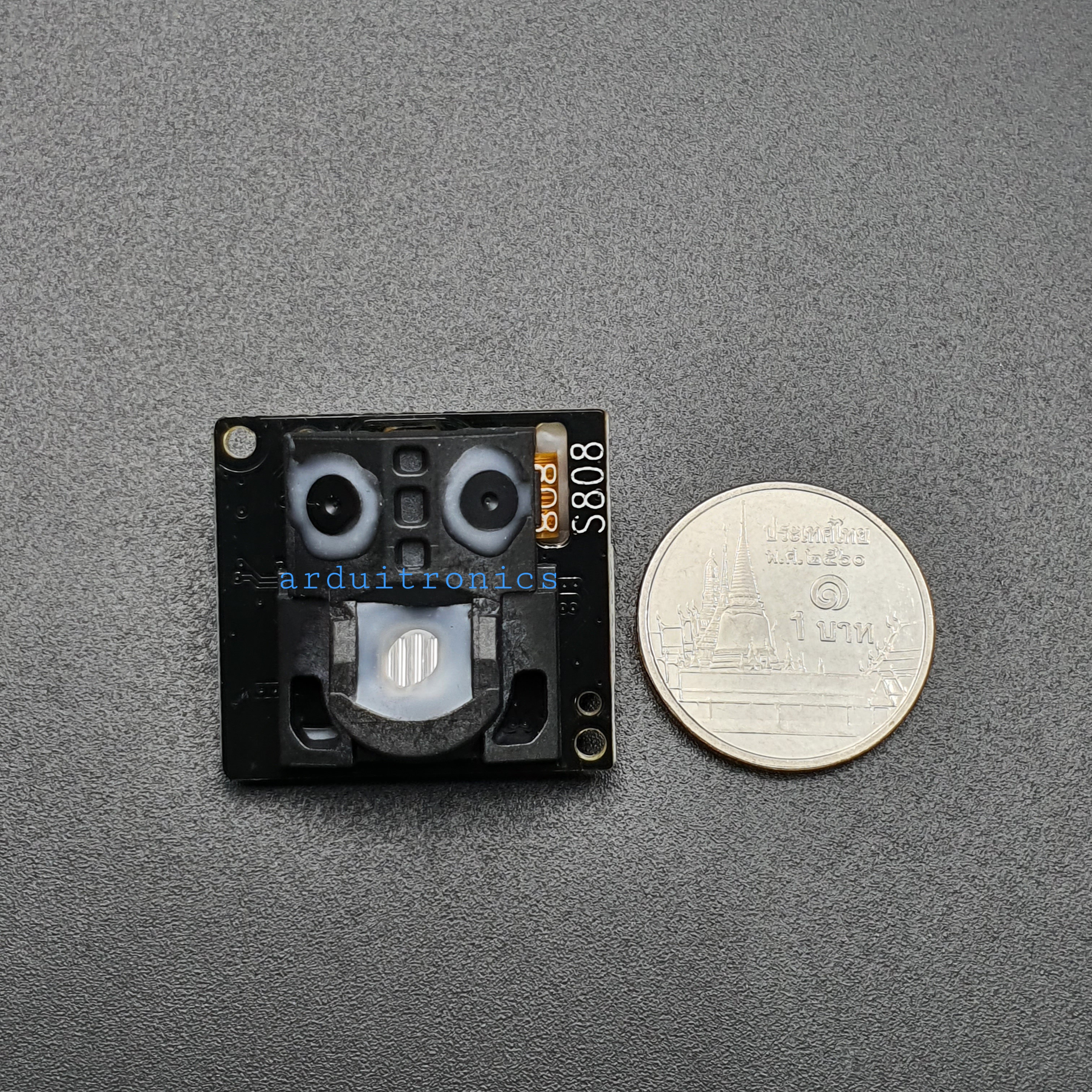

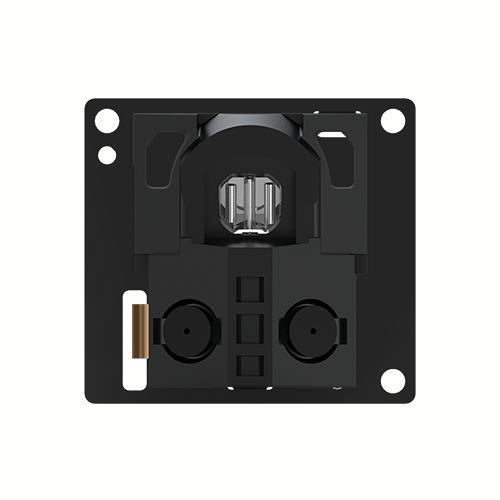

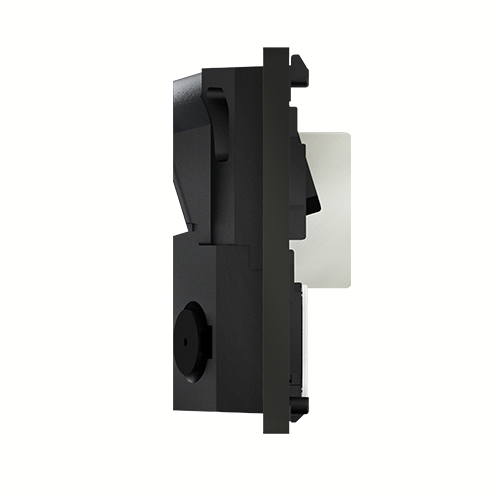

The size of the whole device is only 25.6 (L) × 23.6 (H) × 10.9 (W) mm, which can be flexibly and easily integrated into various small smart devices. It can fully meet the refined detection needs of intelligent equipment such as robot vacuum cleaner.

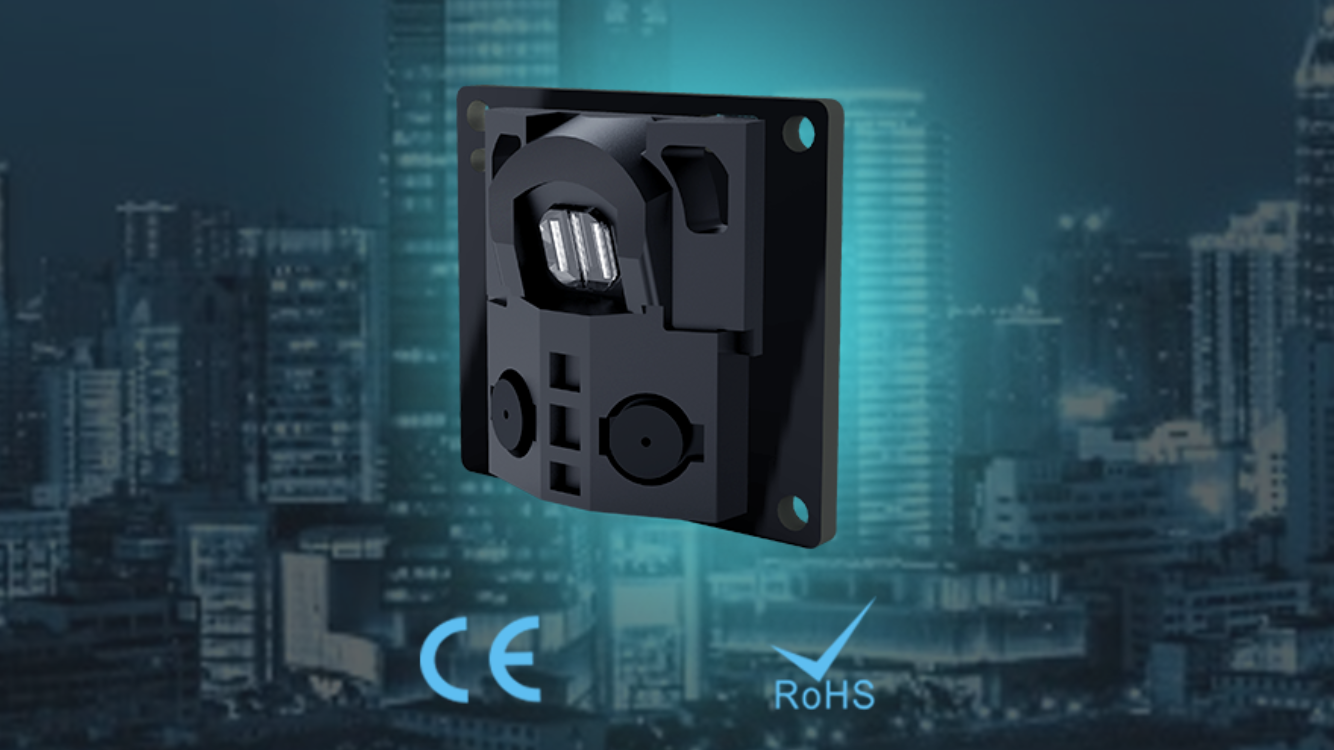

Multiple authoritative certifications, high safety performance
