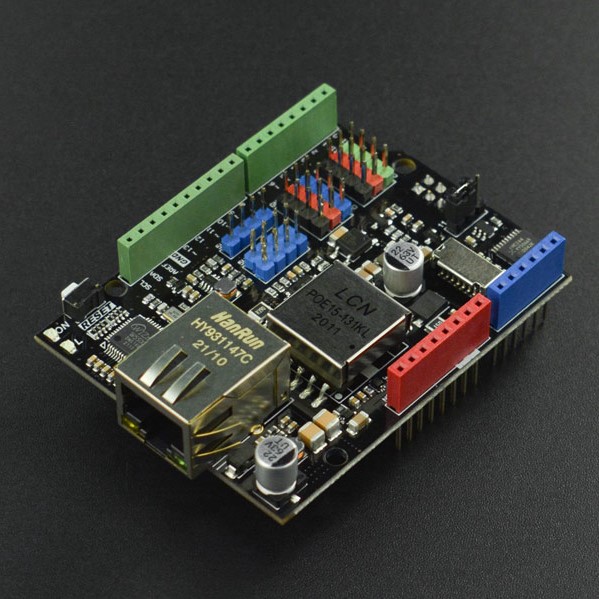

Ethernet and PoE Shield for Arduino - W5500 Chipset - ของแท้ DFRobot

Ethernet and PoE Shield for Arduino - W5500 Chipset - ของแท้ DFRobot
Ethernet and PoE Shield for Arduino - W5500 Chipset - ของแท้ DFRobotEthernet and PoE Shield for Arduino - W5500 Chipset - ของแท้ DFRobotEthernet and PoE Shield for Arduino - W5500 Chipset - ของแท้ DFRobotEthernet and PoE Shield for Arduino - W5500 Chipset - ของแท้ DFRobotEthernet and PoE Shield for Arduino - W5500 Chipset - ของแท้ DFRobot
รหัสสินค้า SA50011
หมวดหมู่ Arduino Shields
ราคา 1,585.00 บาท
สถานะสินค้า พร้อมส่ง
จำนวน
1
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
ดูรายละเอียดการใช้งานและตัวอย่าง code ได้ที่ Click

INTRODUCTION

The W5500 Ethernet expansion board is a new member of the DFRobot Ethernet family. It integrates PoE power supply and W5500 Ethernet chip, which can meet the requirements of general IoT projects.

The W5500 chip is a Hardwired TCP/IP embedded Ethernet controller that provides easier Internet connection to embedded systems. It enables users to have Internet connectivity in their applications just by using the single chip in which TCP/IP stack, 10/100 Ethernet MAC, and PHY are embedded. The Hardwired TCP/IP is the market-proven technology that supports TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE protocols. W5500 embeds the 32Kbyte internal memory buffer for the Ethernet packet processing. It’s faster and easier way rather than using any other Embedded Ethernet solution. Besides, the W5500’s SPI supports 80MHz speed and a new efficient SPI protocol for high-speed network communication. In order to reduce the power consumption of the system, W5500 provides WOL (Wake on LAN) and power-down mode.

With the same size as Arduino UNO, this W5500 Ethernet expansion board adopts IEEE 802.3at standard-compliant POE Class 0 power classification and offers MicroSD card socket and 2 standard Gravity-4Pin I2C ports, 1 UART, 4 Gravity-3Pin digital ports and 4 analog ports, etc.

Functionally compatible with Arduino Ethernet Shield 2

Ethernet & PoE Shield for Arduino-W5500
Interface Function

FEATURES

  • Support hardware TCP/IP protocol: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
  • Support 8-channel independent Sockets
  • Support WOL Wake-on-LAN
  • Internal 32KB for TX/RX buffer
  • On-board level converter circuit
  • Gravity 3Pin ports for connecting sensors

SPECIFICATION

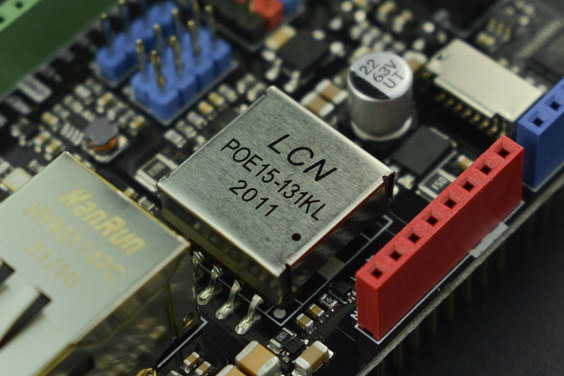

  • PoE Input: 48V AC/DC (the product is a Class 0 PD device that meets the 802.3at standard)
  • PoE Power: up to 12W (the VIN port can output 12V/1A)
  • SPI Clock: 80MHz (Max)
  • PHY: WIZnet W5500

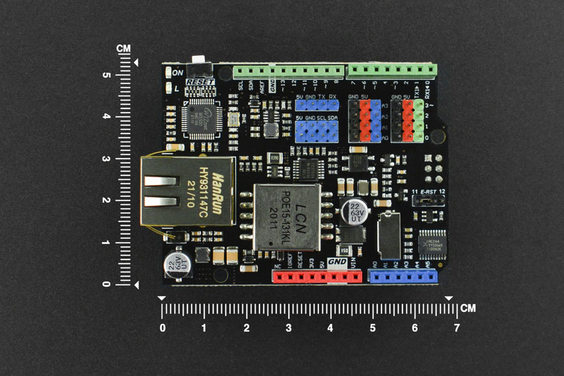

  • PCB Size: 68.6mmx53.3mm / 2.68 x 2.1 inch
  • Overall Size: 72.5mmx53.3mm / 2.85 x 2.1 inch

SHIPPING LIST

  • Ethernet & PoE Shield for Arduino-W5500 x1
  • 2.54 Open-type Jumper Cap x1
