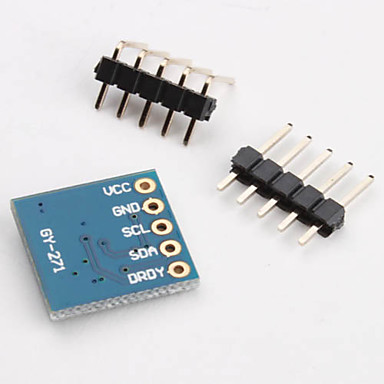

3-Axis Digital Compass IC (HMC5883L) GY-271

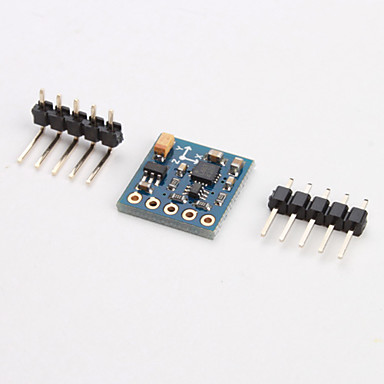

3-Axis Digital Compass IC (HMC5883L) GY-271

จำนวน 1 ตัว

ตัวอย่าง Source code การใช้งาน

#include //I2C Arduino Library

#define address 0x1E //0011110b, I2C 7bit address of HMC5883

void setup(){
//Initialize Serial and I2C communications
Serial.begin(9600);
Wire.begin();

//Put the HMC5883 IC into the correct operating mode
Wire.beginTransmission(address); //open communication with HMC5883
Wire.send(0x02); //select mode register
Wire.send(0x00); //continuous measurement mode
Wire.endTransmission();
}

void loop(){

int x,y,z; //triple axis data

//Tell the HMC5883 where to begin reading data
Wire.beginTransmission(address);
Wire.send(0x03); //select register 3, X MSB register
Wire.endTransmission();


//Read data from each axis, 2 registers per axis
Wire.requestFrom(address, 6);
if(6<=Wire.available()){
x = Wire.receive()<<8; //X msb
x |= Wire.receive(); //X lsb
z = Wire.receive()<<8; //Z msb
z |= Wire.receive(); //Z lsb
y = Wire.receive()<<8; //Y msb
y |= Wire.receive(); //Y lsb
}

//Print out values of each axis
Serial.print("x: ");
Serial.print(x);
Serial.print(" y: ");
Serial.print(y);
Serial.print(" z: ");
Serial.println(z);

delay(250);
}
