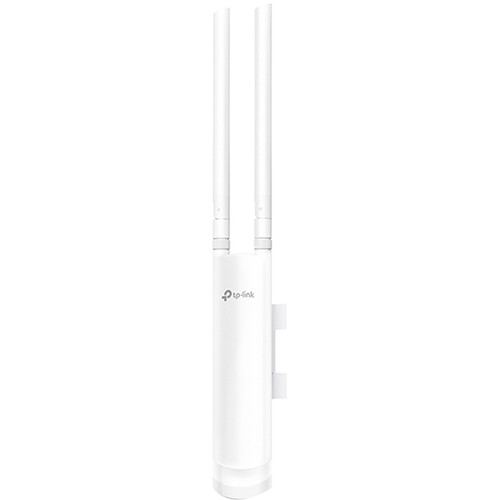

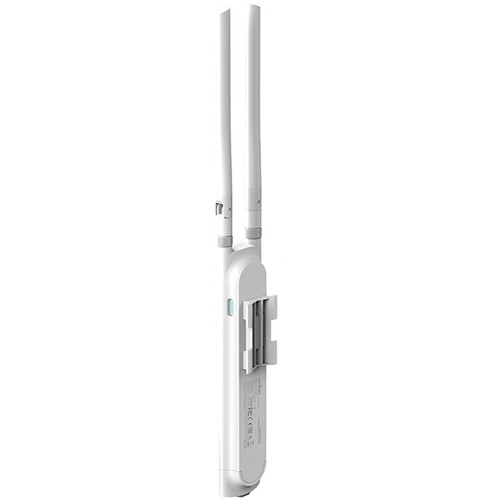

Access Point Outdoor TP-LINK (EAP225-Outdoor) Wireless AC1200 Gigabit

EAP225-Outdoor

IEEE 802.11a/b/g/n/ac

2 Dual-Band Omni Antennas
2.4GHz : 2 x 3dBi
5GHz : 2 x 4dBi
Beamforming

2.4GHz, 5GHz

CE : <20dBm(2.4GHz,EIRP),<23dBm(5GHz,EIRP)
FCC : <30dBm(2.4GHz, EIRP),<30dBm(5GHz, EIRP)

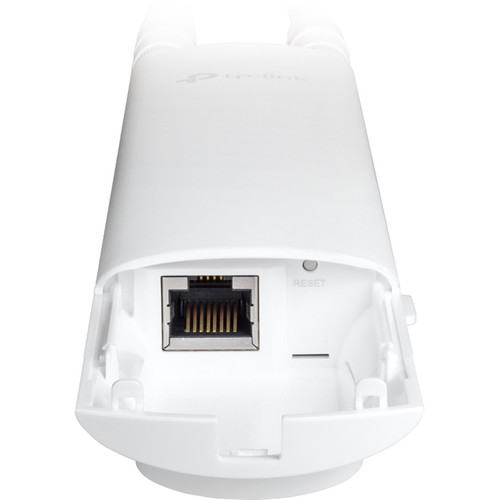

1 x Gigabit Ethernet (RJ-45)Port*1(Support 802.3af PoE and Passive PoE)

Reset

802.11ac:
- 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80)
- 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)

802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 5.5, 11Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support

Multiple SSIDs（Up to 16 SSIDs, 8 for each band）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
MU-MIMO
Airtime Fairness
Beamforming
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

802.3af PoE and 24 Passive PoE(PoE Adapter Included)

10.5W

IP 65

Operating Temperature: -30°C~70°C (-22°F~158°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

CE, FCC, RoHS

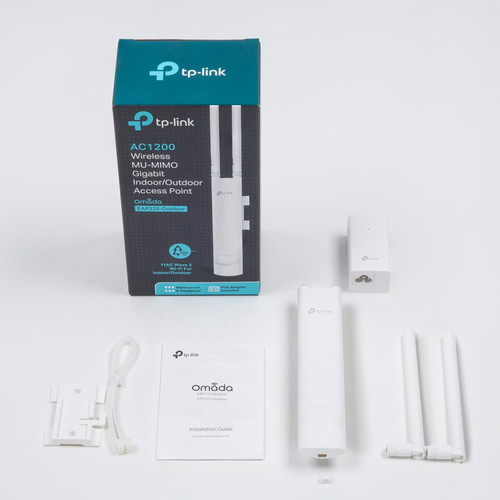

AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
EAP225-Outdoor
Power Adapter
Mounting Kits
Installation Guide

Omada Controller Software
Email Alerts
Management MAC Access Control
System Logging Local/Remote Syslog
Web-based Management
L3 Management
Multi-site Management
Management VLAN

Pole/Wall Mounting (Kits included)
