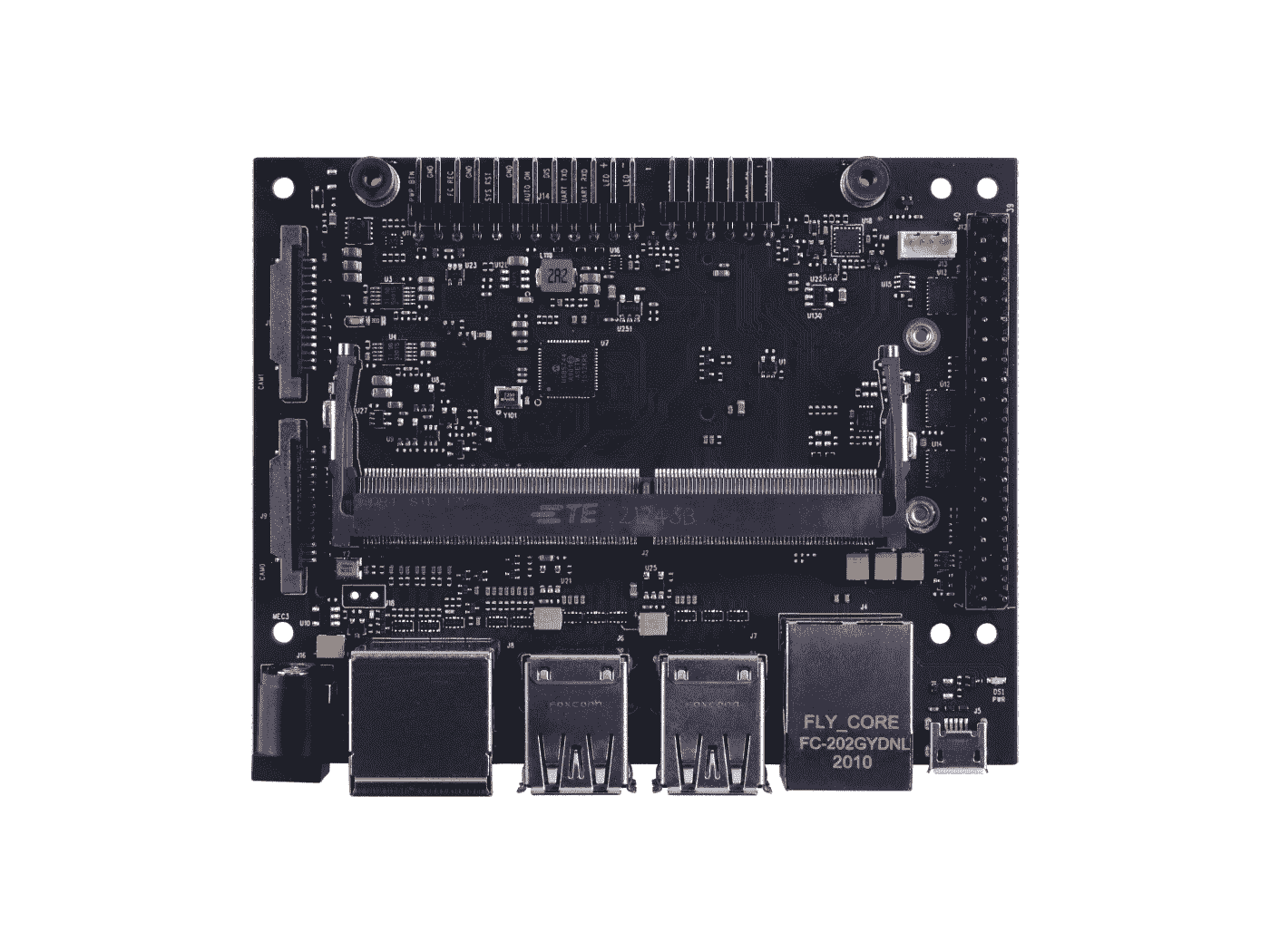

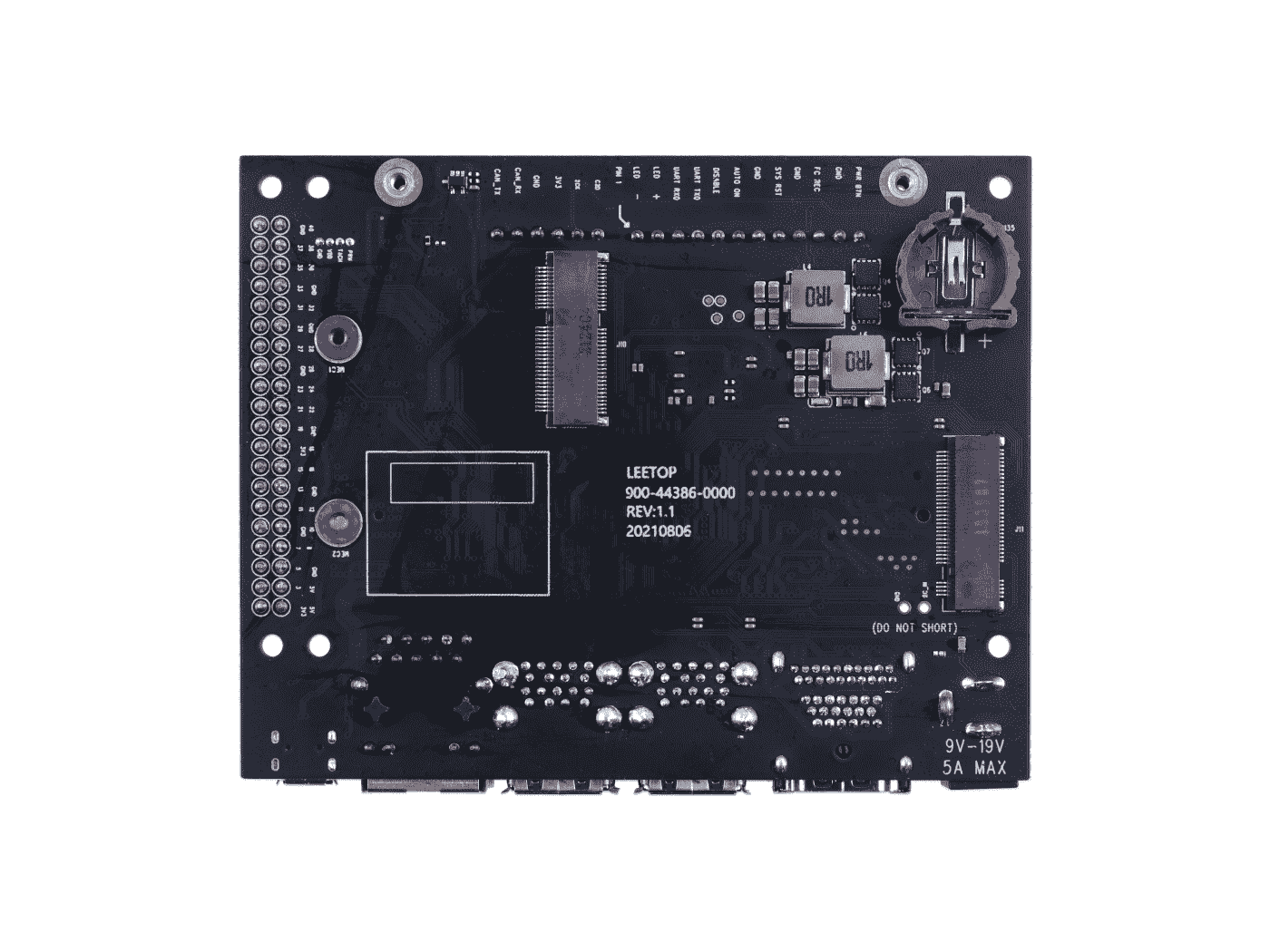

A206 Carrier Board for Jetson Nano/Xavier NX/TX2 NX with compact function design and same size of NVIDIA® Jetson Xavier™ NX carrier board - Seeed Nvidia

Connector

Description

HDMI Port

2*HDMI Right Angle Vertical Connector

USB 3.0 Type A

4*USB 3.0 Type A Connector

NVIDIA Gigabit Ethernet

1*RJ45 Gigabit Ethernet Connector (10/100/1000)

DC Power

1*DC Input Power TE Connector

FAN Connect

1*Picoblade Header

M.2 KEY E

1*M.2 Key E Connectivity Slot (75-pin)

CSI Camera Connect

2*CSI Camera (15 pos, 1mm pitch)

Multifunctional port

2.0 Pitch 40 PIN

3V Lithium Battery

1*3V backup battery

M.2 KEY M

1*M.2 Key M Slot (75-pin)

NVIDIA Jetson Nano/NX/TX2 NX connector

1*Jetson SODIMM connector, 260-pin

CAN

1*CAN Bus Header (1x4, 2.54mm pitch, RA)

Button Header

1*Button Header (1x12, 2.54mm pitch, RA)

USB Micro Type B

1*USB Micro B, RA Female

RTC

1*RTC Back-up Coin Cell Socket (CR1225)

Feature

A203 carrier board

A205 carrier board

A206 carrier board

Module Compatibility

 NVIDIA® Jetson™ Nano/NX/TX2 NX

 NVIDIA® Jetson™ Nano/NX/TX2 NX

 NVIDIA® Jetson™ Nano/NX/TX2 NX

PCB Size / Overall Size

87mm*52mm

170mm*100mm

100mm*80mm

Display

1*HDMI

2*HDMI

2*HDMI

CSI Camera

1*CSI

6*CSI

2*CSI

Ethernet

1x Gigabit Ethernet (10/100/1000M)

2x Gigabit Ethernet (10/100/1000M)

1x Gigabit Ethernet (10/100/1000M)

USB

2* USB 3.0 Type A (Integrated USB 2.0);
1* USB Micro B(Not support power input)

4* USB 3.0 Type A (Integrated USB 2.0);
1* USB 2.0 Type C(Support OTG)

4* USB 3.0 Type A (Integrated USB 2.0);
1* USB Micro B(Not support power input)

SATA

\

5 SATA

\

M.2 Key M

1*M.2 Key M

\

1*M.2 Key M

M.2 Key E

1*M.2 Key E

1*M.2 Key E

1*M.2 Key E

TF_Card

1* TF_Card

1* TF_Card

\

USB WIFI Mode

\

1* Standard USB WIFI Mode(4 pin interface)

\

Audio

\

1* Audio Jack;
2* Microphone interface;
2* Speaker interface

\

SPI Bus

1* SPI Bus(+3.3V Level)

1* SPI Bus(+3.3V Level)

1* SPI Bus(+3.3V Level)

FAN

1* FAN(5V PWM)

2* Fan(12V/5V);
1* FAN(5V PWM)

1* FAN(5V PWM)

CAN

1* CAN

1* CAN

1* CAN

Multifunctional port

1* 40-Pin

1* 40-Pin

1* 40-Pin

RTC

Battery included

Battery not included

Battery not included

Power Requirements

DC 15V/3A

DC 19V/4.74A (90W MAX)

DC 15V/3A

Operating Temperature

-25° to +80°

-25° to +80°

-25° to +80°
