จอ 16X2 LCD RGB Backlight - Full Color Display แสดงผล 16 อักขระ 2 แถว ของแท้จาก SeeedStudio มาพร้อมกับ Grove connector สะดวกในการใช้งาน แนะนำให้ใช้ร่วมกับ Grove Base Shield for Arduino Uno หรือ Grove Shield for Arduino Mega
ดูการต่อใช้งานและตัวอย่าง arduino และ raspberry pi code ได้ที่ Click
PRODUCT DETAILS
Features
- Full-color RGB Backlight
- High contrast, clearly visible in direct sunlight
- I2C communication uses only two I/O pins
- Automatic power-on reset
- Plug and Play Grove connector to get rid of traditional cumbersome wiring
Description

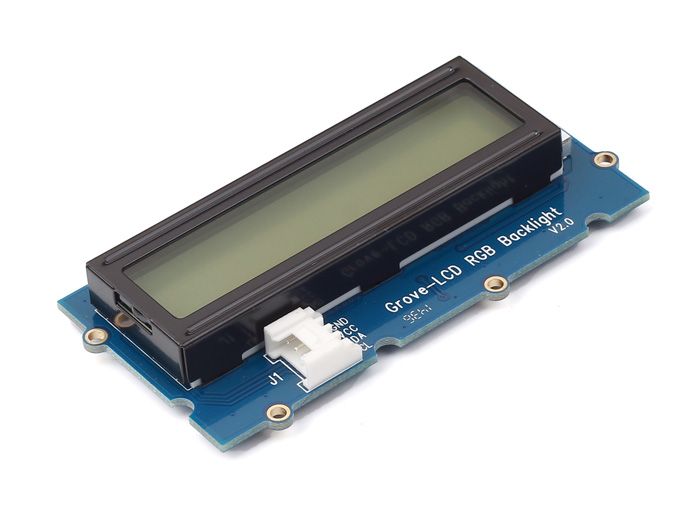

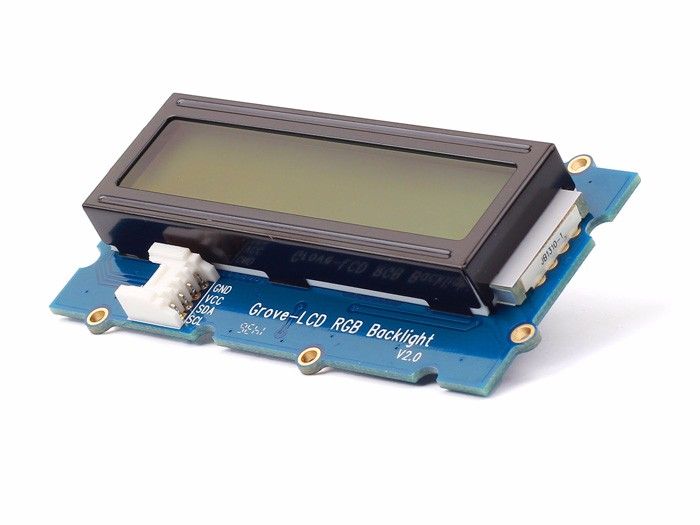

Grove - 16X2 LCD RGB Backlight is a full-color backlight 16x2 LCD display for Arduino. High contrast and ease of use make it a perfect I2C LCD display for Arduino and Raspberry Pi.

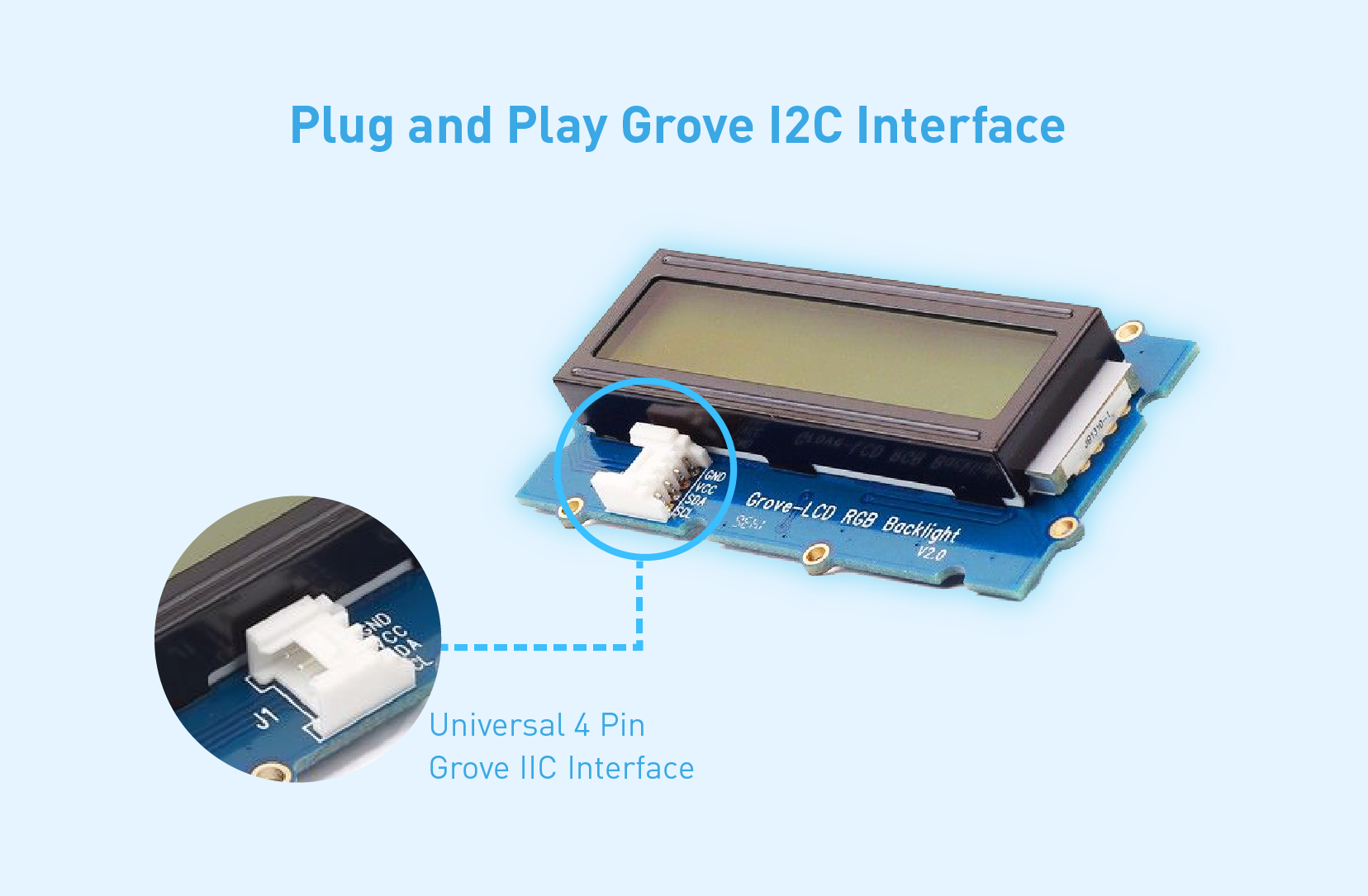

The traditional 16x2 LCD requires up to 10 I/O pins to display, and the 16x2 LCD with RGB backlight requires an extra 3 pins to control the backlight color. This will take up a lot of I/O pins on the main control board, especially for development boards with less I/O resources such as Arduino and Raspberry Pi. Grove - LCD RGB Backlight makes it totally different! With the help of Grove I2C connector, only 2 signal pins and 2 power pins are needed. You don't even need to care about how to connect these pins. Just plug it into the I2C interface on Seeeduino or Arduino/Raspberry Pi+baseshield via the Grove cable. No complicated wiring, no soldering, no need to worry about burning the LCD caused by the wrong current limiting resistor. Easy peasy.
What's more, this LCD module is not only a character LCD but also can display your DIY images, such as a heart and a smiling face. 16x2 means two lines and each line has 16 columns, 32 characters in total. Each character contains 5*8 pixels.
You can check here to make your own images array, just release your creativity and imaginations.
As the name RGB backlight indicates, you can set any color you like to be the backlight. You can also have the backlight change with the program, such as using a green backlight when displaying a smile, and turning the backlight to red when the angry face appears.
Tip
Please pay attention that this LCD only supports 5V system. If you need to work with a 3.3V system, you can check our 16x2 LCD serial.

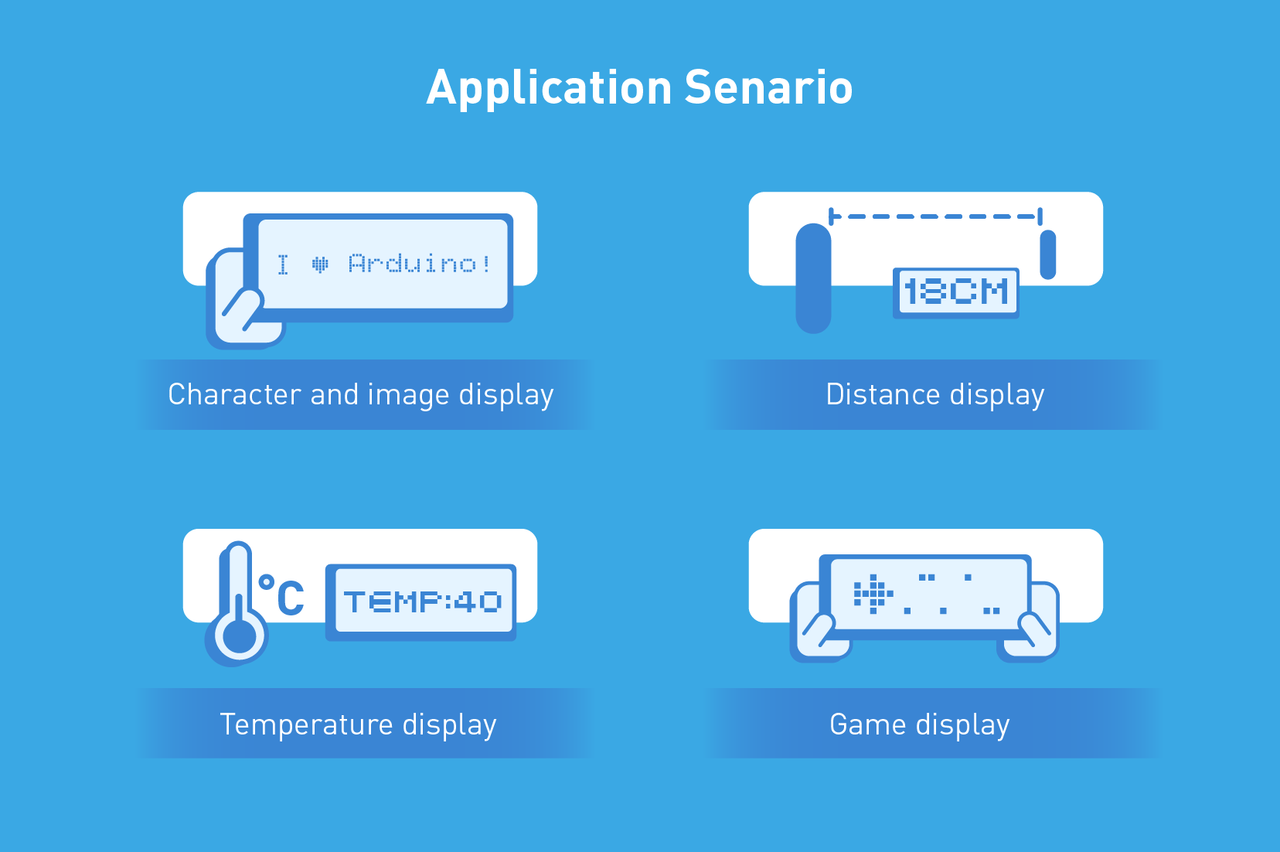

Demo

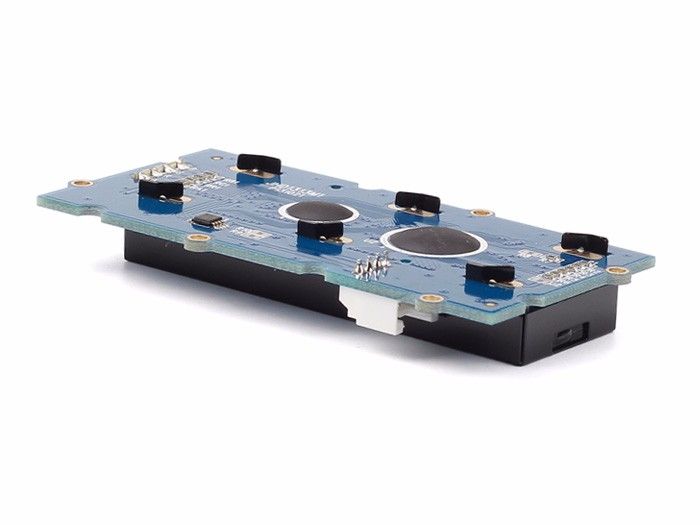

Hardware Overview
Technical details

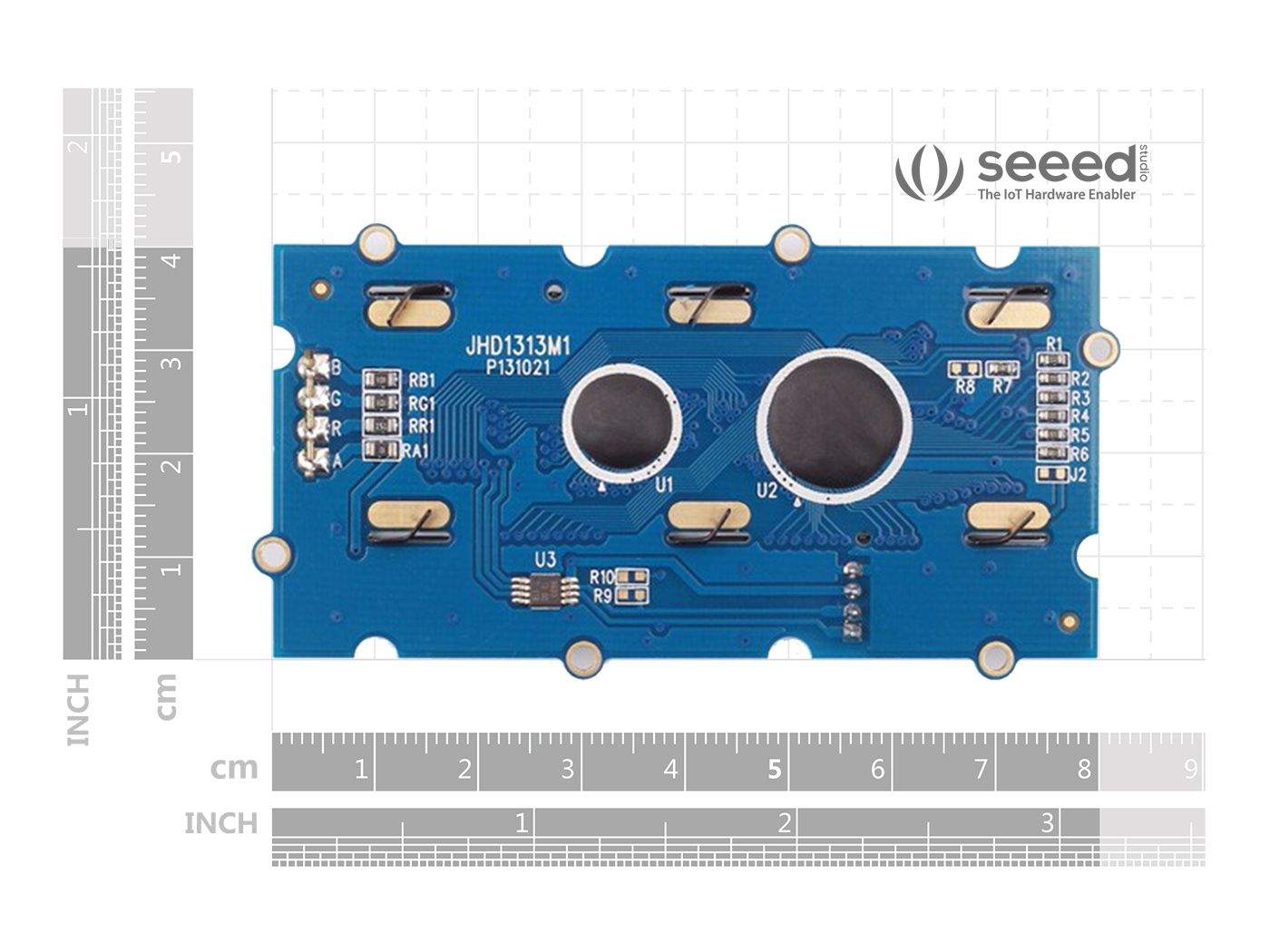

Dimensions |
83mm x44mm x13mm |
Weight |
G.W 42g |
Battery |
Exclude |
Input Voltage |
5V |
CGROM |
10880 bit |
CGRAM |
64*8 bit |
Part List
Grove - LCD RGB Backlight |
1 |
