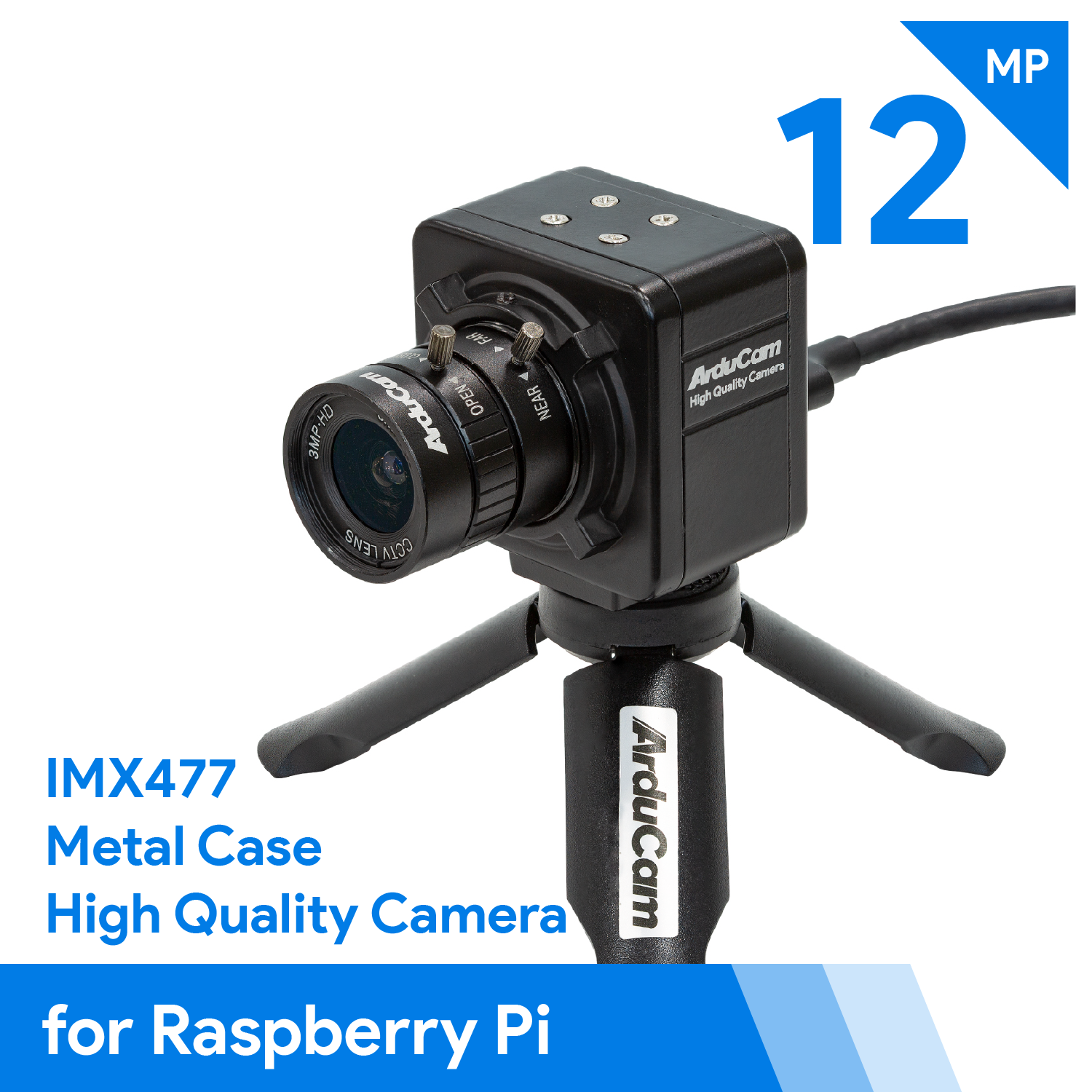

Arducam Complete High Quality Camera Bundle for Raspberry Pi, 12.3MP 1/2.3 Inch IMX477 Camera Module with 6mm CS-Mount Lens, Metal Enclosure, Tripod and HDMI Extension Adapter

Description:

The official Pi HQ camera is only available in one model. It doesn't come with a lens and it is also not easy for the users to find a case. To solve these pain points, Arducam released this complete camera bundle, an IMX477 camera board with a 6mm CS lens, a customized metal enclosure, a tripod stand and a set extension adapter. This camera module supports all Raspberry Pi and PC/laptop (need MIPI adapter board and USB camera shield, not included).

Features:

• Get Clearer Images: This camera adopts 1/2.3" 12.3 Megapixel IMX477 sensor for sharp image, max. still resolution 4056(H) x 3040(V).

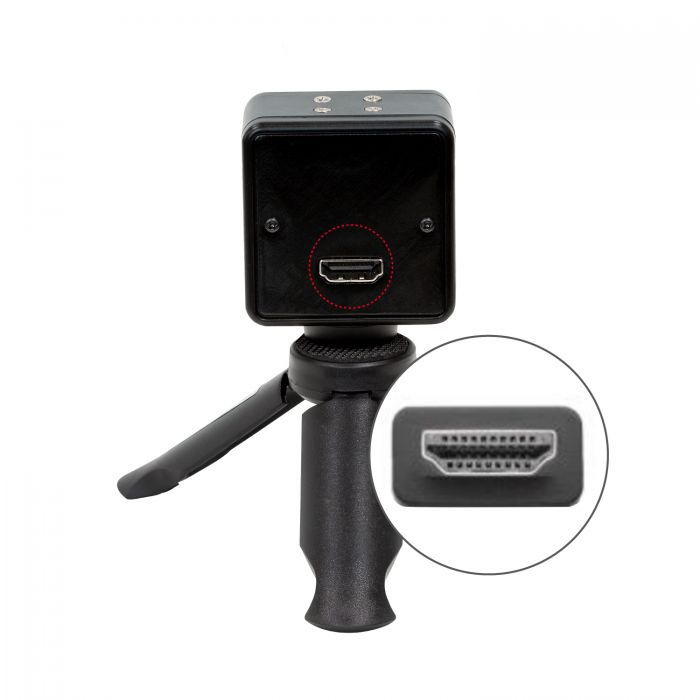

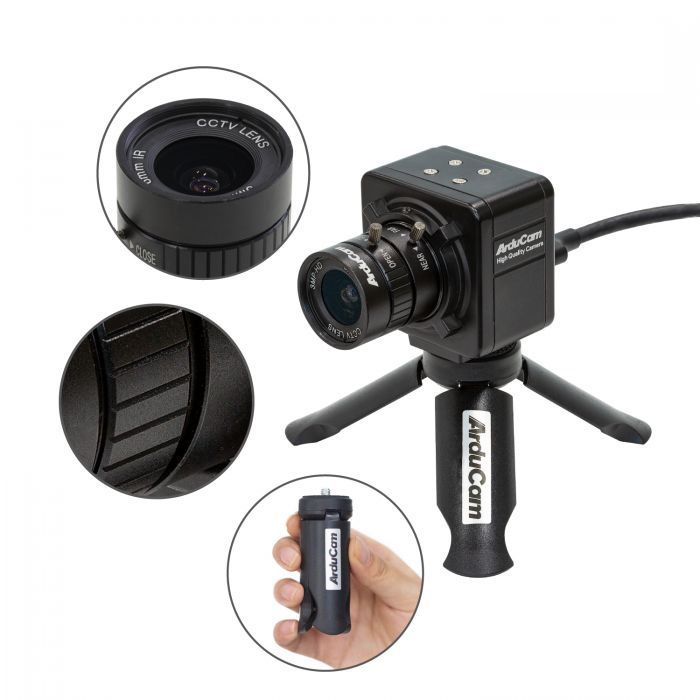

• No Hassle: No more wasting time looking for the CS lens and camera case. It includes A 1/2.3" 6mm focal length CS lens, and an industrial metal enclosure mounted on the camera board, the bundle also comes with a mini tripod stand and a set HDMI extension adapter.
• More Lanes: The Arducam high quality camera module has a 4-lane MIPI CSI-2 interface, more than the official one, makes it possible to get more data through.

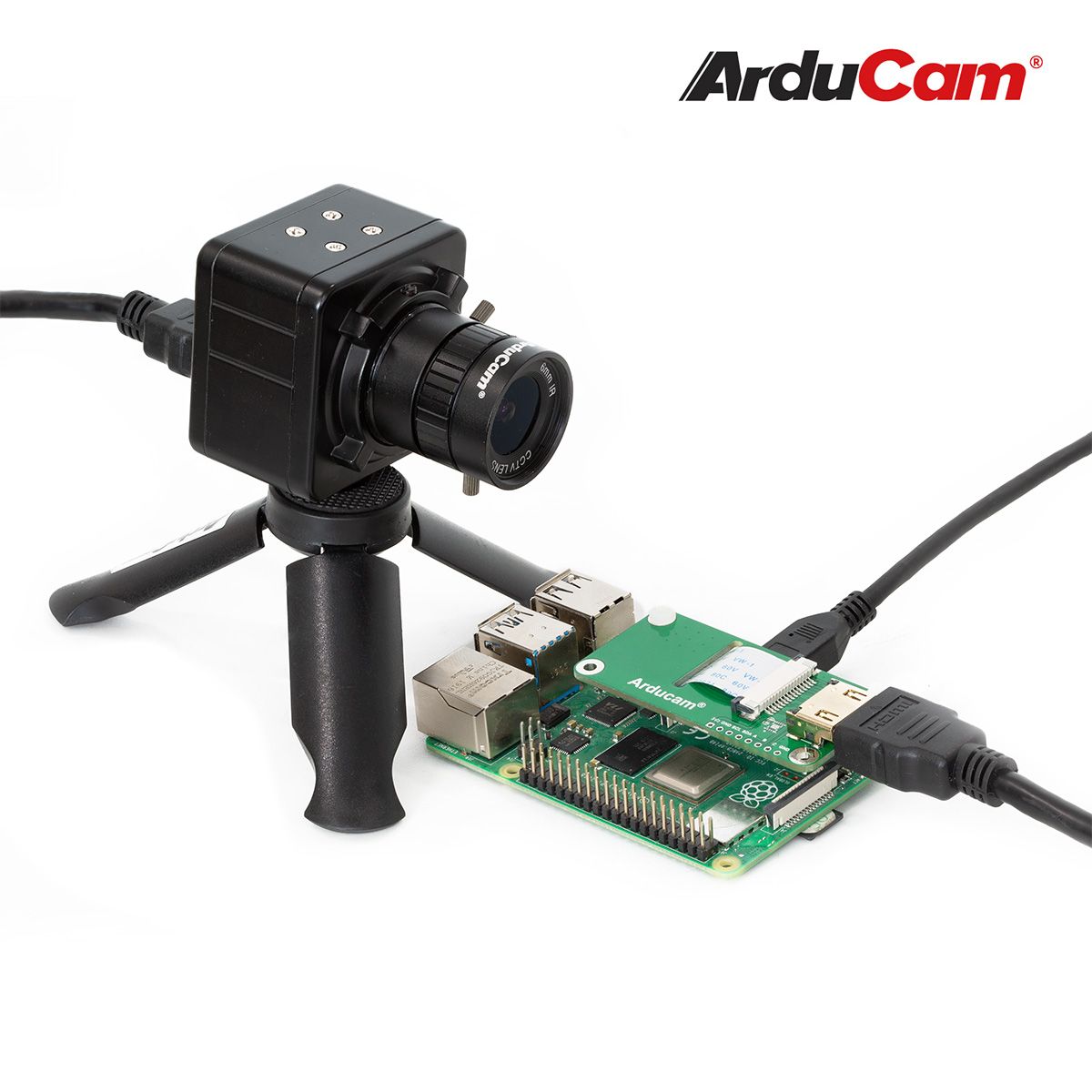

• Support More Platforms: It supports all Raspberry Pi camera models. Pi 4, Pi 3/3B+/3A+, CM3/3+, Pi Zero, and more. For Nvidia Jetson Nano and Xavier NX, you can search for B0249 / B0250 to get the Jetson camera bundle. For PC /laptop, you could purchase the HQ UVC camera module B0280 (with 6mm CS Mount Lens) or B0288 (with Varifocal C Mount Lens) directly.

Specifications

- Sensor: IMX477

- Optical Format: 1/2.3" (diagonal 7.857mm)

- Resolution: 4056(H) x 3040(V) 12.3MP

- Pixel Size: 1.55um x 1.55um

- IR Sensitivity: Visible light

- Interface: 4-lane MIPI CSI-2

- Default Lens Mount: CS-Mount

- Video Modes on Raspberry Pi: 1080p30, 720p60 and 640 × 480p60/90

- Peak Current: 300mA

- Format: 1/2.3 inch

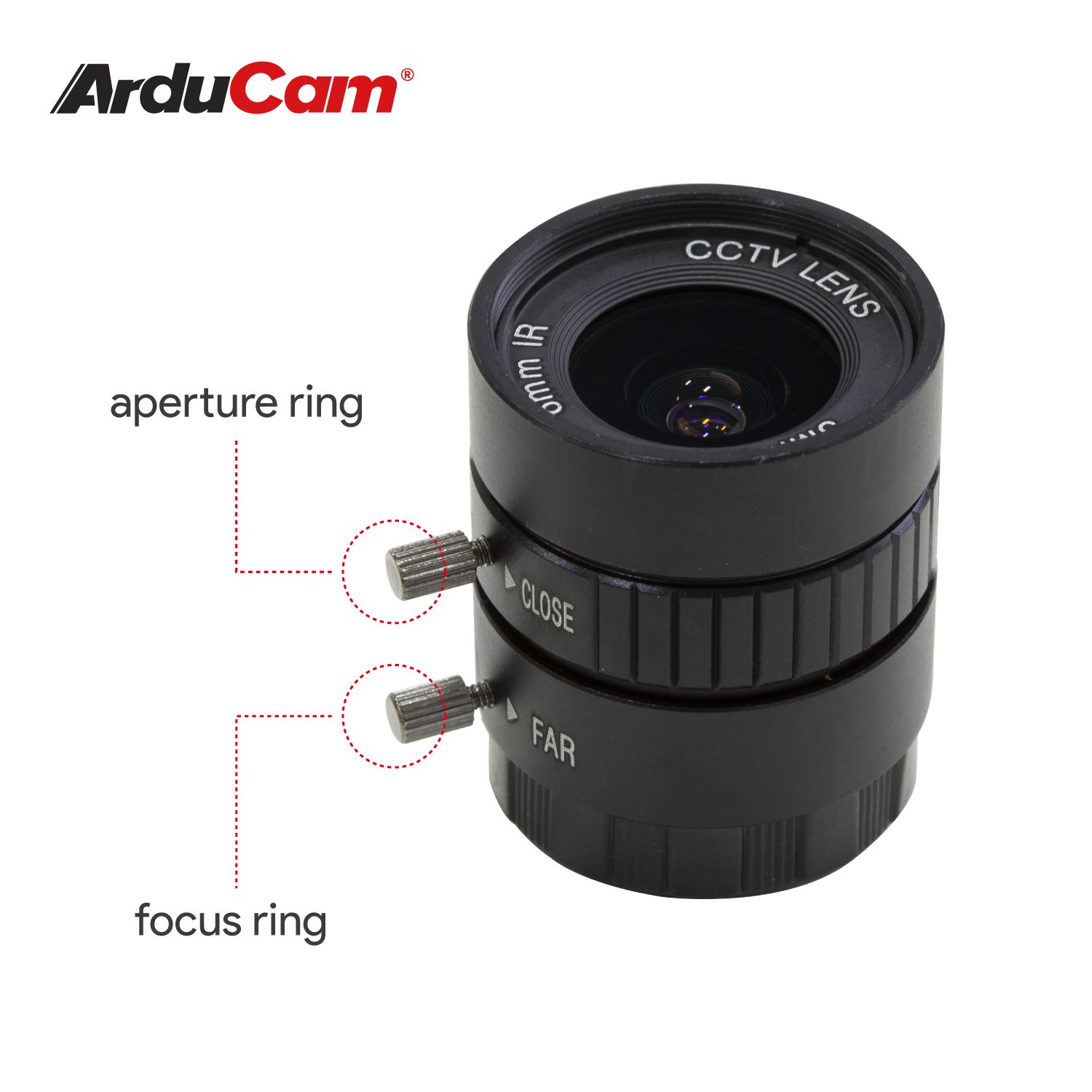

- Focal Length: 6mm

- Aperture (F): Max. F1.2

- Field of View (FOV): 65° (H)

- Mount: CS-Mount

- Back Focal Length: 7.53mm

- MOD: 0.2m

- Dimension: Φ30×31mm
