มิเตอร์ระบบไฟฟ้า AC หน้าจอแสดง 4 ค่า แรงดัน กระแส กำลังไฟฟ้า และพลังงานรวม รุ่น PZEM-021 วัดค่าในช่วง 0-20A และ 80-260V สามารถ กดเพื่อแสดงไฟ Backlight และ Reset ข้อมูลได้ ติดตั้งลง ฝากล่องคอนโทรล เจาะช่องแนวนอน ขนาด 85 x 45 มม. เหมาะสำหรับวัดไฟ AC ที่ใช้งานระบบไฟจากการไฟฟ้า ไม่แนะนำวัดไฟจากอินเวอร์เตอร์ที่ Hz ไม่คงที่

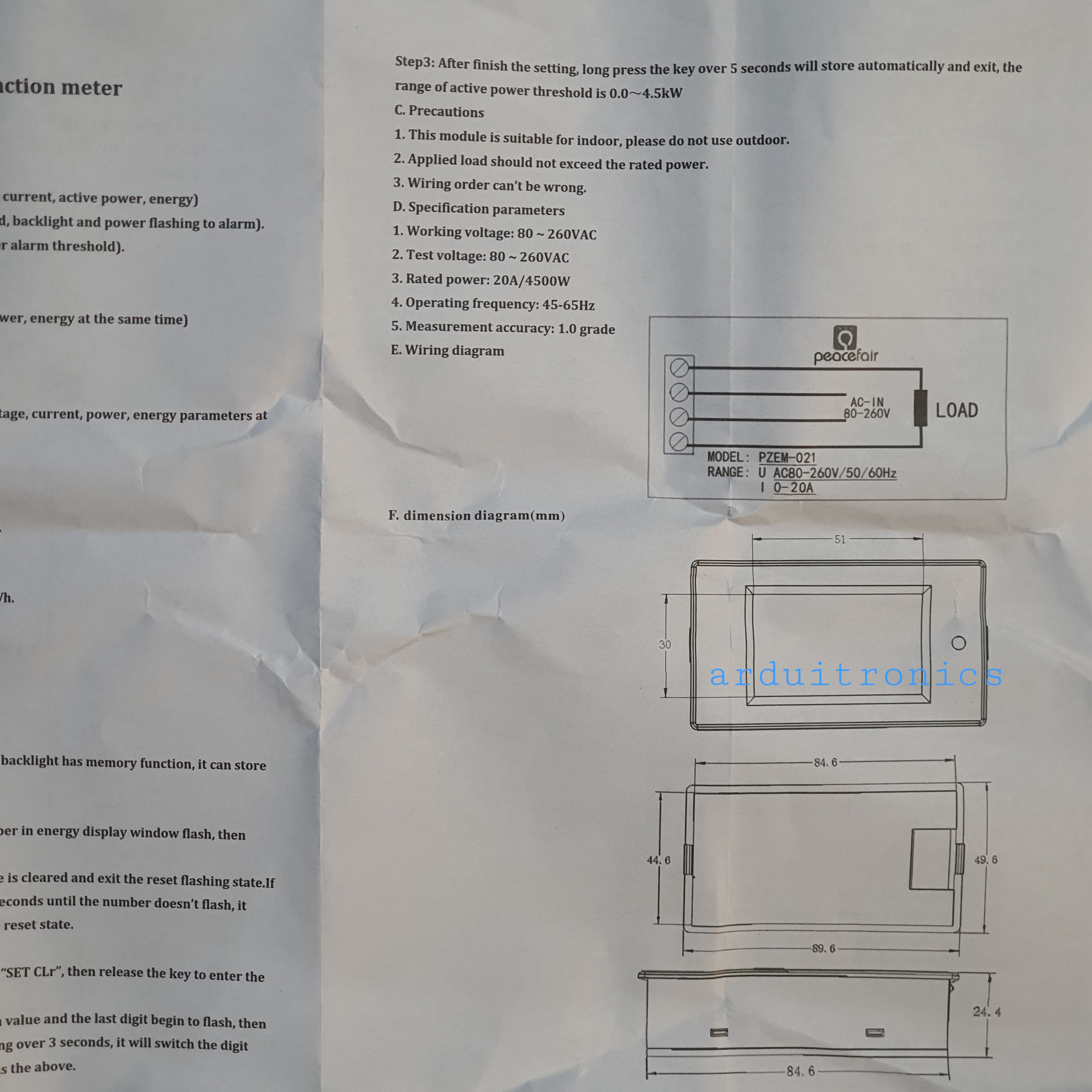

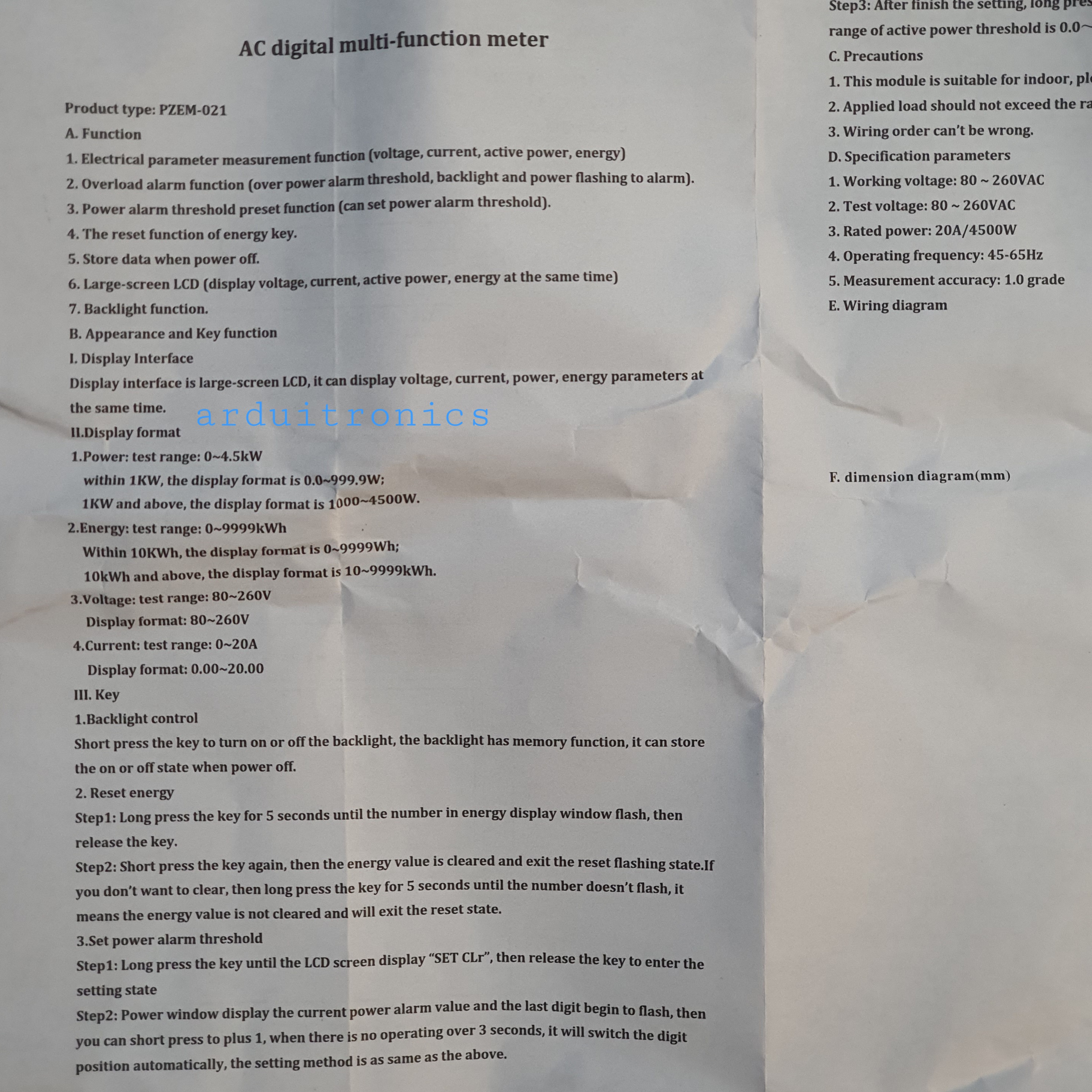

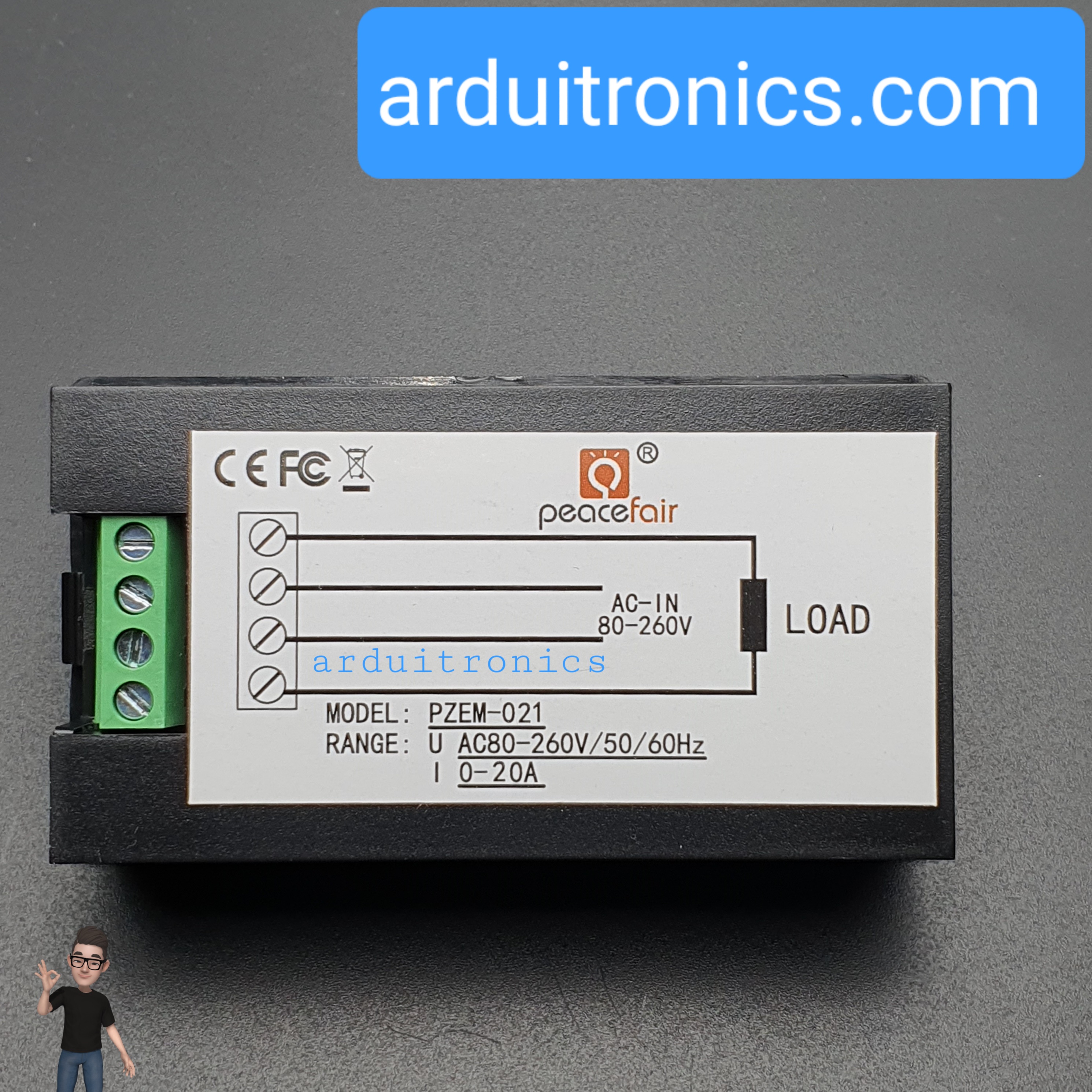

Function1. Electrical parameter measurement function (voltage, current, active power, energy)2. Overload alarm function (over power alarm threshold, backlight and power flashing to alarm).3. Power alarm threshold preset function (can set power alarm threshold).4. The reset function of energy key.5. Store data when power off.6. Large-screen LCD (display voltage, current, active power, energy at the same time)7. Backlight function.Display format1. Power: test range: 0~4.5kW. within 1KW, the display format is 0.0~999.9W. 1KW and above, the display format is 1000~4500W.2. Energy: test range: 0~9999kWh. Within 10KWh, the display format is 0~9999Wh. 10kWh and above, the display format is 10~9999kWh.3. Voltage: test range: 80~260V. Display format: 80~260V4. Current: test range: 0~20A. Display format: 0.00~20.00Precautions1. This module is suitable for indoor, please do not use outdoor.2. Applied load should not exceed the rated power3. Wiring order cannot be wrong.
