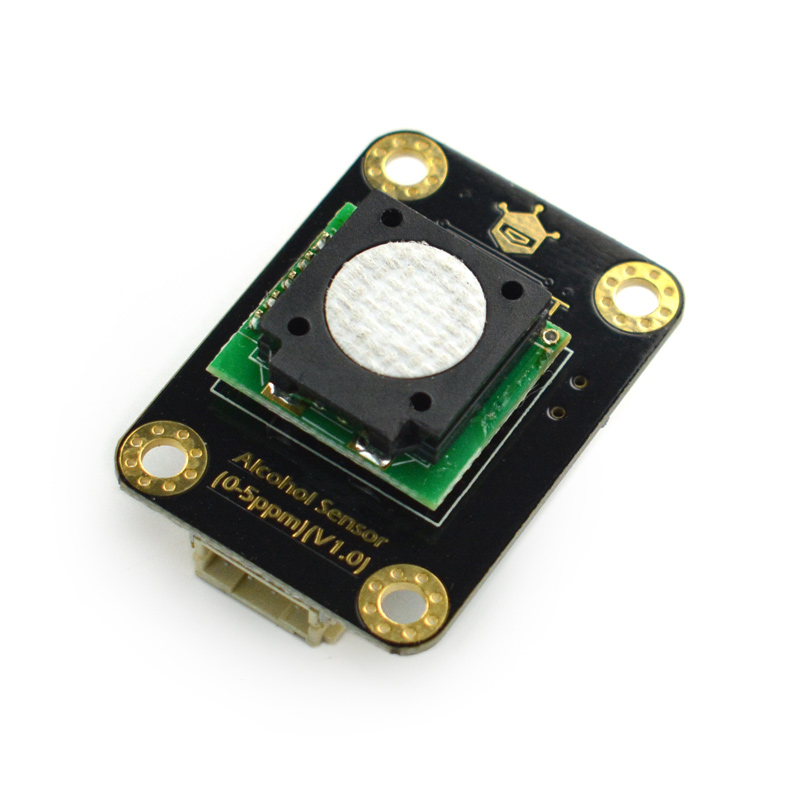

Gravity: Alcohol Sensor (0-5ppm) - ของแท้ DFRobot

• Product wiki
• More Documents

Shipping List:

• Alcohol Sensor module x1
• Gravity-4pin I2C Cable x1
• M3*10 Nylon post x4
• M3*5 Screws x8

Tutorial

Download the codes into the UNO board and open the serial monitor to check the results.

 NOTE:

• It is recommended to preheat for 24~48 hours when powering up the module for the first time.
• The alcohol concentration during preheat will become stable 3 minutes later so please ignore the data generated within that time.
• Organic solvents like essential balm(tiger balm) or Florida Water will damage the sensor, so please do not use them for testing.

Requirements

• Hardware
  • DFRduino UNO R3 (or similar) x 1
  • Alcohol sensor x1
  • Jumper wires

• Software
  • Arduino IDE
  • Download and install the DFRobot Alcohol Sensor library (About how to install the library?)

Read Sensor Data via I2C

Connection Diagram

Sample Code

• Connect the sensor with Arduino as shown above. A Gravity I/O expansion board will make it more easier.

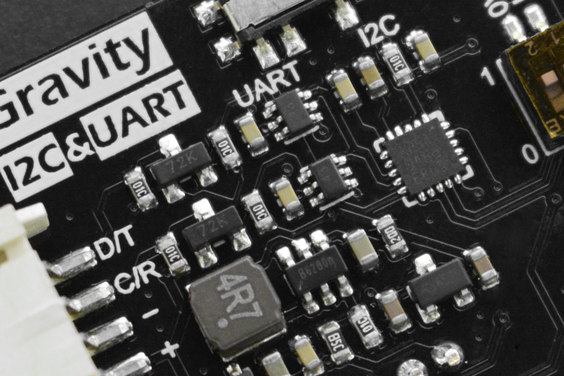

• Dial the select switch on the sensor to I2C.

• The default I2C address is 0x75, ADDRESS_3 in code. If you want to change the address, first configure the hardware I2C address via the DIP switch on the module, and then revise I2C address define ADDRESS_X in the sample code. The relation between DIP switch and I2C address is shown below:

  • ADDRESS_0：0x72, A0=0, A1=0
  • ADDRESS_1：0x73, A0=1, A1=0
  • ADDRESS_2：0x74, A0=0, A1=1
  • ADDRESS_3：0x75, A0=1, A1=1

• Download and install DFRobot Alcohol Sensor library

• Open Arduino IDE, upload the following codes into Arduino UNO.

• Open Arduino serial monitor, set baud rate to 9600, then check the result.

``c
/*!
* @file readAlcohol.ino
* @brief Reading Alcohol concentration, A concentration of one part per million (PPM).
* @n step: we must first determine the iic device address, will dial the code switch A0, A1 (ADDRESS_0 for [0 0]), (ADDRESS_1 for [1 0]), (ADDRESS_2 for [0 1]), (ADDRESS_3 for [1 1]).
*
* @copyright Copyright (c) 2010 DFRobot Co.Ltd (http://www.dfrobot.com)
* @licence The MIT License (MIT)
* @author ZhixinLiu(zhixin.liu@dfrobot.com)
* @version V1.0
* @date 2020-09-09
* @get from https://www.dfrobot.com
* @url https://github.com/dfrobot/DFRobot_Alcohol
*/

#include "DFRobot_Alcohol.h"

#define COLLECT_NUMBER 5 // collect number, the collection range is 1-100
#define ALCOHOL_I2C_ADDRESS ADDRESS_3
/* iic slave Address, The default is ADDRESS_3
ADDRESS_0 0x72 // i2c device address
ADDRESS_1 0x73
ADDRESS_2 0x74
ADDRESS_3 0x75
*/
DFRobot_Alcohol_I2C Alcohol(&Wire ,ALCOHOL_I2C_ADDRESS);

/*
#ifdef ESP_PLATFORM
// ESP32 user hardware uart
// RX io16
// TX io17
DFRobot_Alcohol_UART Alcohol(&Serial2 ,9600);
#else
// Arduino user software uart
// RX io10
// TX io11
SoftwareSerial mySerial(10 ,11);
DFRobot_Alcohol_UART Alcohol(&mySerial ,9600);
#endif
*/

void setup()
{
Serial.begin(9600);
while(!Alcohol.begin())
{
Serial.println("NO Deivces !");
delay(1000);
}
Serial.println("Device connected successfully !");

/* Set iic mode, active mode or passive mode
MEASURE_MODE_AUTOMATIC // active mode
MEASURE_MODE_PASSIVE // passive mode
*/
Alcohol.SetModes(MEASURE_MODE_AUTOMATIC);
}


void loop()
{
/* Smooth data collection
COLLECT_NUMBER // The collection range is 1-100
*/
float alcoholConcentration = Alcohol.ReadAlcoholData(COLLECT_NUMBER);
if(alcoholConcentration == ERROR)
{
Serial.println("Please check the connection !");
}else{
Serial.print("Alcohol concentration is ");
Serial.print(alcoholConcentration);
Serial.println(" PPM.");
}
delay(1000);
}

Expected Result 1

Open the serial monitor, preheat 3 minutes and check the final data.

Note:

1. There may be data drift appearing.
2. Electrochemical type sensors need to be preheated for 24~48 hours when powering up for the first time.

Read Sensor Data via UART

Connection Diagram

Sample Code

• Connect the sensor with Arduino as shown above. A Gravity I/O expansion board will make it more easier.

• Dial the select switch on the sensor to UART.

• Download and install DFRobot Alcohol Sensor library

• Open Arduino IDE, upload the following codes into Arduino UNO.

• Open Arduino serial monitor, set baud rate to 9600, then check the result.

/*!
* @file readAlcohol.ino
* @brief Reading Alcohol concentration, A concentration of one part per million (PPM).
* @n step: we must first determine the iic device address, will dial the code switch A0, A1 (ADDRESS_0 for [0 0]), (ADDRESS_1 for [1 0]), (ADDRESS_2 for [0 1]), (ADDRESS_3 for [1 1]).
*
* @copyright Copyright (c) 2010 DFRobot Co.Ltd (http://www.dfrobot.com)
* @licence The MIT License (MIT)
* @author ZhixinLiu(zhixin.liu@dfrobot.com)
* @version V1.0
* @date 2020-09-09
* @get from https://www.dfrobot.com
* @url https://github.com/dfrobot/DFRobot_Alcohol
*/

#include "DFRobot_Alcohol.h"

#define COLLECT_NUMBER 5 // collect number, the collection range is 1-100
#define ALCOHOL_I2C_ADDRESS ADDRESS_3
/* iic slave Address, The default is ADDRESS_3
ADDRESS_0 0x72 // i2c device address
ADDRESS_1 0x73
ADDRESS_2 0x74
ADDRESS_3 0x75
*/
//DFRobot_Alcohol_I2C Alcohol(&Wire ,ALCOHOL_I2C_ADDRESS);

#ifdef ESP_PLATFORM
// ESP32 user hardware uart
// RX io16
// TX io17
DFRobot_Alcohol_UART Alcohol(&Serial2 ,9600);
#else
// Arduino user software uart
// RX io10
// TX io11
SoftwareSerial mySerial(10 ,11);
DFRobot_Alcohol_UART Alcohol(&mySerial ,9600);
#endif

void setup()
{
Serial.begin(9600);
while(!Alcohol.begin())
{
Serial.println("NO Deivces !");
delay(1000);
}
Serial.println("Device connected successfully !");

/* Set iic mode, active mode or passive mode
MEASURE_MODE_AUTOMATIC // active mode
MEASURE_MODE_PASSIVE // passive mode
*/
Alcohol.SetModes(MEASURE_MODE_AUTOMATIC);
}


void loop()
{
/* Smooth data collection
COLLECT_NUMBER // The collection range is 1-100
*/
float alcoholConcentration = Alcohol.ReadAlcoholData(COLLECT_NUMBER);
if(alcoholConcentration == ERROR)
{
Serial.println("Please check the connection !");
}else{
Serial.print("Alcohol concentration is ");
Serial.print(alcoholConcentration);
Serial.println(" PPM.");
}
delay(1000);
}

Expected Result 1

Open the serial monitor, preheat 3 minutes and check the final data.

Note:

1. There may be data drift appearing.
2. Electrochemical type sensors need to be preheated for 24~48 hours when powering up for the first time.

Data Reading Mode

There two data reading modes for this Alcohol Sensor: aoto-upload and passive reply. It is default to auto-upload, and users can alter it in Codes.

Mode Select Functions

Revise the parameter in the parentheses to adjust the data sending mode.

“MEASURE_MODE_AUTOMATIC” is auto-upload mode. The sensor automatically uploads parameter every 1 second in this mode.

”MEASURE_MODE_PASSIVE“ is passive reply mode. The sensor feedbacks parameter only when the function is called in this mode.

Alcohol.SetModes(MEASURE_MODE_AUTOMATIC);
/*
MEASURE_MODE_AUTOMATIC // Auto-upload
MEASURE_MODE_PASSIVE // Passive Reply
*/

Data Reading Functions

The data of alcohol sensor can be read by the function “ReadAlcoholData()”. Before outputing, this function will take the average of the data in data collect array “COLLECT_NUMBER”. The default size of that array is 5, and it can be adjusted within 1~100 in the code “#define COLLET_NUMBER 5".

#define COLLECT_NUMBER 5

Alcohol.ReadAlcoholData(COLLECT_NUMBER);
/*
COLLECT_NUMBER // The collection range is 1-100
*/

Communication Protocol

By UART communication protocol, the SEN0376 Alcohol sensor can be connected to any controllers with UART for data reading and sensor configuration.

Parameter Setup

Communication Commands

The sensor has two communication modes: auto-upload and passive reply. The default one is auto-upload, and the sensor sends the alcohol concentration every 1 second in this mode.

Data format in auto-upload mode：

Note：Gas Concentration(PPB)=Gas Concentration High*256+Gas Concentration Low. When converted in PPM: PPM= PPB/1000.

In passive reply mode, the commands to re-switch to auto-upload mode are as follows:

The commands to switch to passive-reply mode and read concentration in this mode:

Switch to passive-reply mode:

Read gas concentration:

Data format in passive-reply mode:

Gas concentration(PPB)=Gas concetration High*256+Gas concentration Low

Checksum Caculation

Checksum= （Reverse（Byte1 + Byte2 + ··· ··· +Byte7） + 1

Reference Sample Program:

/******************************************************************
* Name: unsigned char FucCheckSum(uchar *i,ucharln)
* Function:checksum（Reverse the sum of 1\2\3\4\5\6\7 of sending and receiveing, then plus 1）
* Description:Sum up the elements from the first to the second to last in the array, reverse the sum and then plus 1 (There should be more than 2 elements).
******************************************************************/
unsigned char FucCheckSum(unsigned char *i,unsigned char ln)
{
unsigned char j,tempq=0;
i+=1;
for(j=0;j<(ln-2);j++)
{
tempq+=*i;
i++;
}
tempq=(~tempq)+1;
return(tempq);
}

Note

Cross Interference Characteristics

Due to the electrochemical principle, the sensor performance may be influenced by other gases, shown as below:

Operating Principles

• Do not contact the module with substances like silica gel, adhesives, coatings, chemicals, oil and high concentration gas.
• The sensor cannot be completely packaged with resin material or immersed in an oxygen free environment, otherwise its performance will be affected.
• The module cannot be used in environment with corrosive gas for a long time since it will cause damage to the sensor.
• Excessive impact and vibration should not be applied to the sensor.
• Preheat the sensor for 24-48 hours when powering up for the first time to make it perform stably.
• Organic solvents will affect the accuracy of the sensor, such as air freshener, cosmetics, Florida Water, etc.
• Do not install the module in environment with Strong convective air.
• Do not place the product in high concentration organic gas for a long time since it will lead to sensor zero drift and slow recovery.
• It is forbidden to use hot melt adhesive or sealant with curing temperature higher than 80℃ to fix the module.
• Do not place and use the sensor in alkaline gas of high concentration for a long time
