Rover Robot Chassis

Introduction

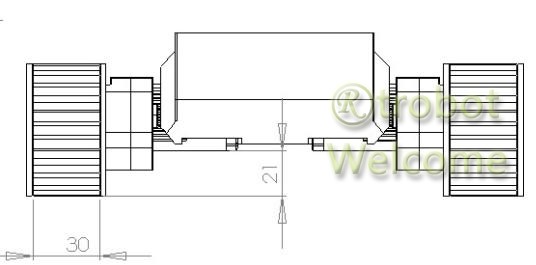

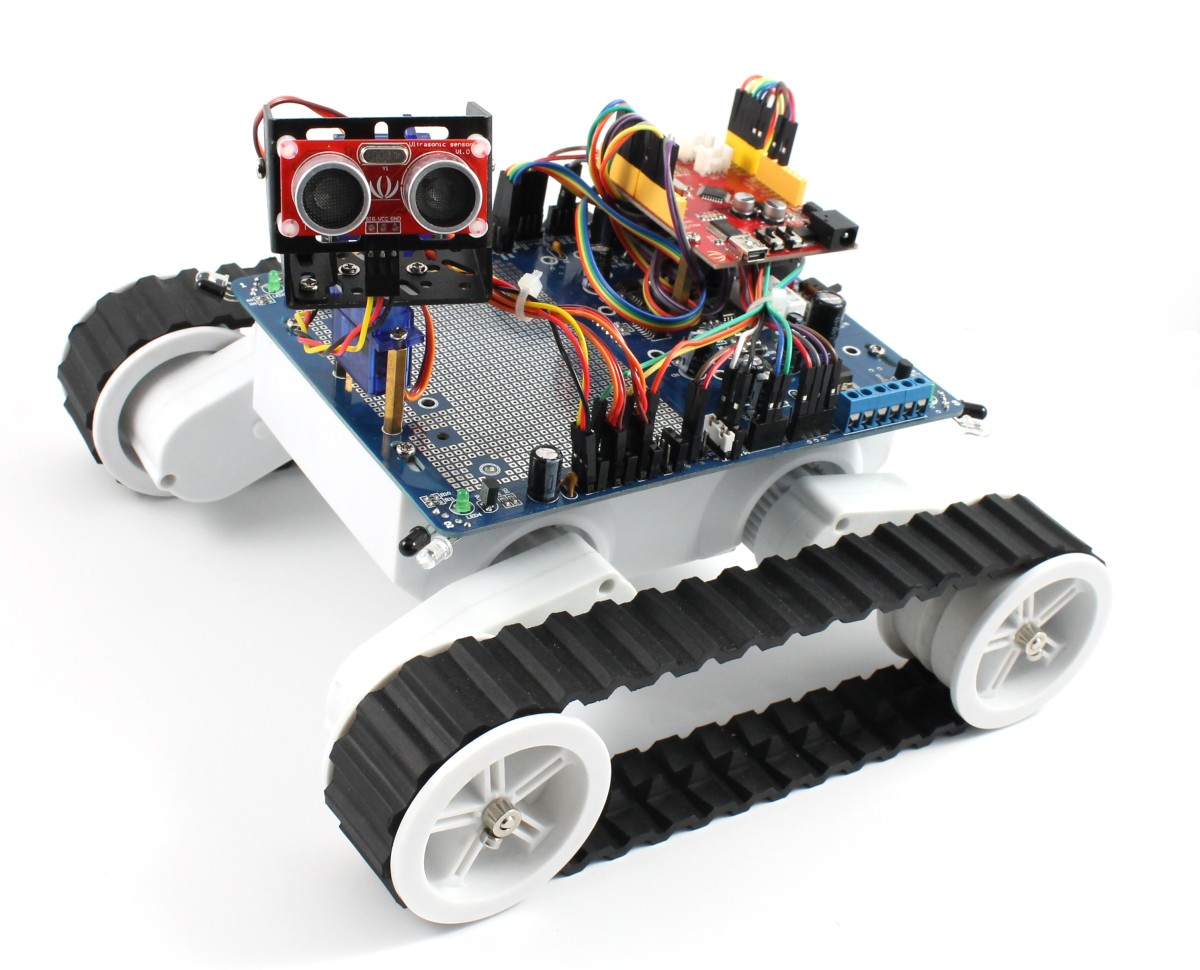

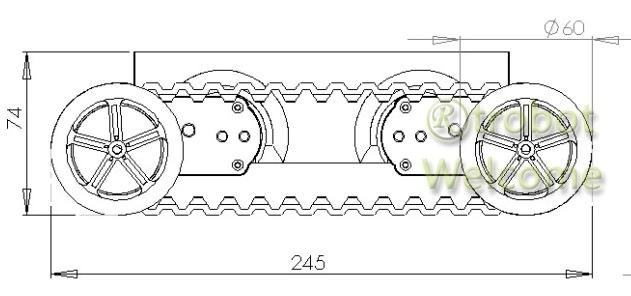

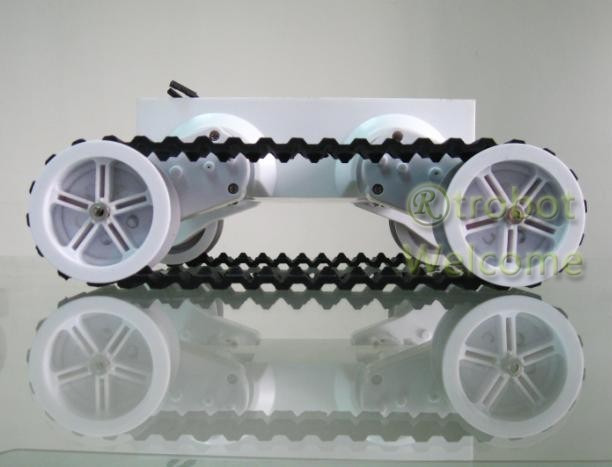

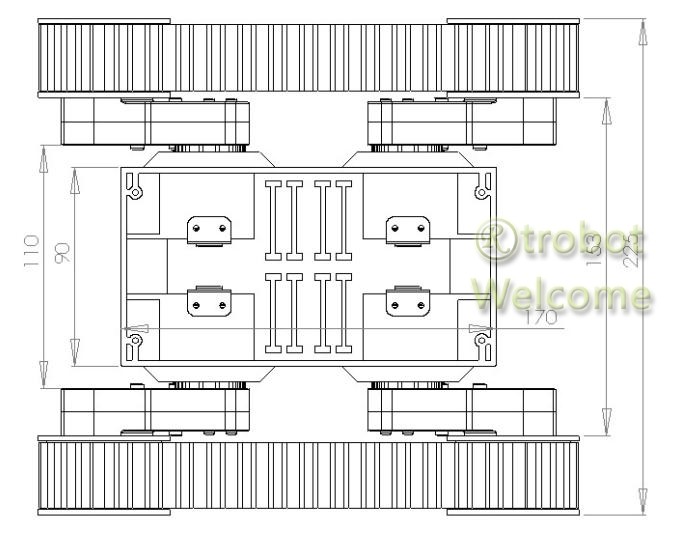

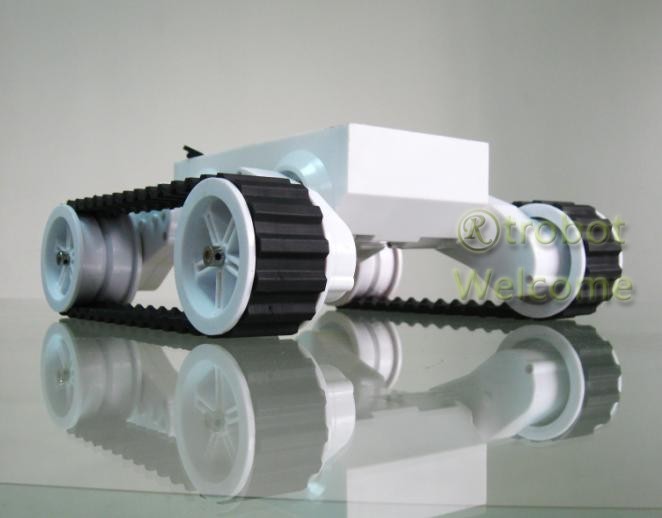

Rover 5 is a new breed of tracked robot chassis designed specifically for students and hobbyist. Unlike conventional tracked chassis’s the clearance can be adjusted by rotating the gearboxes in 5-degree increments. “Stretchy” rubber treads maintain tension as the clearance is raised.

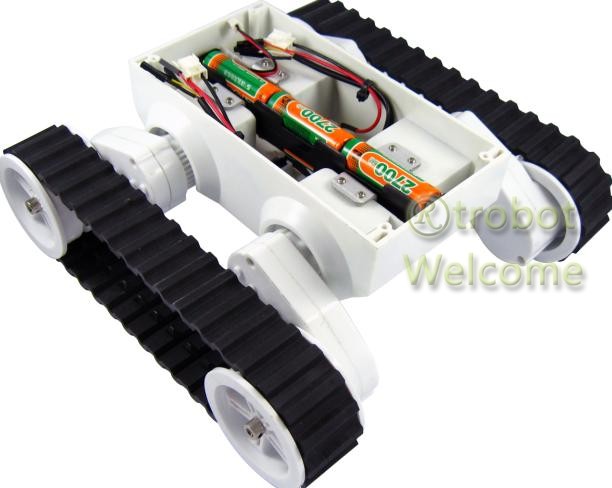

Inside of the chassis are 4 noise suppression coils at the bottom and a battery holder that accepts 6x AA batteries (not included). It is recommended to use NiMh batteries as they last longer and have a higher current output than Alkaline batteries.

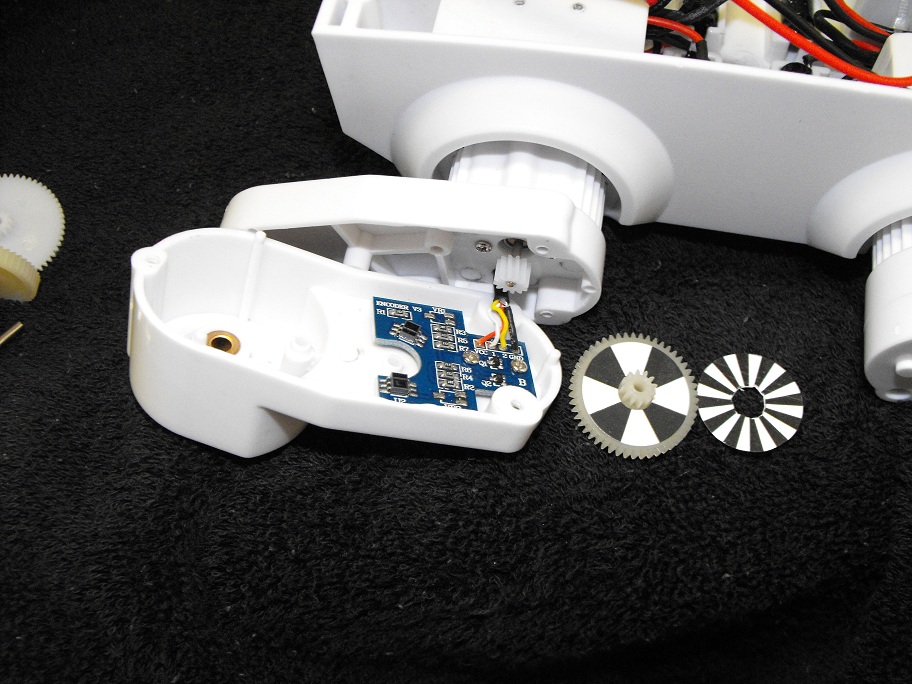

Each gearbox has an 87:1 ratio. The chassis can be upgraded to include four motors and encoders making it ideal for mecanum wheels.

Specifications

• Motor rated voltage: 7.2V
• Motor stall current: 2.5A
• Output shaft stall torque: 10Kg/cm
• Gearbox ratio: 86.8:1
• Encoder type: Quadrature
• Encoder resolution: 1000 state changes per 3 wheel rotations
• Speed: 1Km/hr
• Four motors
• Four encoders
• Encoder interface:
  • Red = +5V
  • Black = 0V
  • Yellow and White = Quadrature encoder outputs
