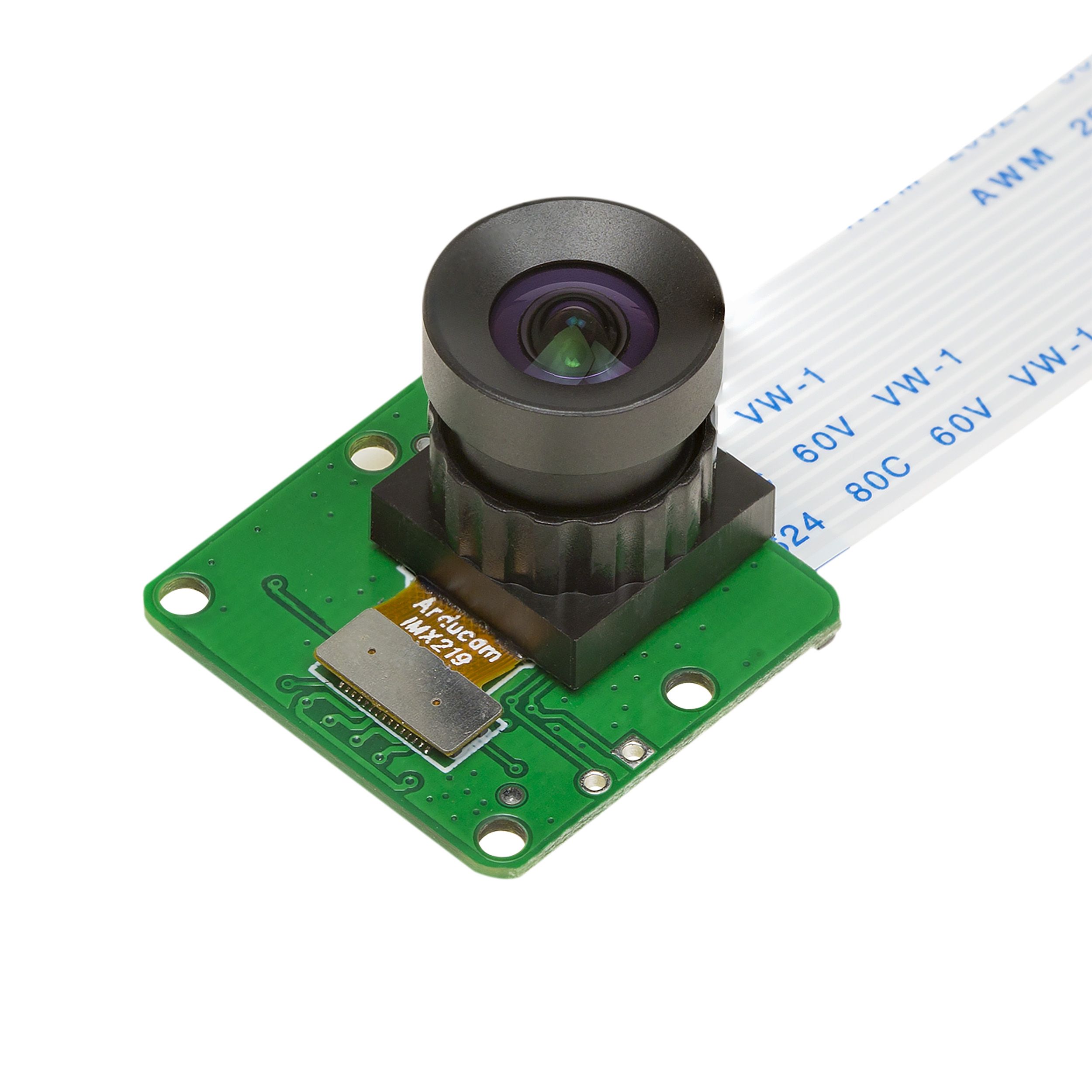

Arducam IMX219 Low Distortion IR Sensitive (NoIR) M12 Mount Camera Module for NVIDIA Jetson Nano, Raspberry Pi Compute Module 4, 3+, 3

Description:

This Arducam IMX219 camera module is mainly designed for NVIDIA® Jetson Nano and also can be used on compute module and other hardware like ARM, DSP, FPGA, etc.


The highlight of this camera is its low distortion (<3%) of view.

Features:

• Sony 8MP IMX219 Sensor
• Optical Format: 1/4 inch
• Frame Rate: 30fps@8MP, 60fps@1080p, 180fps@720p
• Data Format: RAW8/RAW10
• EFL: 2.8mm
• F.NO: 2.8
• View Angle: 75 Deg. (Horizontal)
• Interface: MIPI CSI-2 2-lane
• IR Sensitivity: IR Sensitive, without IR Filter

Application:

• Unmanned Aerial Vehicles (UAVs)
• Building Drones
• Autonomous Robotic Systems
• Mobile Medical Imaging
• Intelligent Video Analytics (IVA)

Package Includes:

• 1pcs Arducam IMX219 Low Distortion IR Sensitive (NoIR) Camera Module
• 1pcs 1.0mm pitch 15cm 15pin FPC cable

Note:

• The camera can be used on compute module CM4, CM3, CM3+, NOT compatible with Raspberry Pi 4B/3B/B+.

Additional Resources:

• Sensor Datasheet – Sony IMX219
• Arducam Documentation – Arducam Cameras for Jetson Nano
• Video – Arducam 8MP IMX219 Low Distortion NVIDIA Camera ( NoIR )
• Blog – Arducam 8MP IMX219 Low Distortion NVIDIA Camera ( NoIR )
• Lens Options – Arducam M12 Mount Lens Kit, Arducam Low Distortion M12 Mount Lens Kit
