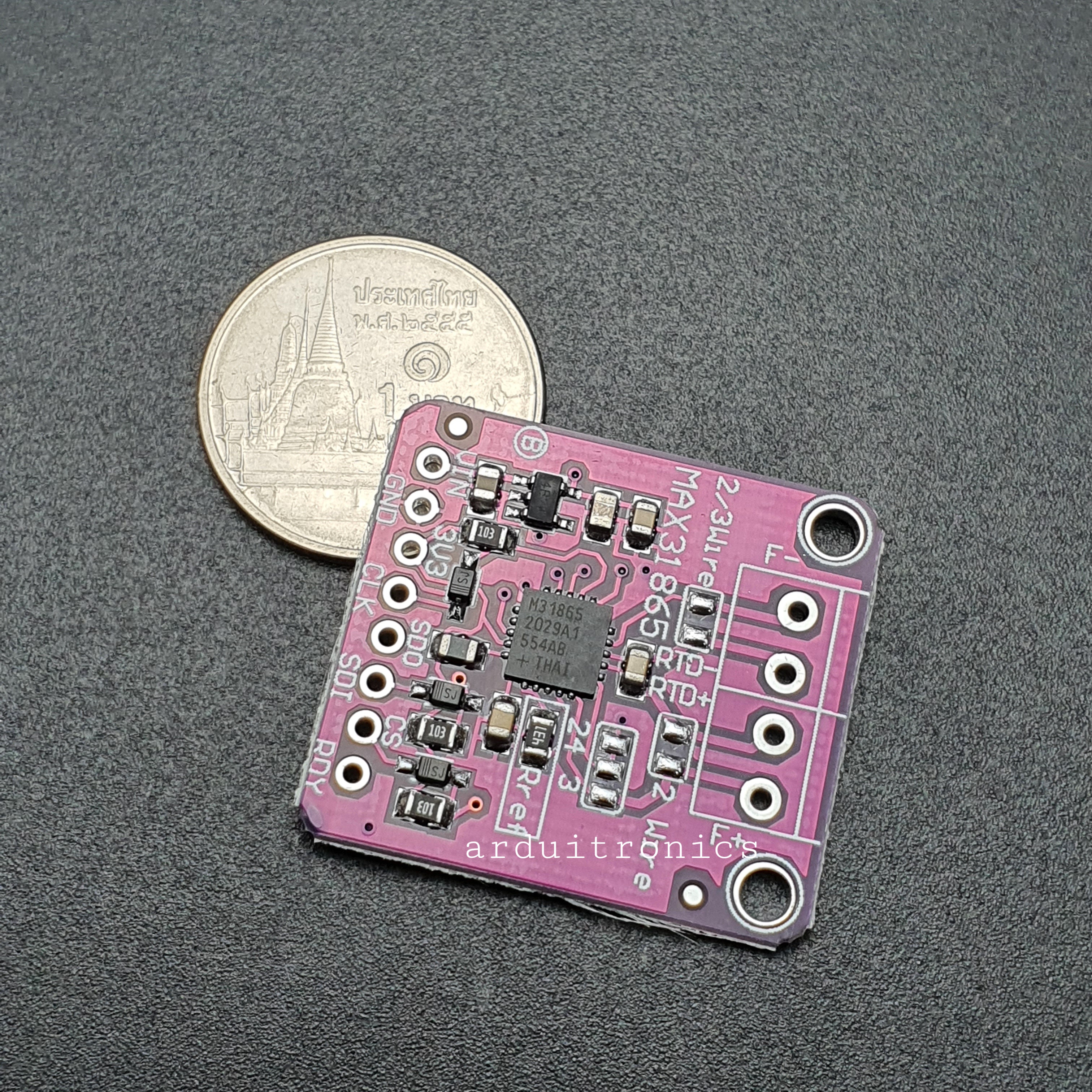

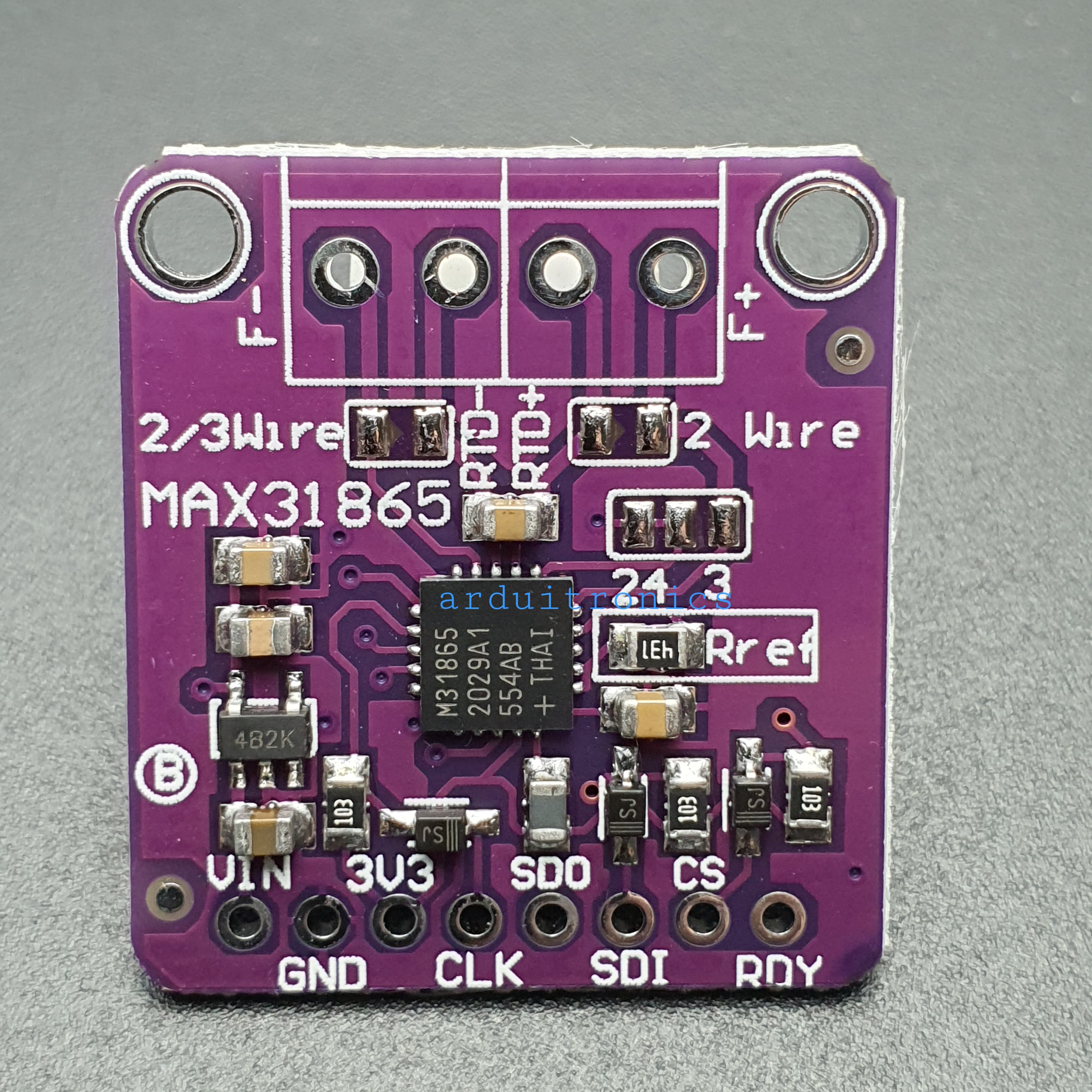

MAX31865 PT100/PT1000 RTD-to-Digital Converter Board Temperature Thermocouple Sensor Amplifier Module 3.3V/5V

MAX31865 PT100/PT1000 RTD-to-Digital Converter Board Temperature Thermocouple Sensor Amplifier Module 3.3V/5V
MAX31865 PT100/PT1000 RTD-to-Digital Converter Board Temperature Thermocouple Sensor Amplifier Module 3.3V/5VMAX31865 PT100/PT1000 RTD-to-Digital Converter Board Temperature Thermocouple Sensor Amplifier Module 3.3V/5VMAX31865 PT100/PT1000 RTD-to-Digital Converter Board Temperature Thermocouple Sensor Amplifier Module 3.3V/5VMAX31865 PT100/PT1000 RTD-to-Digital Converter Board Temperature Thermocouple Sensor Amplifier Module 3.3V/5V
รหัสสินค้า AS00410
หมวดหมู่ วัดสภาพแวดล้อมและแก๊ส Environmental / Gas
ราคา 680.00 บาท
สถานะสินค้า พร้อมส่ง
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

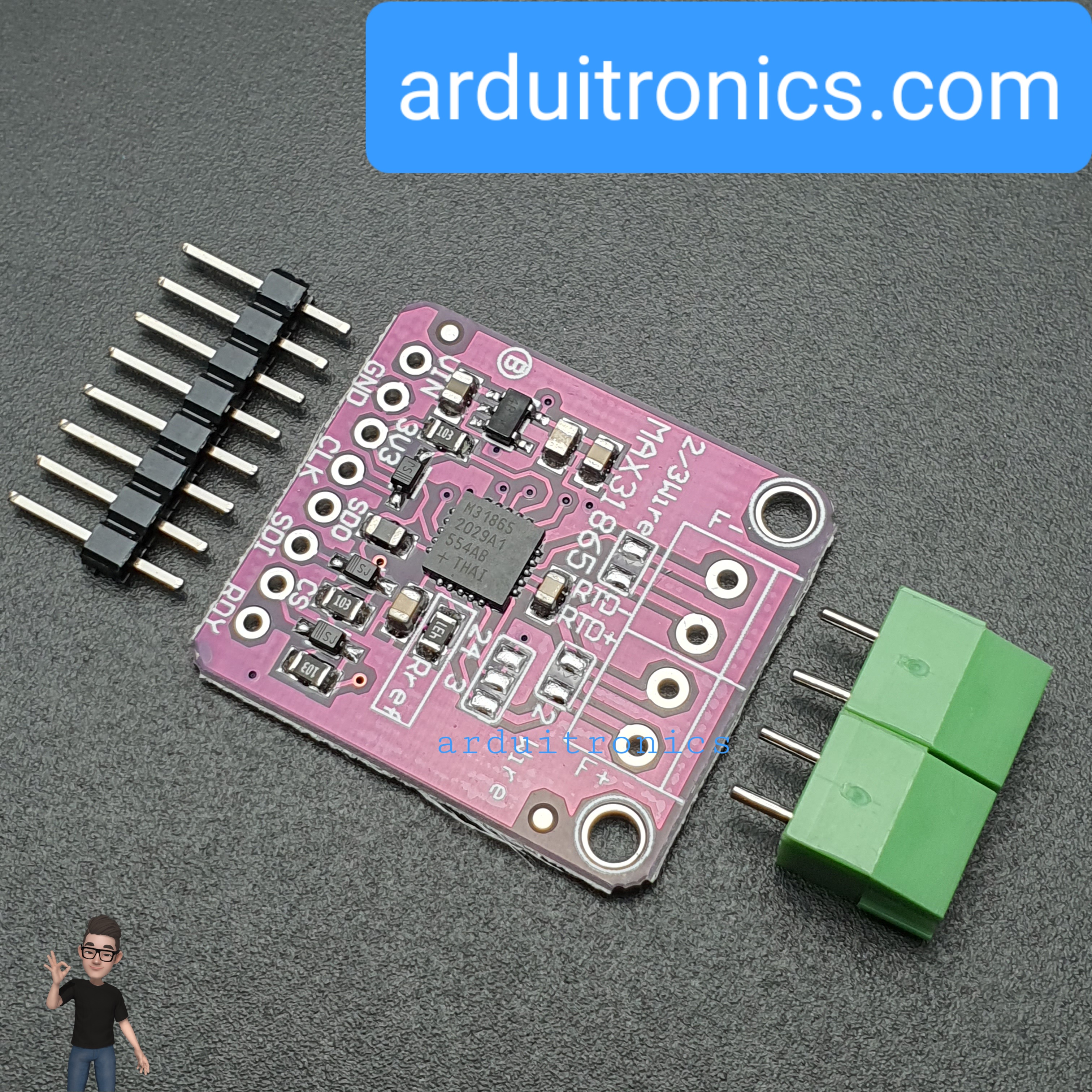

หมายเหตุ: สินค้ายังไม่บัคกรี pin headers มาให้

MAX31865 PT100/PT1000 RTD-to-Digital Converter Board Temperature Thermocouple Sensor Amplifier Module 3.3V/5V

ดาวน์โหลด Library และ Code
ตัวอย่างการใช้งาน

Open up File->Examples->Adafruit_MAX31865->max31865 and upload to your Arduino wired up to the sensor. Adjust the max.begin(MAX31865_3WIRE) line if necessary.


Upload to your Arduino and open up the serial console at 115200 baud to see a print out of the sensors data. The MAX31865 doesn't actually return the resistance it measures. Instead it returns the ratio between the resistance measured and the Rref reference resistor.

  • For the PT100 version of the breakout, this is a 430 ohm 0.1% resistor (marking is 4300 !!!)
  • For the PT1000 version of the breakout, this is a 4300 ohm 0.1% resistor (marking is 4301 !!!)

You can use that ratio to calculate the resistance and then determine the temperature


For precision temperature sensing, nothing beats a Platinum RTD. Resistance temperature detectors (RTDs) are temperature sensors that contain a resistor that changes resistance value as its temperature changes, basically a kind of thermistor. In this sensor, the resistor is actually a small strip of Platinum with a resistance of 100 or 1000 ohms at 0°C, thus the name PT100/PT1000. Compared to most NTC/PTC thermistors, the PT type of RTD is much more stable and precise (but also more expensive) PT's have been used for many years to measure temperature in laboratory and industrial processes, and have developed a reputation for accuracy (better than thermocouples), repeatability, and stability.
