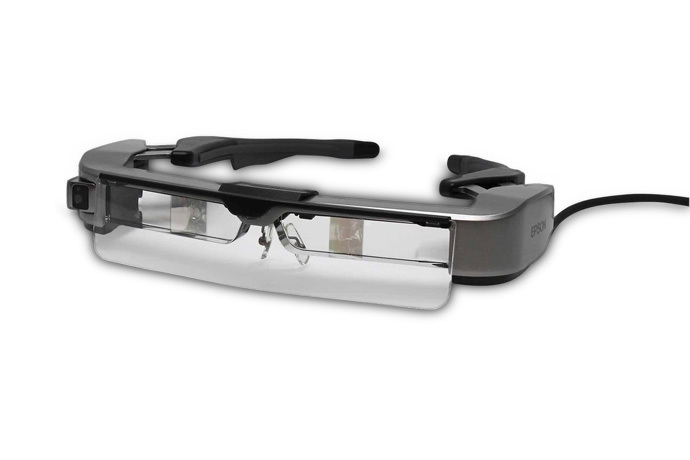

MOVERIO Smart Glasses BT-35E (แท้จาก EPSON, Japan)

Seamlessly blend digital content into the outside world with the Moverio BT-35E smart glasses, featuring an interface unit with HDMI® and USB Type-C ports to connect to popular output devices. It’s like having a wearable second screen, while still seeing the surrounding environment via the transparent HD display. Offering an easy out-of-box experience, the BT-35E connects to virtually any device -- no need for special software. And, its interface does not require an external power source when used with a compatible USB Type-C output device. Ideal for use with commercial drones and third-party camera systems, the BT-35E easily accommodates different head sizes.

• Seamlessly blend digital content into the outside world — binocular, highly transparent Si-OLED HD wearable display that gives users a second-screen experience
• Compatible with popular devices — works with HDMI 1.4 and USB Type-C output devices
• Simple, out-of-the-box setup — intuitive interface unit; easy plug-and-play operation
• No external power source required (USB Type-C) — interface also supports external power packs, via micro USB port
• Innovative design — flexible, hinge-based headset accommodates a wide range of head sizes; comfortable fit; durable enough for daily use

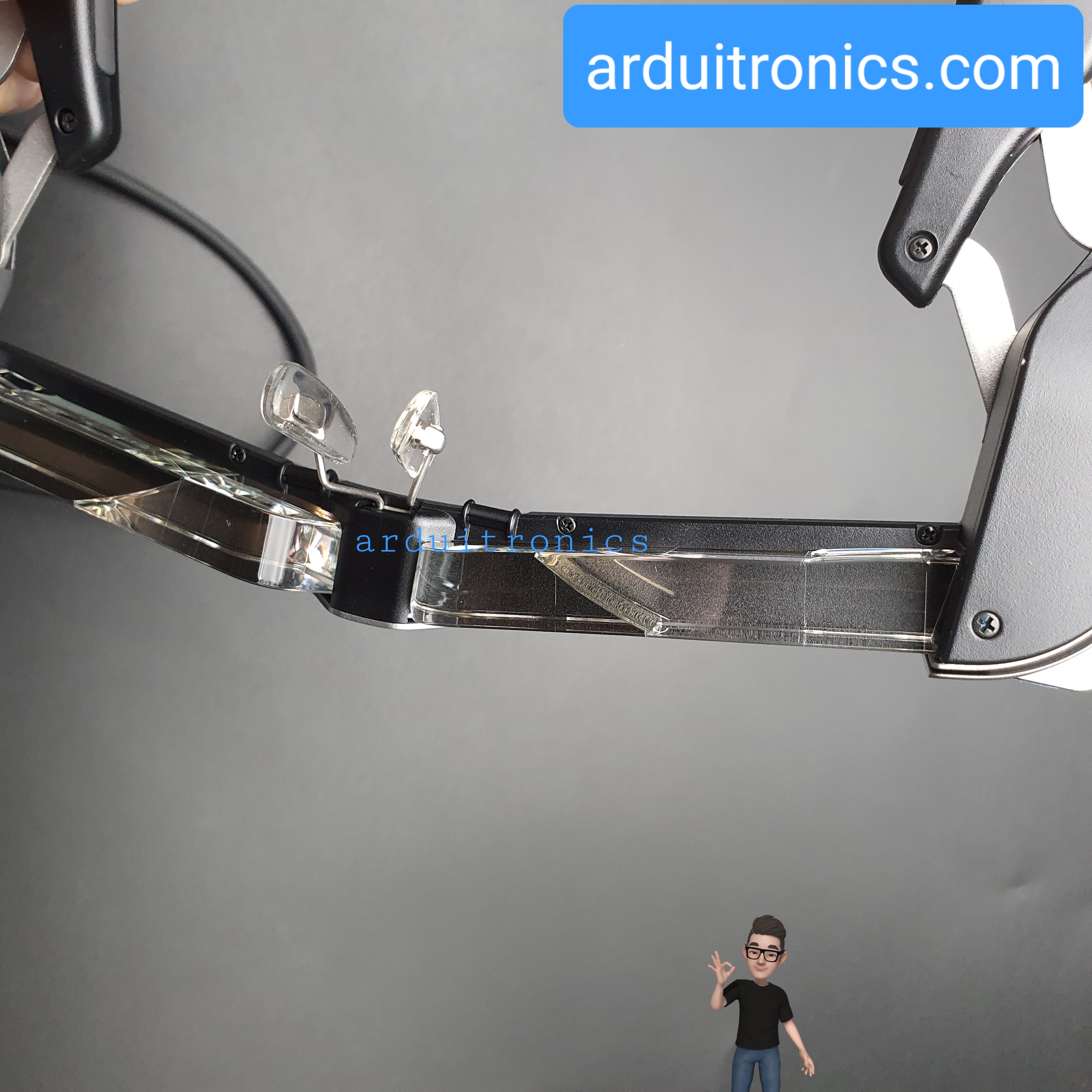

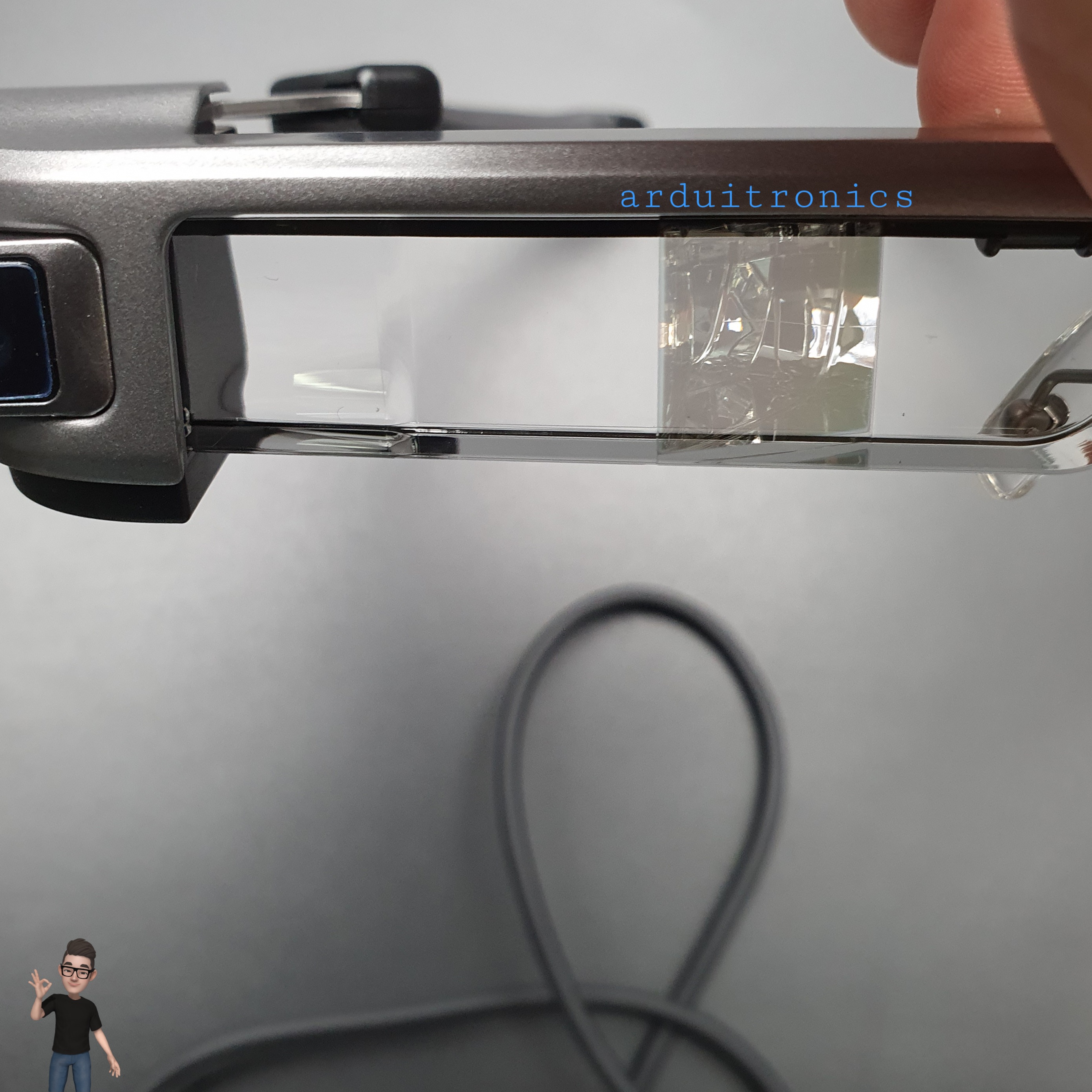

• Dual (binocular) displays — each lens has its own display, in your field of vision, projected into your surroundings; ideal for stereoscopic 3D content
• ANSI certified protective shield — ANSI Z87.1 safety-glass compliant
• Supports HDCP 1.4 for copyright protection — enables access to protected content

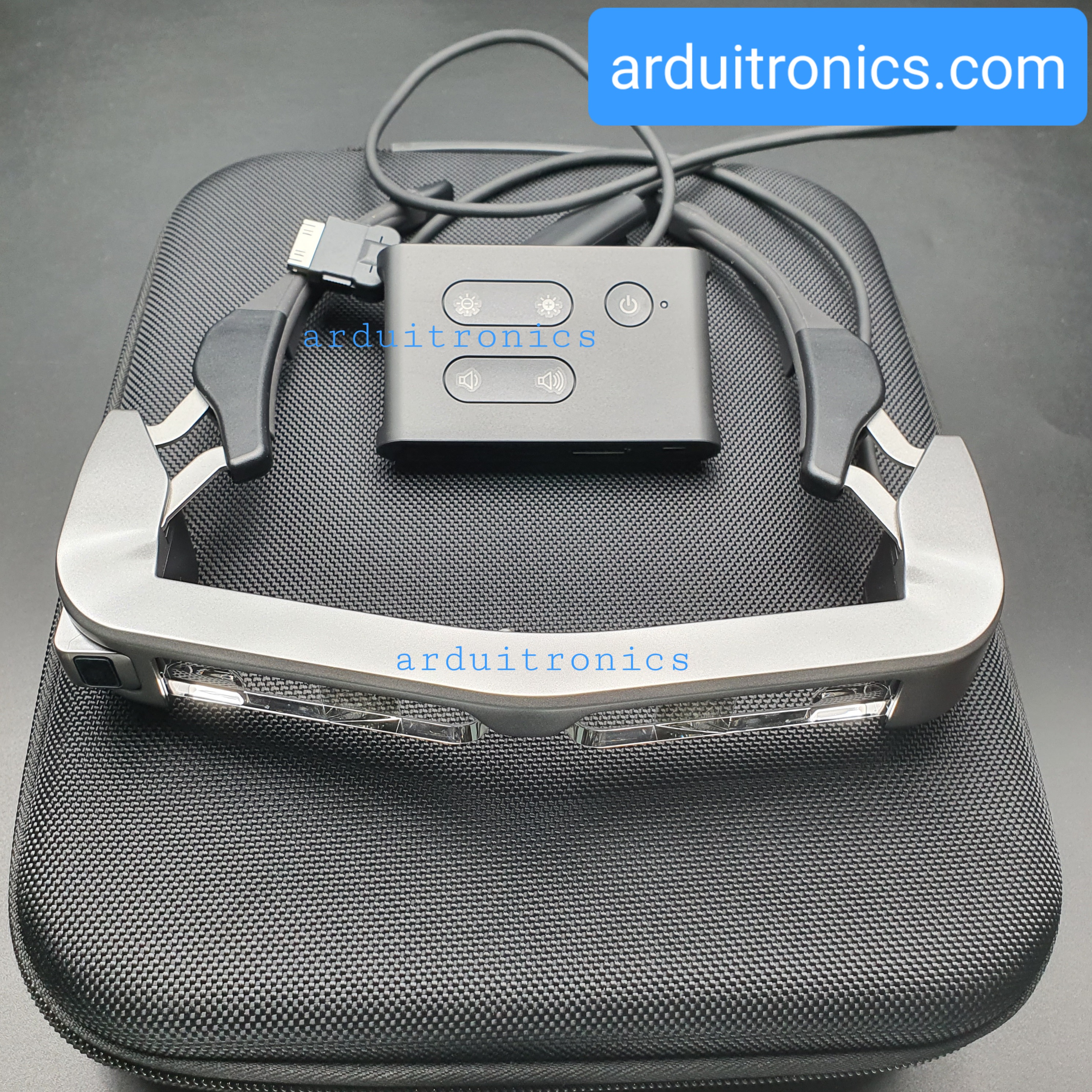

What's In The Box:

• Moverio BT-35E Headset
• Interface Unit
• AC Adapter (with attachment plug)
• USB Cable (for power supply only)
• ANSI Shields (clear and shaded)
• Belt Clip
• Cable Retainer
• Screw
• Warranty
• Semi-hard Carrying Case

Wearable Device Details:

---

Weight Headset: Headset: Approx. 119 g (without shade)
Dimensions Headset: 193.5 x 176 x 30 mm (without shade)

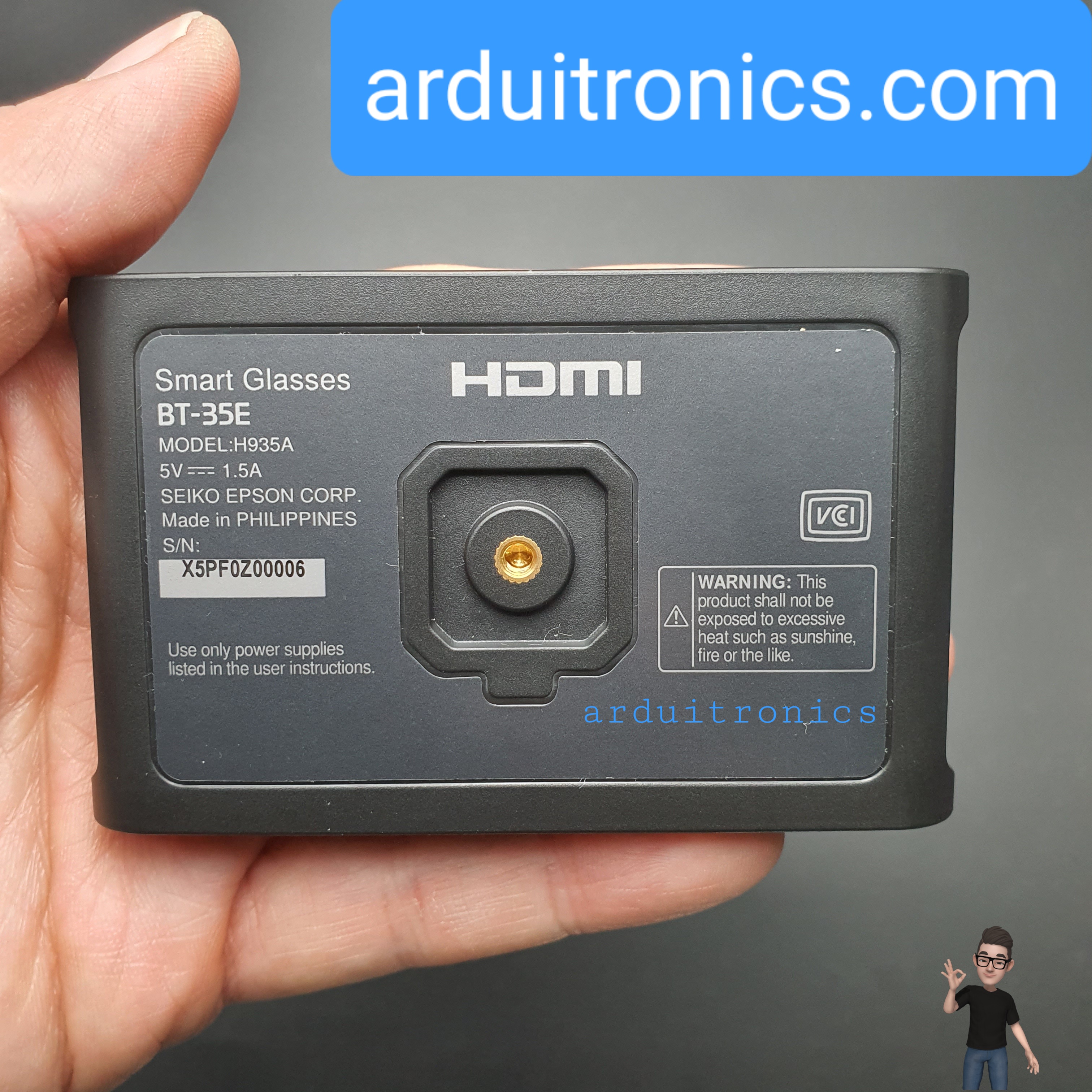

Dimensions Controller: Interface Unit 85 x 52 x 15 mm
Weight Controller: Interface Unit: Approx. 45 g (without belt clip and cable retainer)Language: EnglishManual: EN/JA/FR/ES/PT/DE/IT/NL/ZHT/KO/GB/DA/FI/NO/SV/CS/ PL/HU/TR/RU/AR/HE/KK

Optical:

---

Display Type: Si-OLED (Silicon - Organic Light-Emitting Diode)
Display Size: 0.43" inch wide panel (16:9)
Pixel Number: 921,600 pixels (1280x720xRGB)
Refresh Rate: 30 Hz
Field of View: approx. 23 ° (diagonal)
Screen Size - Projected Distance: 40" at 2.5 m - 320" at 20 m
Color Reproduction: 24 bit-color (16.77 million colors)

Sensors:

---

Camera: 5 Mega pixel
Compass: Yes
Gyroscope: Yes
Accelerometer: Yes

General:

---

Temperature: 41°F to 95°F
Humidity: 20% to 80%

MOVERIO BT-35E Main Features

MOVERIO BT-35E Main Specification

Model Number		BT-35E
Displays
Display Device Type		Si-OLED (Silicon - Organic Light-Emitting Diode)
Display Size		0.43 inch wide panel (16:9)
Pixel Number		921,600 pixels (1280x720xRGB)
Field of View		approx. 23° (diagonal)
Screen Size (Projected Distance)		40 inch at 2.5 m - 320 inch at 20 m
Color Reproduction		24 bit-color (16.77 million colors)
Sensors
Compass		Yes
Gyroscope		Yes
Accelerometer		Yes
Ambient Light Sensor		Yes
Data Transfer method	USB protocol	USB 2.0
	Device Class for sensor	HID sensor
Camera
Pixel number		5M pixel
Resolution and flame rate		2592×1944 (5M) @15Hz, 1920x1080@30Hz/15Hz, 1280x720@60Hz/30Hz/15Hz, 640x480@60Hz
Focus Type		Pan focus
Focal length		60cm to ∞
Field of View	Horizontal	67.6 degree
	Vertical	53.2 degree
	Diagonal	79.3 degree
Function		Automatic adjustment for exposure, white balance
Data Transfer method	USB protocol	USB 2.0
	Device Class for audio	UAC
	Device Class for video	UVC 1.0
Supported file format		Motion-Jpeg
Video Input
HDMI® TypeA	HDMI® Ver.	1.4
	Resolution	1920×1080@60Hz/59.94Hz, 1280x720@60Hz/59.94Hz, 1280x720@30Hz, 640x480@60Hz
	HDCP Ver.	1.4
	EDID	Supported
	Audio codec	LPCM (32kHz,44.1kHz,48kHz)
	Certification	Yes
USB Type-C™	Video I/F	DisplayPort Alternate Mode (DP Alt Mode)
	DisplayPort ver	1.2
	Resolution	1920×1080@60Hz/59.94Hz, 1280x720@60Hz/59.94Hz, 1280x720@30Hz, 640x480@60Hz
	Audio codec	LPCM (32kHz,44.1kHz,48kHz)
	EDID	Supported
	HDCP Ver.	1.3
	Certification（VESA)	N/A
Data Transfer
USB Type-C™	USB protocol	USB2.0
	Data Type	Sensor data, Camera data, Headset API control, firmware update
Sound Input/Output
Audio Jack		3.5 Φ 4 pole mini jack (Earphone with microphone CTIA standard compatible)
Supported Earphone	Play frequency band	20Hz - 20kHz ( recommended )
	Impedance	Over 16Ω
	Output (maximum voltage)	Under 27mV
	Maximum input	3.0mW
Supported Mic	Impedance	2.2kΩ@1kHz
	Directionality	Omnidirectional
Others
Supported 3D Format		Side by Side format
Supported the OS for host device (USB Type Connection)		Windows®10 (* Depends on supported status of USB Type-C™ on connected device) android7.0 or later (USB Type-C™ connection and custom SDK are necessary)
General
Operating Temperature		5 °C - 35 °C, 20% to 80% Humidity
Storage Temperature		-10 °C - 60 °C, 10% to 90% Humidity
Power Supply Voltage I/F Box	USB Micro-B	5.0V, 1.5A (DC input)
	USB Type-C™	USB Type-C™ Currnet@1.5A
Power Supply Voltage AC Adapter	Input	100 - 240 V AC +/- 10%, 50 / 60 Hz
	Output	5.0V, 2A
Power Consumption		Max 6.5W(Standby 0.3W)
Water Proof		IP×2 (Headset only)
Dimensions	Headset	193 mm × 189 mm × 30 mm (without shade)
	IF BOX	85 mm × 52 mm × 15 mm
Weight	Headset	approx.119g (without shade, harness)
	IF BOX	approx.45g (without Belt clip and Cable retainer)
Reliability	Display Life span	20,000h (When brightness is set to the default, and used continuously in an environment of 25°C. The life span means the point at which the product enters the wear out failure period. Product performance may then degrade, such as a decline in screen luminance of 50% from the initial stage. Except burn-in.)
	Mean-Time Between Failure (MTBF)	180,000 hours (Failure means a random failure during the random failure period.)

*1 : Restrictions in operation may occur when using an adapter plug.
