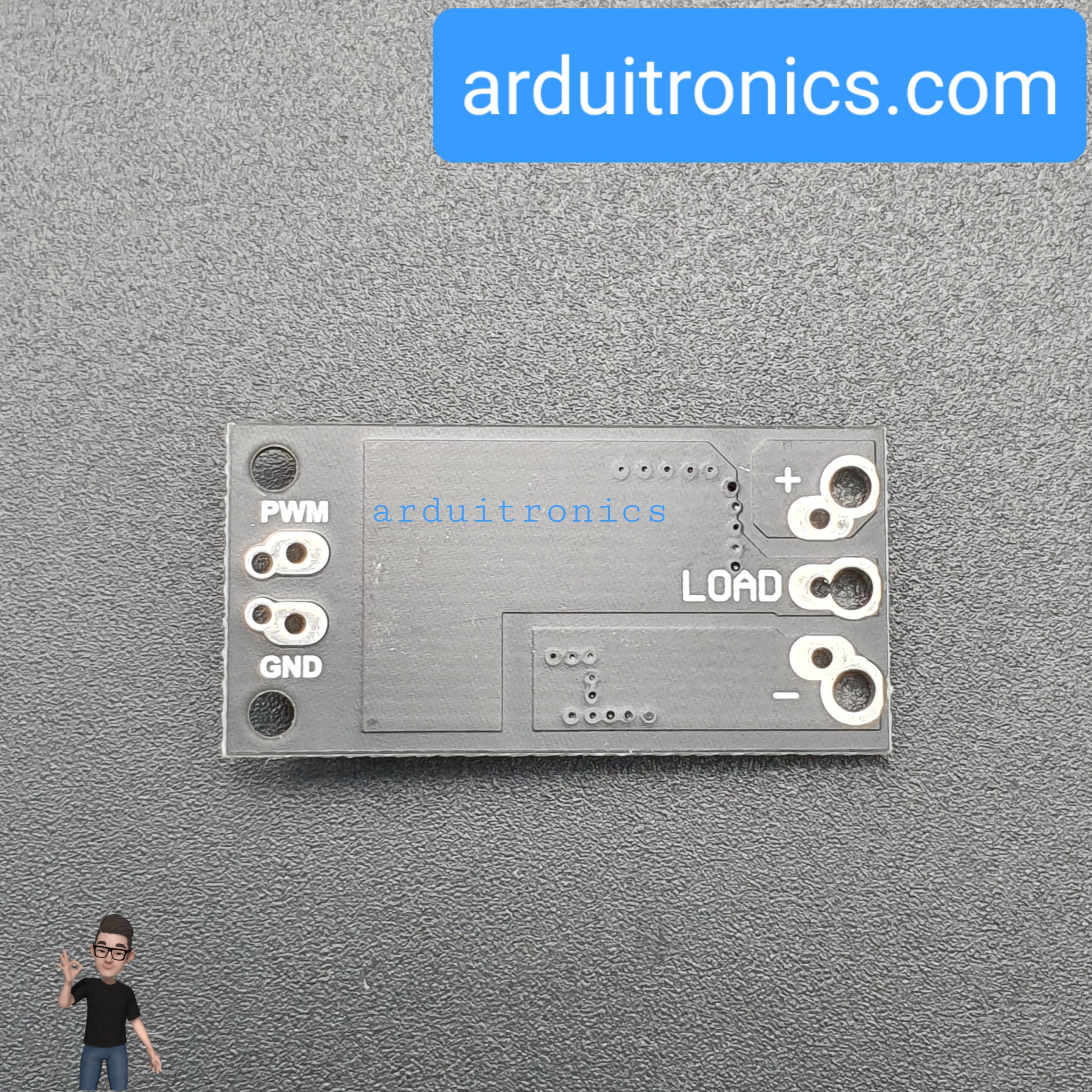

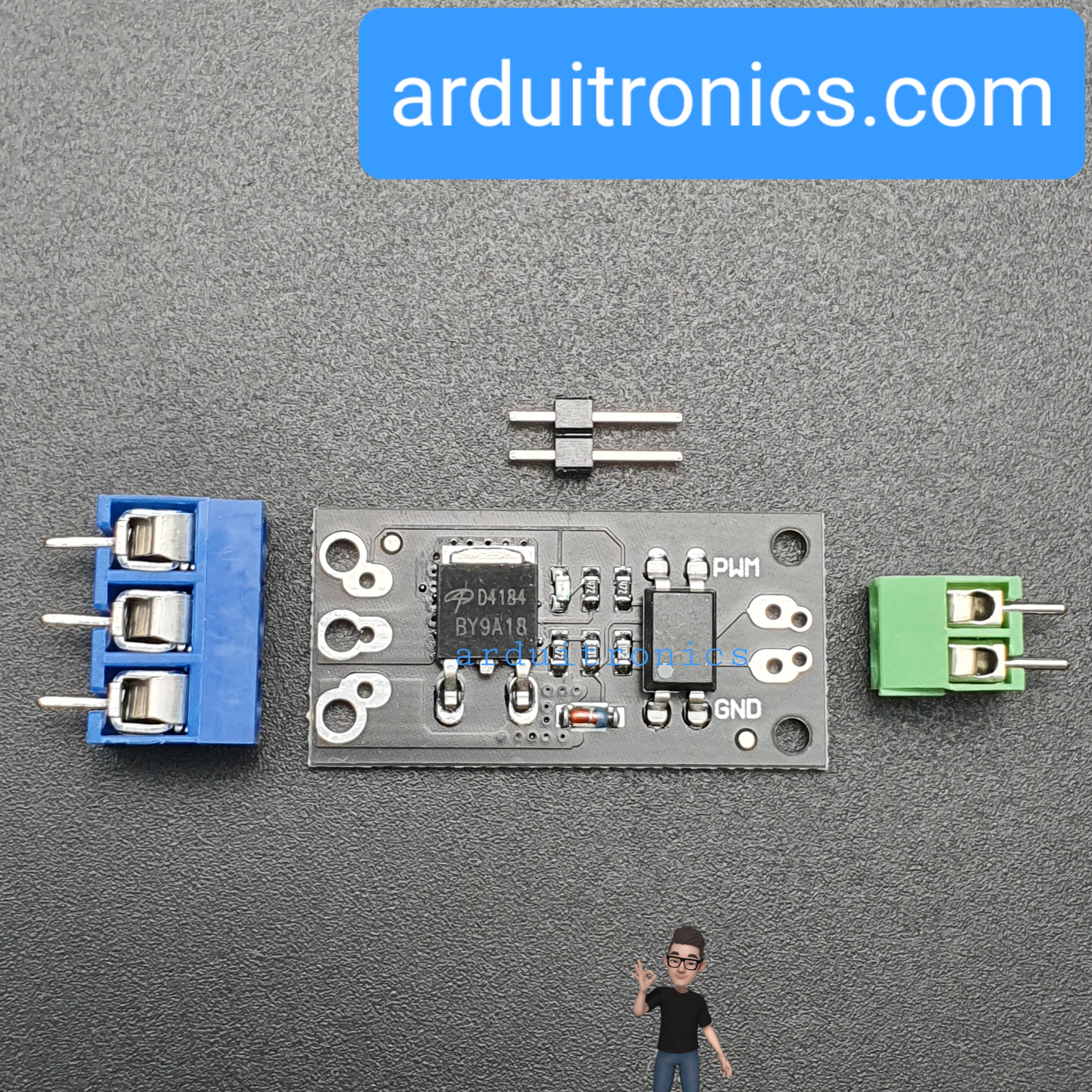

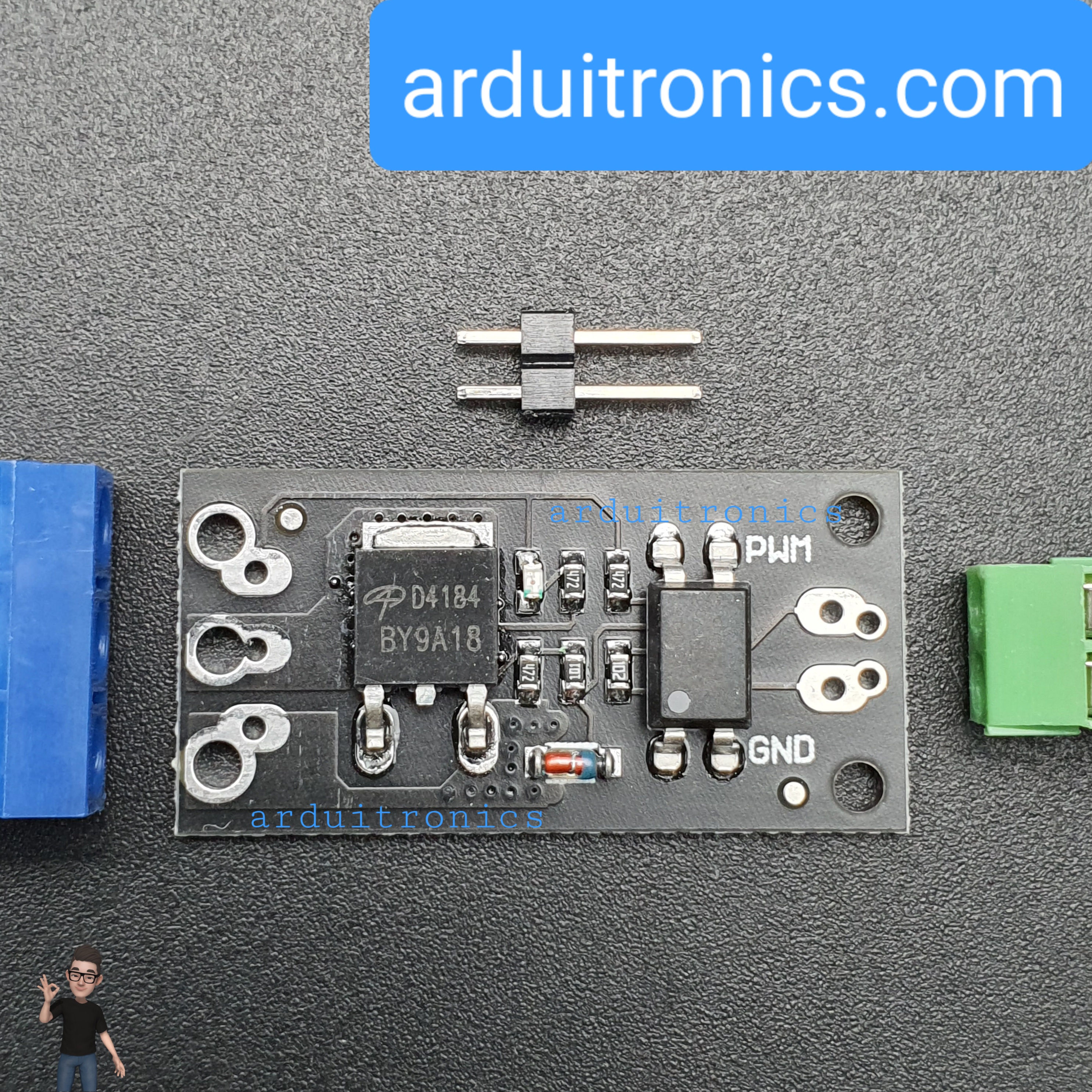

โมดูล MOSFET D4184 แบบแยกกราวน์ Isolation MOSFET D4184
โมดูลสวิตช์ MOSFET เบอร์ D4184 ขับโหลดที่ 40V 50A มีวงจร Isolation แยกกราวน์ปลอดภัยกับ Arduino หรืออุปกรณ์ที่ควบคุม สำหรับใช้เป็นสวิตช์เปิด/ปิด ขับสัญญาณ PWM ควบคุมความเร็วมอเตอร์ หรือหรี่ไฟ LED
Features
- With optocoupler isolation, the control signal is isolated from the power of the controlled device, which greatly improves the interference.
- Compatible with single-chip and Arduino light control board, 3V or 5V signal
- High level start, low level stop, PWM speed
- Widely used to control motor start and stop, solenoid valve and other tributary equipment
- There are various specifications MOS tube to provide a choice,
- Driver : 40V 50A
- The signal input side can solder the terminal block or pin, compatible with breadboard
- The output can be soldered terminals or direct wire bonding
- module size 23mm X 16mm has 2x 2mm diameter screw holes, hole spacing 8mm
