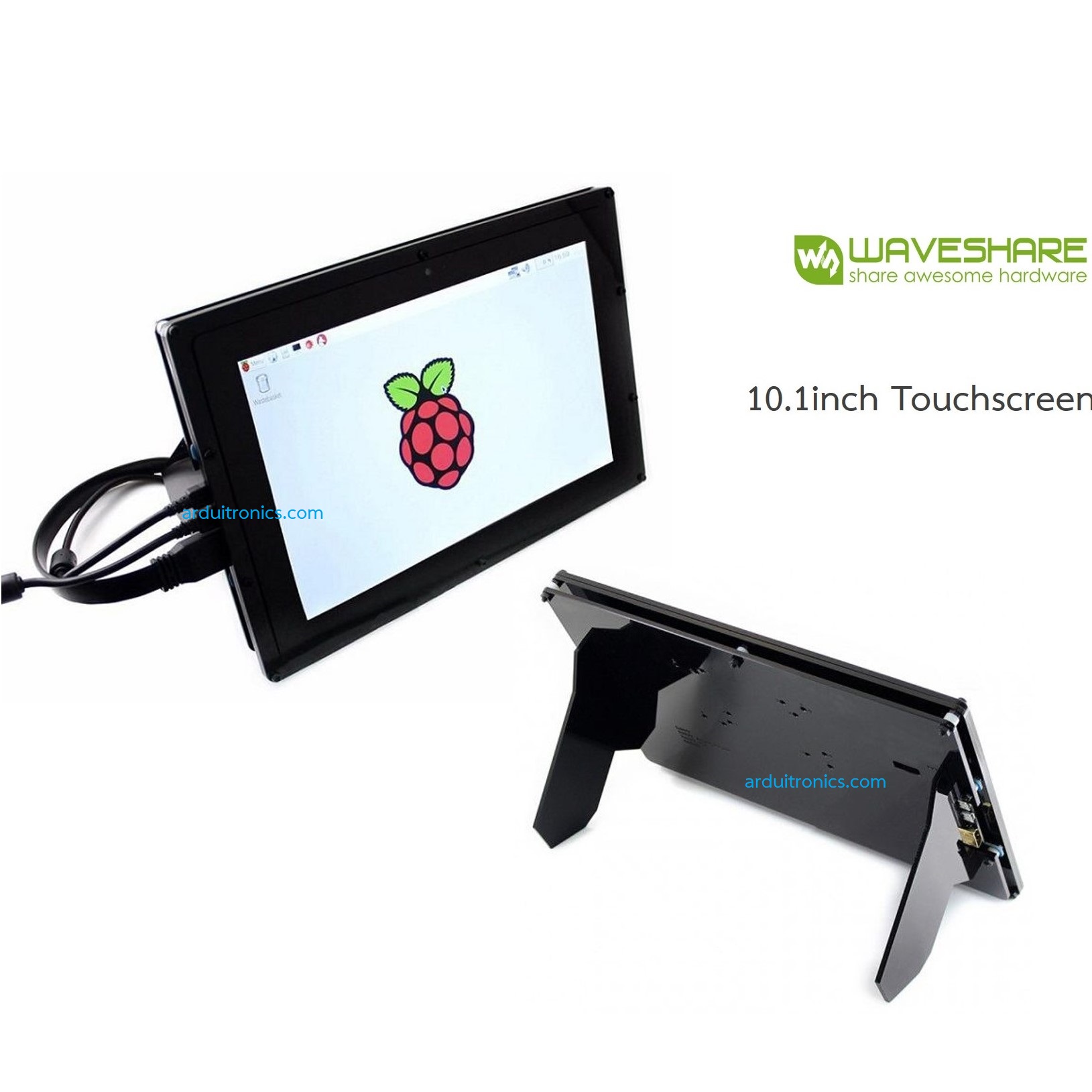

[ยี่ห้อ Waveshare] จอ 10.1inch Capacitive Touch Screen LCD (B) with Case, 1280×800, HDMI, IPS Screen, Low Power for Raspberry Pi and Nvidia

This is very nice 10.1 inch HDMI IPS display with 1280 x 800 resolution and capacitive touch screen, perfect as a kiosk or mini computer if you combine with Raspberry Pi Single Board Computer :)

Hey! It comes with enclosure, back bracket and mounting holes for Raspberry Pi. Perfect!

Note: Since it uses HDMI input, it is compatible with:

• Laptop
• Raspberry Pi Zero, Zero W, Zero WH
• Raspberry Pi 3A+, 3B, 3B+
• Raspberry Pi 4B 1GB, 2GB, 4GB

Features and Spec of LCD and Control Board:

• IPS screen,1280x800 hardware resolution
• Toughened glass capacitive touch panel, 6H hardness
• Supports popular mini single board computer such as Raspberry Pi, BB Black, as well as general desktop computers
• When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
• When work as a computer monitor, supports Windows 10/8.1/8/7, ten-points touch, and driver free

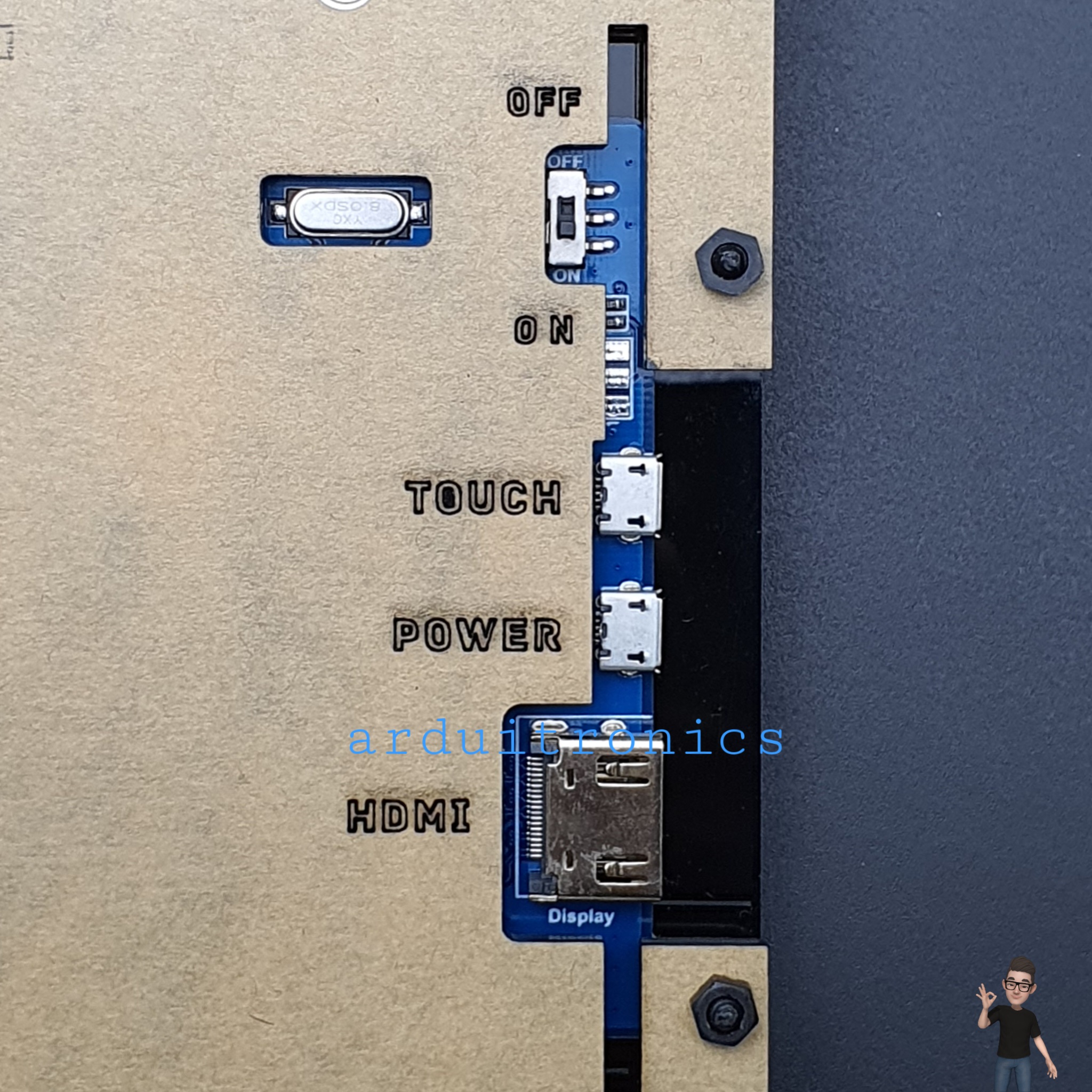

• HDMI interface for displaying, USB interface for touch control
• Supports 5-level backlight adjustment

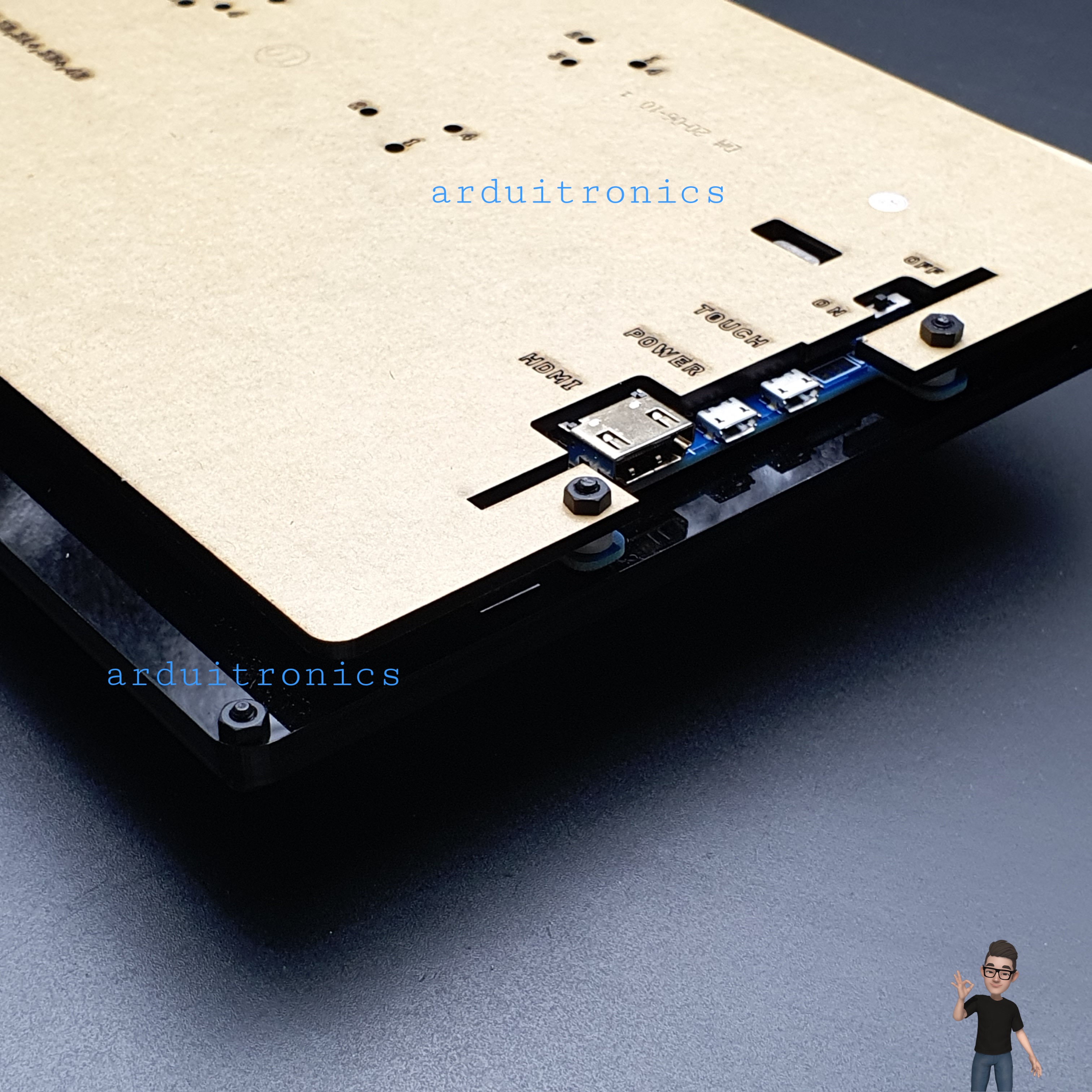

Features of The Case:

• Material : high quality black Acrylic
• Comes with back holder, 45° tilt angle

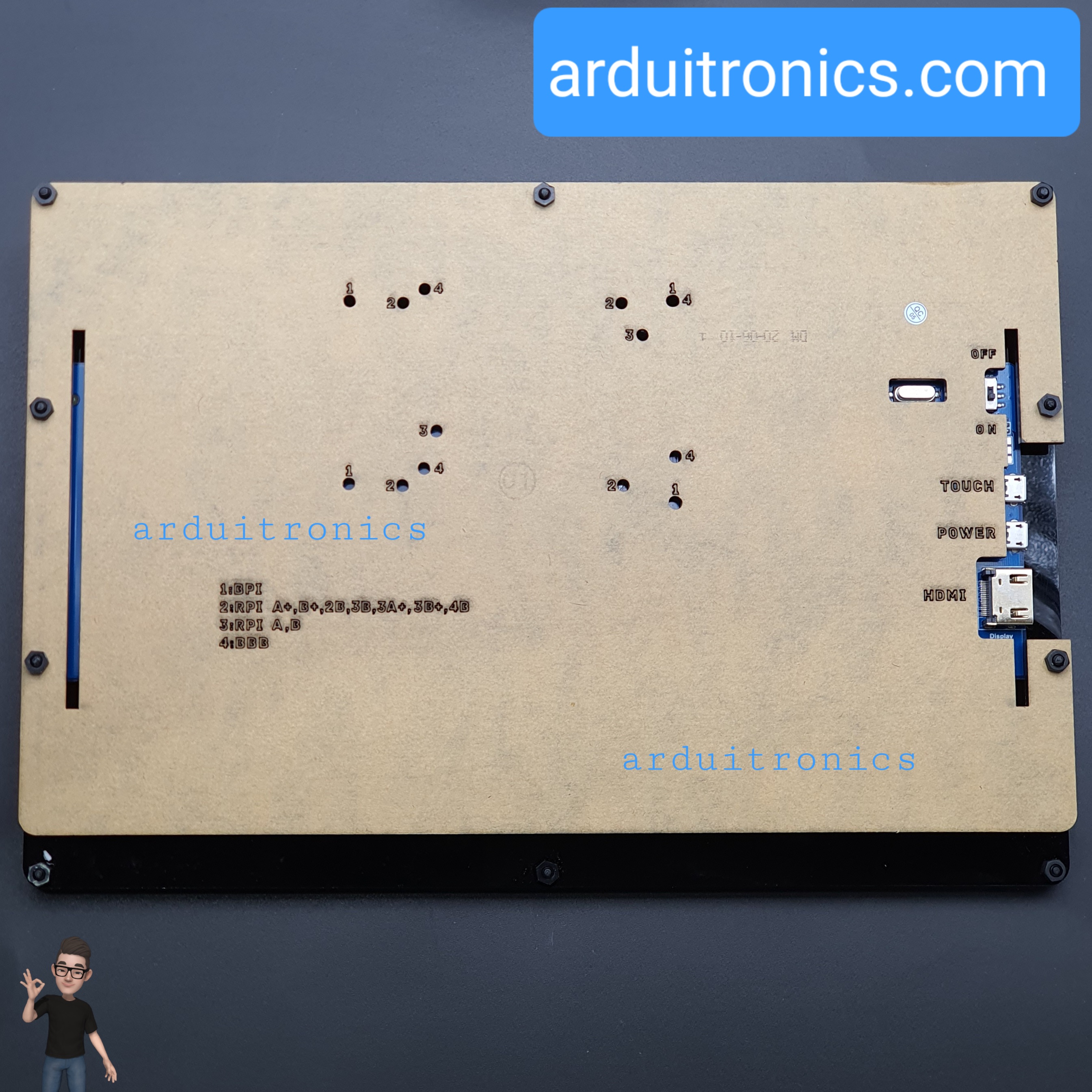

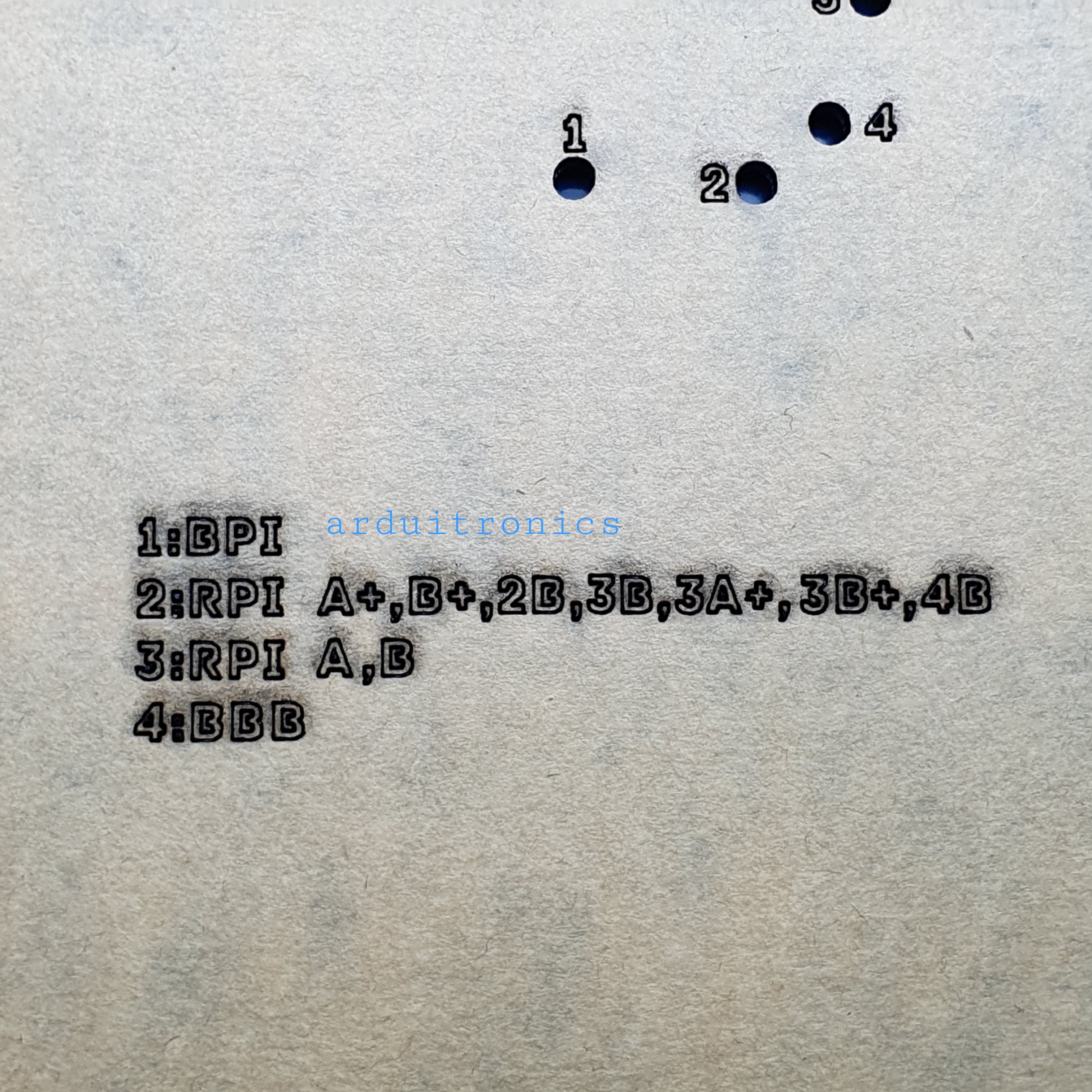

• Features mounting holes for Raspberry Pi 4B/3B+/3B/A+, BeagleBone Black

Note:

• This is LCD kit only, Raspberry Pi or other controller is not included, please buy separately.

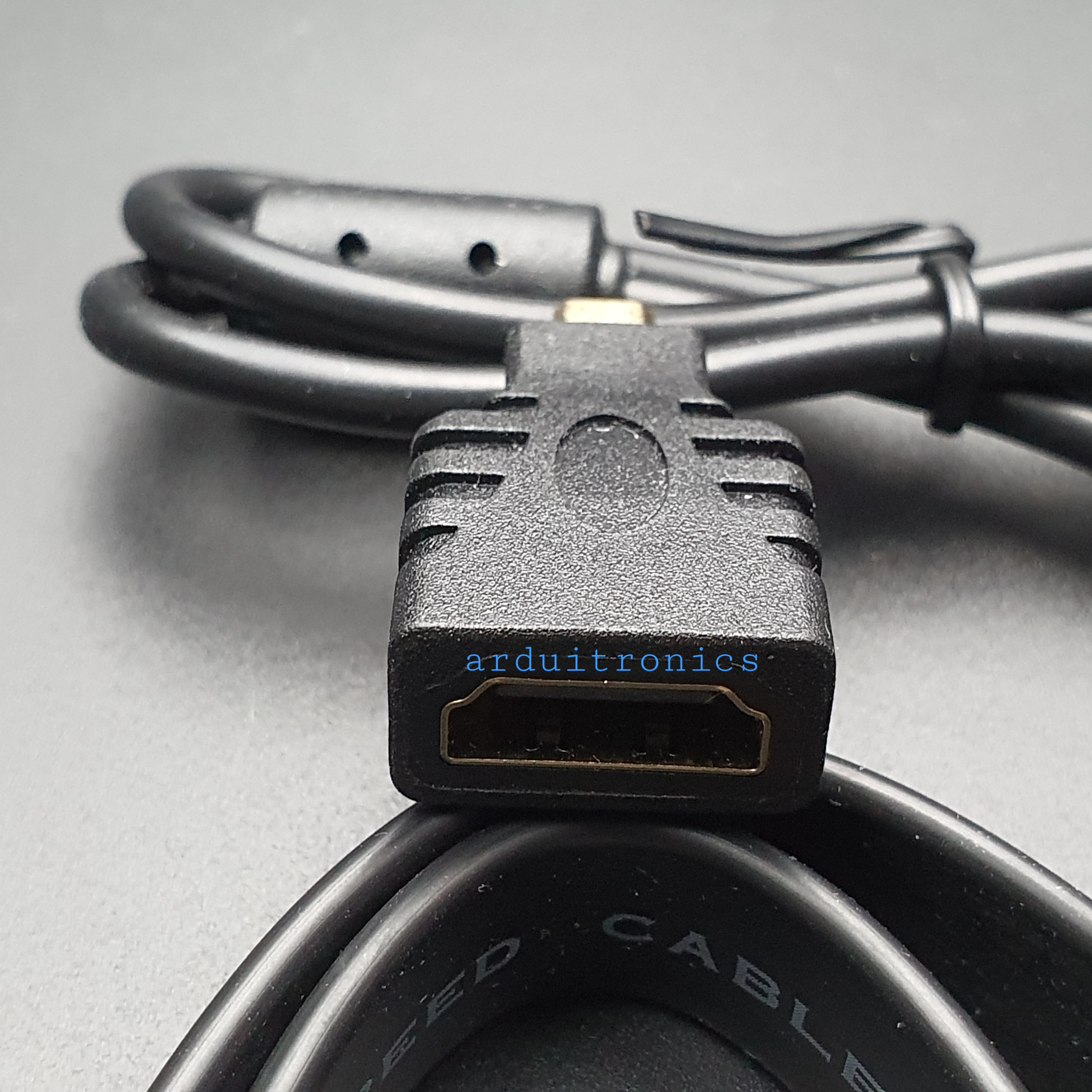

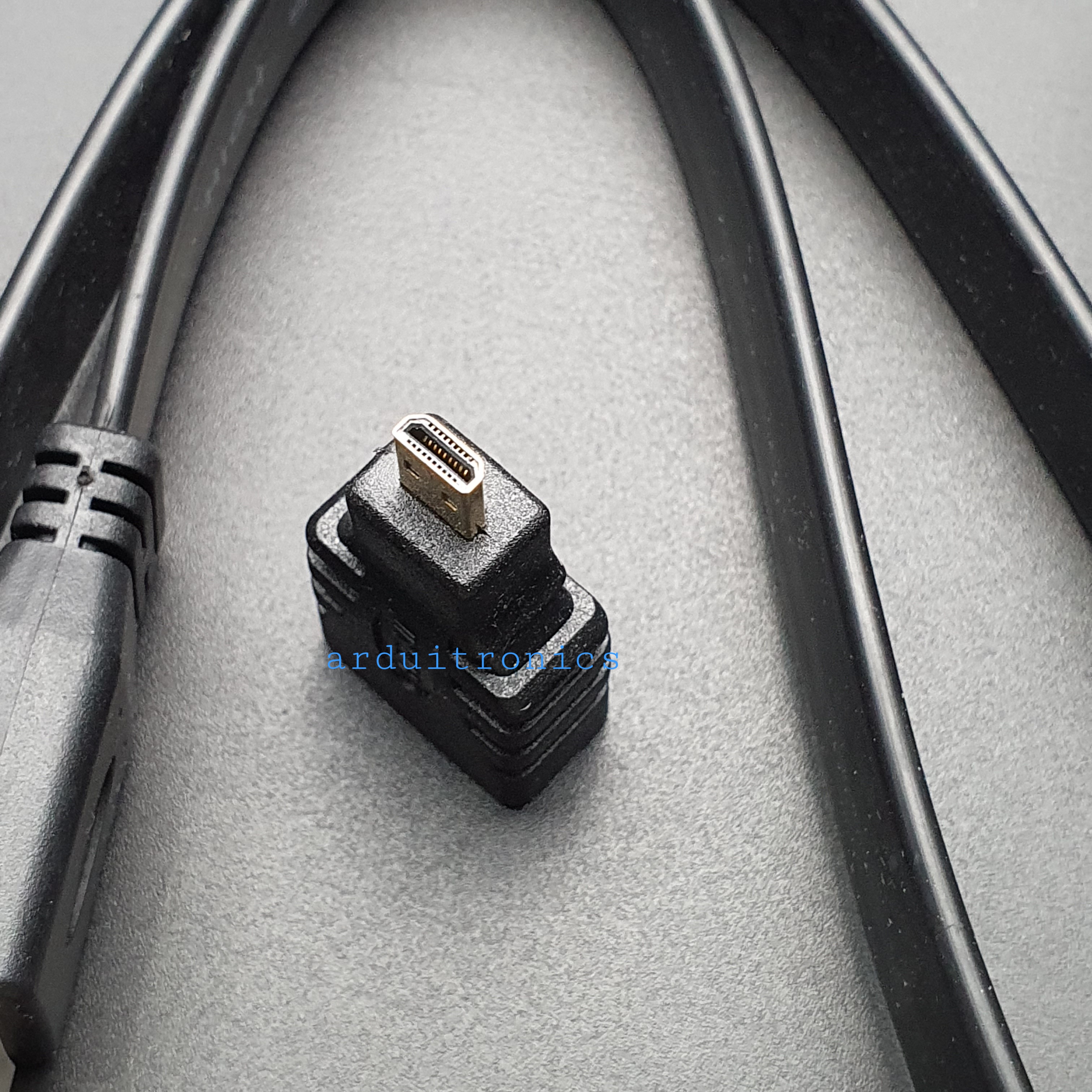

• To use with Raspberry Pi Zero series on board, please get the wire kit which comes with mini HDMI to standard HDMI adapter and USB OTG cable.
• Limited by the game console OS example Retropie, the touch function is unavailable.
• Sound support means, it is possible for the game console to output sound signal via LCD embedded speaker, external speaker interface, or earphone jack. But the LCD kit does not come with Speaker.

Dimension:

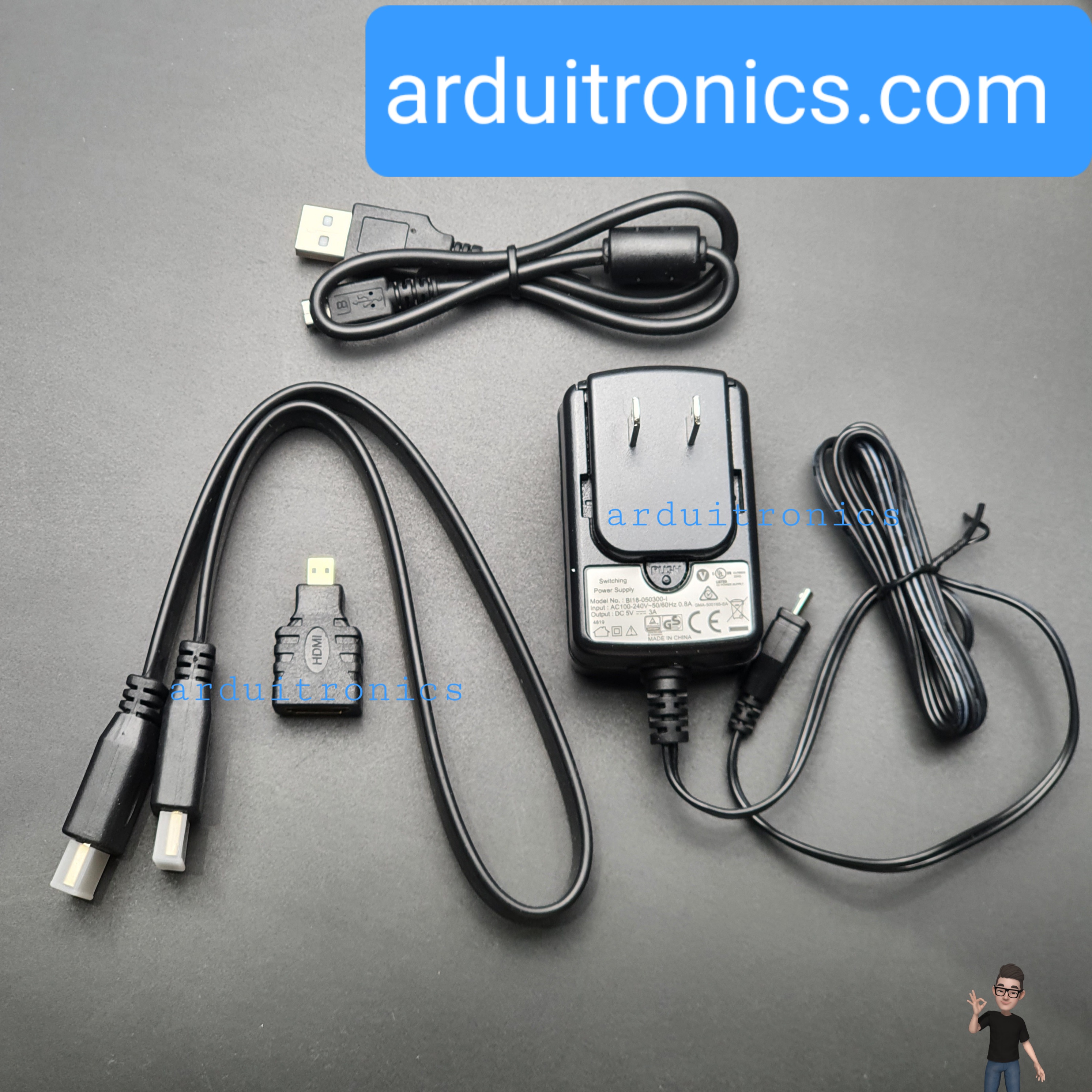

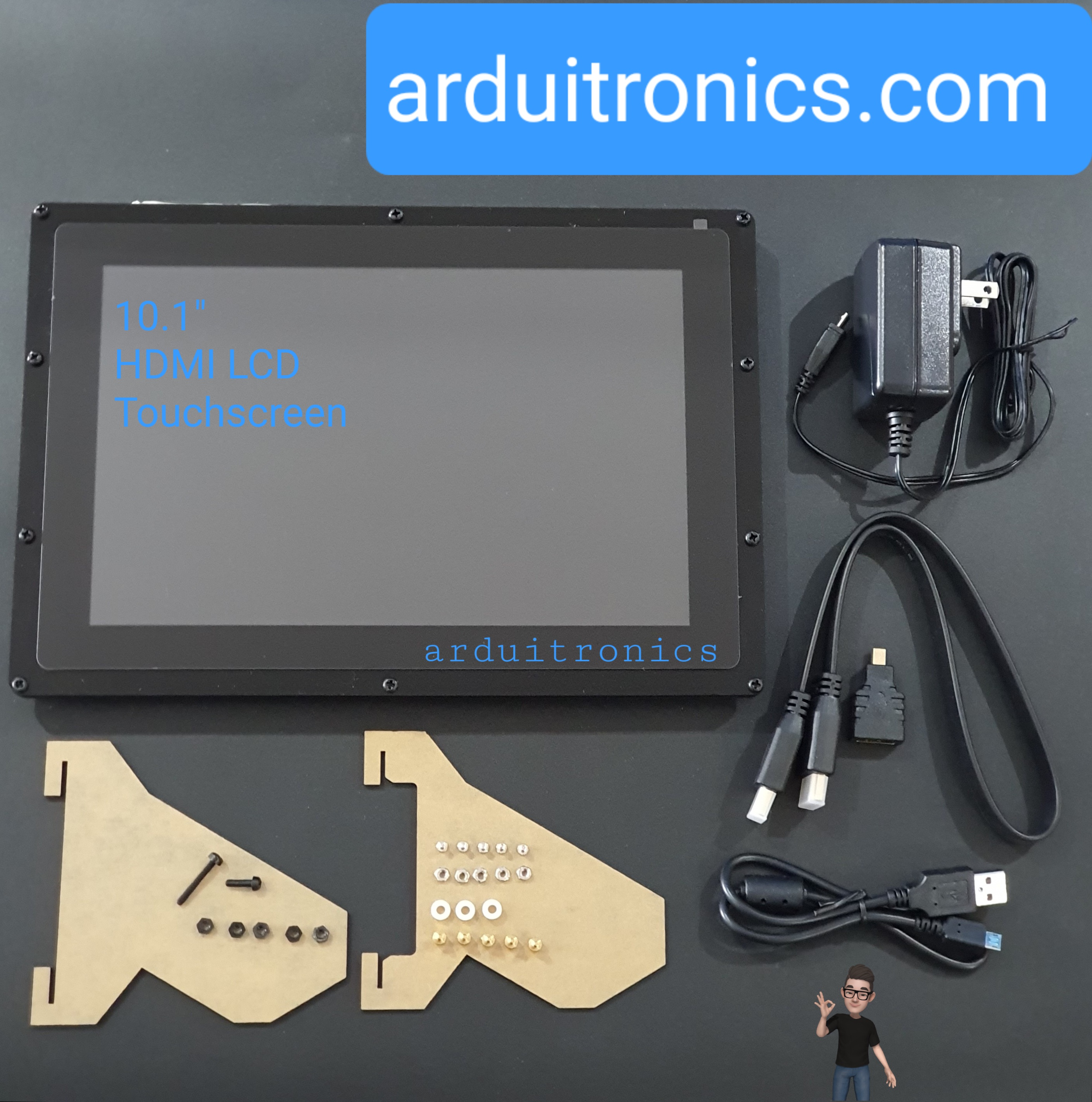

Packing List:

• 1 x 10.1 inch IPS Capacitive touch screen (partially assembly with interfacing board and acrylic)
• 1 x set Acrylic with mounting screws and spacers

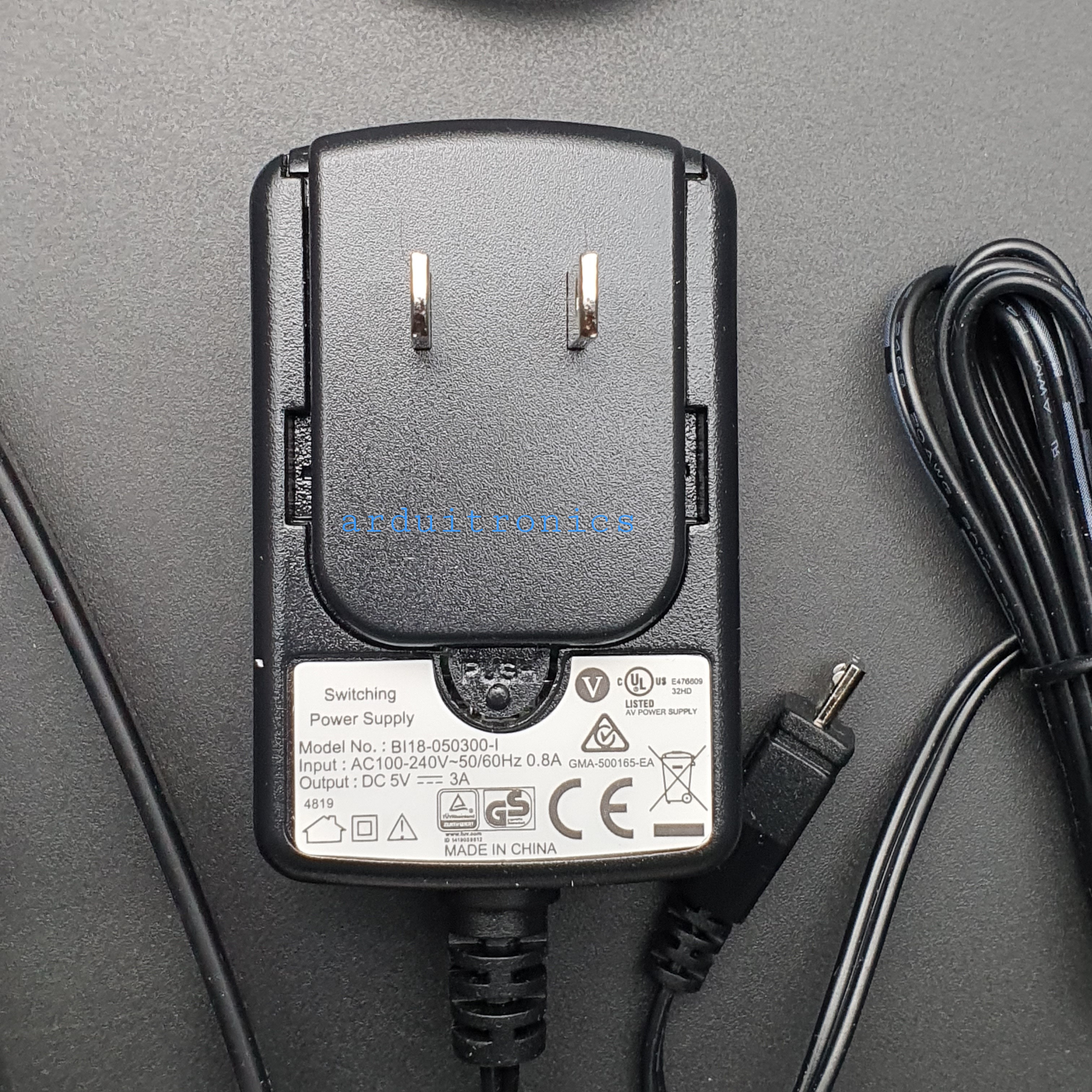

• 1 x 5V 3.0A USB microB adapter with Type A plug (US) *You might need universal adapter to use in Malaysia.
• 1 x standard HDMI cable (~30 cm)

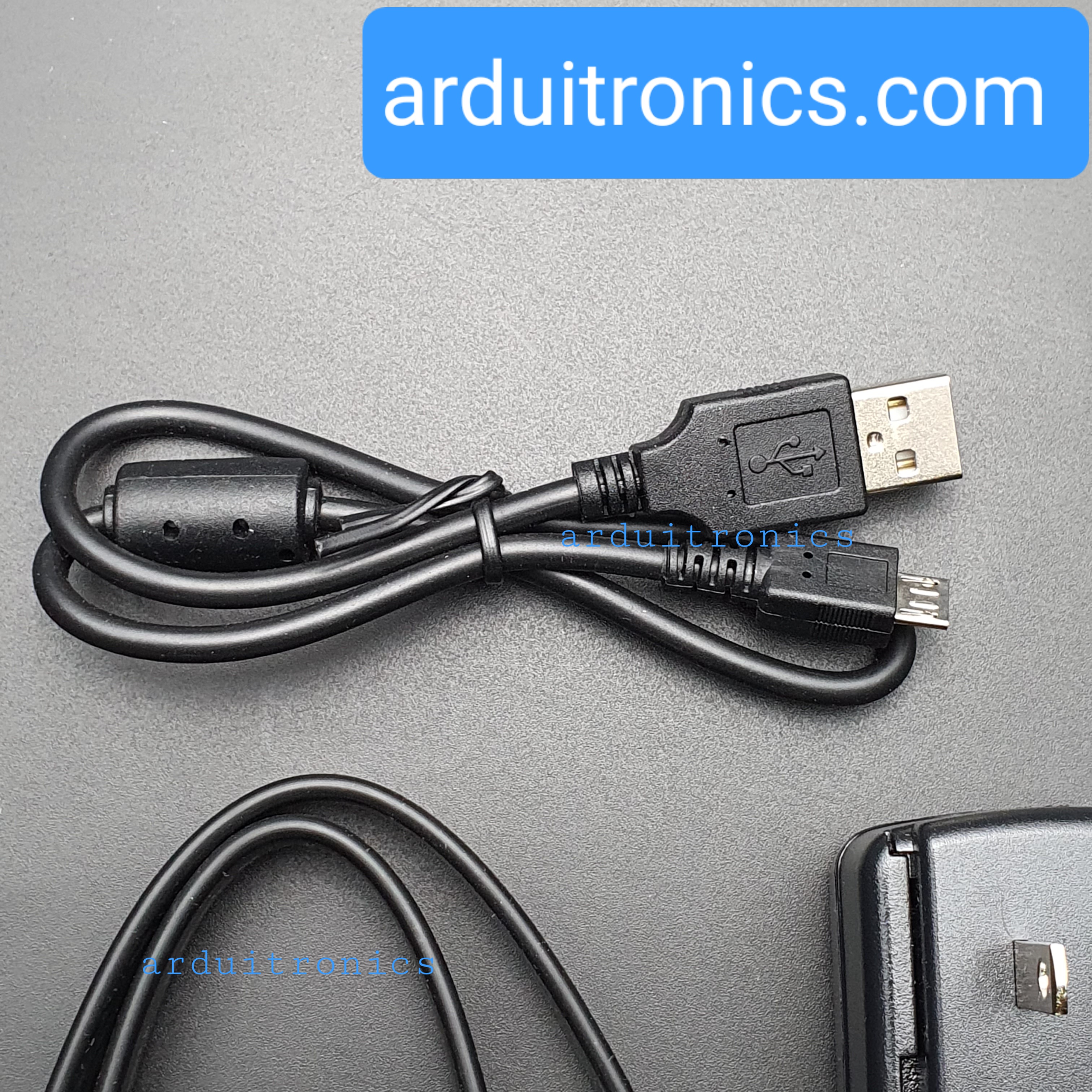

• 1 x USB microB cable (~ 30 cm)

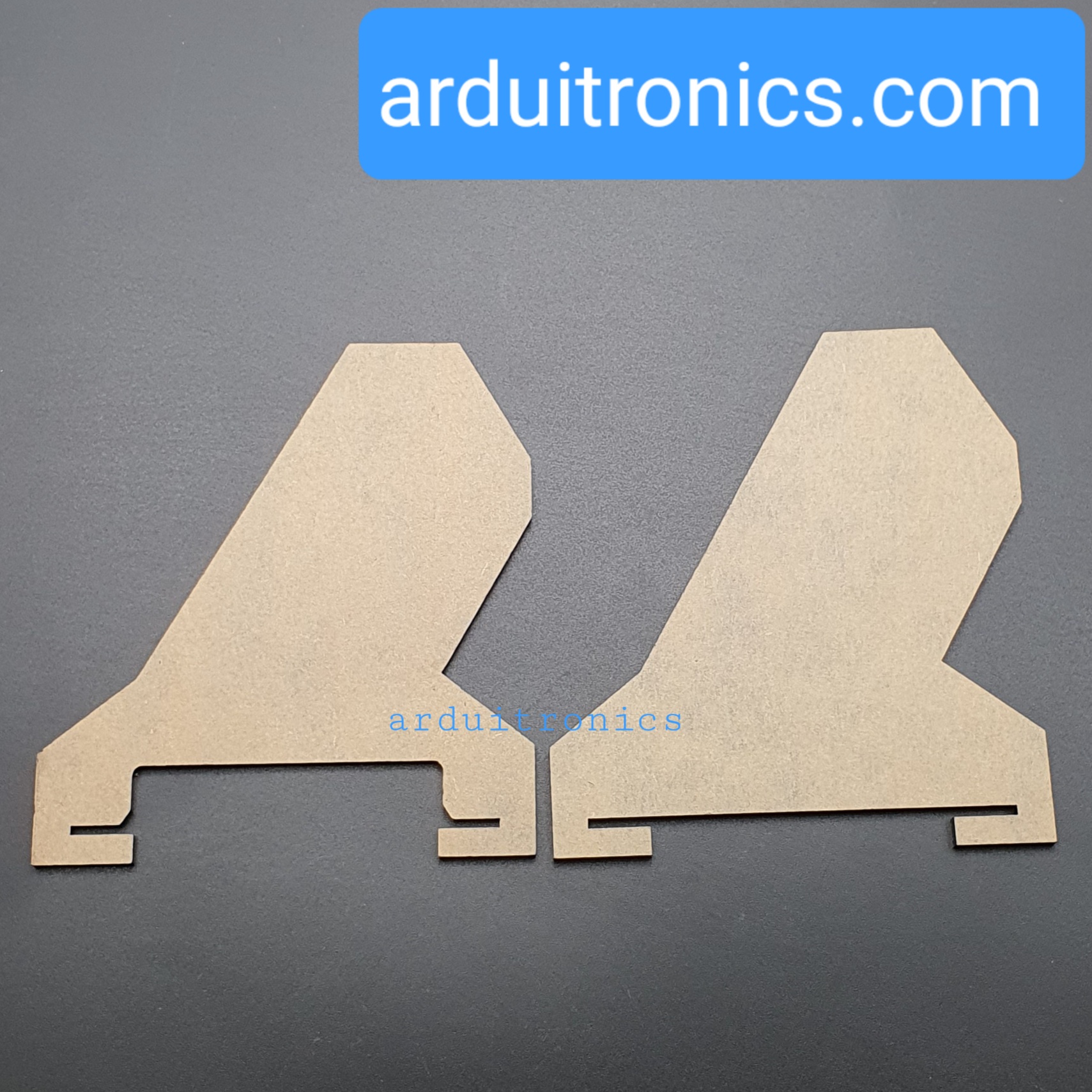

• 2 x Back holder acrylic plate
• 1 x Quick start guide (Mandarin and English)
• 1 x Screen cleaning cloth

Documents/Wiki:

• User's Manual
• Dimension
• Wiki Page

10.1" HDMI Touch Display

• Size10.1"
• Resolution1280×800
• Display PortHDMI
• Display PanelIPS
• Viewing Angle170°
• Touch TypeCapacitive
• Touch Points10-Points
• Touch PortUSB
• Touch PanelToughened Glass



• ConsumptionLow Power
• EnclosureAcrylic





Raspberry Pi

Supports Raspbian, 10-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

PC

Supports Windows 10 / 8.1 / 8 / 7, 10-points touch, driver free

Connection Examples

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero W

Working With Mini PC

Display

IPS Panel

Touch Control



1) up to 10-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel.

Appearance And Dimensions
