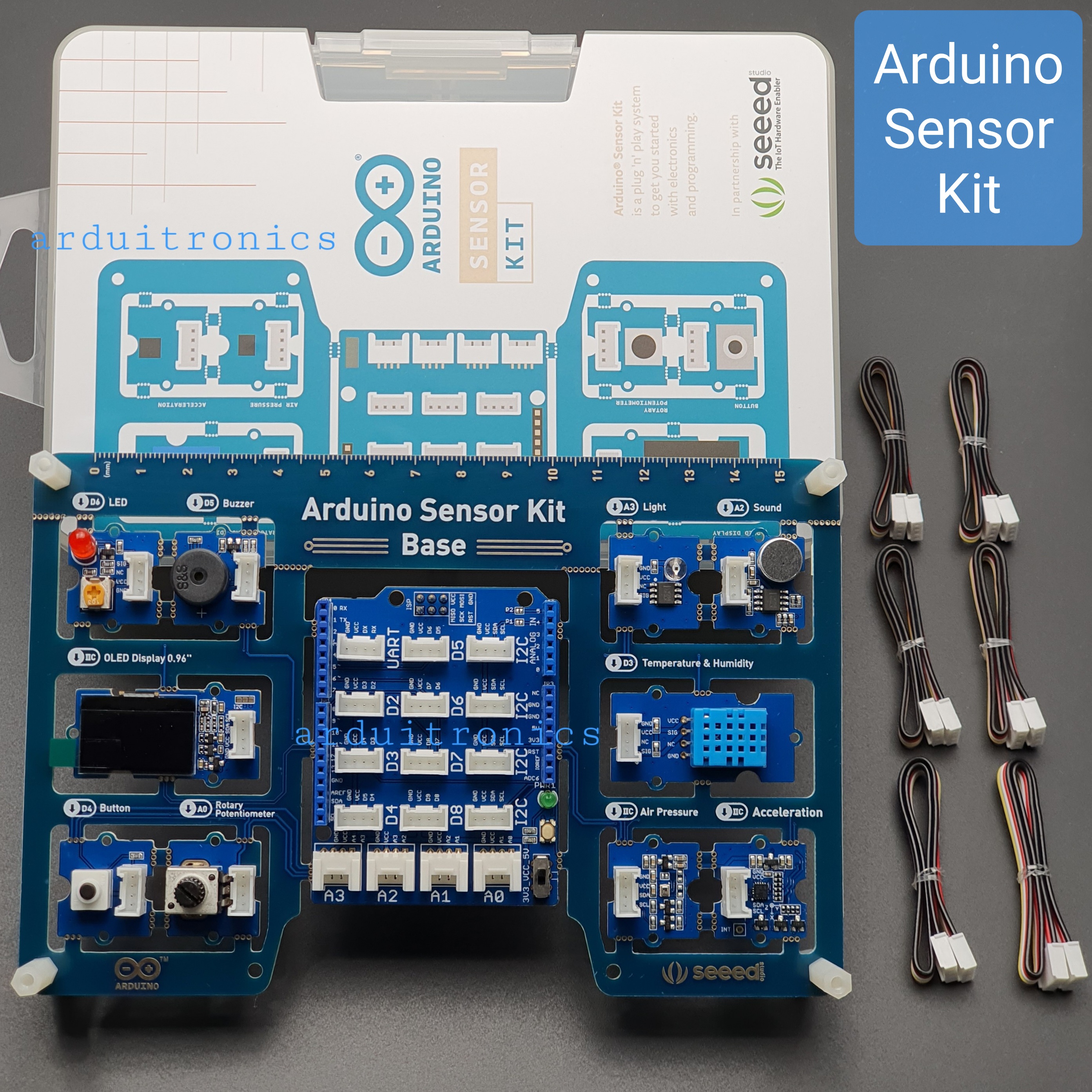

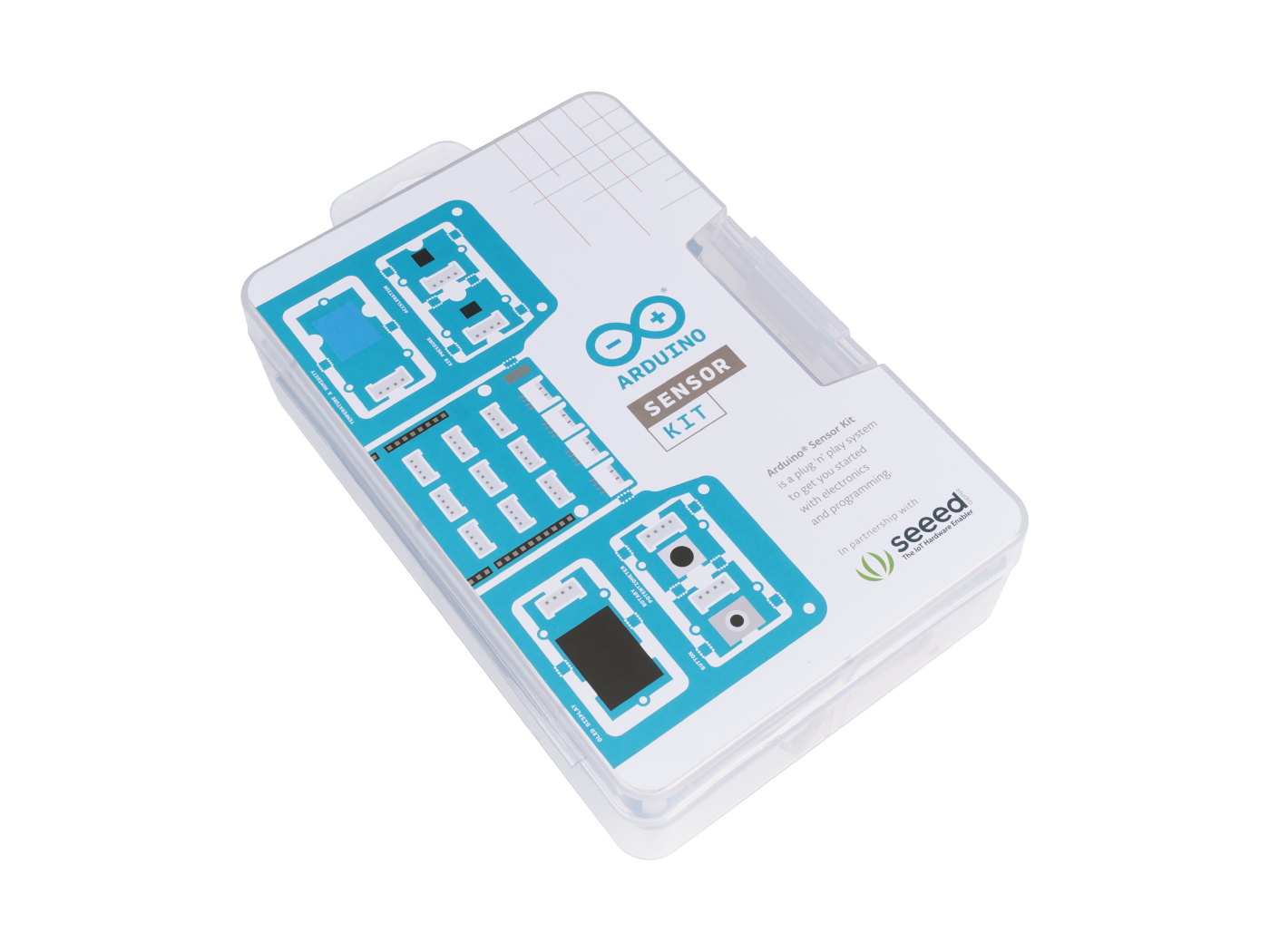

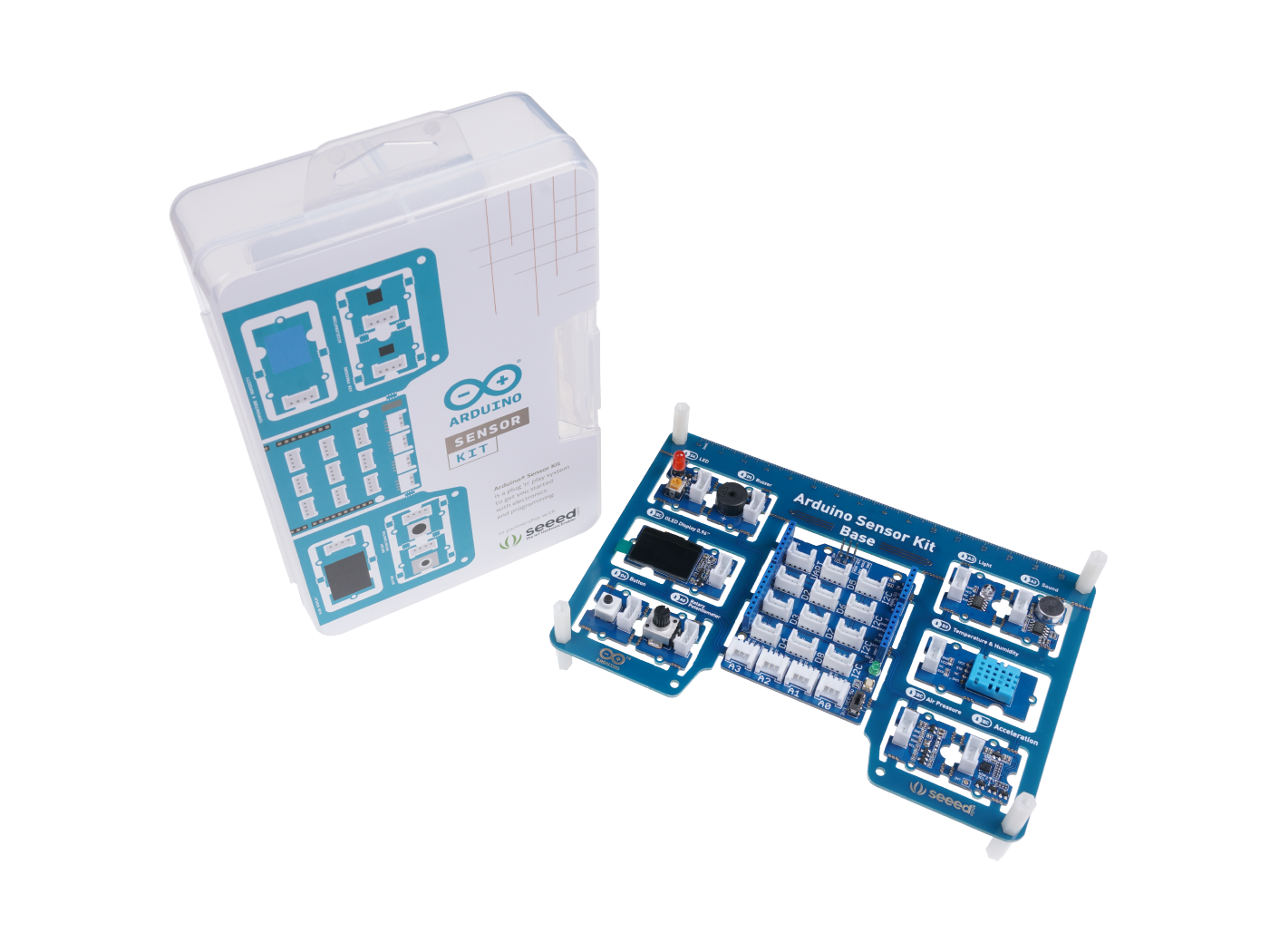

Arduino Sensor Kit (ของแท้จาก arduino.cc ประเทศอิตาลี)

ดาวน์โหลดคู่มือการใช้งานพร้อมตัวอย่างโค๊ด CLICK

หมายเหตุ: ชุด Kit ไม่รวมบอร์ด Arduino

Description

The Arduino Sensor Kit is a great option for beginners with an Arduino UNO board, who wishes to work on their own D.I.Y projects or learn about different sensors and actuators, with minimal effort of both wiring and coding.

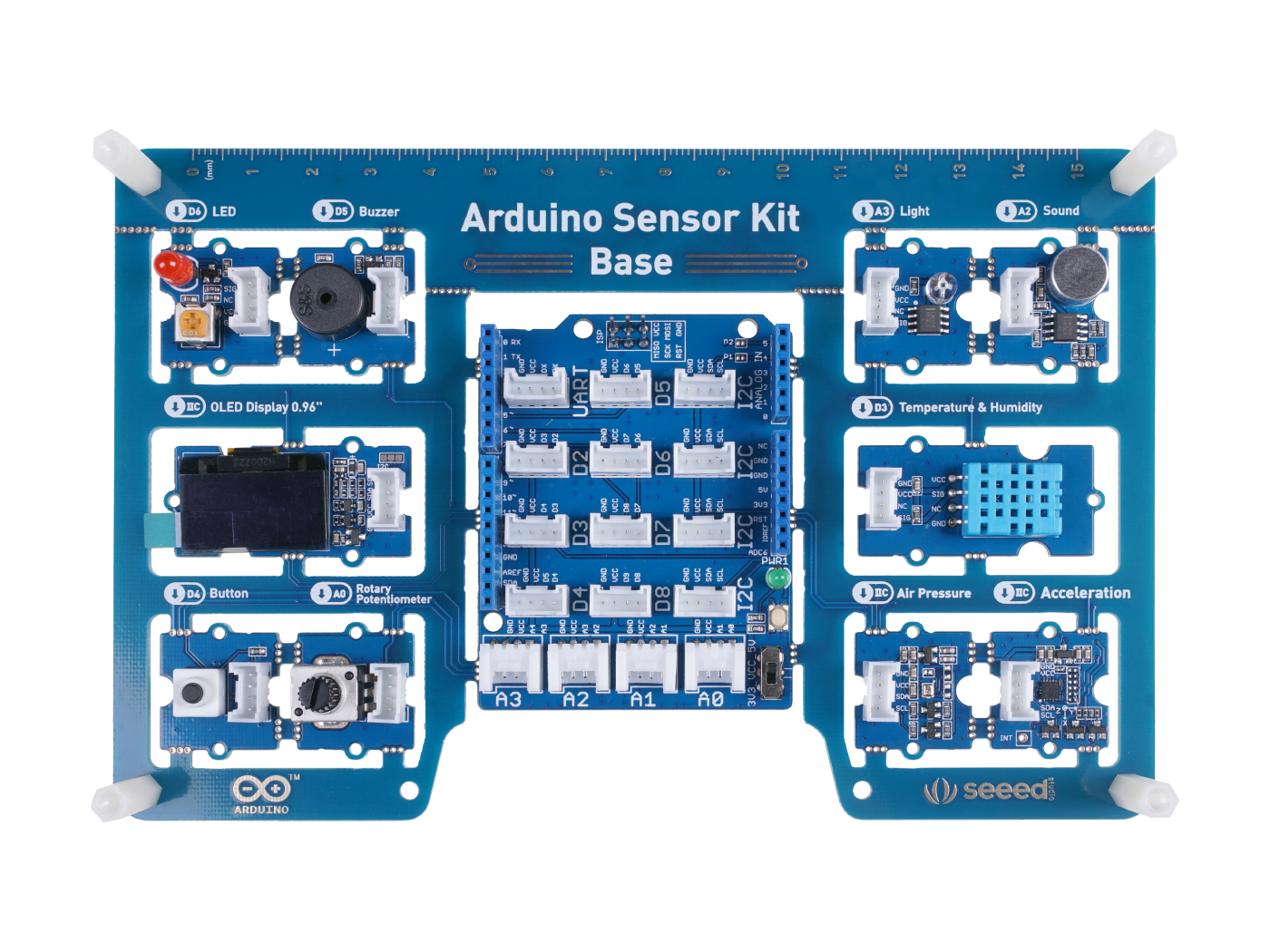

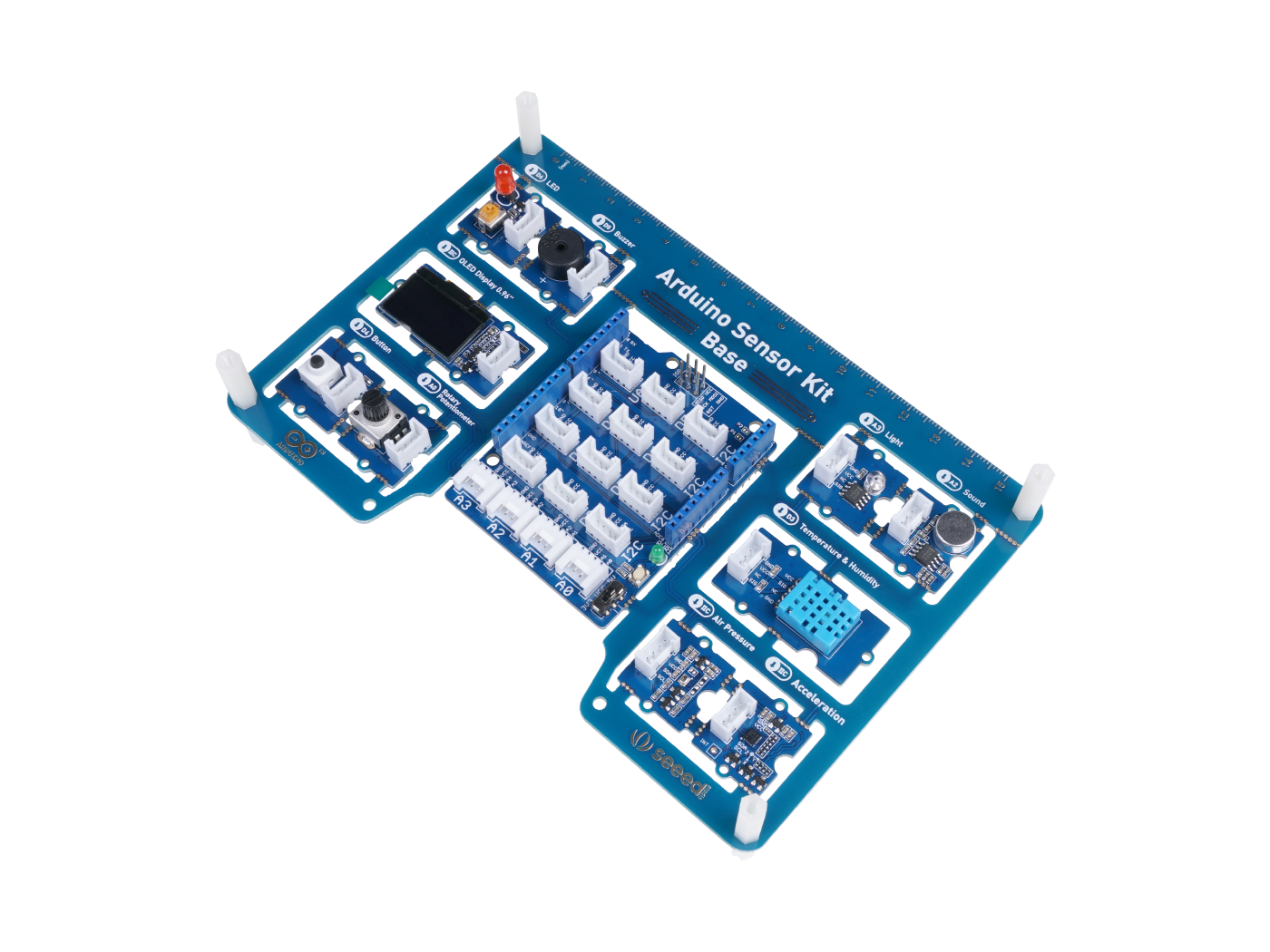

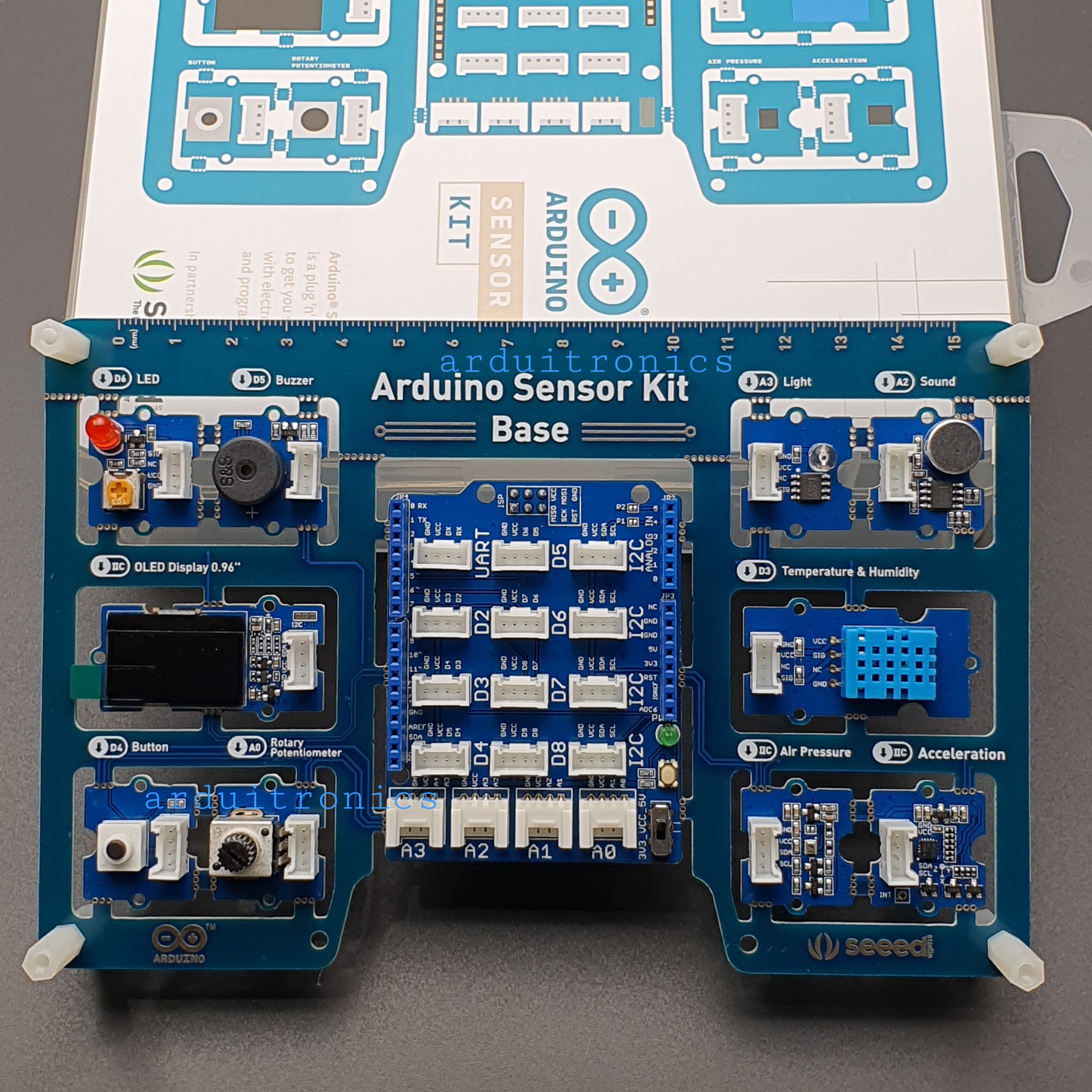

The Sensor Kit includes ten exciting modules that can be used individually, or combined to make cool projects. All of the modules use a Grove connector, which connects component to a base shield in just a few seconds. The base shield, which is also included in the kit, can then be mounted on to an Arduino UNO board.

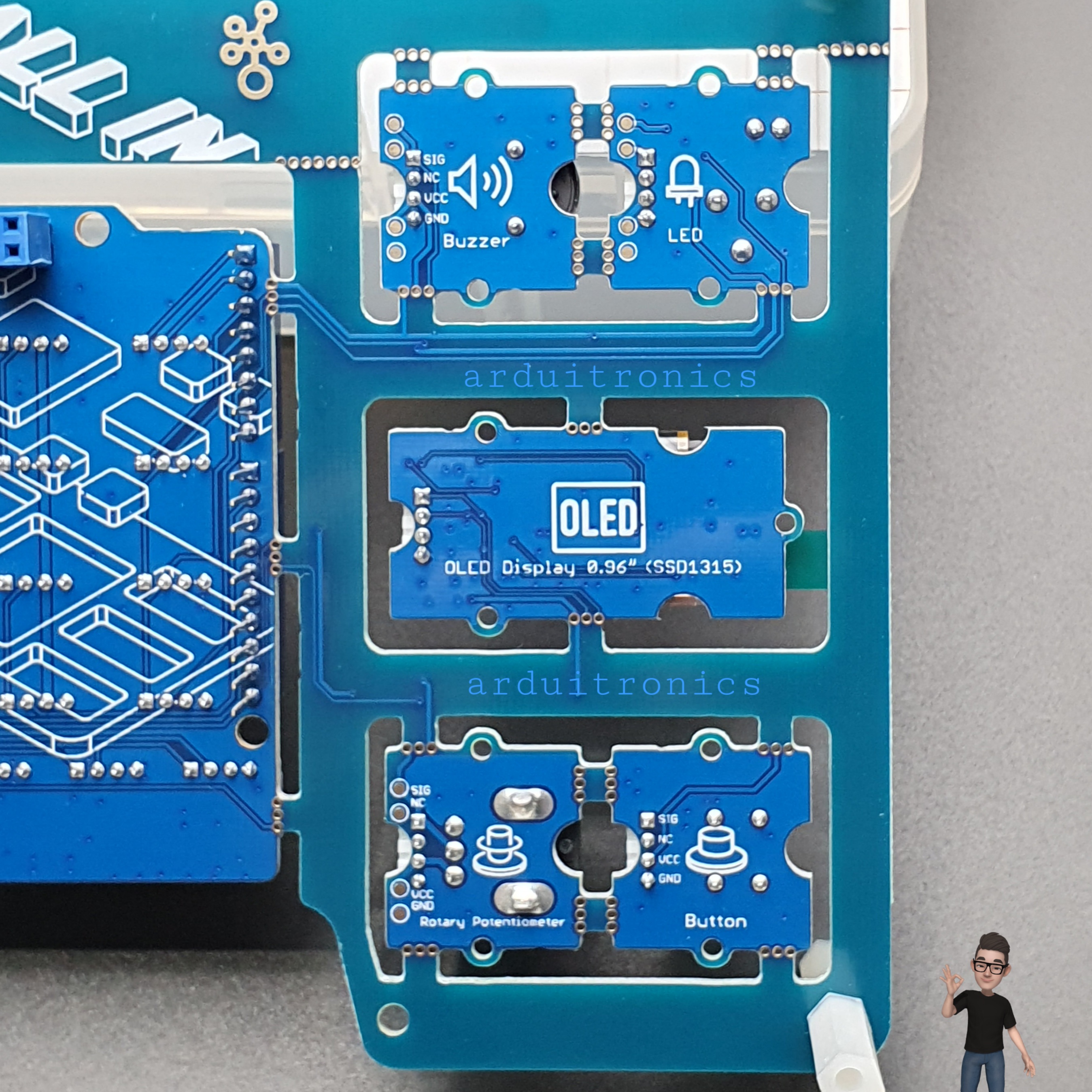

Note: The modules are mounted to a PCB, and is connected to the base shield. You can leave them like this and no wiring is needed.

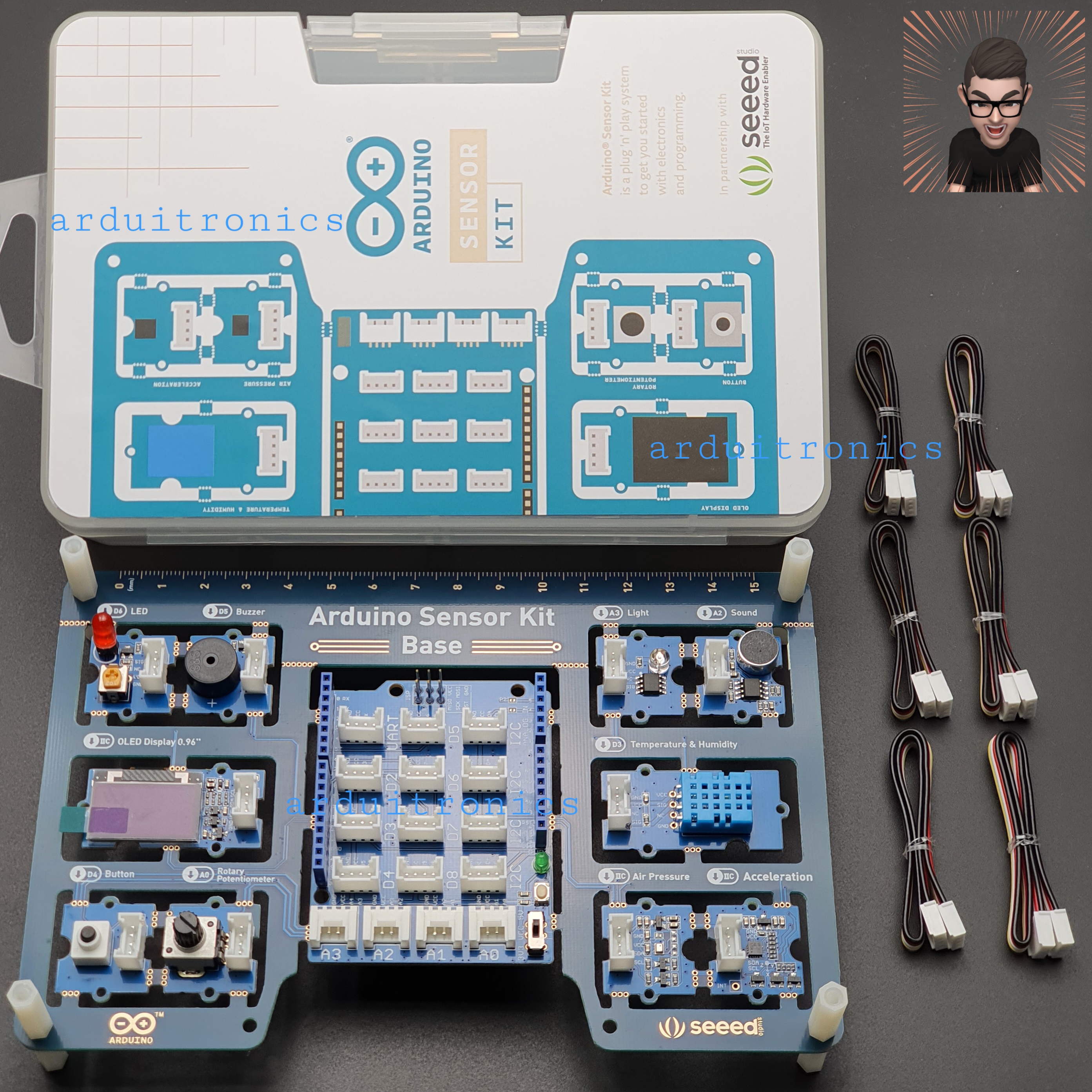

Included in Kit:

• 1 x Base Shield
• 4 x Digital modules : LED, Button, Buzzer and a Portentiometer
• 5 x Sensors : Light, Sound, Air-Pressure, Temperature and Accelerometer
• 1 x Oled Display
• 1 x Learning Materials

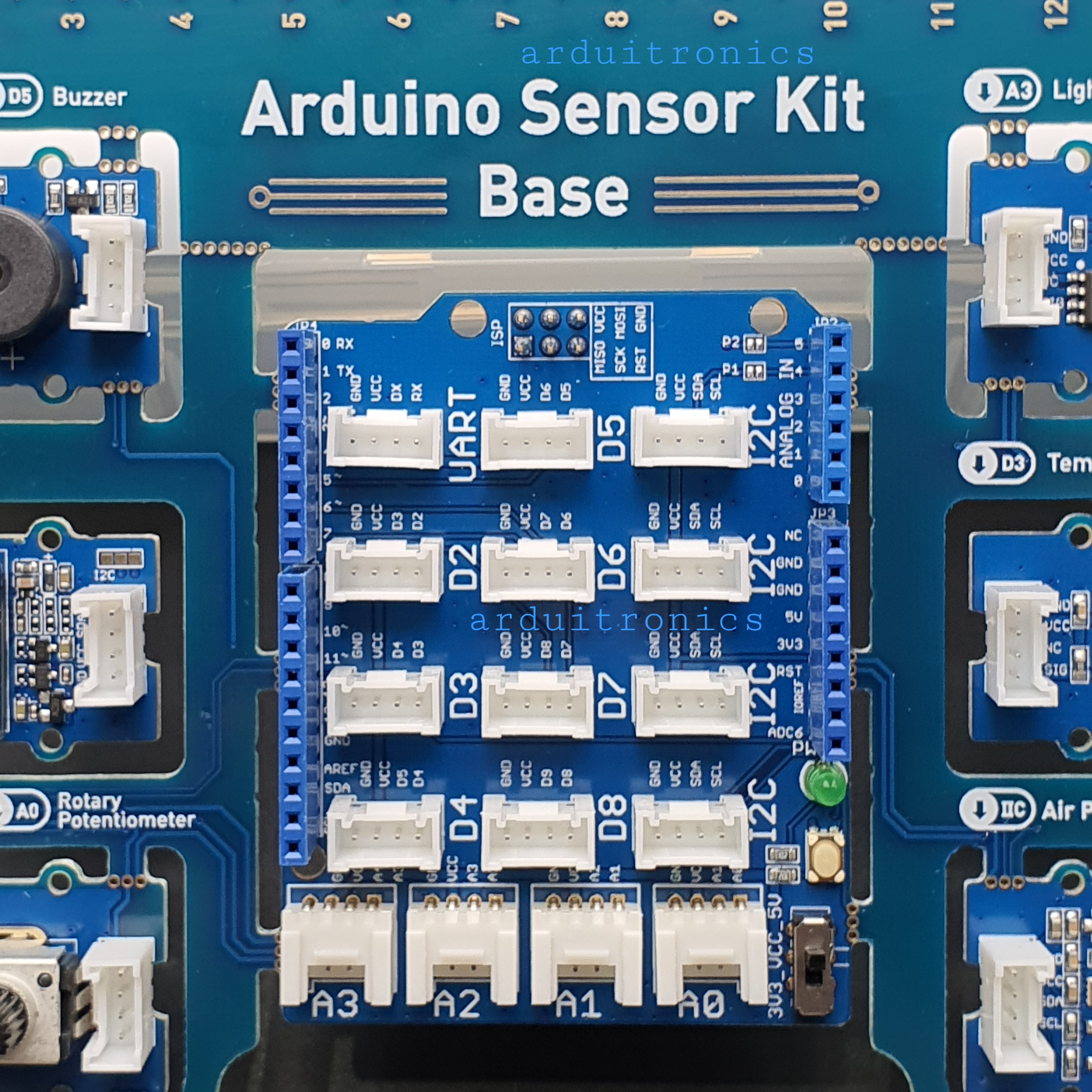

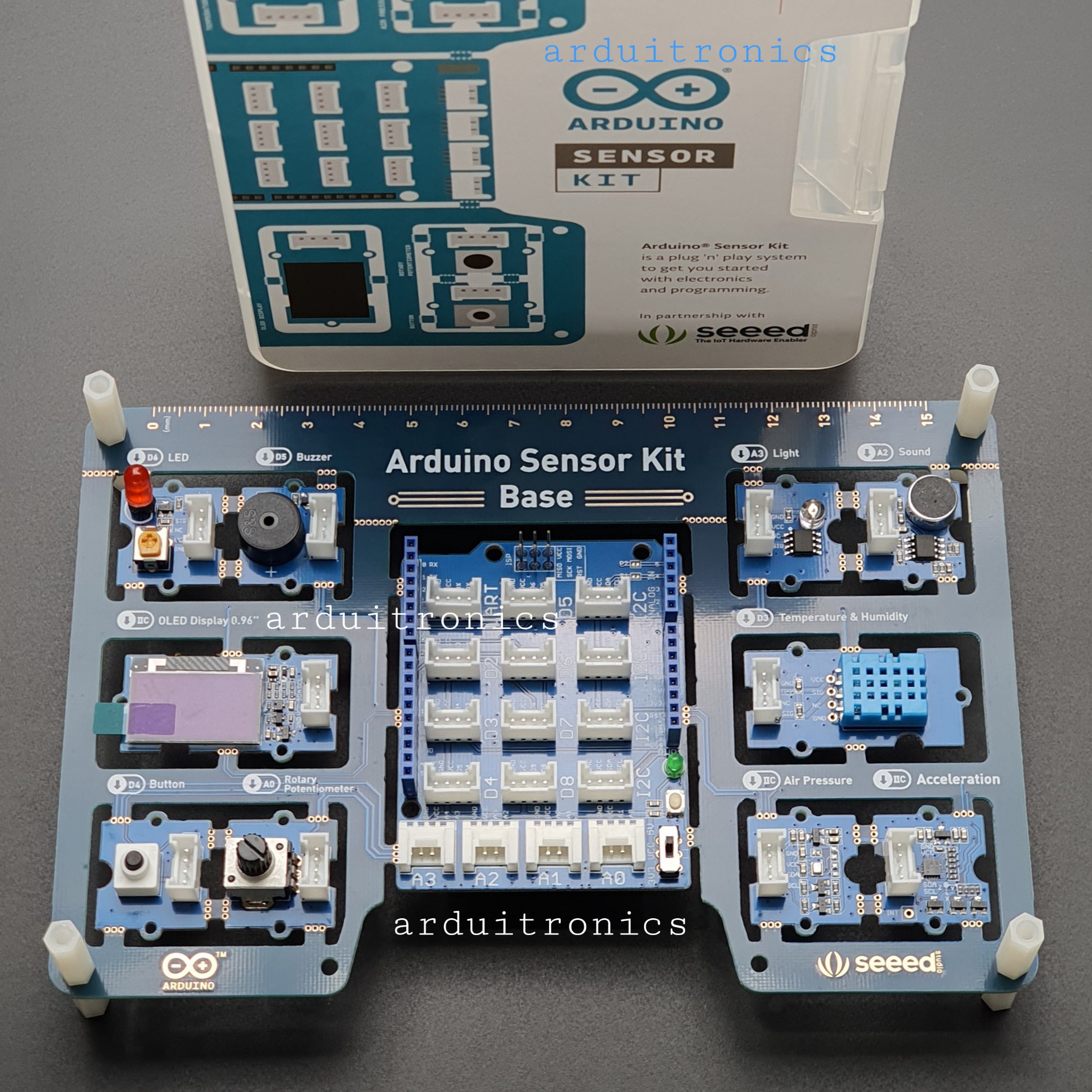

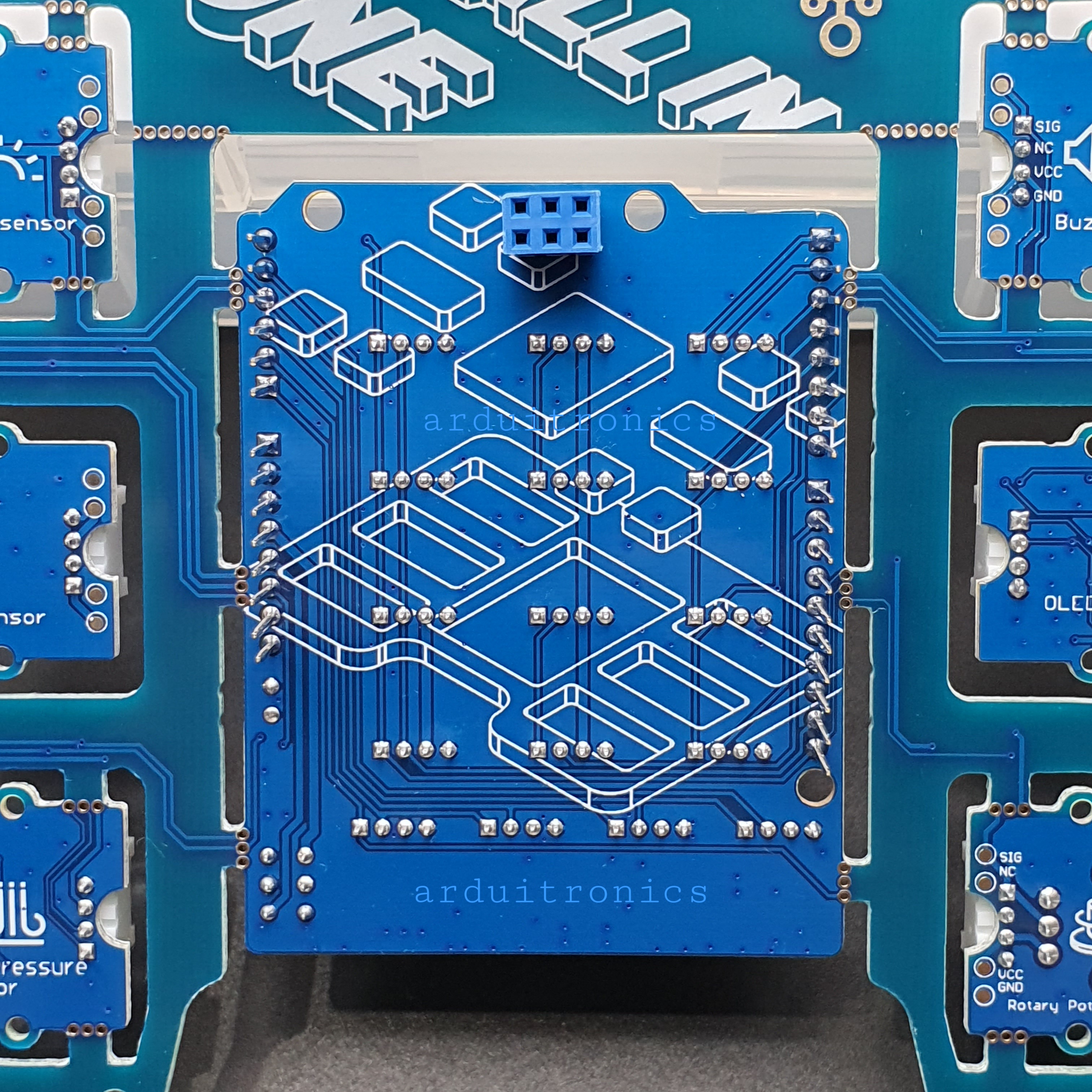

Base Shield
The Base Shield is designed to fit on top of an Arduino UNO board. It comes equipped with 16 grove connectors, which, when placed on top of the UNO, provides functionality to various pins. It includes:

• 7x digital connections
• 4x analog connections
• 4x I2C connections
• 1x UART connection

Additionally, all pins on the UNO are still accessible with the use of jumper wires.

Modules

The 10 modules included can be connected to the base shield, either through the digital, analog or I2C connectors on the shield. Let's take a quick look at them:

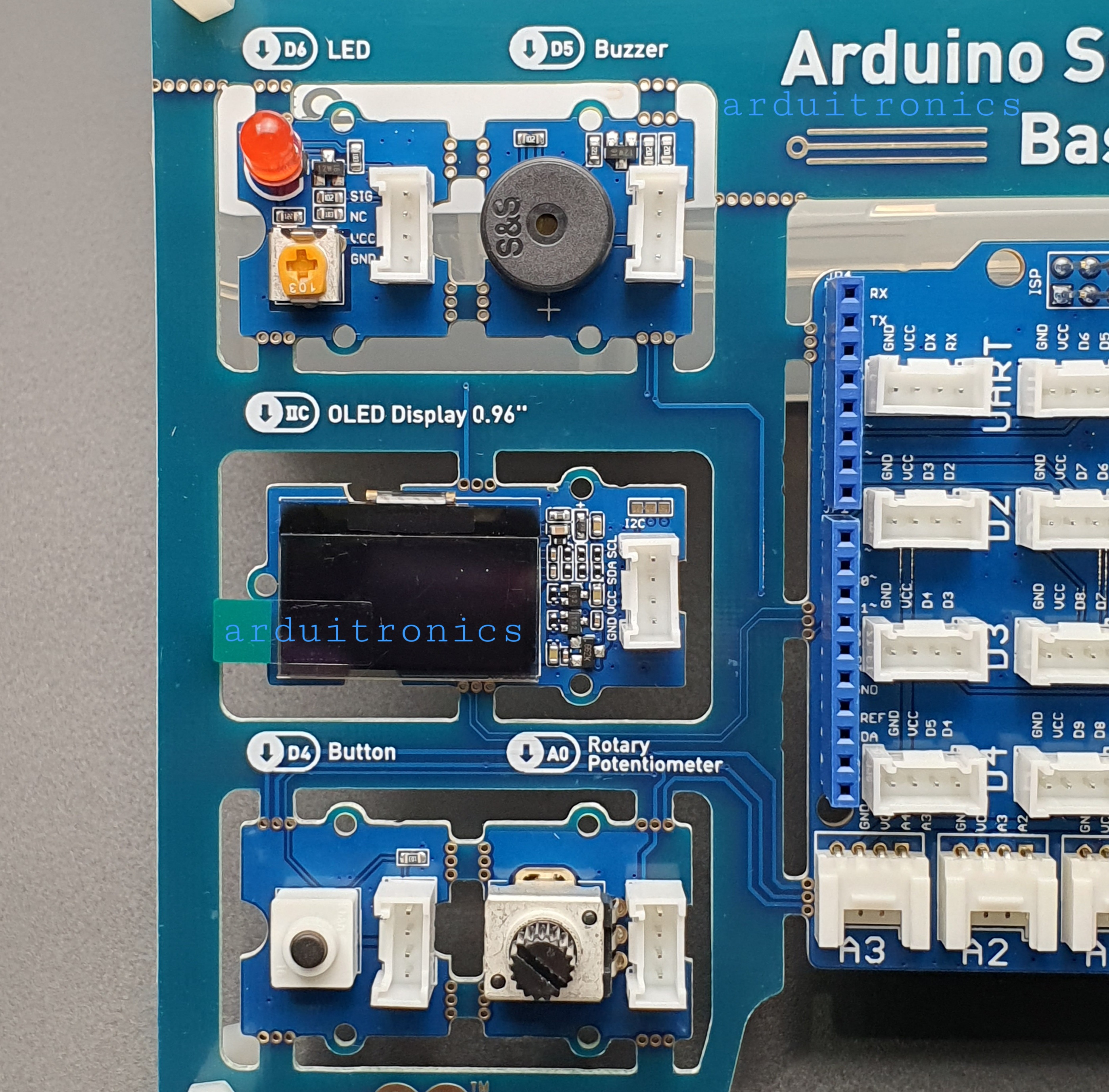

• The LED - simple LED that can be turned ON or OFF, or dimmed.
• The button - pushbutton that can either be in a HIGH or LOW state.
• The potentiometer - a variable resistor that increases or decreases resistance when turning its knob.
• The buzzer - a piezo speaker that is used to produced binary sounds.

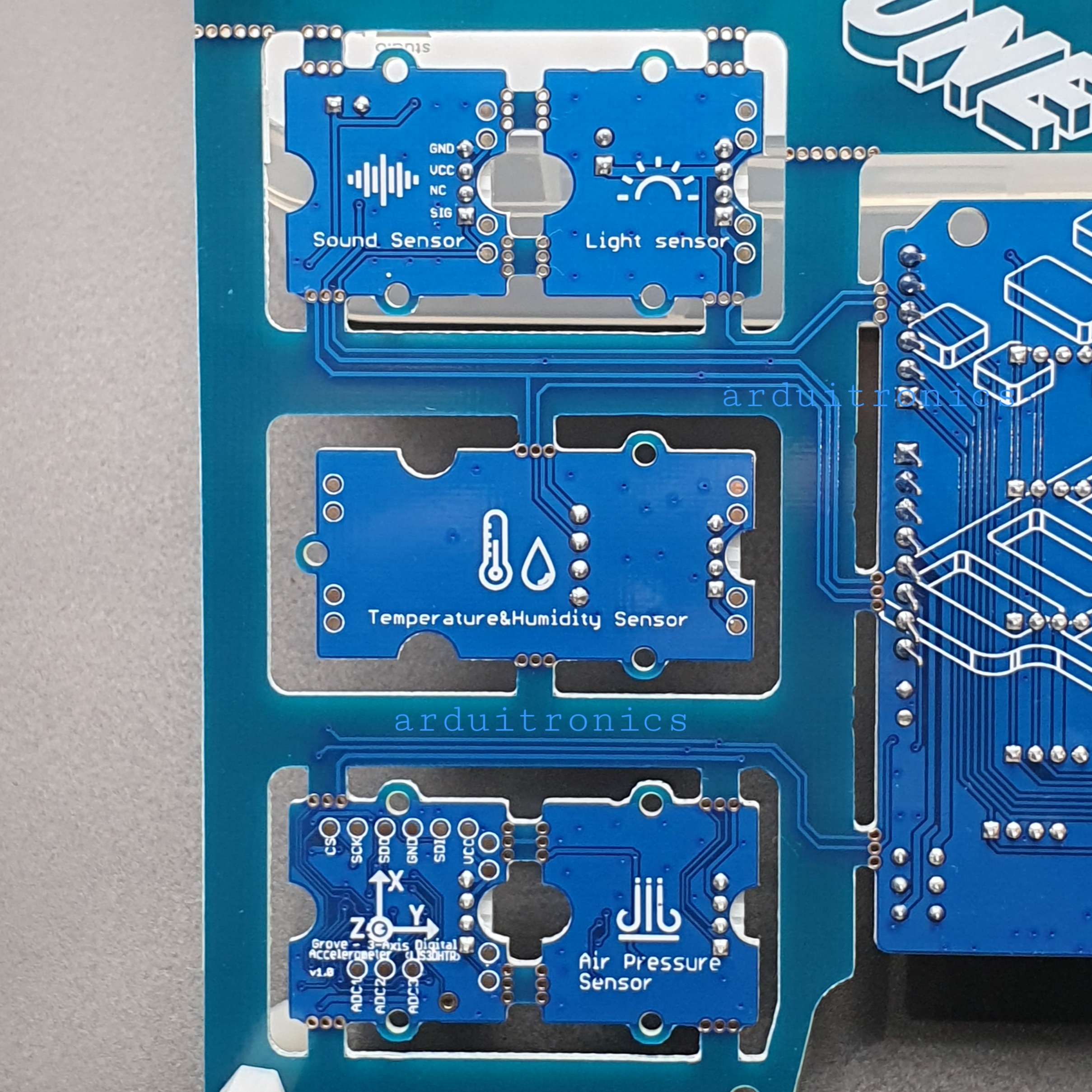

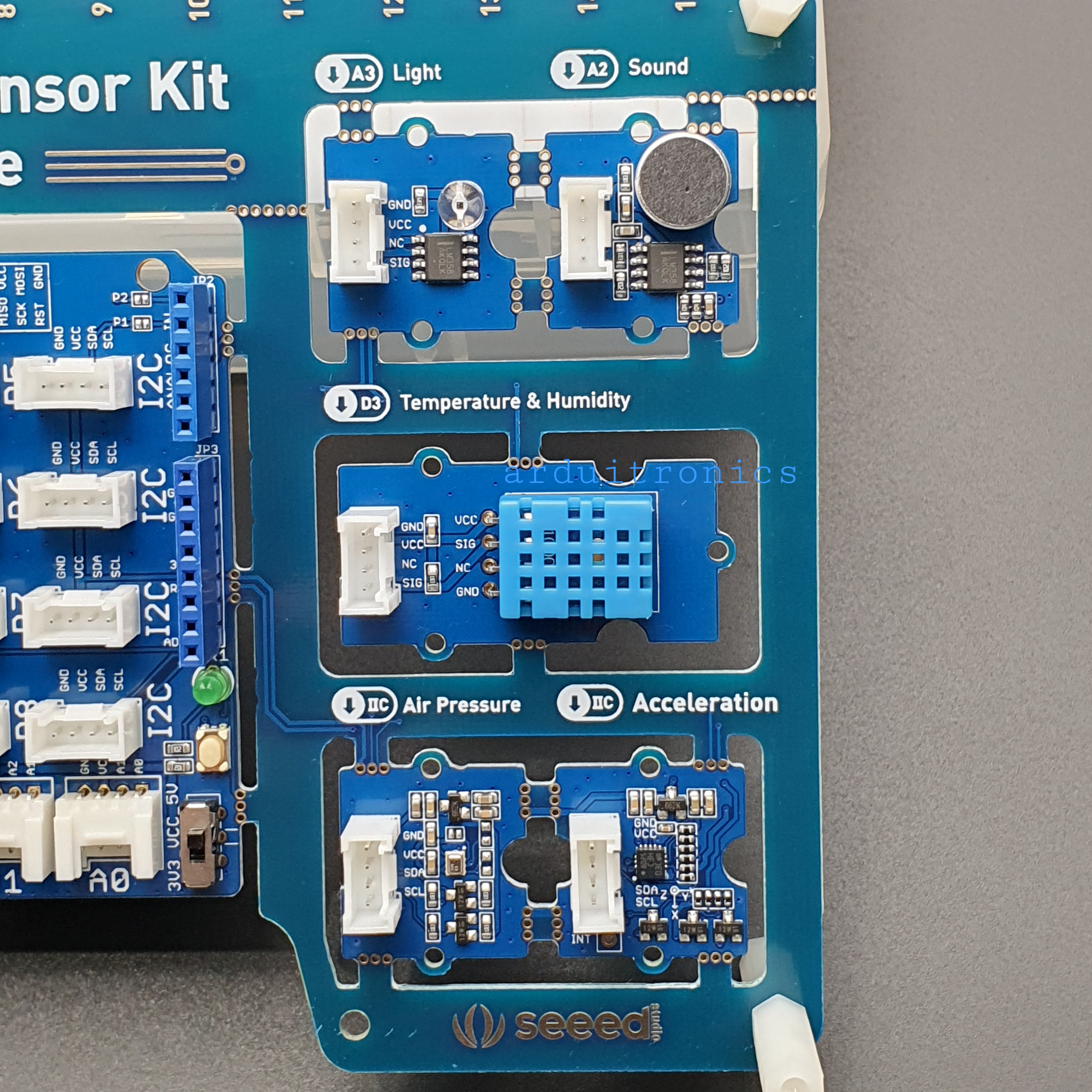

• The light sensor - a photoresistor that reads light intensity.
• The sound sensor - a tiny microphone that measures sound vibrations.
• The air pressure sensor - reads air pressure, using I2C protocol.
• The temperature sensor - reads temperature and humidity at the same time.
• The accelerometer - a sensor used for orientation, used for detecting movement.
• The OLED screen - a screen that values or messages can be printed to.
