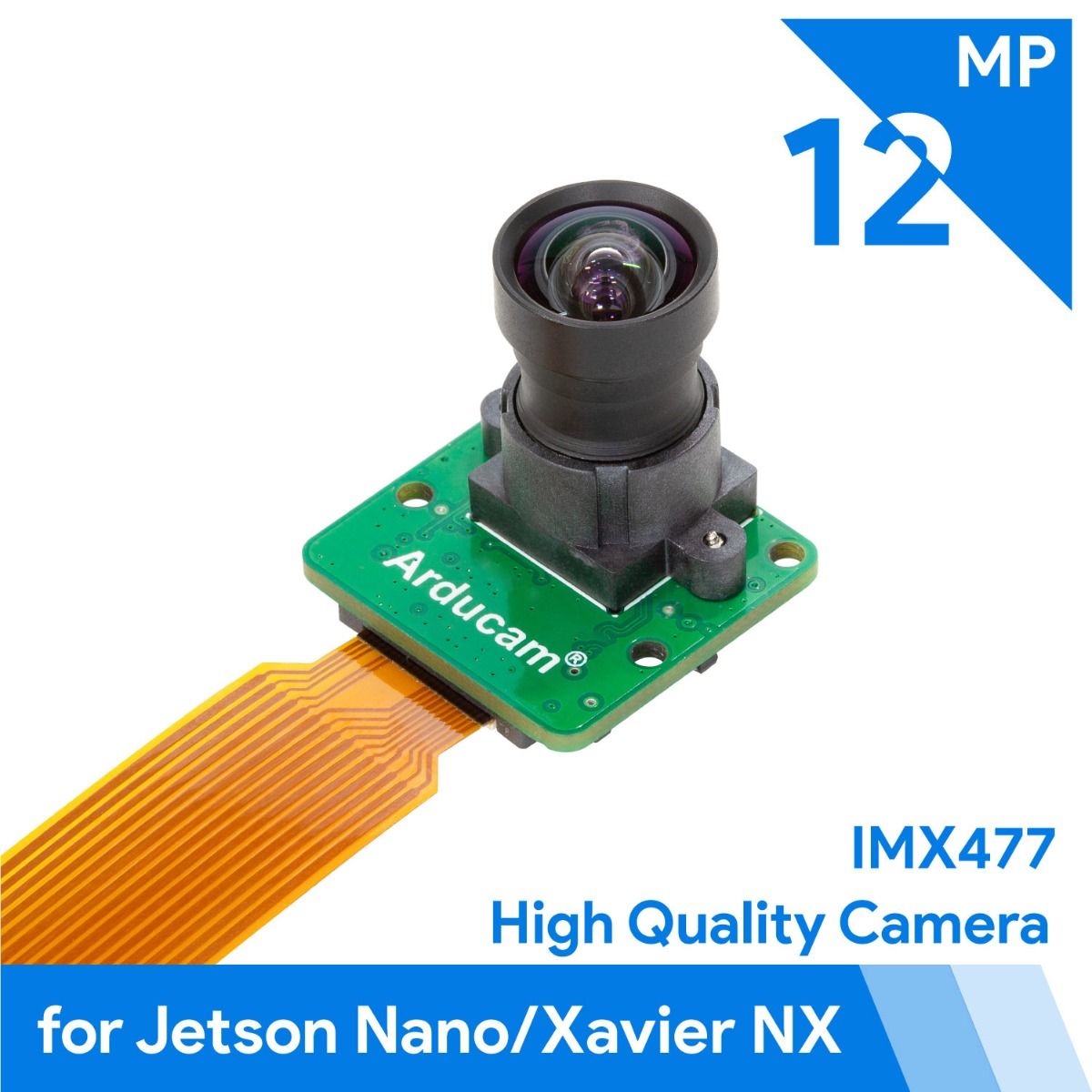

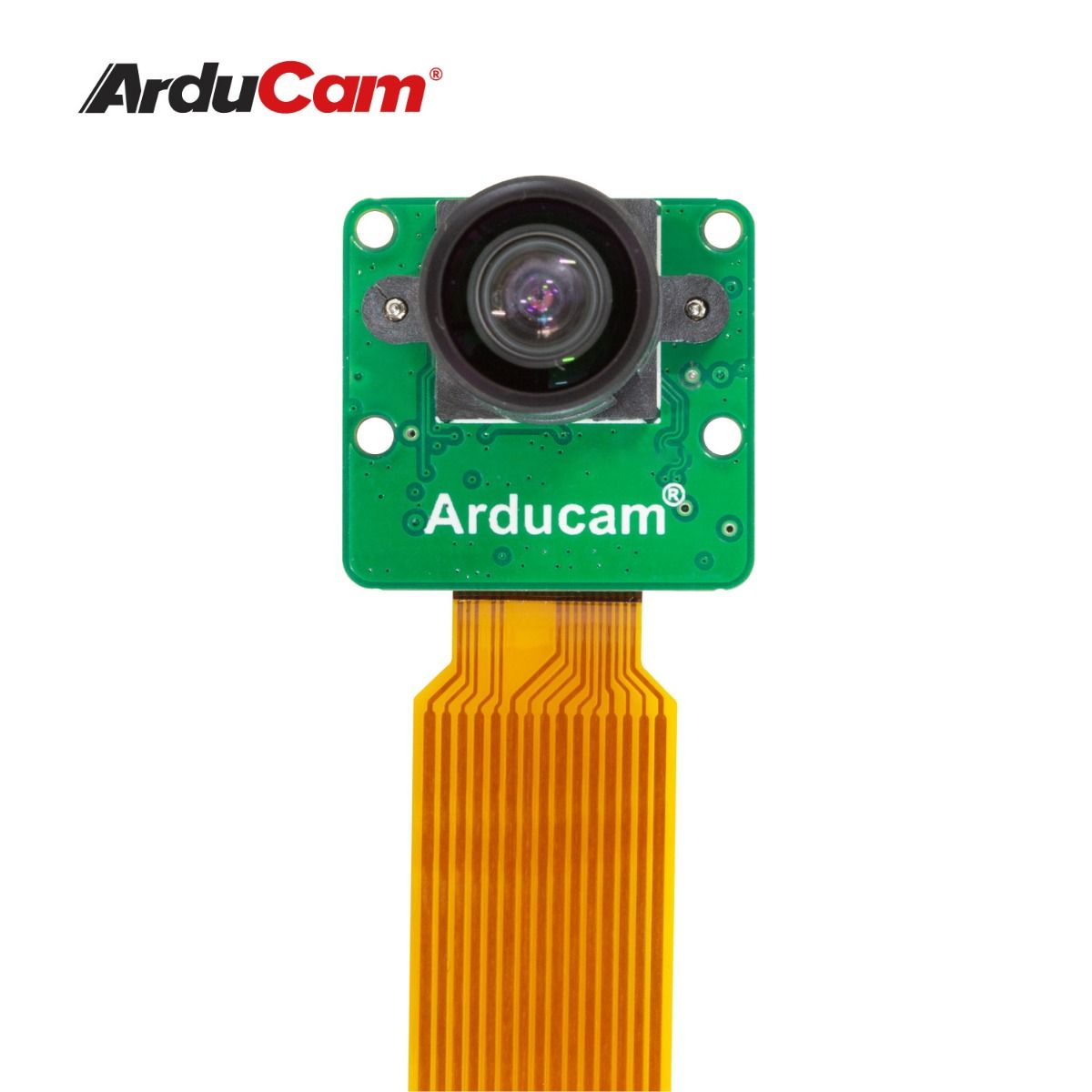

Arducam MINI High Quality Camera with M12 mount lens, 12.3MP 1/2.3 Inch IMX477 HQ Camera Module for Jetson Nano, Xavier NX

Description:

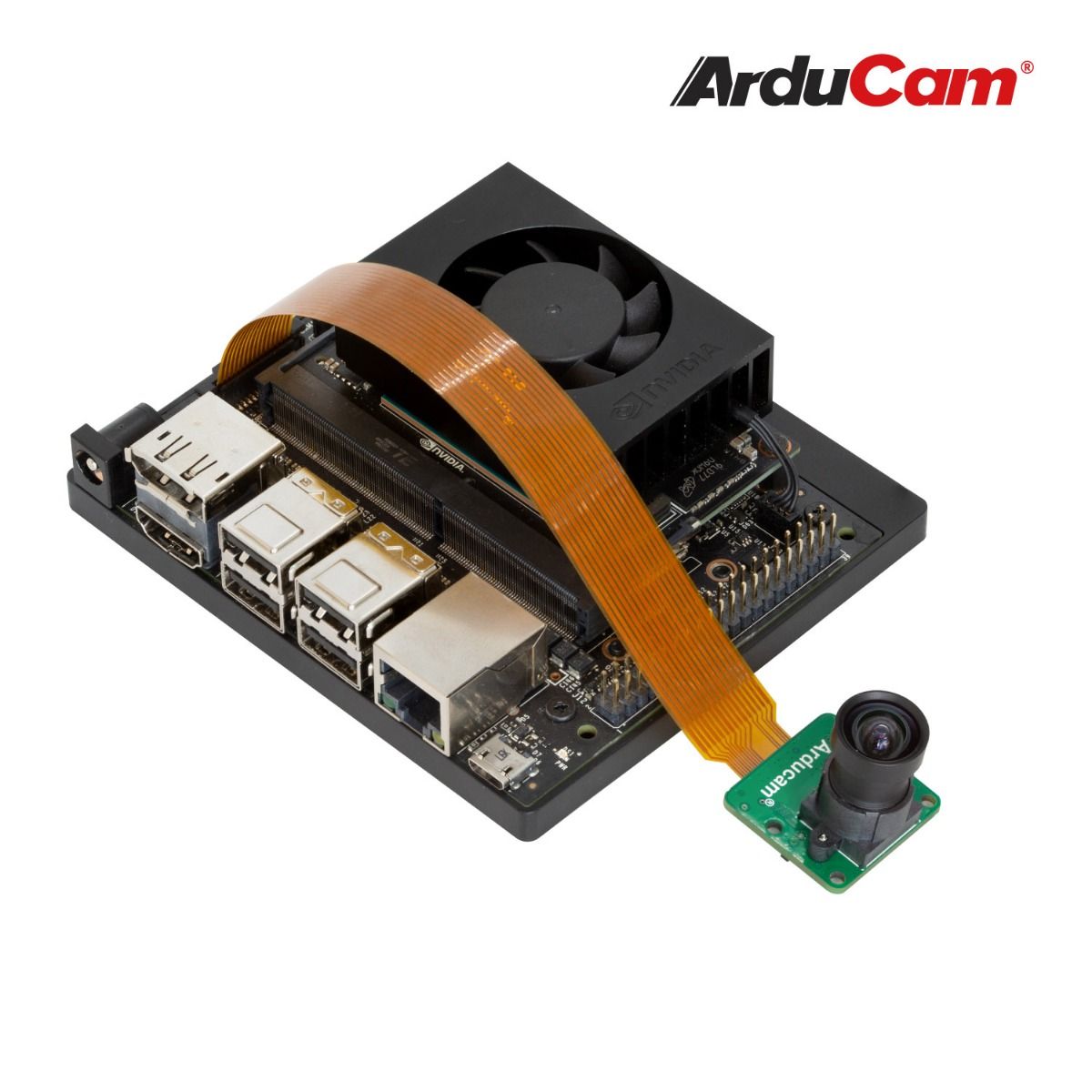

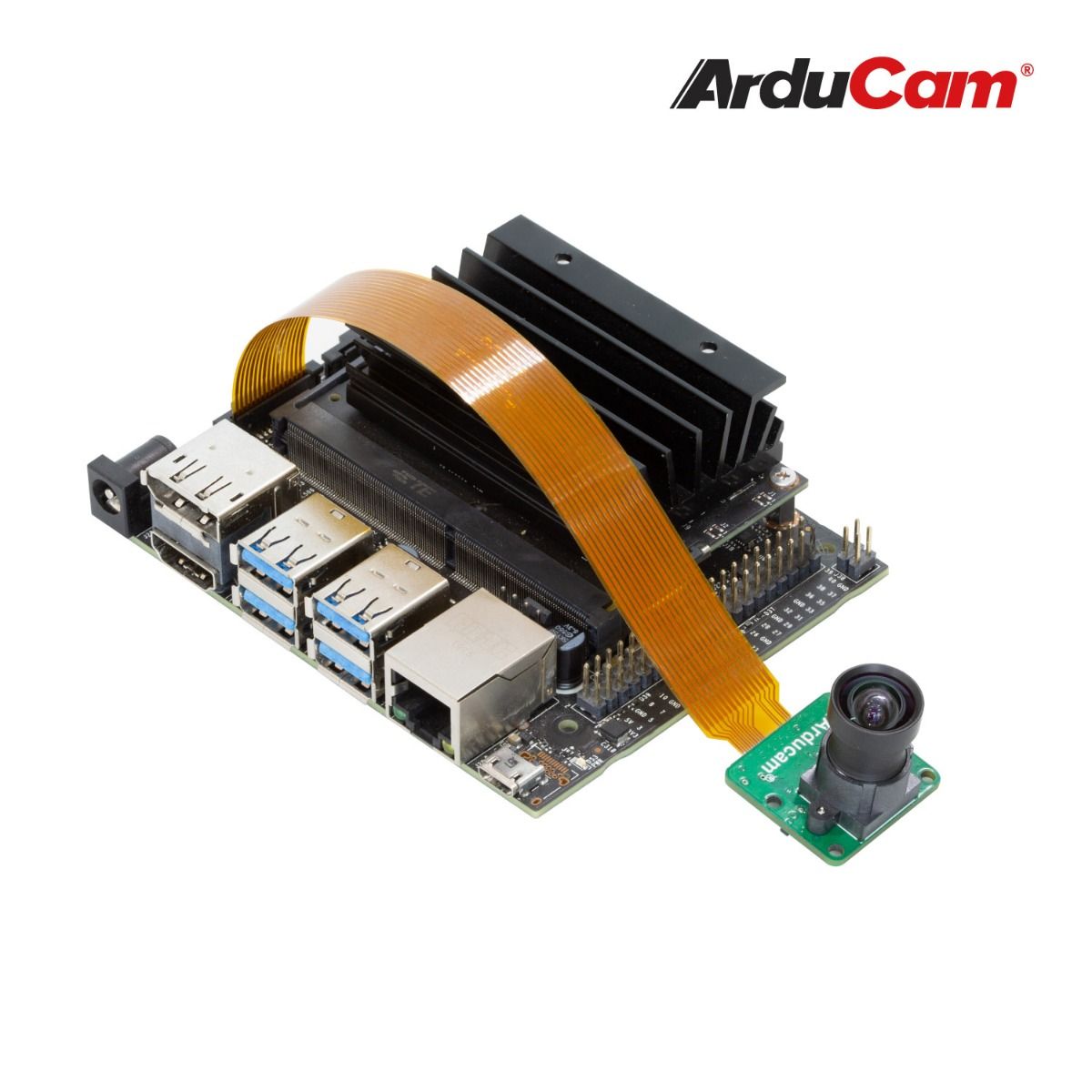

To make High Quality camera module work on applications with size and weight limits, Arducam just released this small size camera module for Jetson Nano/Xavier NX. It is fully compatible with Raspberry Pi V2 module size, a 24mm x 25mm IMX477 camera board, a low distortion M12 mount lens. You can use this camera module on Jetson Nano/Xavier NX natively with ISP features, and no need for any driver or hardware update.

Camera
– Sensor: IMX477
– Optical Format: 1/2.3″ (diagonal 7.857mm)
– Resolution: 4056(H) x 3040(V) 12.3MP
– Pixel Size: 1.55um x 1.55um
– IR Sensitivity: Visible light
– Interface: 2-lane MIPI CSI-2
– Default Lens Mount: M12 Mount
– Frame Rate: (depends on the target platform, maximum fps limit might apply)
1920×1080 @ 60fps
4032×3040 @ 30fps

Lens
– Format: 1/2.3 inch
– Focal Length: 3.9mm
– Aperture (F): F2.8
– Field of View (FOV): 80° (H)
– Mount: M12 Mount
– Back Focal Length: 4.49mm
– MOD: 0.1m Dimension: Φ14×18.67mm
– Weight: 5g

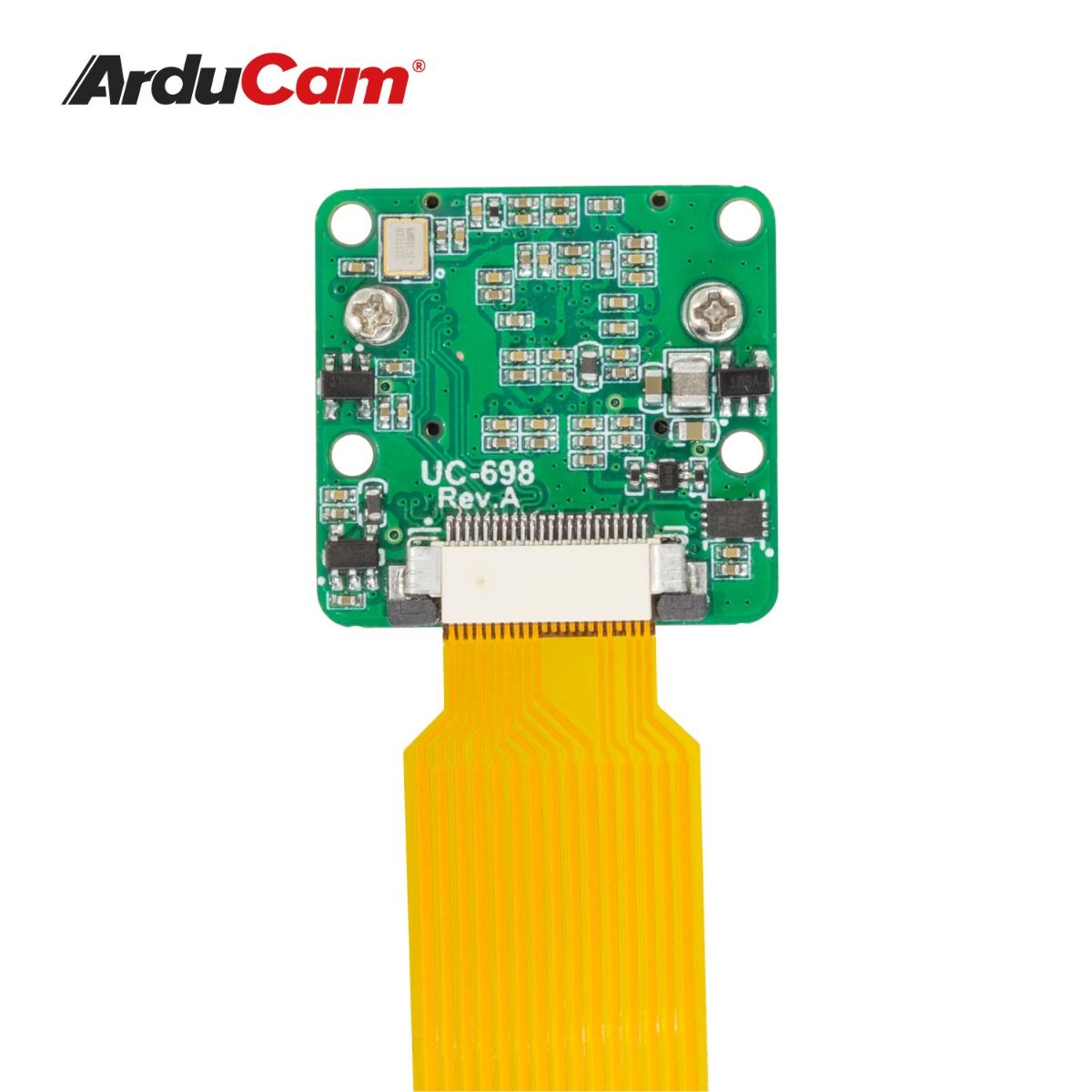

Camera board

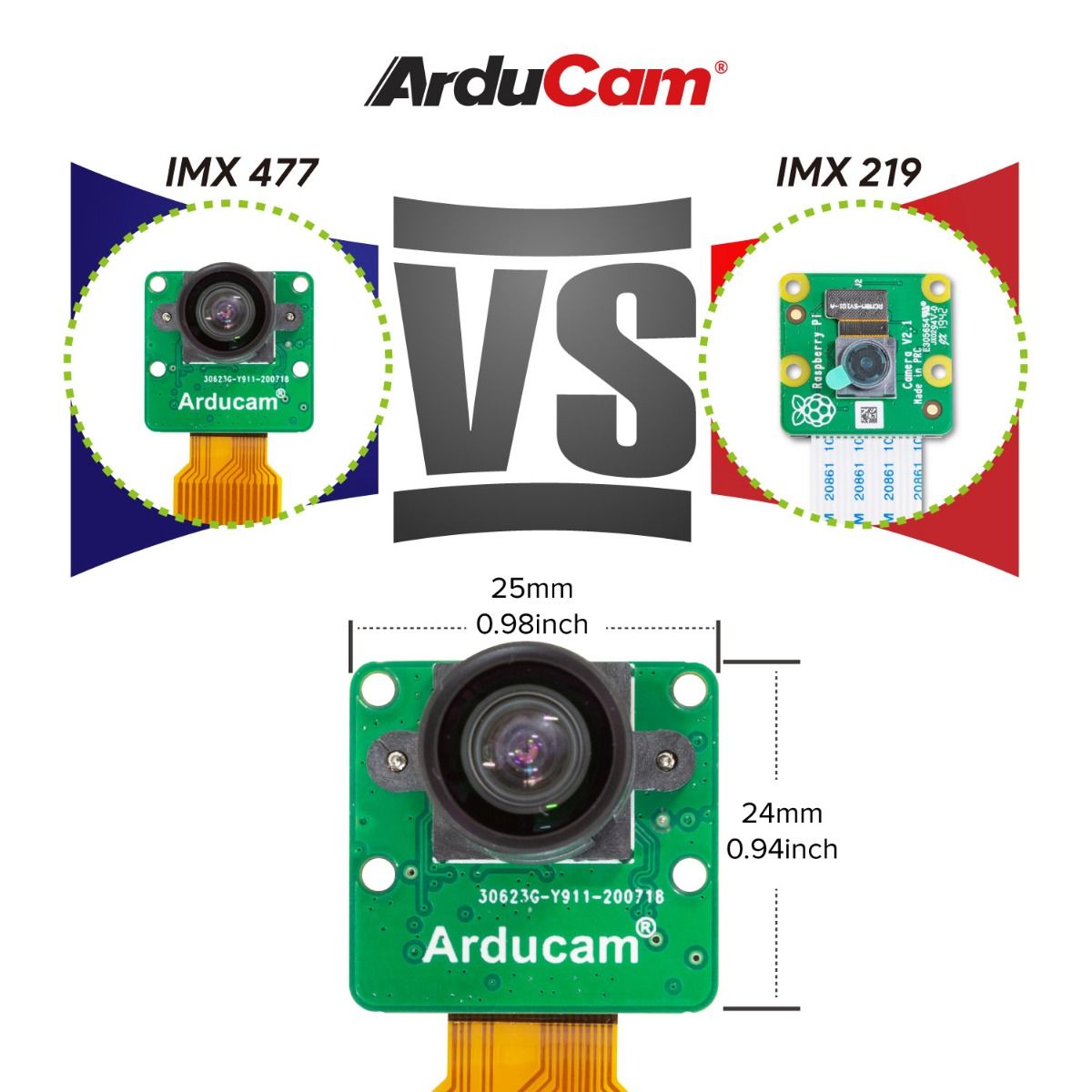

– Board Size: 24mm×25mm

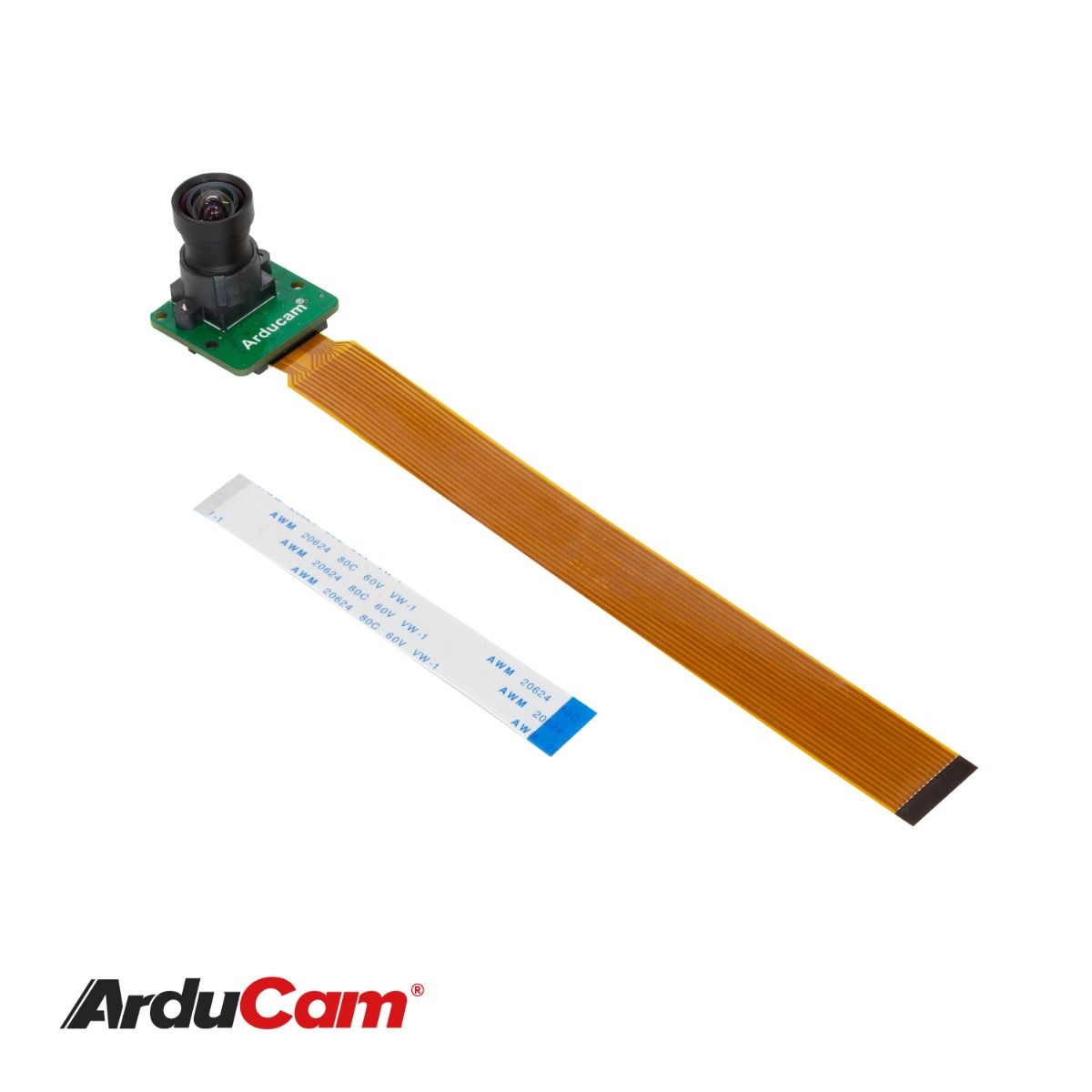

Package Includes:

• 1 pcs 12.3MP IMX477 color camera module
• 1 pcs 3.9mm focal length M12 mount camera lens
• 1 pcs 150mm/12inch 15pin to 22pin camera cable

Additional Resources:

• Arducam Documentation - High Quality Camera for Jetson
• 3D Drawing - Mini High Quality Camera for Jetson
• Blog - RPI-CAM-V2 Sized IMX477 Camera Module for Jetson
