[จัดส่งฟรี] Raspberry Pi 4 Model B (แรม 8GB) ของแท้ made in UK

[จัดส่งฟรี] Raspberry Pi 4 Model B (แรม 8GB) ของแท้ made in UK
[จัดส่งฟรี] Raspberry Pi 4 Model B (แรม 8GB) ของแท้ made in UK[จัดส่งฟรี] Raspberry Pi 4 Model B (แรม 8GB) ของแท้ made in UK[จัดส่งฟรี] Raspberry Pi 4 Model B (แรม 8GB) ของแท้ made in UK
รหัสสินค้า BR60035
หมวดหมู่ Pi 4 Model B
ราคา 4,285.00 บาท
ขออภัย สินค้าหมด
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

ข้อมูลพื้นฐาน Raspbery Pi 4 Model B รุ่นแรม 8GB (จัดส่งฟรี)

รับประกันสินค้า 1 ปี !! โดยรับประกันสินค้าที่ความเสียหายเกิดจากโรงงานผู้ผลิตเท่านั้น

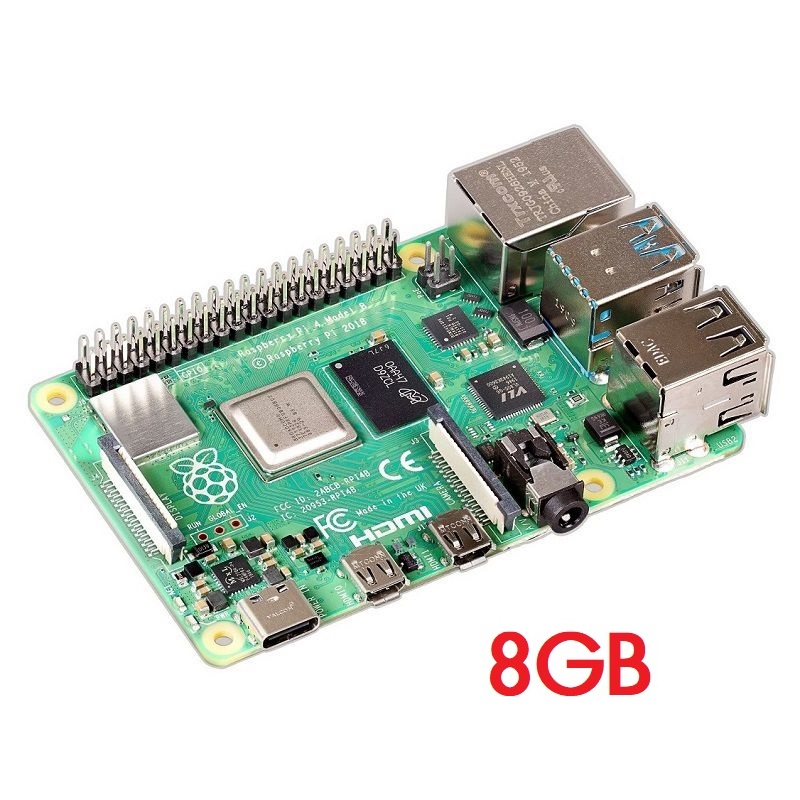

Raspberry Pi 4 Model B เป็นบอร์ดตัวใหม่จาก Raspberry Pi Foundation ที่ใช้ Broadcom BCM2711 Quad-Core ARM Cortex-A72 ความเร็ว 1.5 GHz เป็นหน่วยประมวลผลหลัก โดยมีขนาดของหน่วยความจำ LPDDR4-2400 ให้เลือกทั้งหมด 4 ขนาด (1GB 2GB 4GB และ 8GB) บอร์ดใช้ชิพ Wireless LAN แบบ Dual-Band รองรับ 2.4 GH และ 5 GHz พร้อมรองรับ Bluetooth 5.0 BLE  มีพอร์ต LAN รองรับ Gigabit Ethernet พอร์ต USB 3.0 Host Type A จำนวน 2 พอร์ต และ USB 2.0 Host Type A จำนวน 2 พอร์ต มีพอร์ต micro-HDMI จำนวน 2 พอร์ต รองรับการเชือมต่อจอ 4K60P


บอร์ดรุ่นใหม่ต้องใช้แหล่งจ่ายไฟที่มีคอนเน็คเตอร์แบบ USB Type-C ควรใช้งานร่วมกับแหล่งจ่ายที่สามารถจ่ายกระแสได้ 3A ที่ระดับแรงดัน 5V (15 W) Power Adapter 5V 3A USB Type-C

บอร์ดรุ่นใหม่ใช้คอนเน็คเตอร์แบบ micro-HDMI รองรับการเชื่อมต่อ 2 จอภาพ (ขึ้นกับระบบปฏิบัติการที่ใช้งานด้วย) สำหรับ Raspbian OS สามารถปรับค่าได้ใน Configurations

บอร์ดต้องติดตั้ง OS ที่อัพเดทเพื่อรองรับ CPU ตัวใหม่ด้วย สำหรับ Raspbian OS ให้ใช้เวอร์ชัน Buster (based-on Debian 10) ควรใช้ตัวอัพเดทตั้งแต่ July 2019 ขึ้นไป (2019-07-10) หากติดตั้งผ่าน NOOBS ควรใช้ Version 3.2.0 (2019-07-10) ขึ้นไป

ดาวน์โหลดรายละเอียด Click

ตารางเปรียบเทียบ Pi 4B กับ Pi 3B+

Description:

Raspberry Pi 4 Model B is the latest product in the popular Raspberry Pi range of computers. It offers ground-breaking increases in processor speed, multimedia performance, memory, and connectivity compared to the prior-generation Raspberry Pi 3 Model B+, while retaining backwards compatibility and similar power consumption. For the end user, Raspberry Pi 4 Model B provides desktop performance comparable to entry-level x86 PC systems.
This product’s key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K via a pair of micro-HDMI ports, hardware video decode at up to 4Kp60, up to 4GB of RAM, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0, and PoE capability (via a separate PoE HAT add-on).
The dual-band wireless LAN and Bluetooth have modular compliance certification, allowing the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market.

Specification:
  • Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz

  • 1GB, 2GB, 4GB, 8GB LPDDR4-2400 SDRAM (depending on model)

  • 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE

  • Gigabit Ethernet

  • 2 USB 3.0 ports; 2 USB 2.0 ports.

  • Raspberry Pi standard 40 pin GPIO header (fully backwards compatible with previous boards)

  • 2 × micro-HDMI ports (up to 4kp60 supported)

  • 2-lane MIPI DSI display port

  • 2-lane MIPI CSI camera port

  • 4-pole stereo audio and composite video port

  • H.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)

  • OpenGL ES 3.0 graphics

  • Micro-SD card slot for loading operating system and data storage

  • 5V DC via USB-C connector (minimum 3A*)

  • 5V DC via GPIO header (minimum 3A*)

  • Power over Ethernet (PoE) enabled (requires separate PoE HAT)

  • Operating temperature: 0 – 50 degrees C ambient



Note:
A good quality 2.5A power supply can be used if downstream USB peripherals consume less than 500mA in total.
