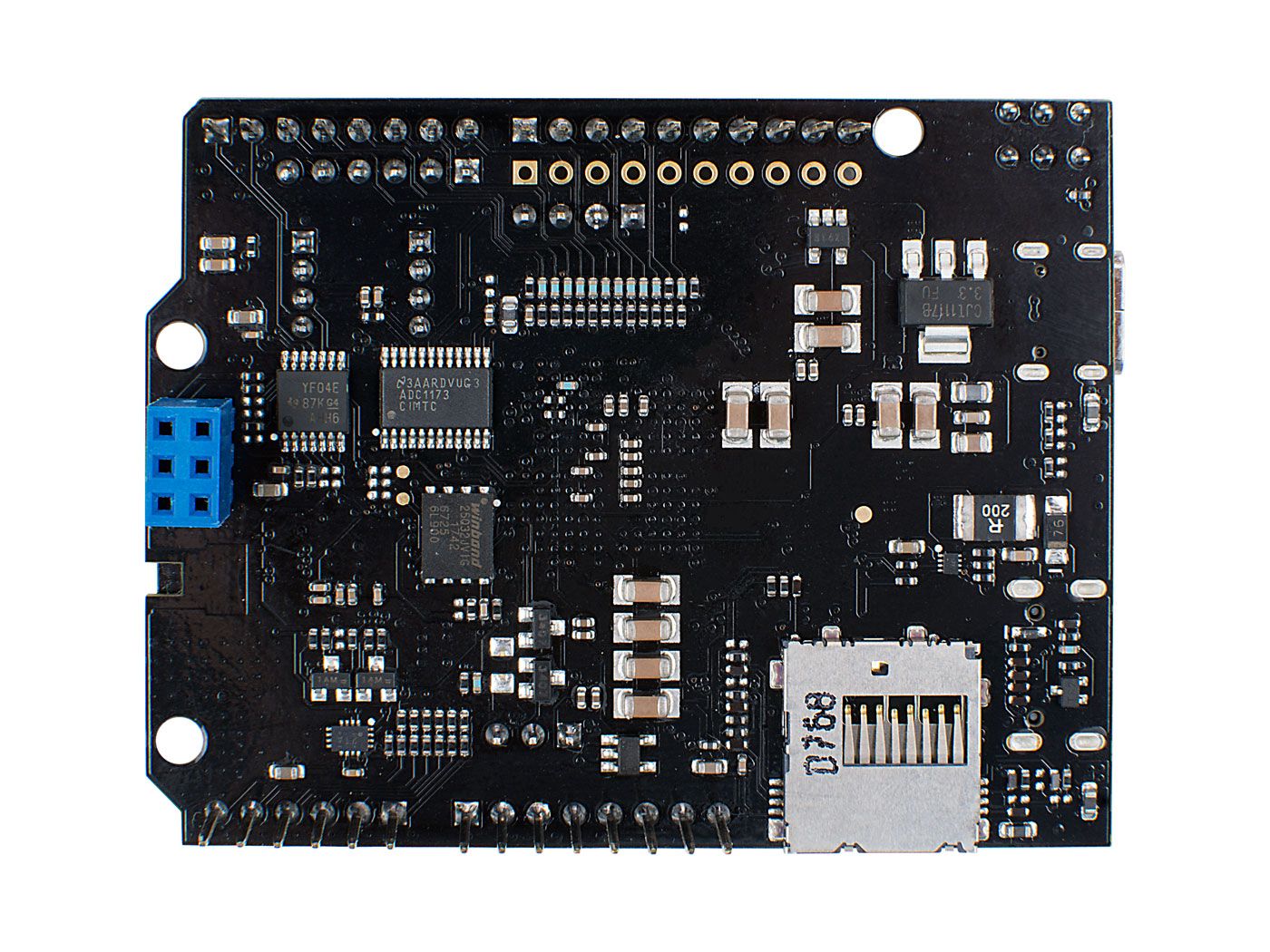

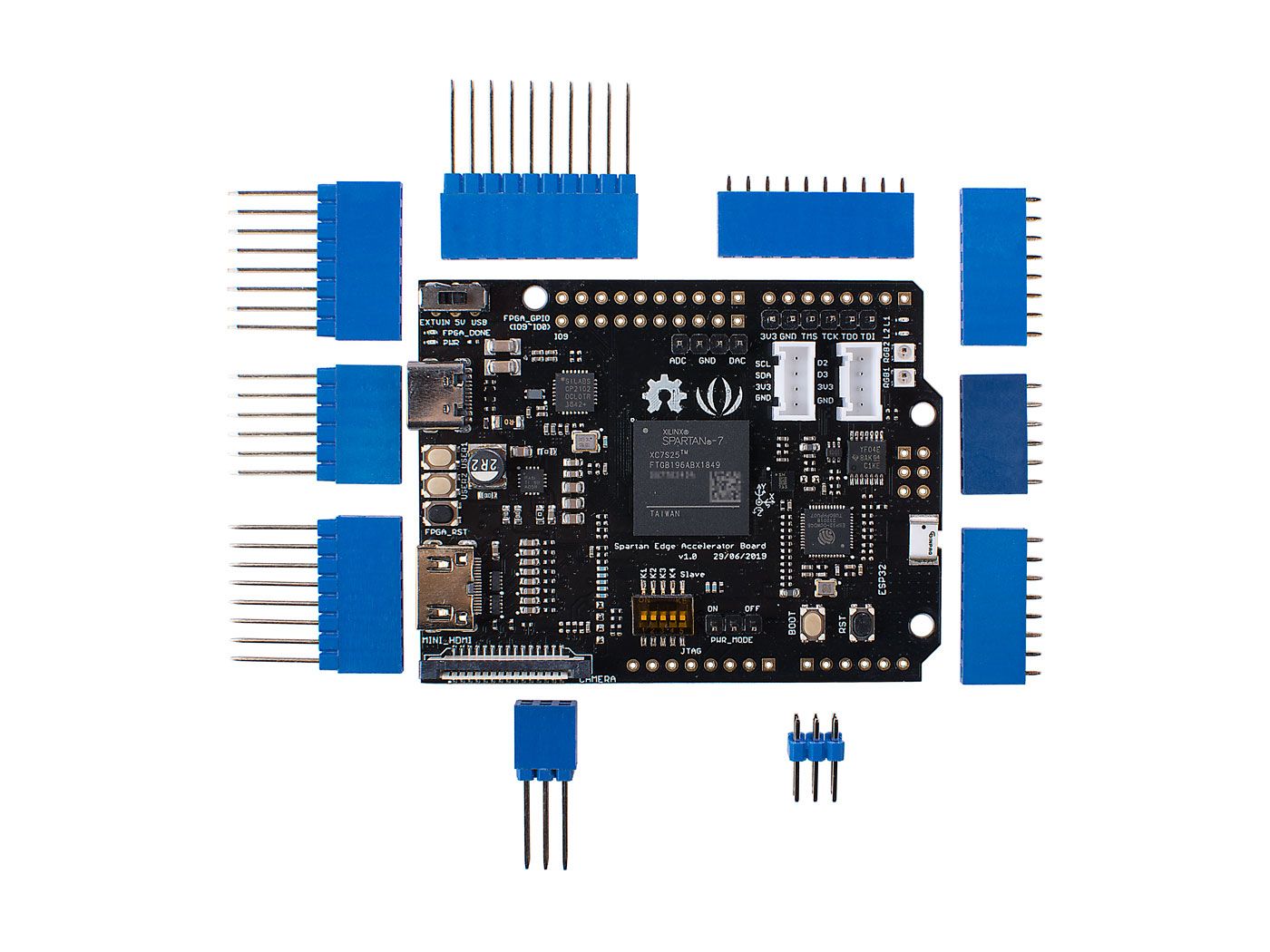

Spartan Edge Accelerator Board - Arduino FPGA Shield with ESP32 (แท้จาก seeedstudio)

FPGA

The Spartan Edge Accelerator Board is built around Xilinx Spartan-7 XC7S15 FPGA, which is a cost-effect but powerful FPGA chip. When it comes to Ardunio FPGA, the first mover Arduino MKR Vidor 4000 was always mentioned. Compared with the official Arduino MKR Vidor 4000, the Spartan Edge Accelerator Board has a similar performance, but the price is less than half! Spartan Edge Accelerator Board can run at up to 100Mhz clock speed and offers 12.8K logic cells, 360Kb block RAM. Well, to drive a camera or HDMI display is just a piece of cake. Besides we breakout 10 user-programmable I/O pins of XC7S15, you can configure them as PWM, I2C, I2S, UART, SPI, etc.

ESP32

We know you love ESP32, so we used it as the wireless core. It supports 802.11 b/g/n 2.4GHz WiFi as well as Bluetooth 4.1 with BLE. Just a single board to enable your Arduino with FPGA and Wireless function, isn't it amazing?

Arduino FPGA API

On top of that, we provide a full Arduino FPGA  API to help you use FPGA resources to control FPGA I/Os with Arduino IDE even if you know nothing about the FPGA theory. Spartan Edge Accelerator Board will equip Arduino with the ability that was once unimaginable, such as edge technology, image recognition, signal sampling and processing, and so on.

Features

High-speed image processing

• Support Raspberry Pi camera v1.0(OV5640)
• Support max 30fps image transmission

Encrypted Internet of Things

• Support cloud services (AWS, Azure, etc.)
• Support software encryption algorithm

Multiple I/O port extensions

• 20 extended I/O ports (FPGA stand-alone mode)
• 10 extended I/O ports (Arduino shield mode)
•  Support for Arduino expansion interface

Target Users

• IoT developer
• Arduino developer
• FPGA developers
