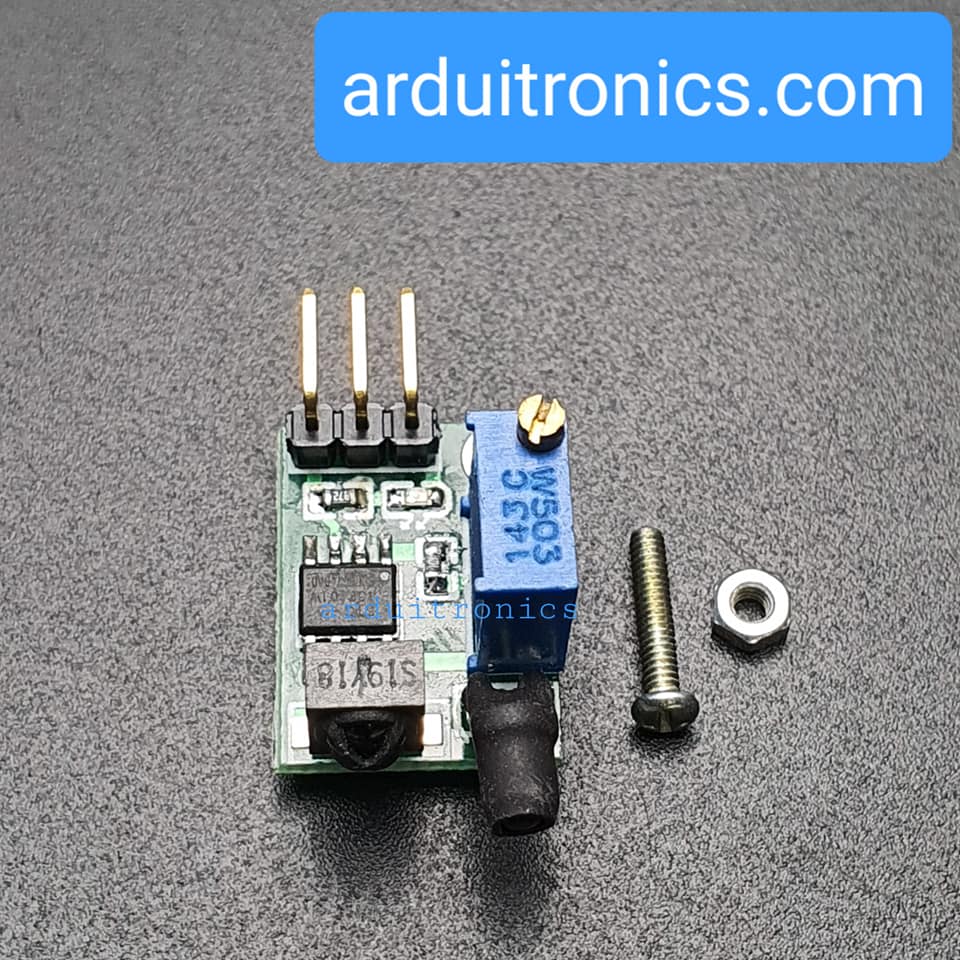

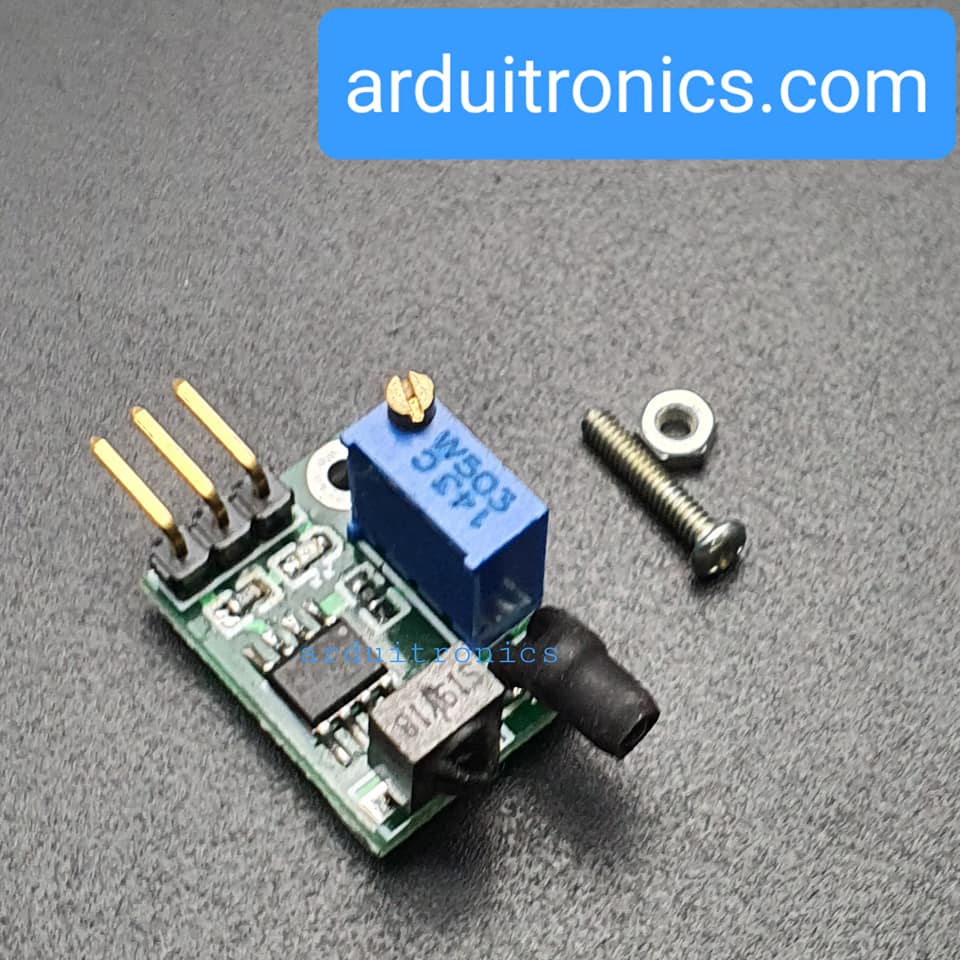

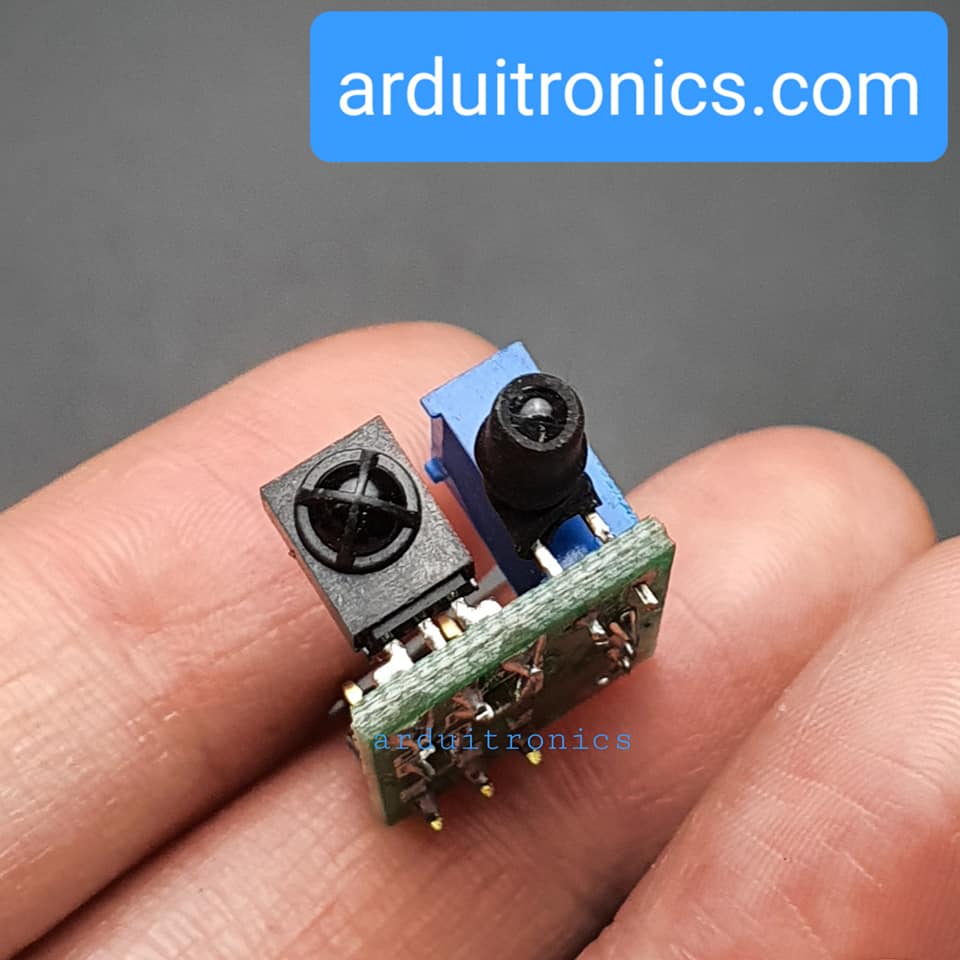

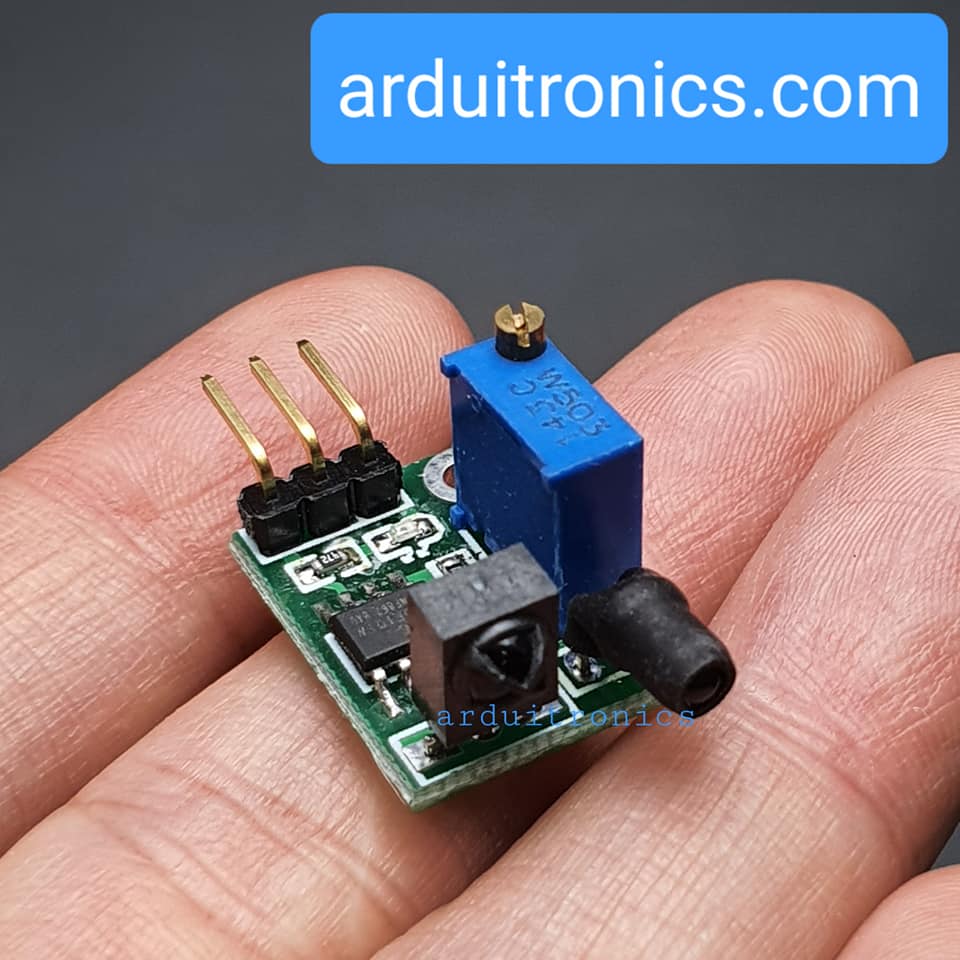

Infrared Obstacle Avoidance Sensor Ultra Small โมดูลเซนเซอร์สิ่งกีดขวางแบบอินฟาเรด 1-80 cm ปรับระยะได้

โมดูลเซ็นเซอร์สิ่งกีดขวางแบบอินฟาเรด ทำงานได้ที่ระยะ 1-80 cm สามารถปรับระยะการเซนเซอร์ได้ มีขนาดเล็ก ใช้ไฟ 3.8-5 โวลต์ ให้สัญญาณออกมาเป็น 1 ที่ขา OUT พร้อมไฟ LED บนบอร์ด เมื่อตรวจจับวัตถุกีดขวางได้ บอร์ดขนาดเล็ก ใช้กระแสเพียง 6mA ที่ไฟ 5 โวลต์

โคด Arduino ต่อใช้งาน
/*
Vcc - 5V
Gnd - Gnd
OUT - 7 // สามารถเปลี่ยนใช้กับขา digital ได้ทุกขา
*/

int out = 7;

void setup() {
  pinMode(out,INPUT);
  Serial.begin(9600);
}

void loop() {
  int value = digitalRead(out);
  Serial.println(value);
}

How it works:

  • active transmitter infrared sensor, based on the reflected light detection, if the obstacle is detected, OUT pin output 0, otherwise 1.
  • Operating voltage: 3.8v-5.5v
  • Operating current (5V when): Typical current 6ma

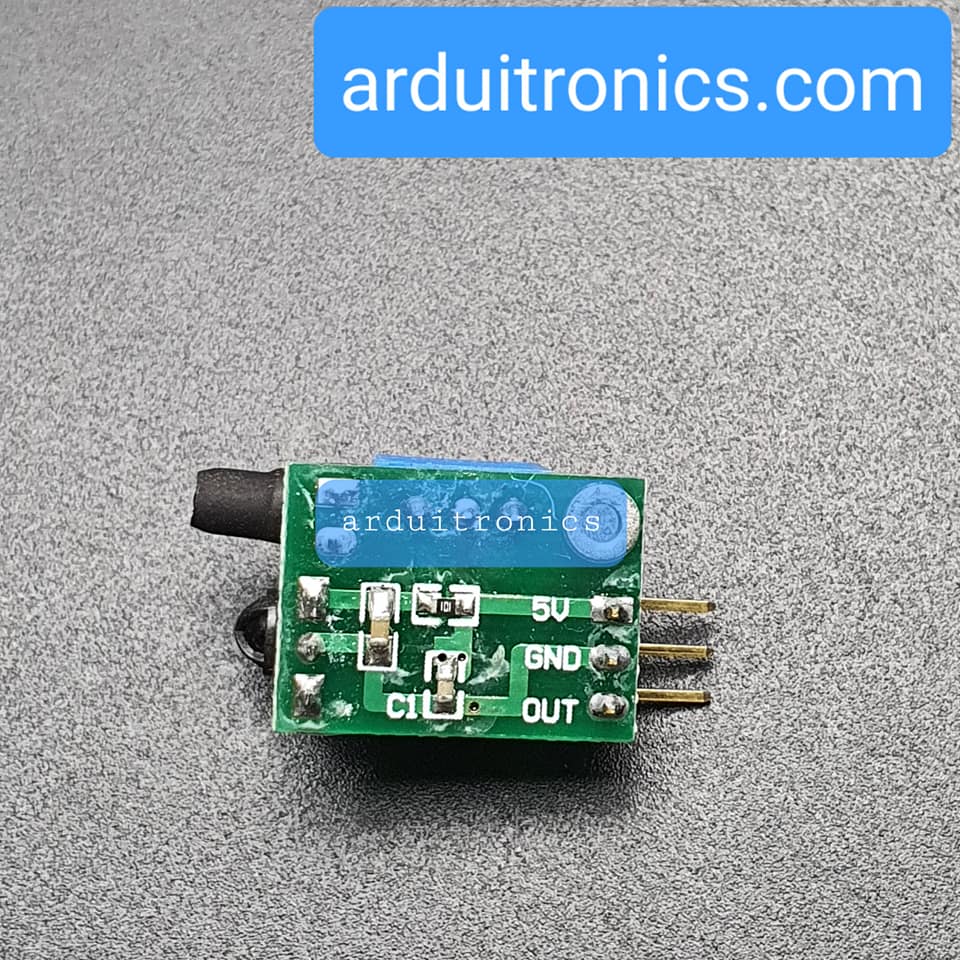

  • Input and output signal (3-wire):
  • VCC GND OUT
  • GND, VCC is the power supply, VCC range is 3.8v-5.5v

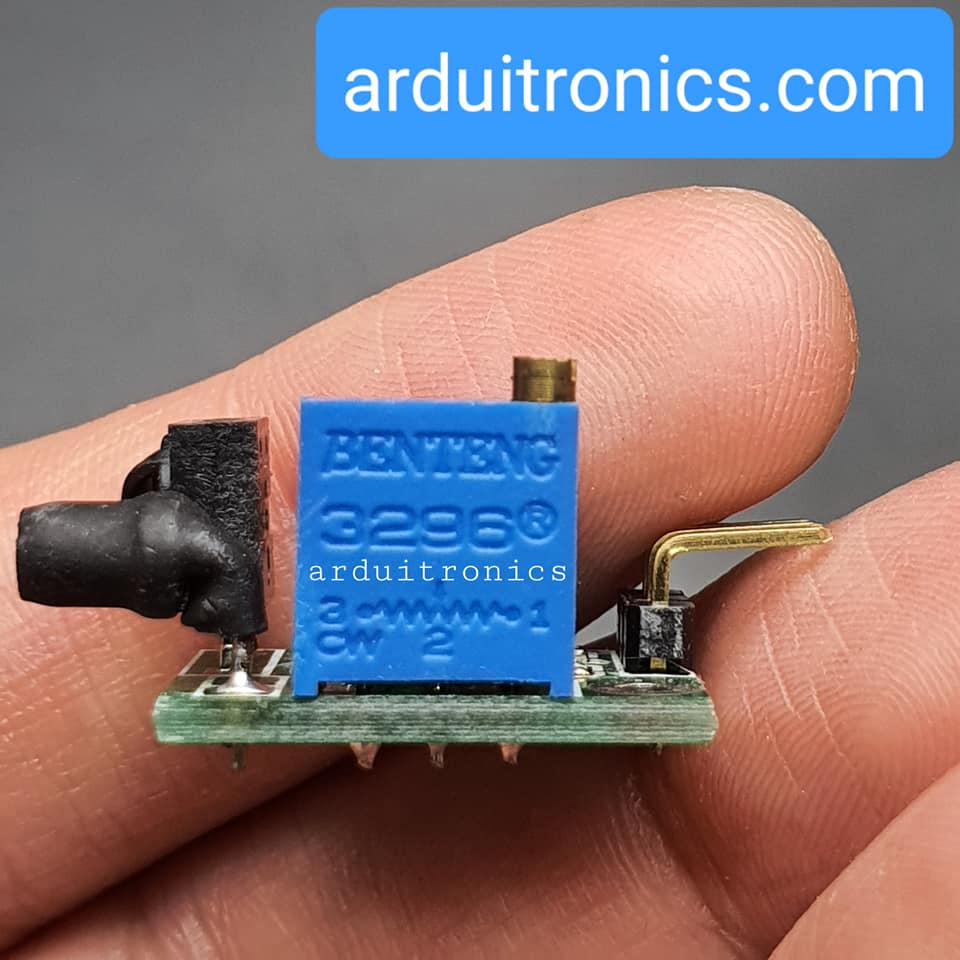

How the board turn precision adjustable potentiometer, which can be adjusted according to the use environment. Adjustment range from 3cm-100cm. Because it is a reflection principle, with specific targets related to the reflection can be adjusted according to the situation.
The circuit board has a red LED, a light emitting when detected obstacles .OUT output continued low. Accessibility is a continuous high level output OUT.
Obstacle detection time (within the effective detection range from the target to the accessibility obstacles, barriers or obstacles to target disappears): <= 21ms
Sensor active infrared reflection detection, so the target reflectivity and shape are key detection range, wherein the minimum detection range of black, white maximum; small area of small objects from a large area from the great.

Here is the detection range of the actual test:

Detection range (test environment, indoor, maximum power, voltage 5v, power consumption 6.5ma):

  • white wall: 100cm
  • IBM computer black cover: 20cm
  • finger: 18cm
  • palm: 30cm
  • A transparent ballpoint pen: 20cm
  • A transparent ballpoint pen can be sensitively detected.

The new version made great improvements have been maturing, the following features:

  • Ultra-miniature, and is designed with a mechanical mounting holes.
  • The low power consumption, wide operating voltage range. Transmit signals using modulated signals, distance, interference and good, non-direct sunlight outdoor work (distance will be shorter).
  • distance adjustable range from 3cm-100cm.
  • avoidance using window technology and avoid the critical zones, the sensor is working very stable, the output signal of the user directly, no need to consider signal jitter problems.
  • cheap, but overall performance has exceeded the market infrared obstacle avoidance sensor.
