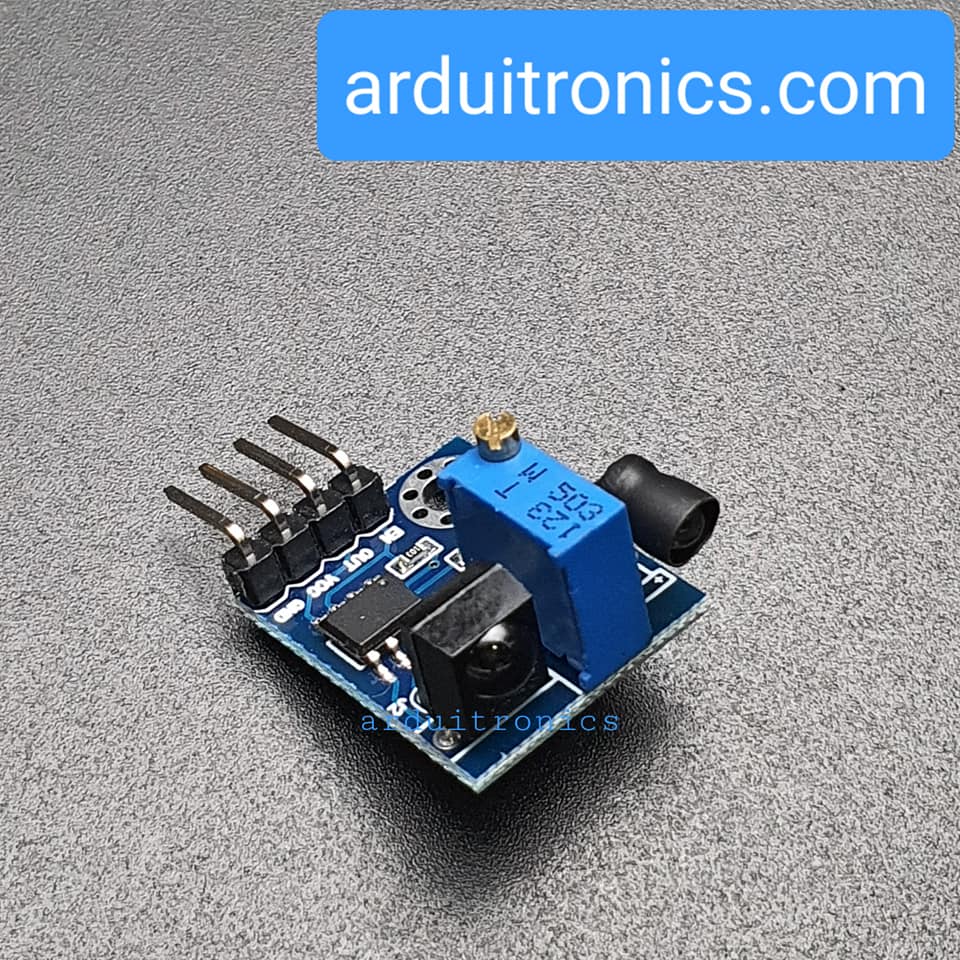

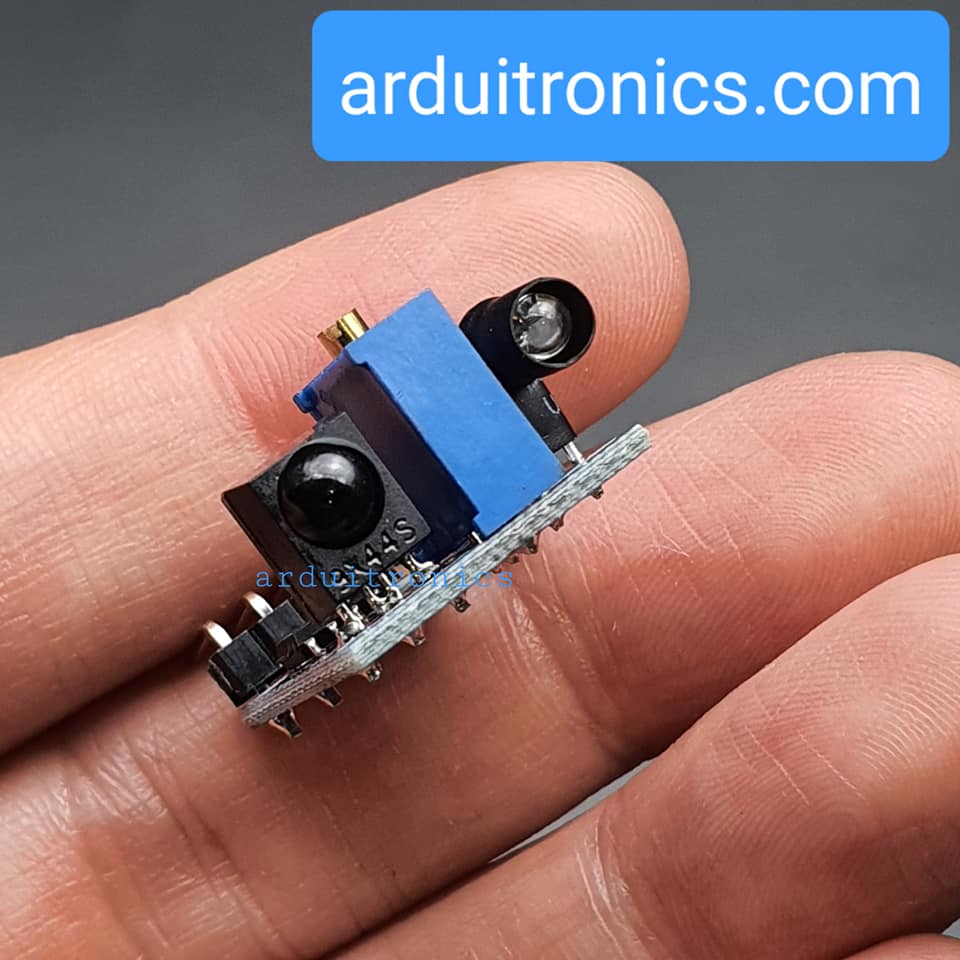

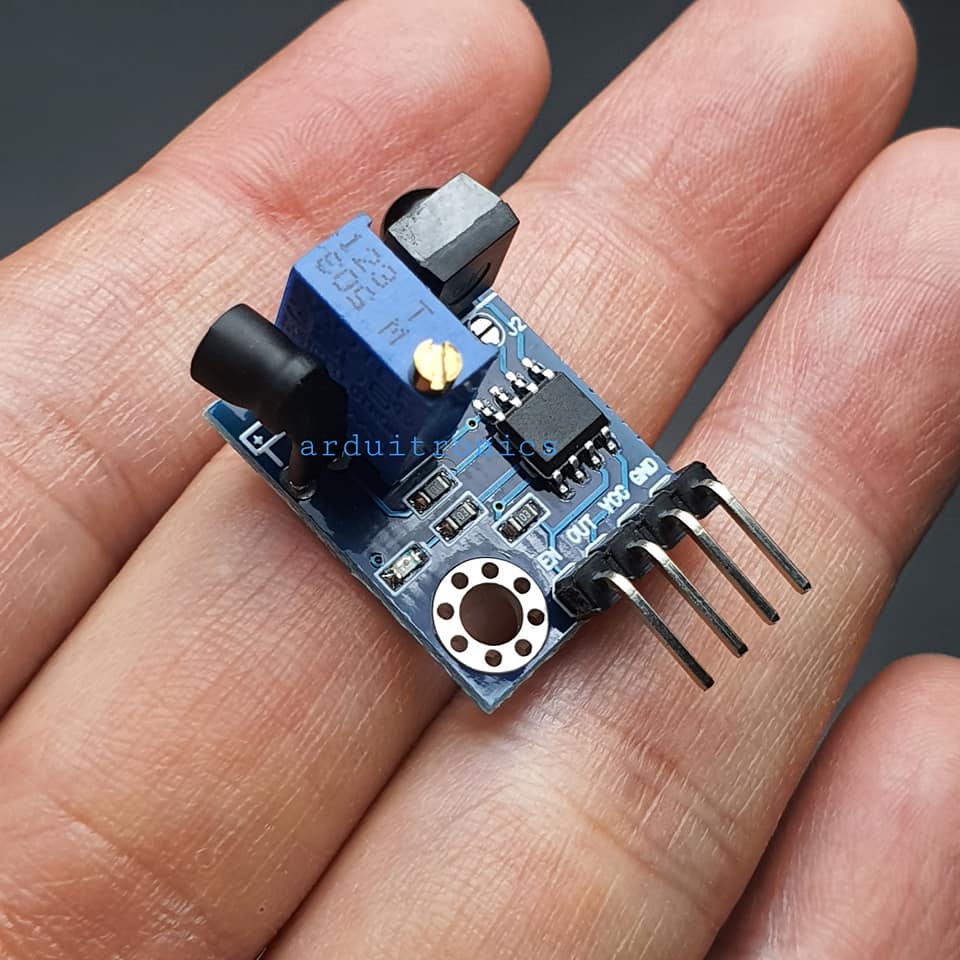

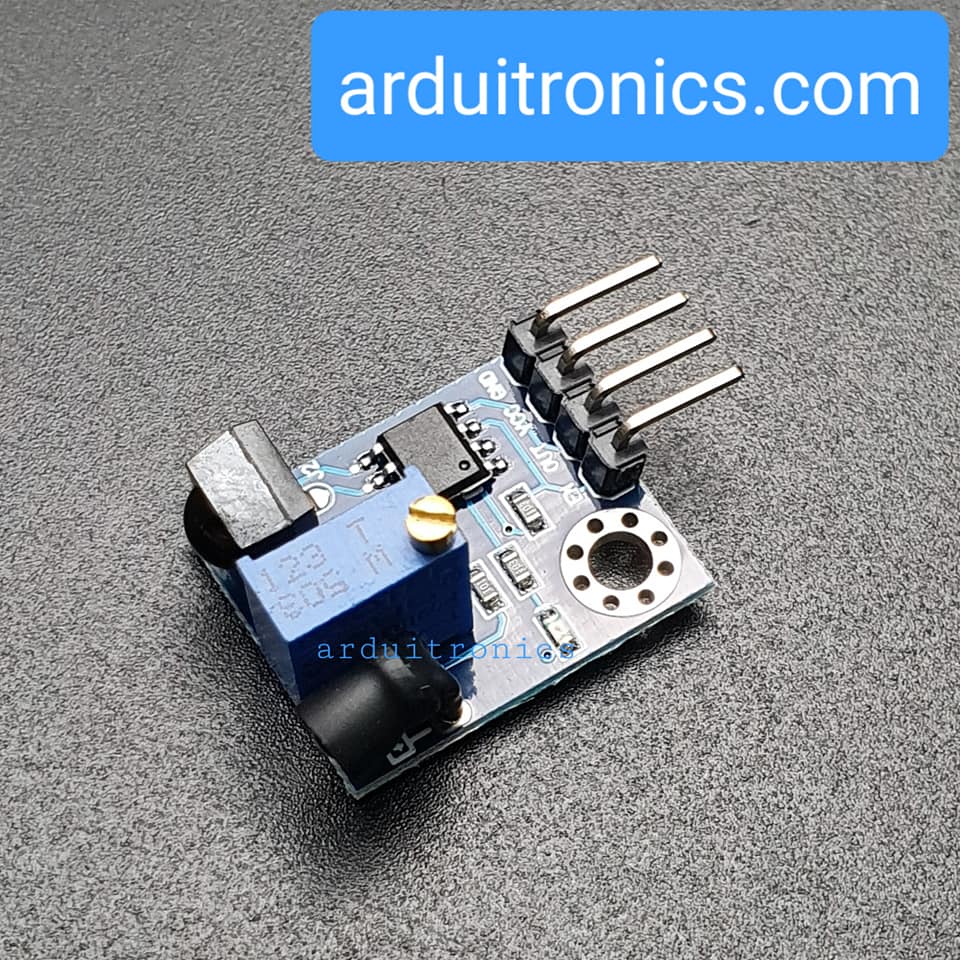

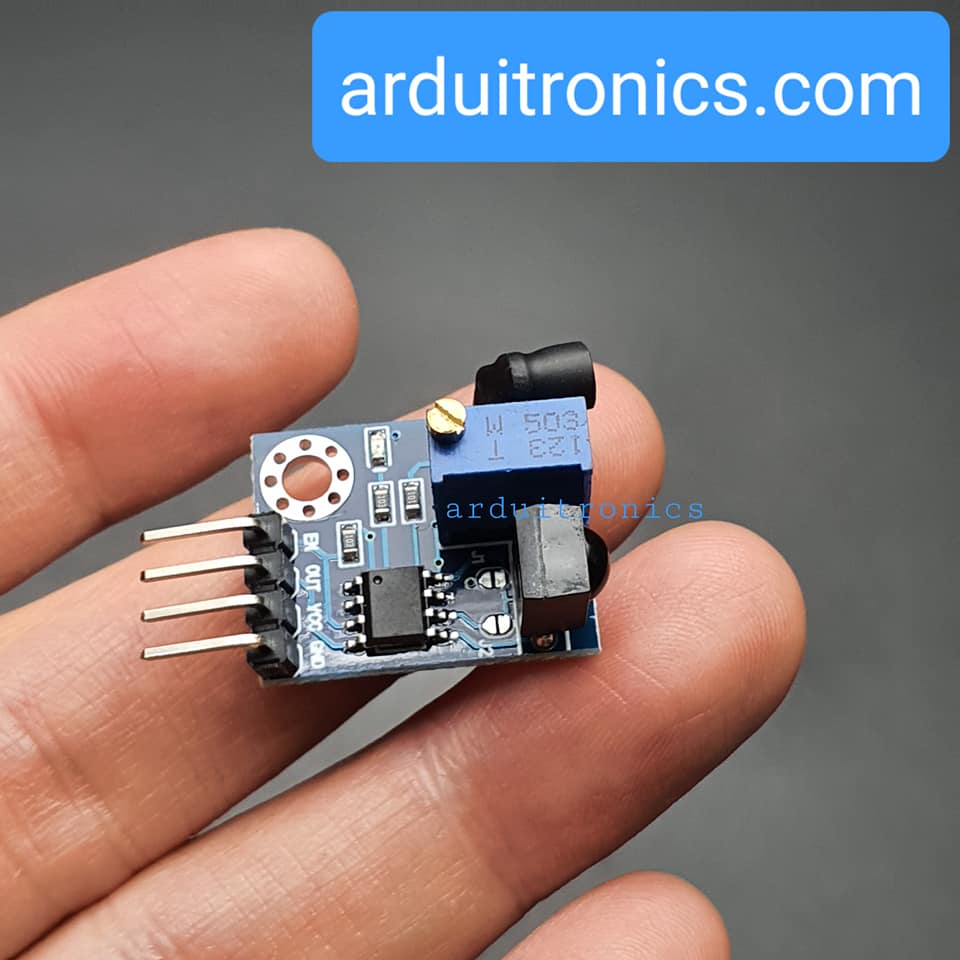

Obstacle Infrared Avoidance Tracking Sensor Switch 38kHz 2-180cm Adjustable : เซ็นเซอร์สวิตช์ตรวจจับวัตถุแบบอินฟาเรด ระยะ 2-180cm

Obstacle Infrared avoidance tracking sensor switch 38KHz 2-180CM adjustable : เซนเซอร์สวิตช์ตรวจจับวัตถุแบบอินฟาเรด ระยะ 2-180CM

เซ็นเซอร์ตรวจจับวัตถุแบบอินฟาเรด ระยะ 2-180CM ปรับระยะตรวจจับได้ ที่ตัวต้านทานปรับค่าได้บนบอร์ด ใช้ไฟเลี้ยง 3.3-5V เมื่อมีวัตถุอยู่ในรัศมีการตรวจจับไฟบนบอร์ดจะติด ให้สัญญาณเอาต์พุตเป็น 0 ที่ขา SIG เซนเซอร์สามารถสั่ง เปิด/ปิดได้ ทำให้ประหยัดพลังงาน โดยส่งสัญญาณ 0 เพื่อปิด สัญญาณ 1 เพื่อเปิด ไปที่ขา EN

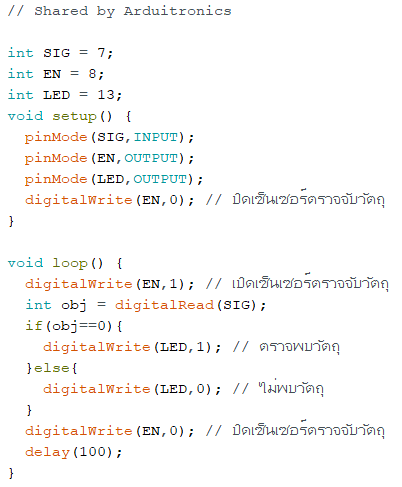

ตัวอย่างการต่อใช้งาน

• VCC - 5V
• GND - GND
• SIG - 7
• EN - 8

Work and pay attention to the phenomenon

Infrared emission tube outer black shrink tube is has the effect, must be tightly wrapped with infrared emission control, otherwise diffuse out of the infrared light can interfere with the infrared receiver, a direct impact on the output signal. Emission emission head is exposed to positive center, so you can narrow angle for distributing infrared emission control, it can effectively distance to the front obstacle detection, prevention to reduce interference.

After power-up, the board red LED will flash 3 times to enter the working state. When an obstacle is detected in front of the distance, the red LED will light up the board, otherwise the industry off, while SIG pin will output a low level signal, EN pin must be high under the premise. EN pins default to high to enable the sensor to work. If the board JP bridging is shorted, the first obstacle is detected ahead, the board red LED lights up, while SIG output low, until the front obstacle disappears, red LED output pin and SIG latch signal even before a state, that remain lit and low-level output signal; when the second (even-numbered) obstacle is detected, the red light goes off the board, while SIG transition to high signal output. Until the third (odd number) is detected, the latch state to shift.

This version 38KHZ obstacle avoidance module solves the same money or the same remote control infrared light interference, compared with the previous version of the article in the red part of the update adds section.

Feature

• a variety of installation welding, vertical and horizontal, to expand the range of applications
• plus set precision potentiometers, 38KHz infrared detection range adjustment
• sensor with enable port for easy application of the signal line as bus lines
• enabled on power port default high level, the output signal of the sensor enables detection
• detection range of up to 1.2 meters away.
• software enhancement is provided to avoid the occurrence of the same section module on the radio or other varieties of infrared remote control devices infrared light interference
• use EEPROM to record each module's work, the probability of interference with the money to 1%
• signal Low-level output
• pin SIP header, application breadboard or through-hole projects
• On-board jumpers JP, shorted output signal having a latch function, otherwise jog output

Main Specifications

• Power requirements: 5 VDC
• Communications: digital high / low output
• Operating temperature: 32 to 158 ° F (0 to + 70 ° C)
• Dimensions: 2.4cm × 2.8cm

Creative Applications

• Warehouse courtesy light switch (Latch setting)
• Trigger Security Alarm System
• Automatic production line conveyor belt count the number of objects
• Robot control, etc.

Sensitivity

The maximum detection range of 38KHz infrared obstacle avoidance module is 2 meters. However, if you use in this area of the sensor readings have triggered the error factor in the current environment, the board can be adjusted within the range potentiometer to reduce the detection range. Stable (latching) receiving distance 1.2 meters.

Pin Description

• GND : Negative power supply
• VCC : 5VDC power supply positive
• SIG : Signal output pins
• EN : Signal output enable pin
