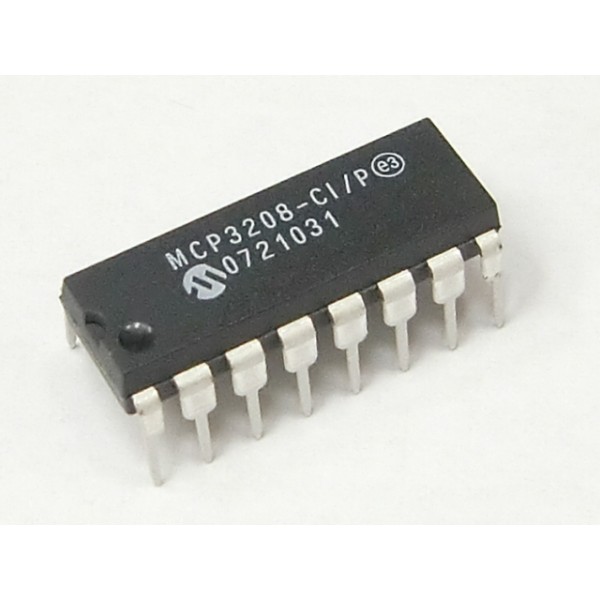

MCP3208-CI DIP16 (ADC)

MCP3208-CI DIP16 (ADC)

  Chip แปลง Analog to Digital 8 ช่องสัญญาณ ขนาด 12 bit สื่อสารด้วย SPI interface

2.7V 8-Channel 12-Bit A/D Converters  with SPI Serial Interface

บทความที่เกี่ยวข้อง

Raspberry Pi - Analog Input with ADC (MCP3208)

Features

• 12-bit resolution

• ± 1 LSB max DNL

• ± 1 LSB max INL (MCP3204/3208-B)

• ± 2 LSB max INL (MCP3204/3208-C)

• 4 (MCP3204) or 8 (MCP3208) input channels

• Analog inputs programmable as single-ended or

pseudo-differential pairs

• On-chip sample and hold

• SPI serial interface (modes 0,0 and 1,1)

• Single supply operation: 2.7V - 5.5V

• 100 ksps max. sampling rate at VDD = 5V

• 50 ksps max. sampling rate at VDD = 2.7V

• Low power CMOS technology:

- 500 nA typical standby current, 2 µA max.

- 400 µA max. active current at 5V

• Industrial temp range: -40°C to +85°C

• Available in PDIP, SOIC and TSSOP packages

Applications

• Sensor Interface

• Process Control

• Data Acquisition

• Battery Operated Systems

Datasheet

http://ww1.microchip.com/downloads/en/DeviceDoc/21298e.pdf
