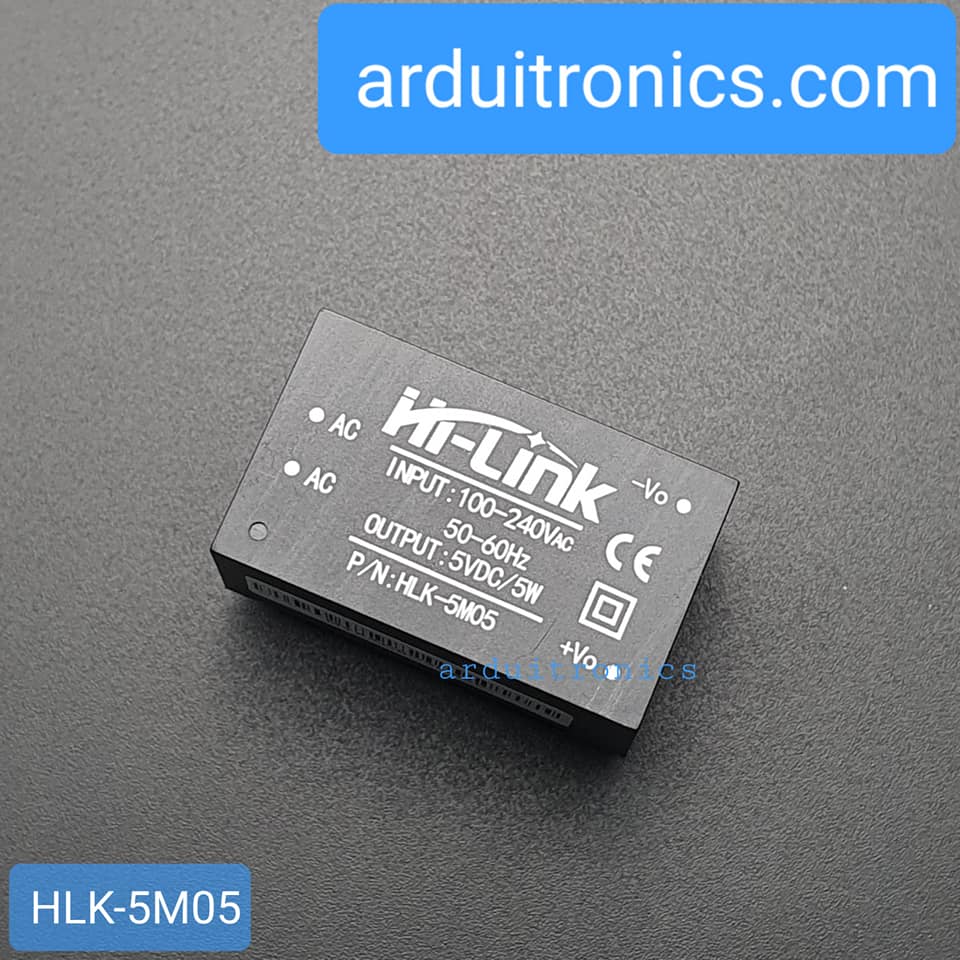

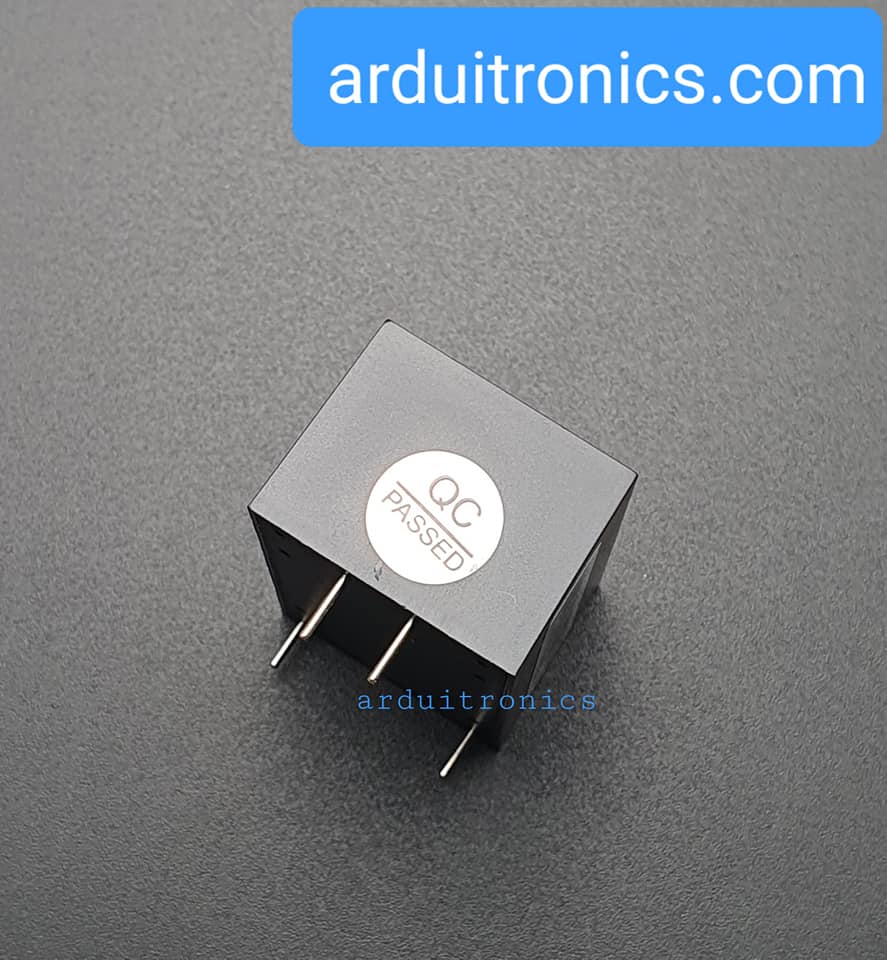

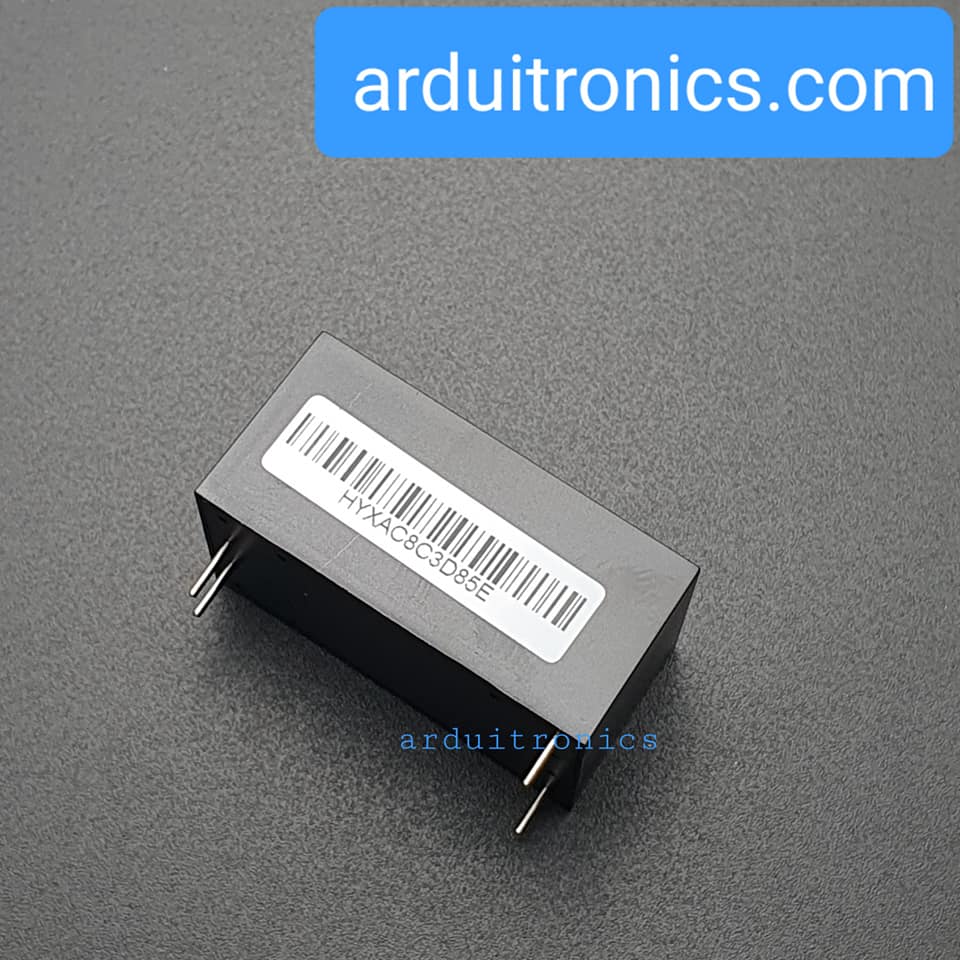

Switching Power Supply 220V to 5V 5W (Hi-Link HLK-5M05 Module)

The series is a custom-designed power modules with high efficiency and small volume, made by Hi-link Electronics Company. There are many advantage of these modules, such as: global input voltage range, low temperature rise, low power, high efficiency, high reliability, high security isolation, etc.

It has been widely used in smart home, automation and control, communications equipment, instrumentation and other industries, when applied to electromagnetic compatibility relatively harsh environment, reference should be Circuit.

Product Features:
• Meet UL, CE requirements
• Ultra-thin, ultra small
• Low ripple and low noise
• Output overload and short circuit protection
• High efficiency, high power density
• The product is designed to meet the requirement of EMC and Safety Test
• Low power consumption, environmental protection, no-load loss < 0.1 W

Environment Conditions:
• Operation Temperature: -20 to +60 Celsius
• Store temperature: -40 to +80 Celcius
• Relative humidity: 5 to 95 %
• Cooling way: Cooling by radiation
• Atmospheric pressure: 80 to 106 Kpa
• Sea level elevation: < 2000 m
• Vibration: Vibration coefficient 10~500 Hz , 2G 10 min. / 1 cycle, 60 min. each along X,Y,Z axes

Electrical Characteristic:
Input characteristics (test at room temperature 20 Celcius
• Rated input voltage: 100 to 240 Vac
• Input voltage range: 90 to 264 Vac
• Maximum input current: < 0.2 A
• Input current surge: < 10 A
• Maximum input voltage: < 270 Vac
• Enter slow start: < 50 msec
• Input Low Voltage Efficiency: Vin = 110 Vac, Output full-load > 69 %
• Input Low Voltage Efficiency: Vin = 220 Vac, Output full-load > 70 %
• Long-term reliability: MTBF > 100,000 hours
• Load rated output voltage: +5 +0.1 Vdc
• Full rated output voltage: +5 +0.2 Vdc
• Short-term maximum output current: > 1200 mA
• The maximum output current for a long time: > 1000 mA
• Voltage regulation: + 0.2 %
• Load regulation: + 0.5 %
• Output ripple and noise (mVp-p): < 70 mV
(Rated input voltage, full load. Using 20 MHz of bandwidth, the load side 10 uF and 0.1 uF capacitor to be tested)
• Switch overshoot amplitude: < 5 % Vo
(Rated input voltage and output load plus 10%)
• Output over-current protection: 150-200% A of the output maximum load
• Output short circuit protection: Direct short circuit at the normal output, automatically resume normal operation after a short circuit removal

Safety Characteristics:
• Products designed to meet UL, CE safety certification requirements.
• Safety and electromagnetic compatibility
o Designed with the input of 0.5 A UL certified insurance;
o PCB board using double-sided copper clad plate production, material for the 94-V0 fire rating level;
o Safety standards: Compliance with UL1012, EN60950, UL60950
o Insulation voltage: I / P-O / P: 2500VAC
o Insulation resistance: I / PO / P> 100M Ohms / 500VDC 25 ℃ 70% RH
o Conduction and radiation: comply with EN55011, EN55022 (CISPR22)
o Electrostatic discharge: IEC / EN 61000-4-2 level 4 8kV / 15kV
o RF radiation Immunity: IEC / EN 61000-4-3 See Application Note
• Temperature safety design
o At room temperature, the capacitors of this power, the inner surface of the main converter maximum temperature does not exceed 90 ℃;
o Shell maximum surface temperature does not exceed 60 ℃

Dimension:
• Width: 23.0 mm
• Length: 38.0 mm
• Height: 18.0 mm (body only) / 23.0 mm (included pin)
• Weight: < 20 g
