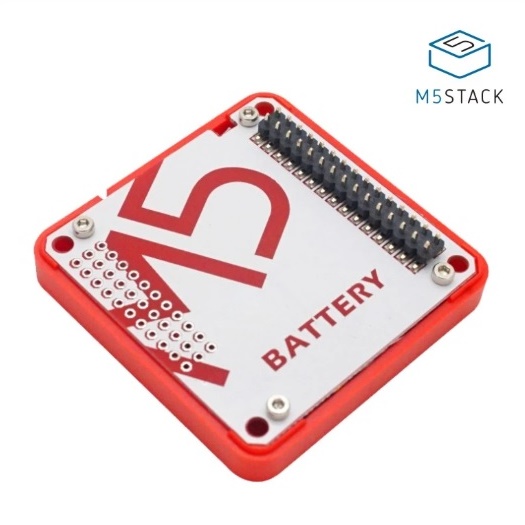

โมดูลแบตเตอรี่ M5 Stack สำหรับ Arduino ESP32 Battery Module for ESP32 Core Development Kit

Description

BATTERY: The Lipo Battery extension module, 700 mAh ADD-ON.

You want to make a demo or prototype product that needs more battery life, then you realize the battery in M5GO base and Basic base is not enough. Here comes BATTERY which is a handy M5modules to upgrade your Lipo battery life. Since the Lipo batteries is parallelable, you can stack mutilple of them to maximum your power endurance.

*CAUTION: The safety of Lipo battery is affected by many conditions. Overcharge, over-discharge, over-temperature, short circuit, crush and nail penetration may all result in a catastrophic failure, including the pouch rupturing, the electrolyte leaking, and fire. Although every battery we offer have accompany by a protect circuit board, using Lipo battery in you product still needs to be treated with caution

Hardware connection

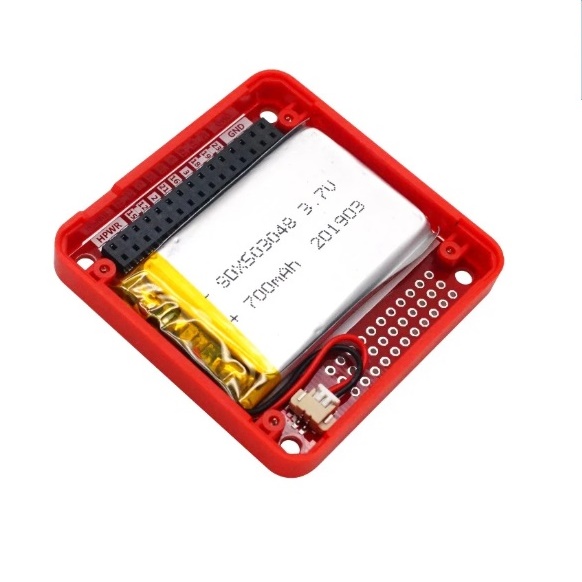

Once the BATTERY is stacked underneath the M5 controller, the battery positive pole is connected to VBAT pin at IP5306

Product Features

• 700mAh High-Capacity Battery
• Product Size：54.2mm x 54.2mm x 12.8mm
• Product weight：24.5g

Include

• 1x M5Stack BATTERY Module
