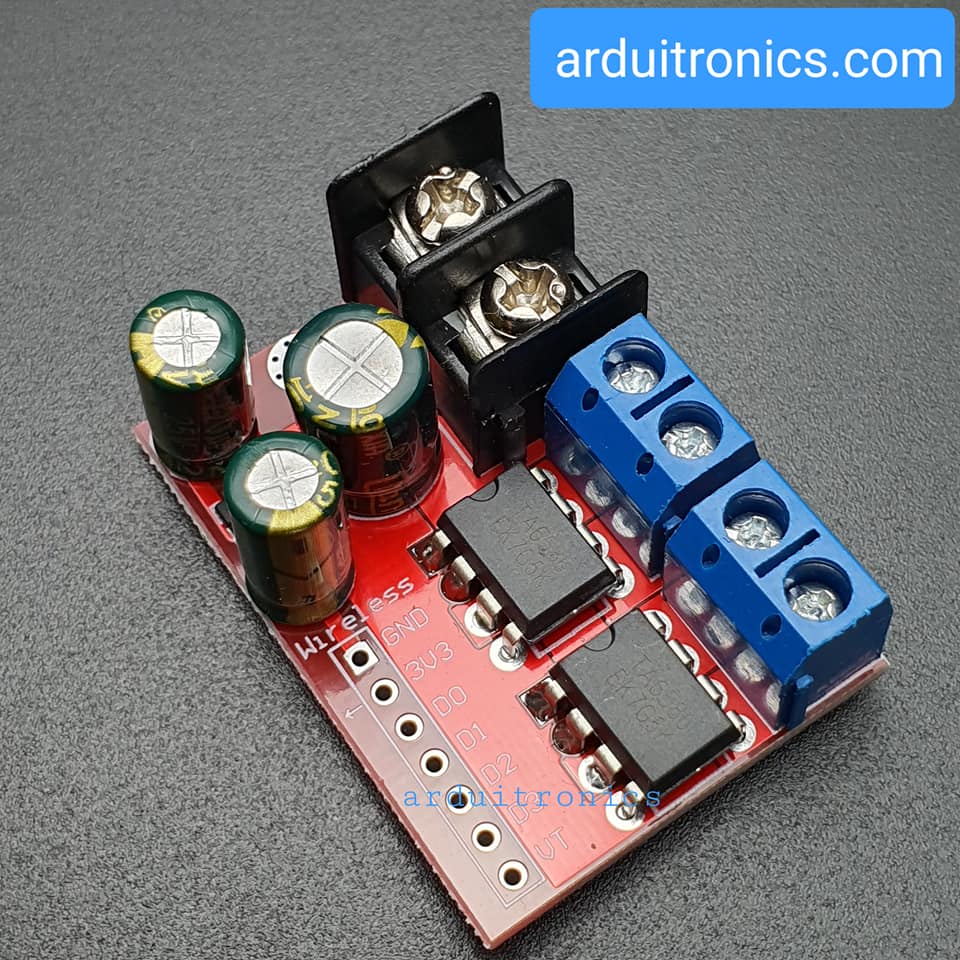

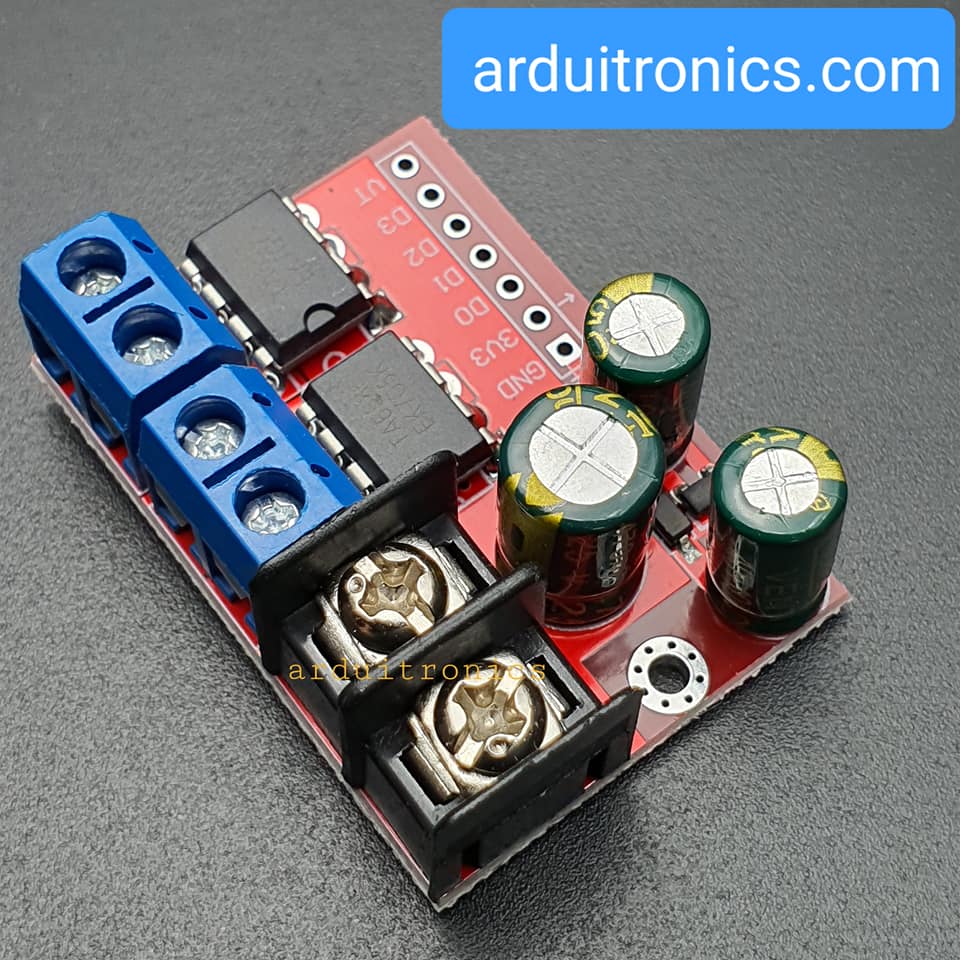

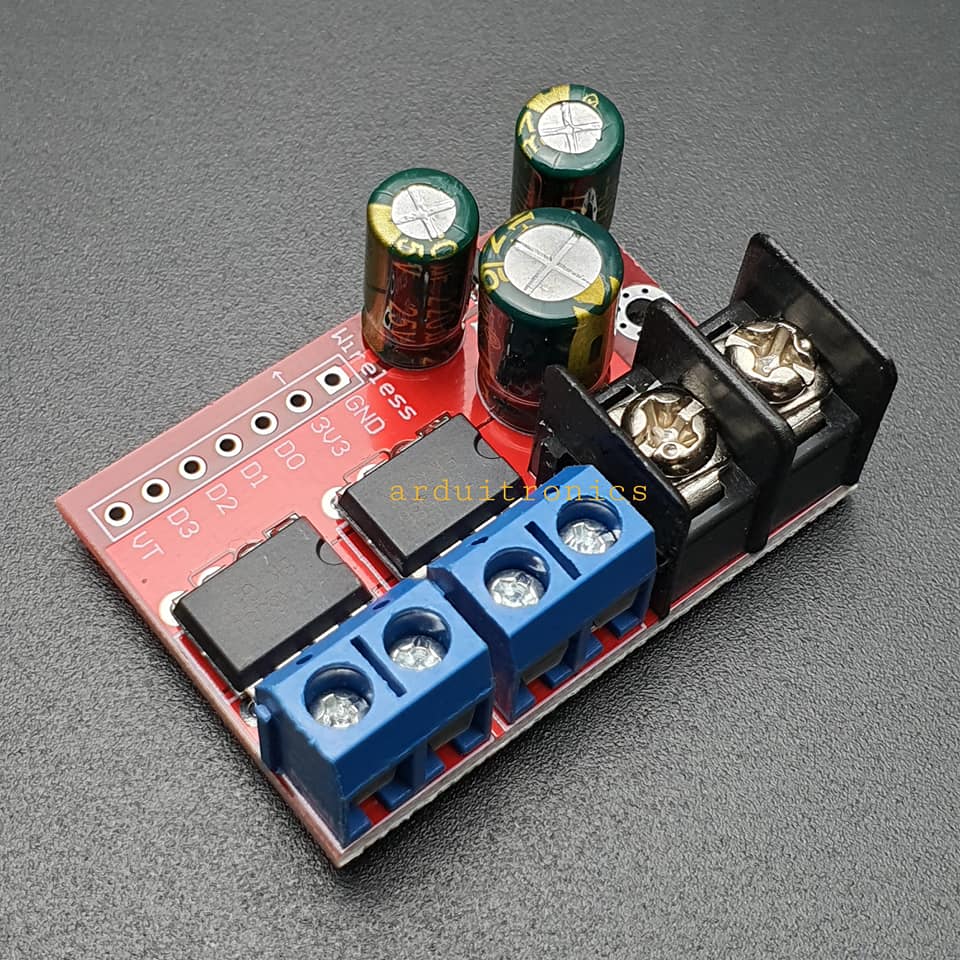

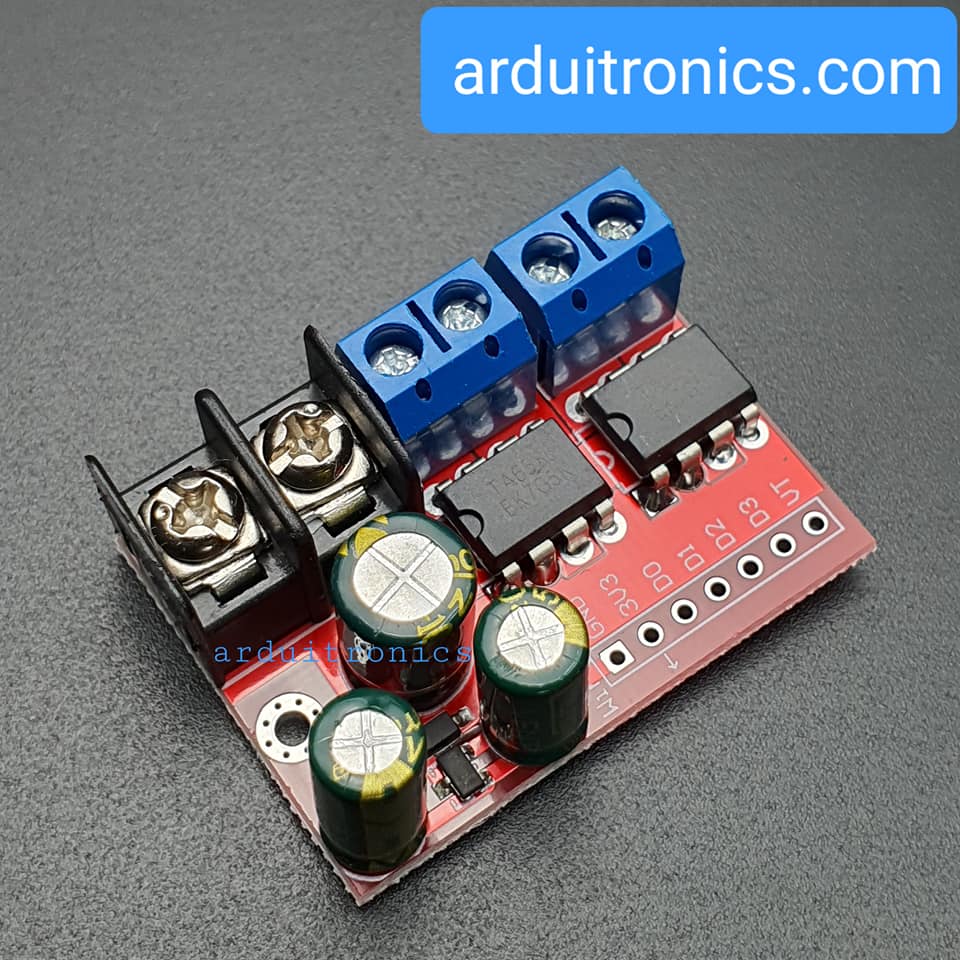

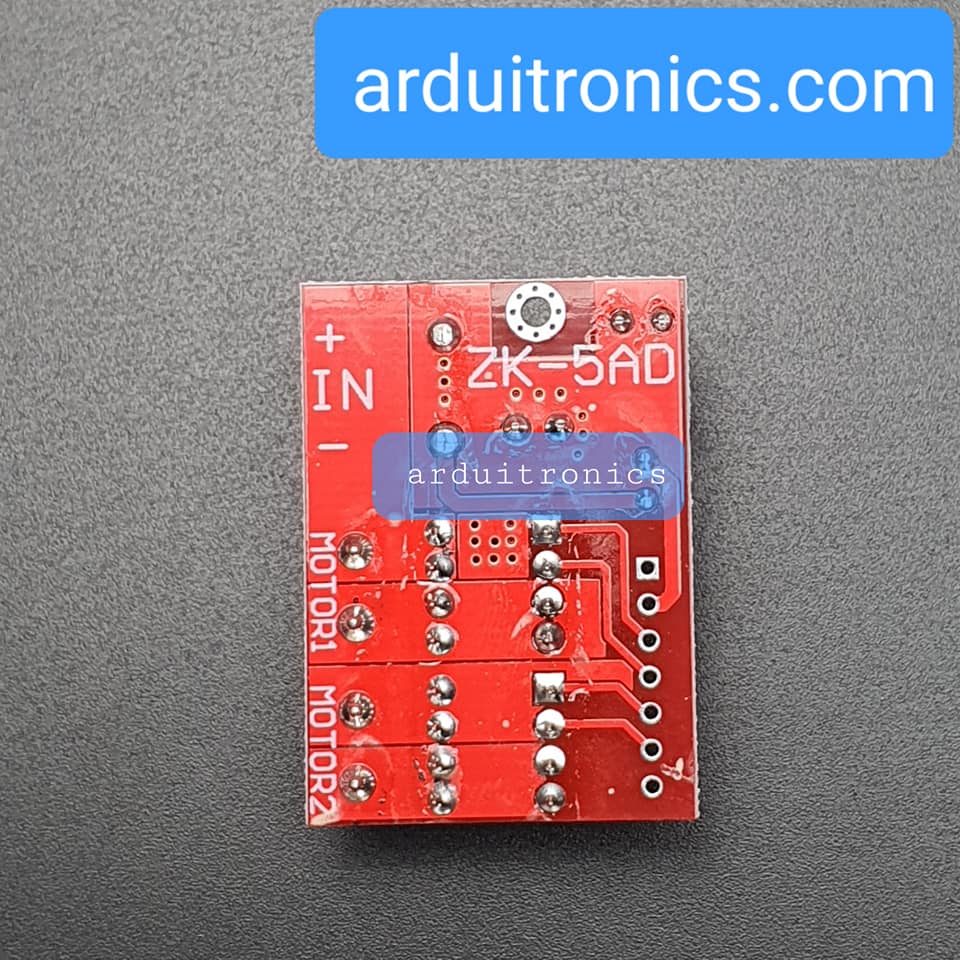

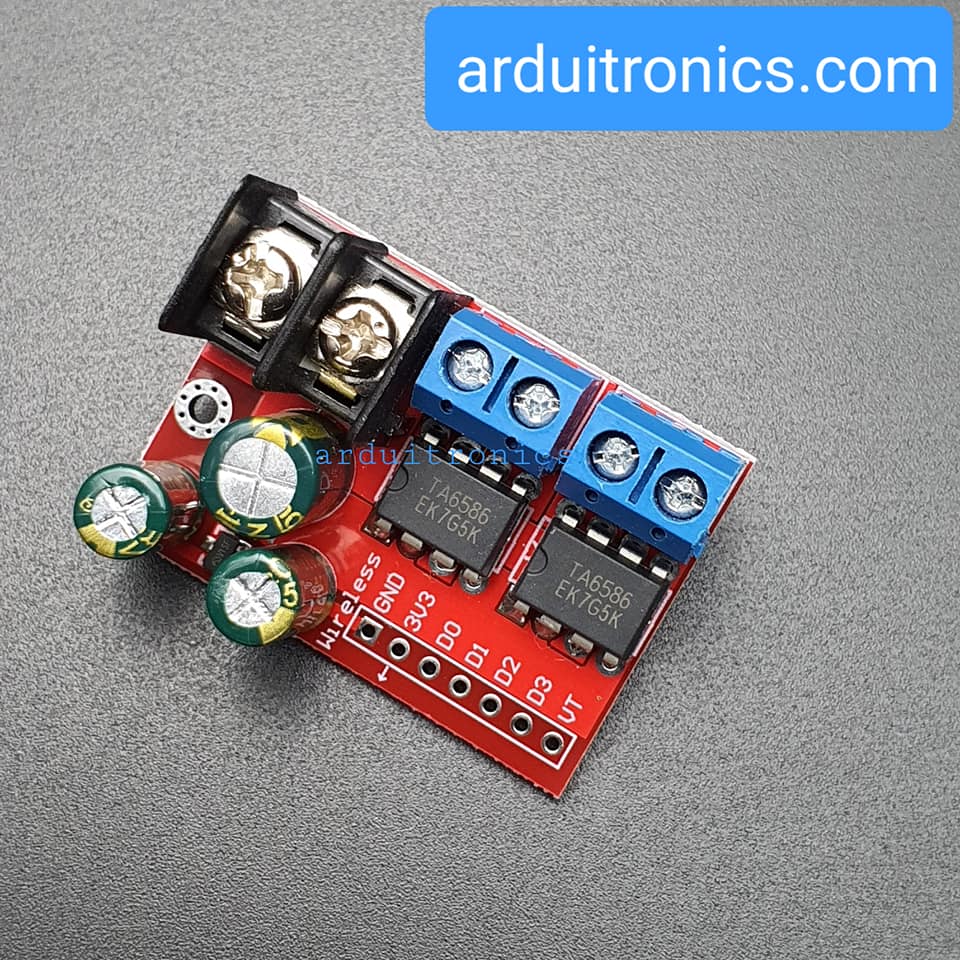

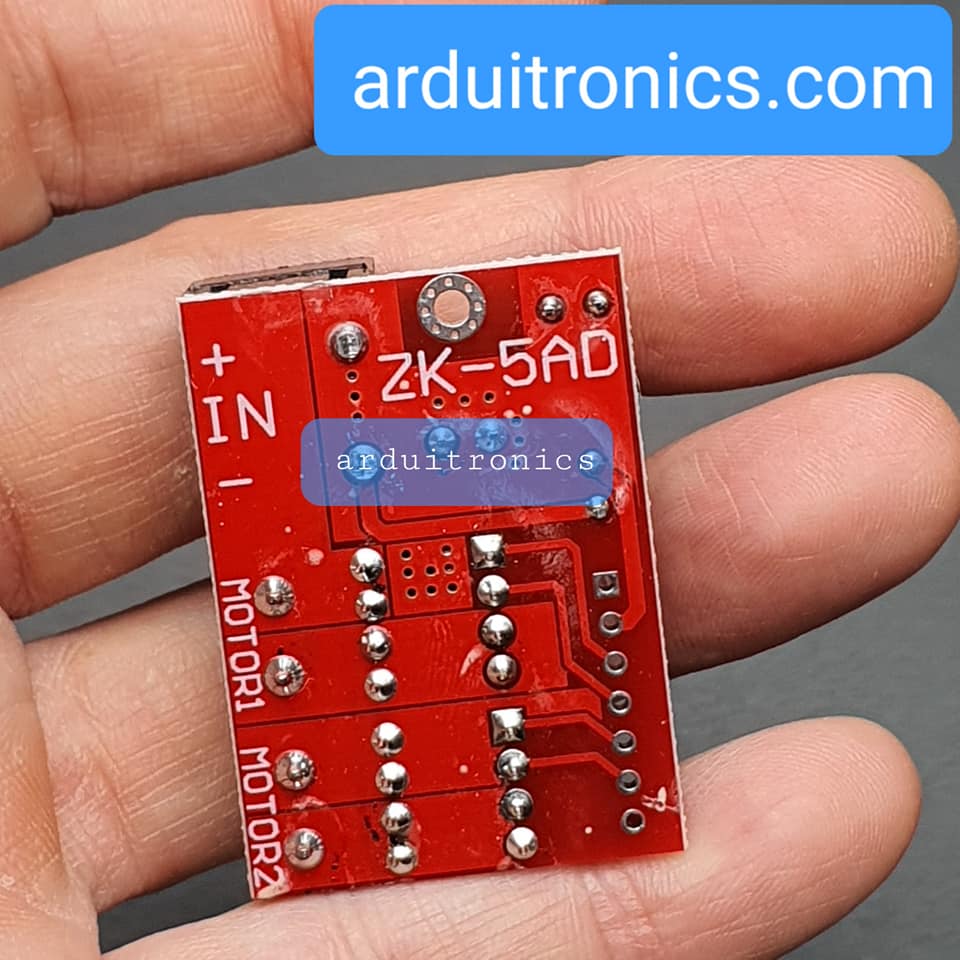

Motor Driver PWM dual DC motor 5A super L298N โมดูลขับมอเตอร์แบบ PWM 3-14V 5A

โมดูลขับมอเตอร์ 2 ช่อง แต่ละช่องสามารถขับเอาต์พุตได้ถึง 5A , กระแสช่วงพีคสูงสุด 9A ระหว่างที่อยู่ในโหมดสแตนบาย ใช้กระแสเพียง 10uA รอบรับไฟได้ช่วงกว้าง 3-14V สัญญาณควบคุมอินพุตระหว่าง 2.2-6V มีไฟเอาต์พุต 3.3V 100MA สำหรับจ่ายให้อุปกร์ตัวอื่น

ข้อมูล Motor Driver PWM dual DC motor 5A super L298N โมดูลขับมอเตอร์แบบ PWM 3-14V 5A

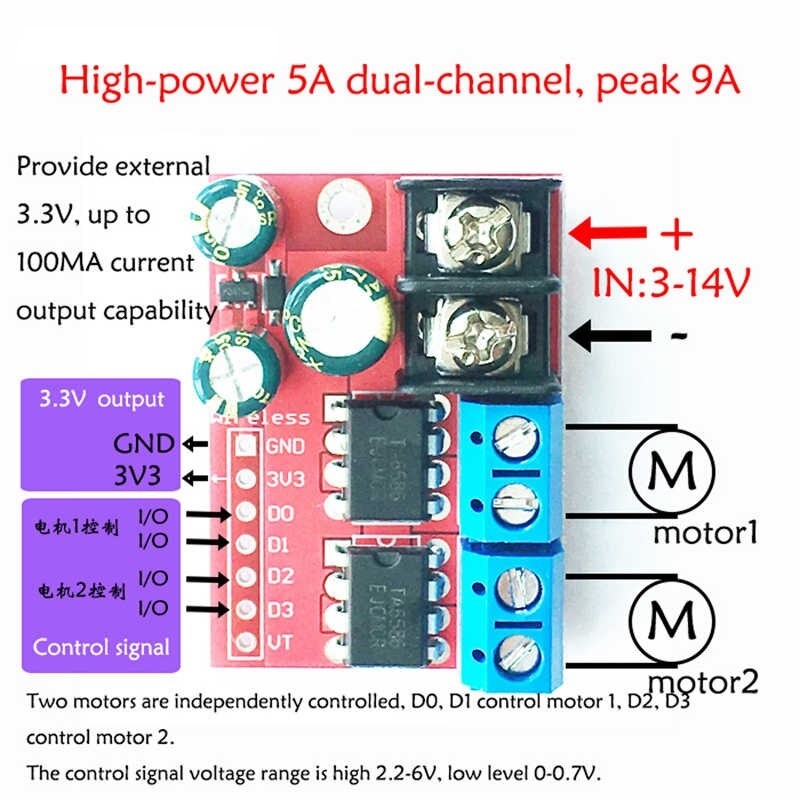

  • Two-way H-bridge motor drive, can drive two DC motors or one 4-wire two-phase stepper motor at the same time
  • Can independently control two motors, each channel can output 5A, peak 9A, standby current is only 10uA
  • Wide supply range of 3-14V, signal supply range of 2.2-6V, 3.3V and 5V levels can be satisfied

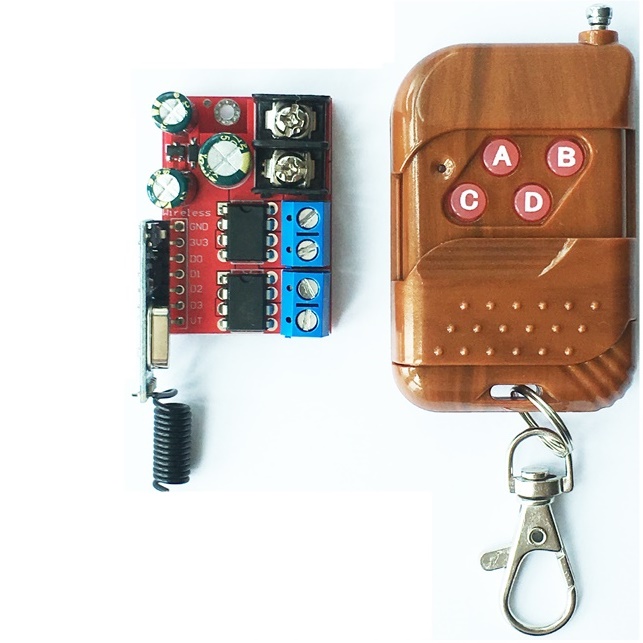

  • The board provides 3.3V 100ma power supply to meet the power consumption of your control system, and can also be used with 433M wireless module remote control motor, or remote control other loads
  • The signal input voltage is 2.2-6V, supporting 3.3V and TTL level
  • Mounting hole diameter: 2 mm.
  • Weight: 14g


Description:
The default mode for remote control shipment is jog mode. If you need to change the mode or multiple remotes control one receiver at the same time or one remote control multiple receivers, please do the following:
Clear code -
Press the learning button on the receiver 8 times in succession, the LED goes out, the LED flashes 8 times, and the clearing is completed. (If you need to change the working mode of the same remote control, please clear the code before learning)

Learning the code -
First step:
Press the learning button on the receiving board according to the number of times you need to select the working mode, and then the LED of the receiving board is always on.
Jog mode: Press the decoding module to learn the button once.
