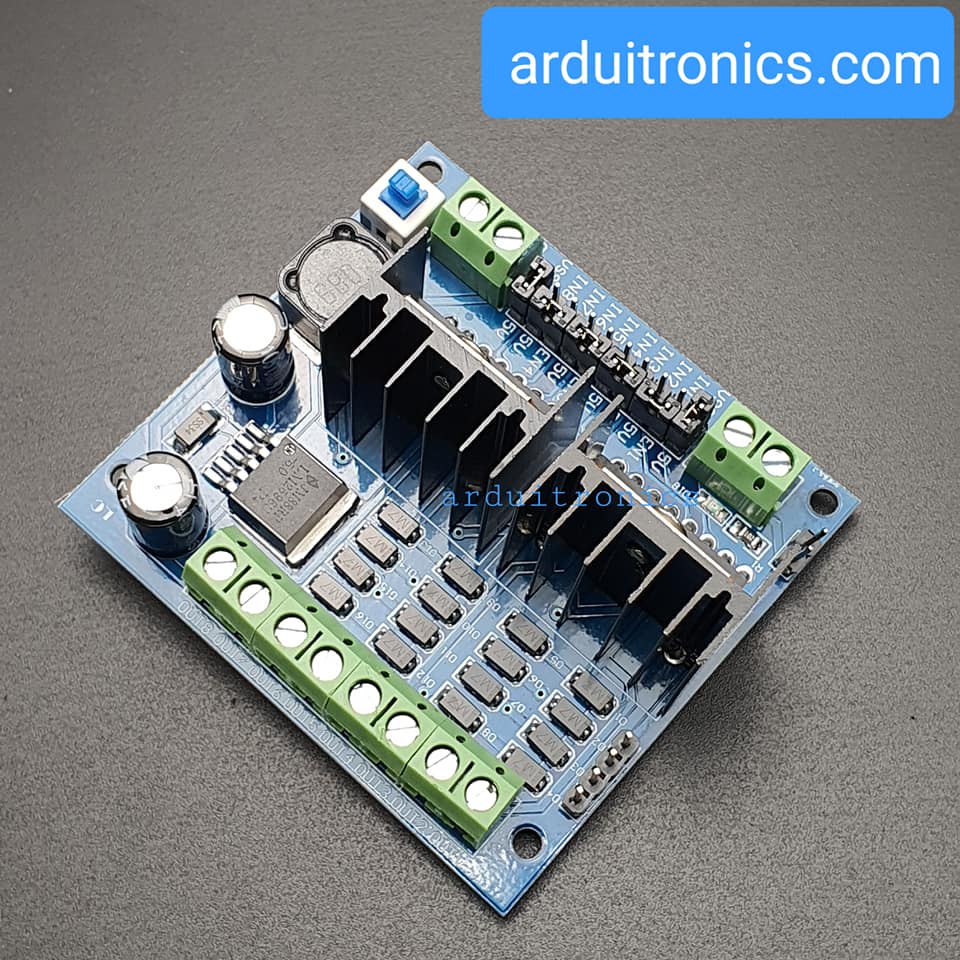

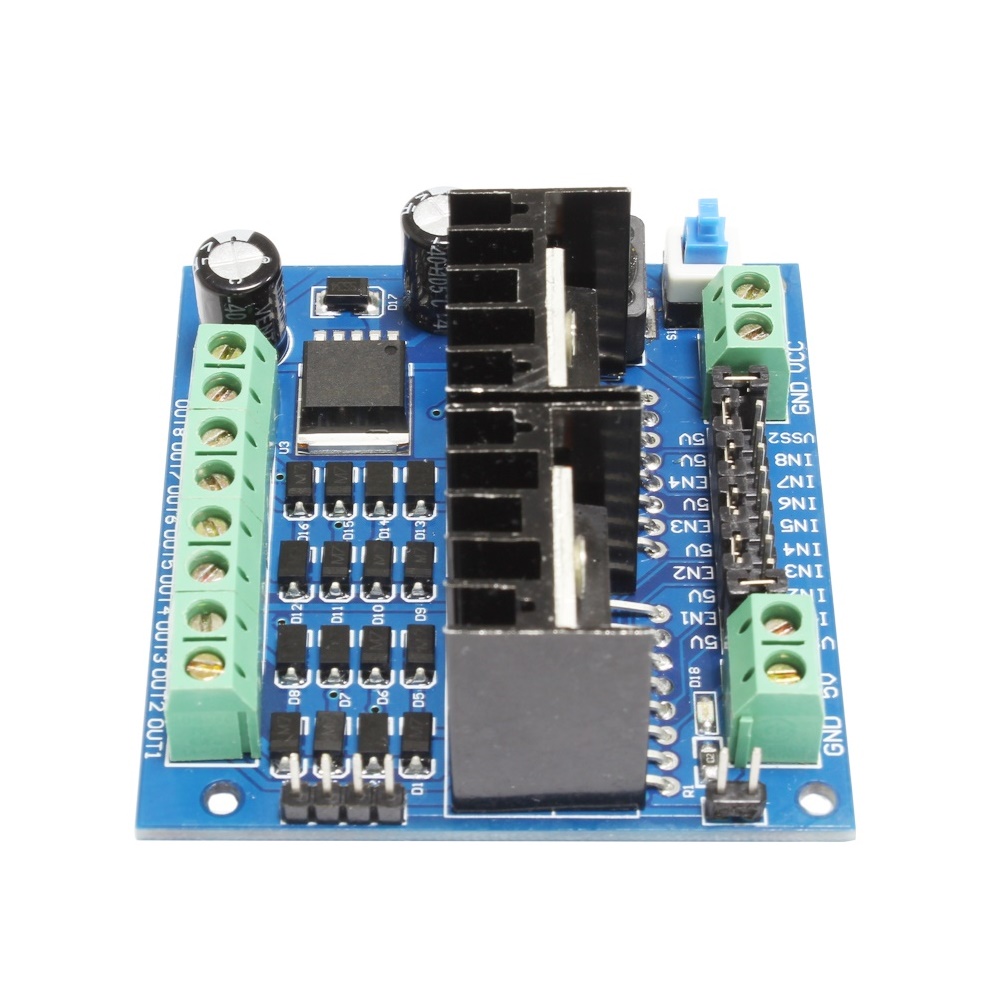

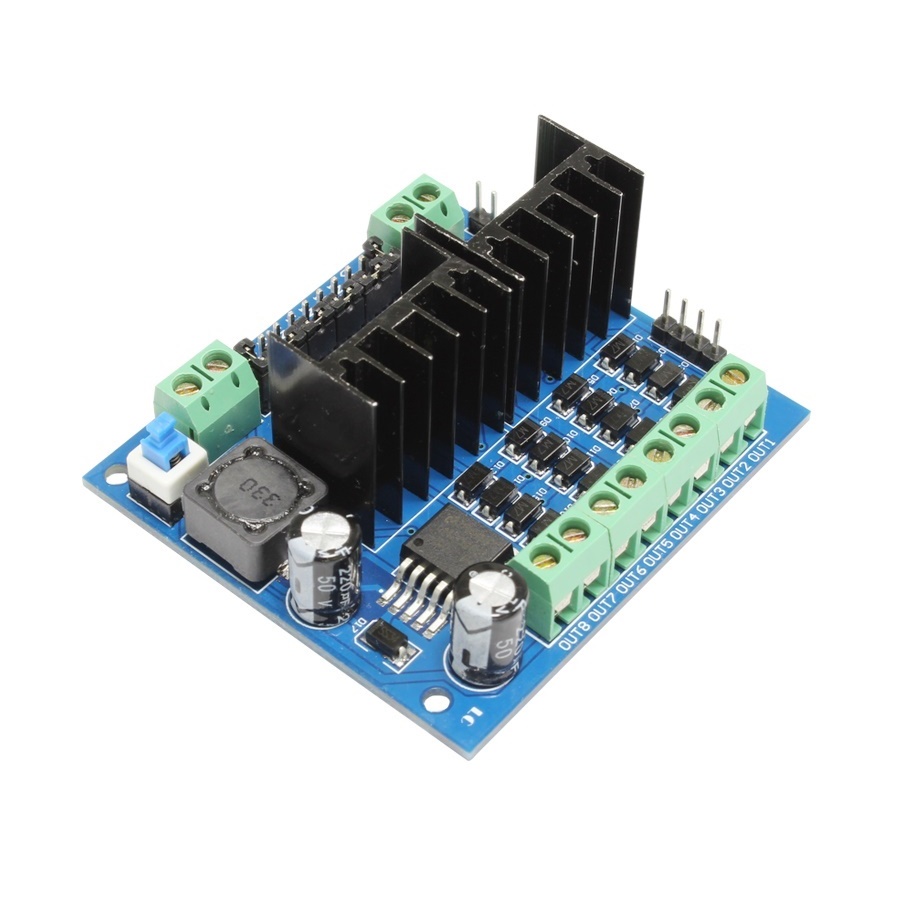

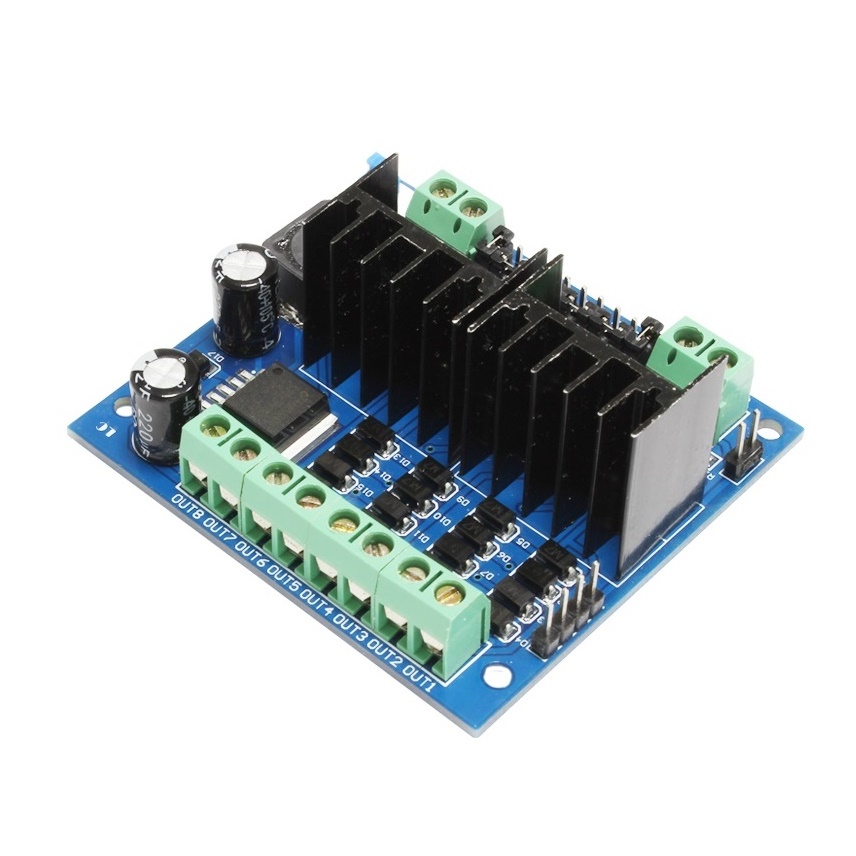

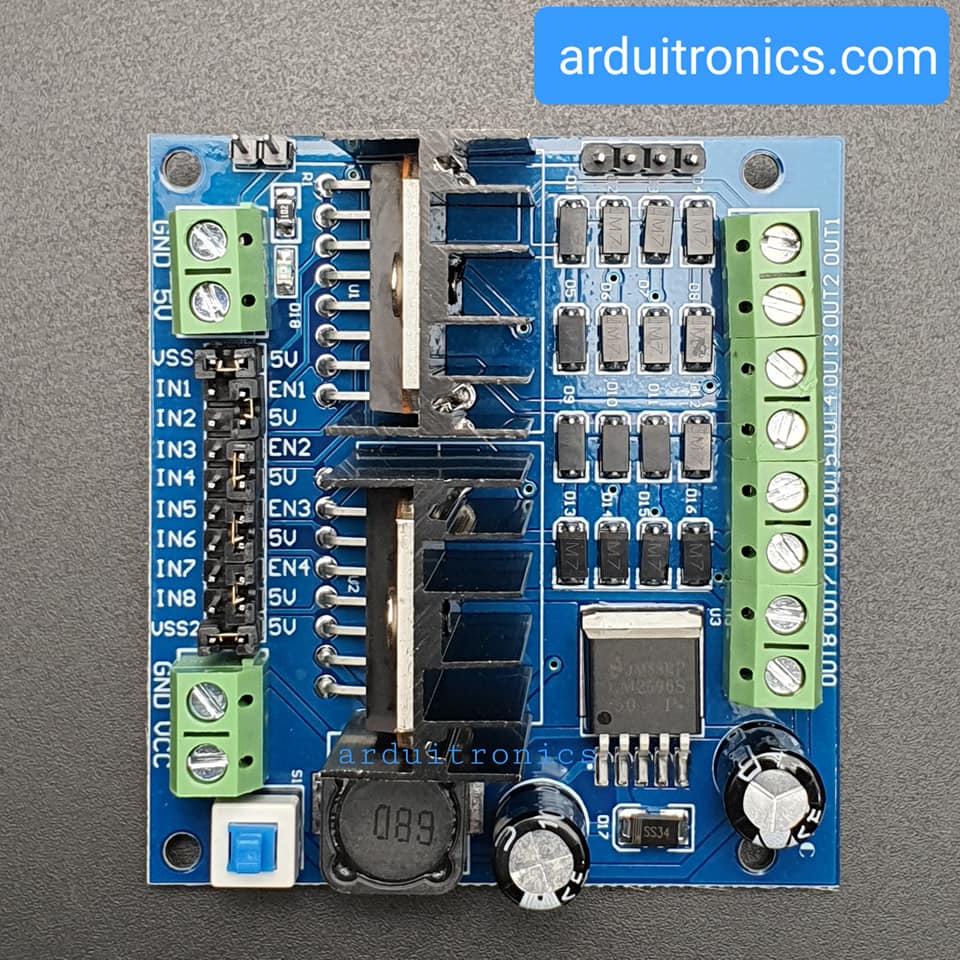

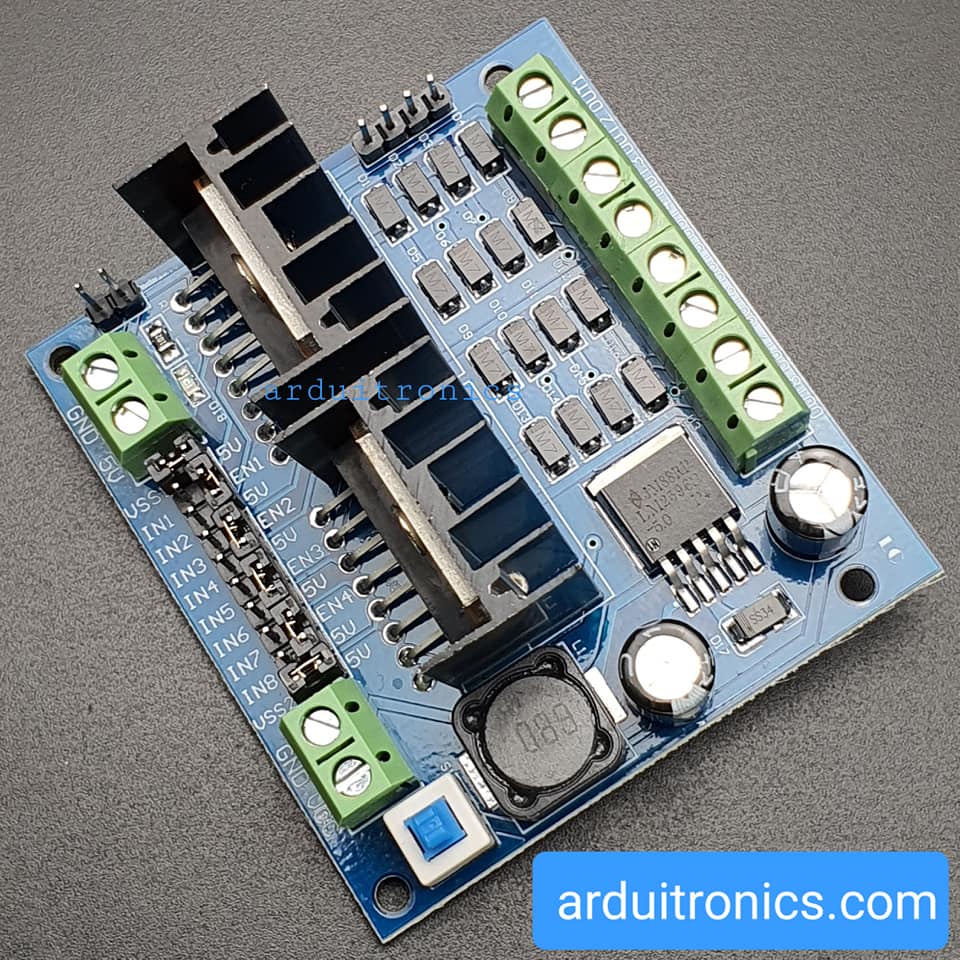

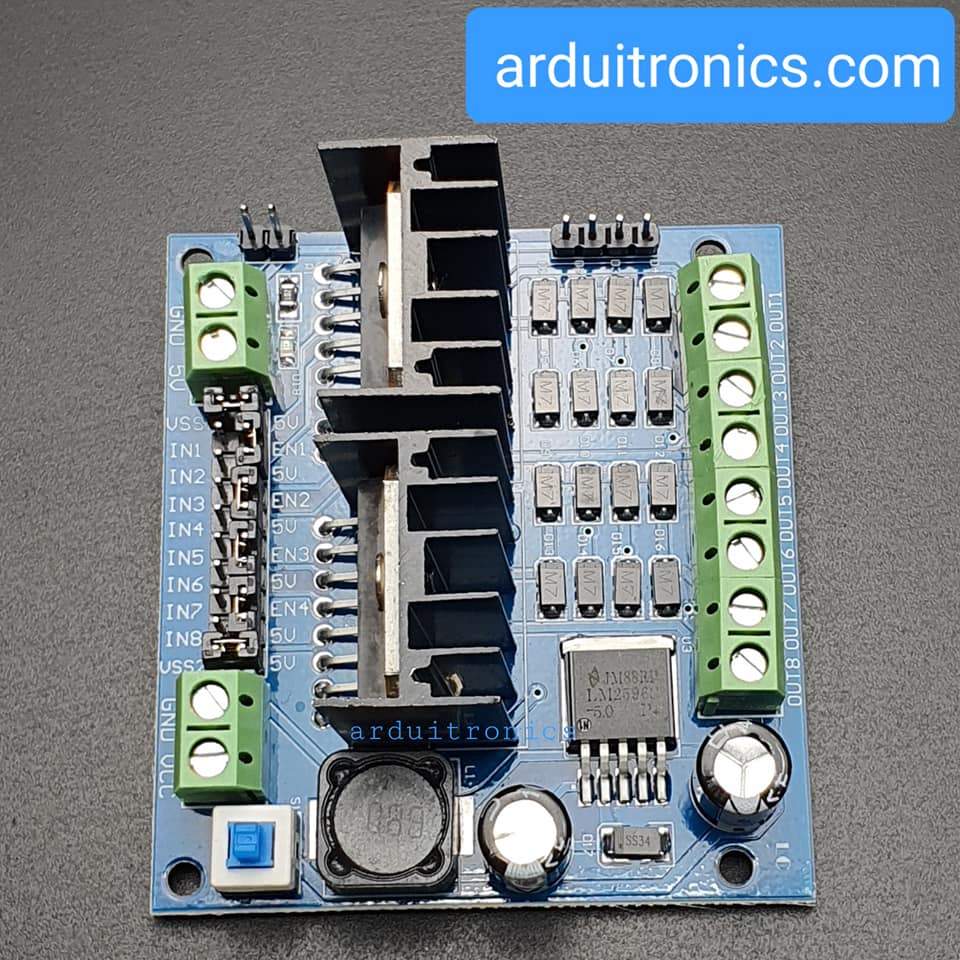

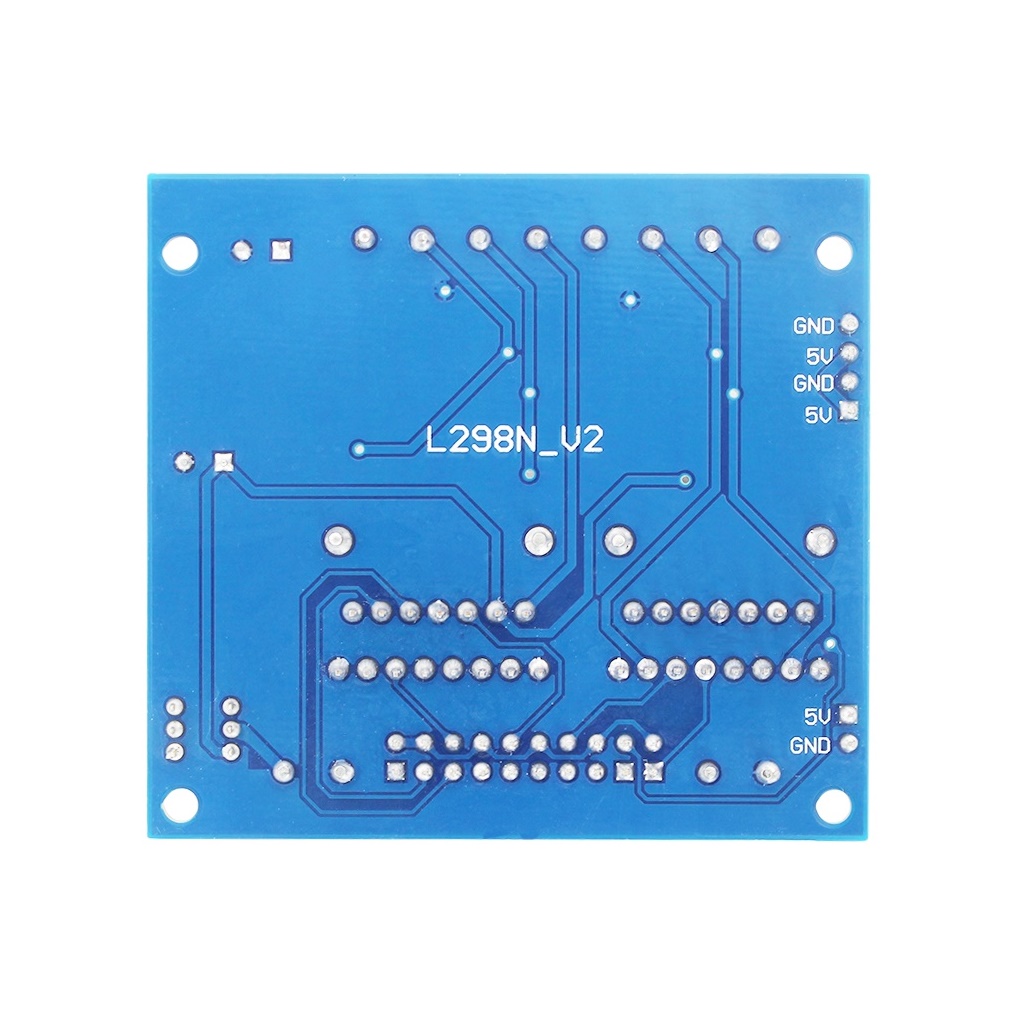

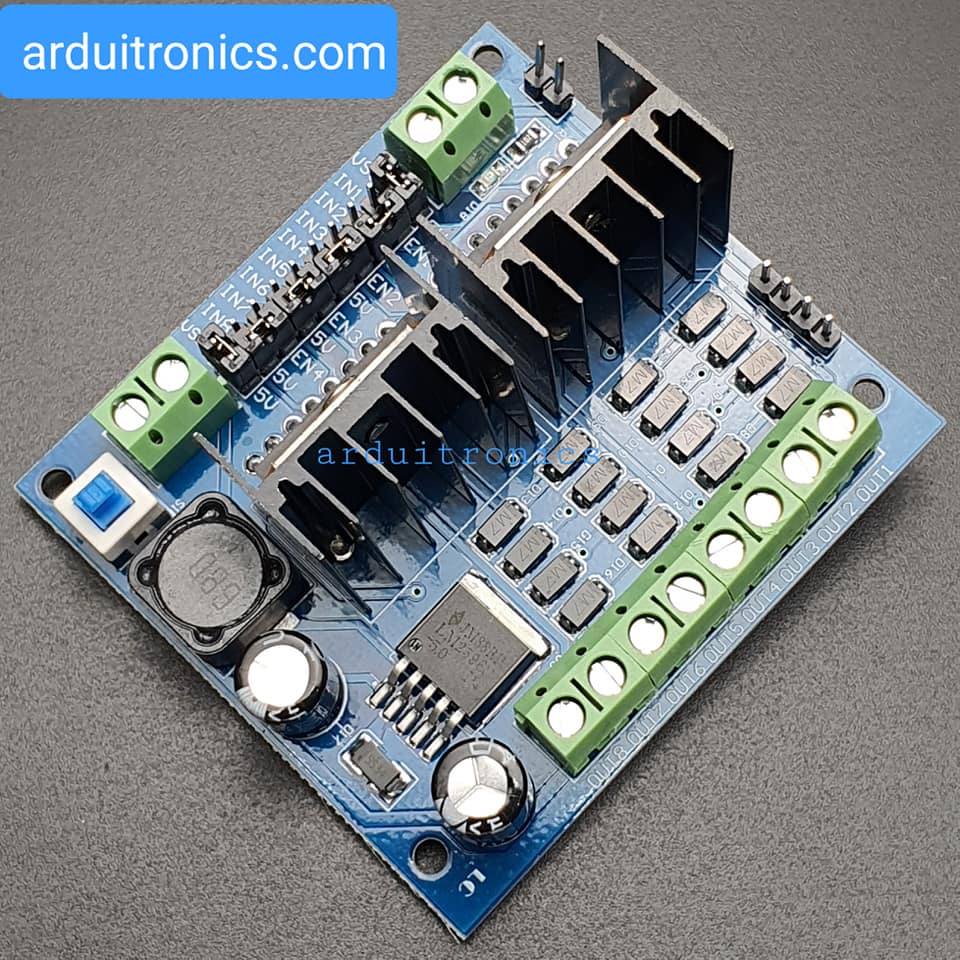

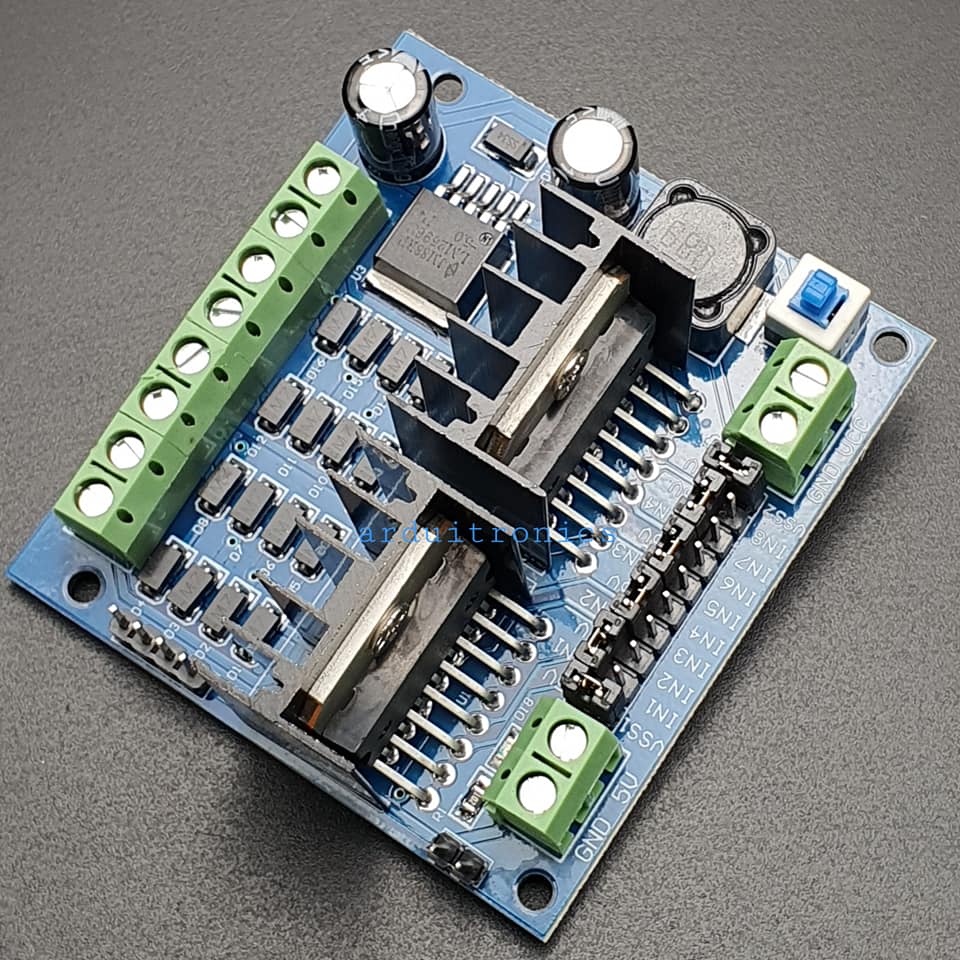

L298N โมดูลขับมอเตอร์ L298N Motor Drive Module V2
L298N Motor Drive Module 4 Way DC Motor Drive Smart Car Drive Motor Module with LM2596S Chip
โมดูลขับมอเตอร์ ใช้ IC เบอร์ L298N 2 ตัว ขับมอเตอร์ ควบคุมความเร็วได้ 4 ตัวแบบแยกอิสระ
กระแสสูงสุด 2A ใช้ไฟเลี้ยง 5V และไฟเลี้ยง 7-35V ผ่านวงจรเรกูเลตในบอร์ด
- Drive peak current IO: 2A
- Logic part terminal power supply range Vss: +5v-+7v (inboard power +5v)
- Maximum power consumption: 50W (T=75°C, single chip L298N 25W)
- Logic Operation Current Range: 0-36mA
- Onboard multiple 5v power outlet
- Control signal input voltage range: Low voltage: -0.3v≤ Vin≤1.5v (control signal is invalid). High level: 2.3v≤Vin≤Vss (control signal is valid)
LC 4-road L298N motor drive module equip with two L298N chip, and can drive four DC motor, to achieve positive inversion and motor speed control. Module with LM2596S buck chip, it can output DC5V for other use when the input voltage greater than 7V.

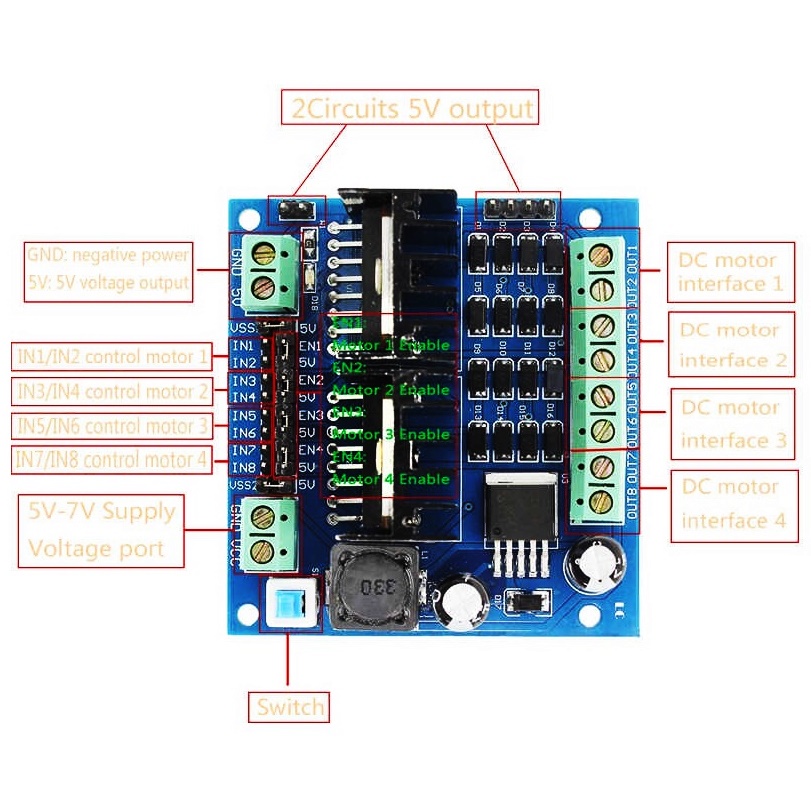

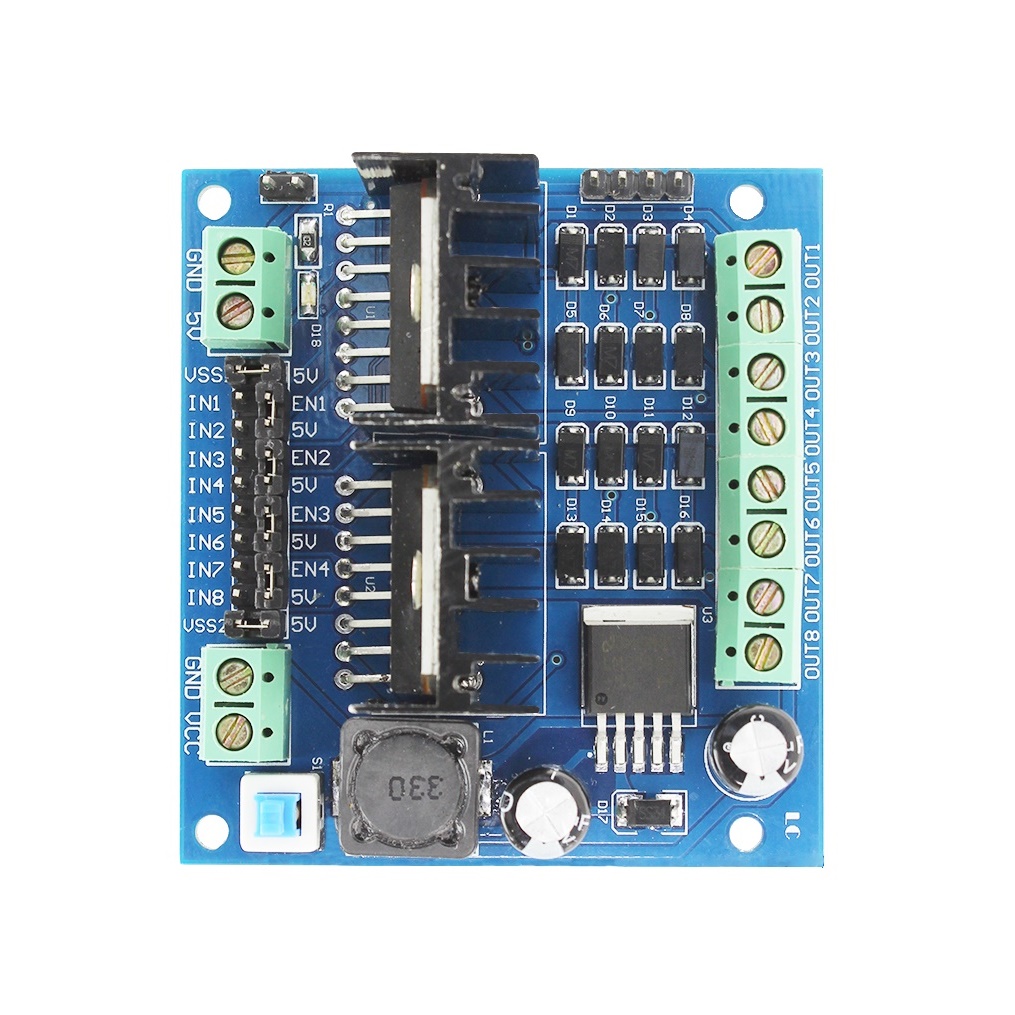

Introduced the hardware and instructions1, Drive peak current IO: 2A2, Maximum power consumption: 50W (T = 75 ℃)3, Power supply for logic part Vss: +5 V to +7 V (default connect to +5 V)4, Operating current for logic part: 0 ~ 36mA5, The voltage of control signal: low level: -0.3V≤Vin≤1.5V (control signal is invalid), high level: 2.3V≤Vin≤Vss (control signal is valid)6, Onboard multiple 5V power supply outputIntroduced the hardware and instructionsBoard size: 59.1x64mmFunctions of the board:Interface description:VCC,GND: power supply;OUT1, OUT2: DC motor 1 interfaceOUT3, OUT4: DC motor 2 interfaceOUT5, OUT6: DC motor 3 interfaceOUT7, OUT8: DC motor 4 interfaceIN1-IN8: motor logic control terminalIN1 / IN2 : control motor 1IN3 / IN4 : control motor 2IN5 / IN6: control motor 3IN7 / IN8 : control motor 4.EN1: Enable side of motor 1EN2: Enable side of motor 2EN3: Enable side of motor 3EN4: Enable side of motor 4.S1: power switch5V: 5V voltage output
