CANBed - Arduino CAN-BUS Development Kit (Atmega32U4 with MCP2515 and MCP2551) (แท้จาก SeeedStudio)

Key Features

• Atmega32U4 with Arduino Leonardo bootloader on the board
• MCP2515 CAN Bus controller and MCP2551 CAN Bus transceiver
• OBD-II and CAN standard pinout selectable at sub-D connector
• Compatible with Arduino IDE

Description

Specification

Hardware Overview

1. 9x2 IO Pin OUT:

The IO of Atmega32U4 is listed out here

2. Atmega32U4:

The master of the entire module mainly used to store data on the TF card or transfer data to the computer through the type C cable. In addition, since it's Arduino compatible, you can use it to implement some simple controls, such as triggering a buzzer alarm when the speed exceeds a certain value.

A: Reset Button:

Reset the on-board Atmega chip.

3. Micro USB connector for programming

4. ICSP Header for uploading bootloader

5. CAN RX/TX Indicator

6. sub-D connector or Terminal for CAN Bus

D-Sub CANbus PinOut

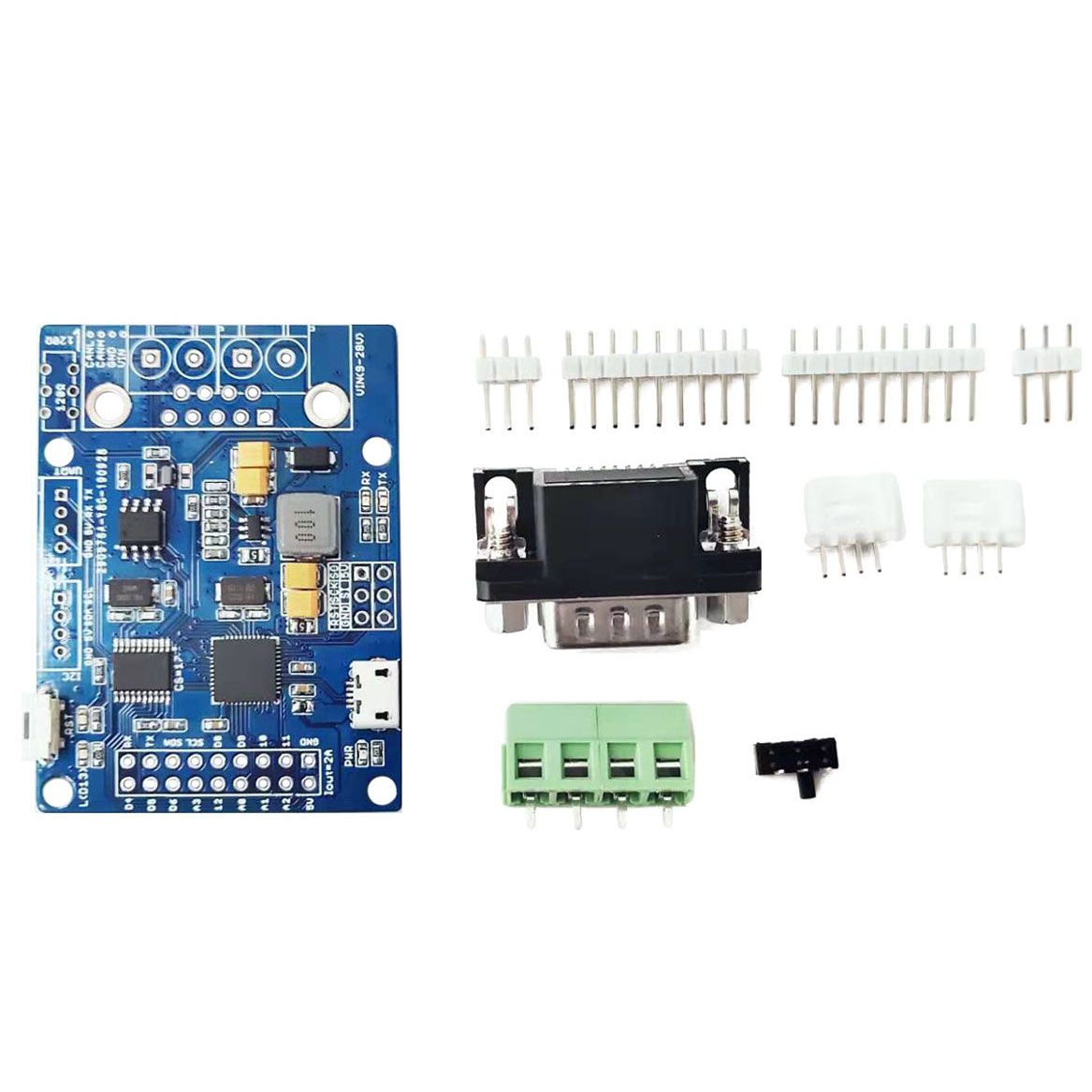

Part List

• CANBed PCBA

• sub-D connector

• 4PIN Terminal

• 4PIN 2.0 Connector x 2

• 9x2 2.54 Header x 1

• 3x2 2.54 Header x 1
