รหัสสินค้า | AS00354 |
หมวดหมู่ | การเคลื่อนไหว หมุน เอียงและสั่น Motion/Rotation/Tilt/Vibration |
ราคา | 175.00 บาท |
สถานะสินค้า | พร้อมส่ง |
จำนวน | ชิ้น |
ดูรายละเอียดการต่อ และ ตัวอย่าง arduino code ได้ที่ Click
Description

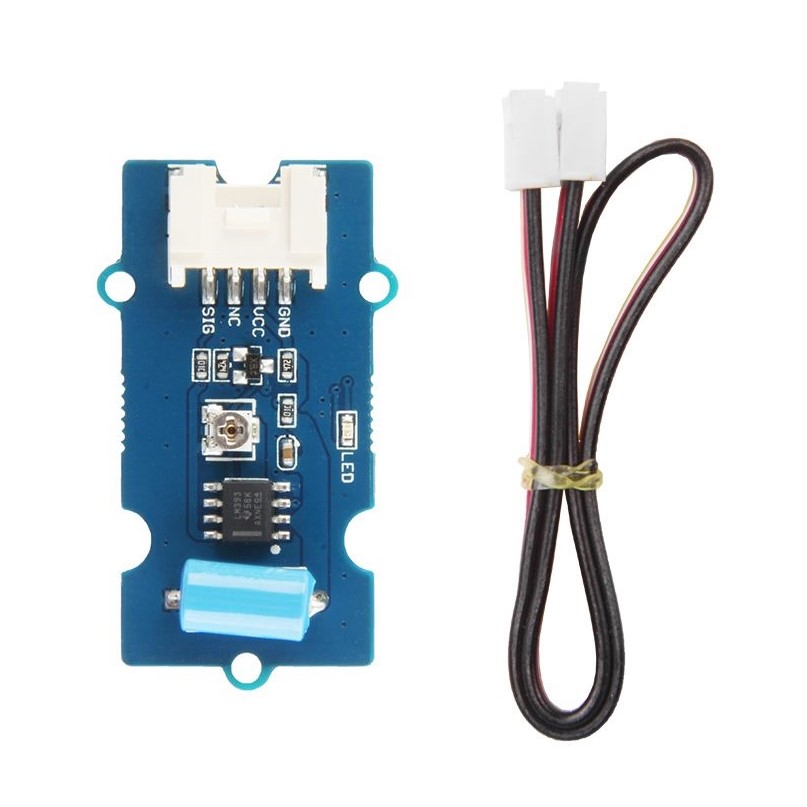

The Grove - Vibration Sensor (SW-420) is a high sensitivity non-directional vibration sensor. When the module is stable, the circuit is turned on and the output is high. When the movement or vibration occurs, the circuit will be briefly disconnected and output low. At the same time, you can also adjust the sensitivity according to your own needs.
All in all, this is a perfect module for vibration or tilt sensor.
Features
Non-directional
High sensitivity
Respond to vibration, tilt
Waterproof
Compression resistance
Typical Applications
Car, bicycle, motorcycle burglar alarm
Game control
Vibration detection
Pin Out
Technical details
Dimensions | 40mm x20mm x7mm |
Weight | G.W 10g |
Battery | Exclude |
Operating Voltage | 3.3V / 5V |
Interface | Digital |
Part List
Grove - Vibration Sensor (SW-420) | 1 |
Grove Cable | 1 |
