Grove - Real Time Clock (RTC - DS1307) (ของแท้จาก SeeedStudio, GD)

Grove - Real Time Clock (RTC - DS1307) (ของแท้จาก SeeedStudio, GD)
Grove - Real Time Clock (RTC - DS1307) (ของแท้จาก SeeedStudio, GD)Grove - Real Time Clock (RTC - DS1307) (ของแท้จาก SeeedStudio, GD)Grove - Real Time Clock (RTC - DS1307) (ของแท้จาก SeeedStudio, GD)Grove - Real Time Clock (RTC - DS1307) (ของแท้จาก SeeedStudio, GD)Grove - Real Time Clock (RTC - DS1307) (ของแท้จาก SeeedStudio, GD)
รหัสสินค้า GS00038
หมวดหมู่ Grove Modules
ราคา 120.00 บาท
สถานะสินค้า พร้อมส่ง
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

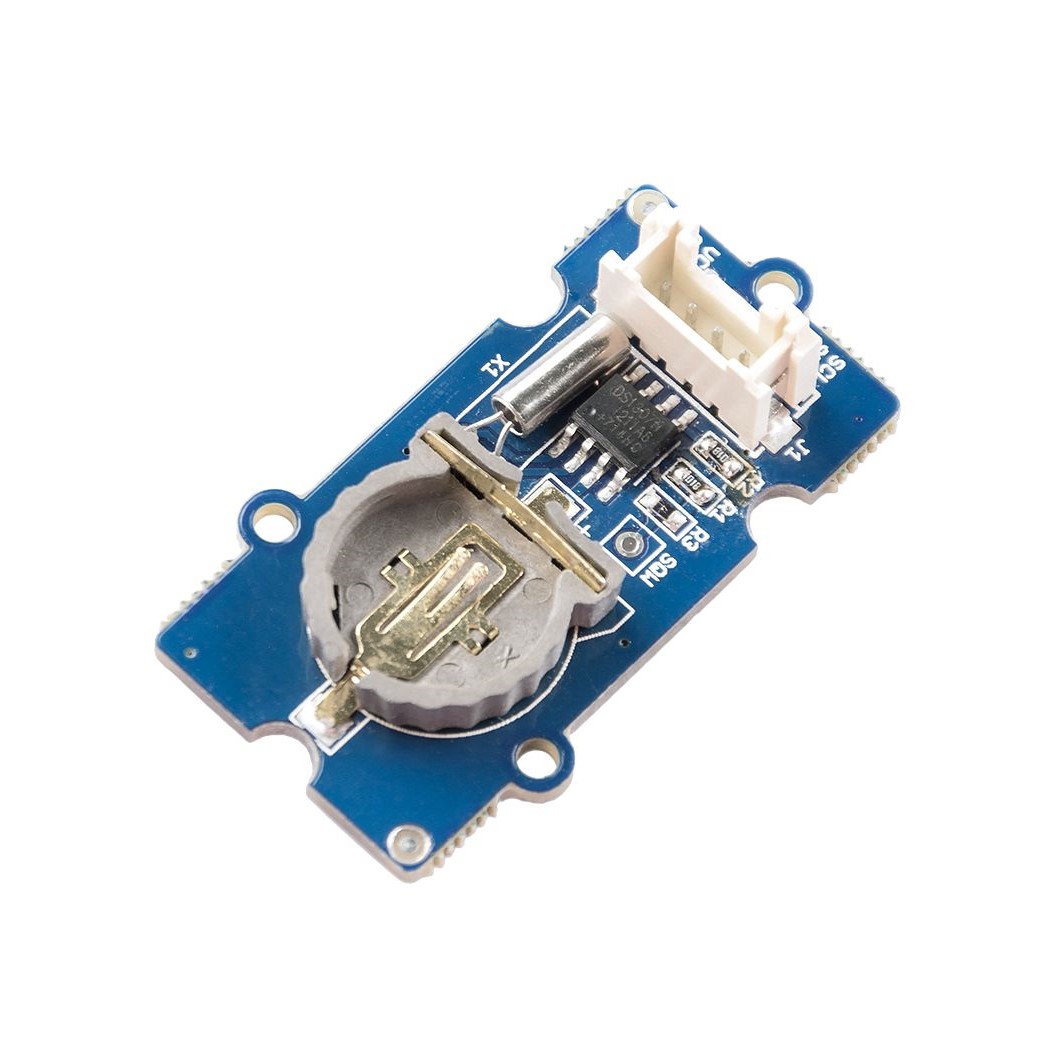

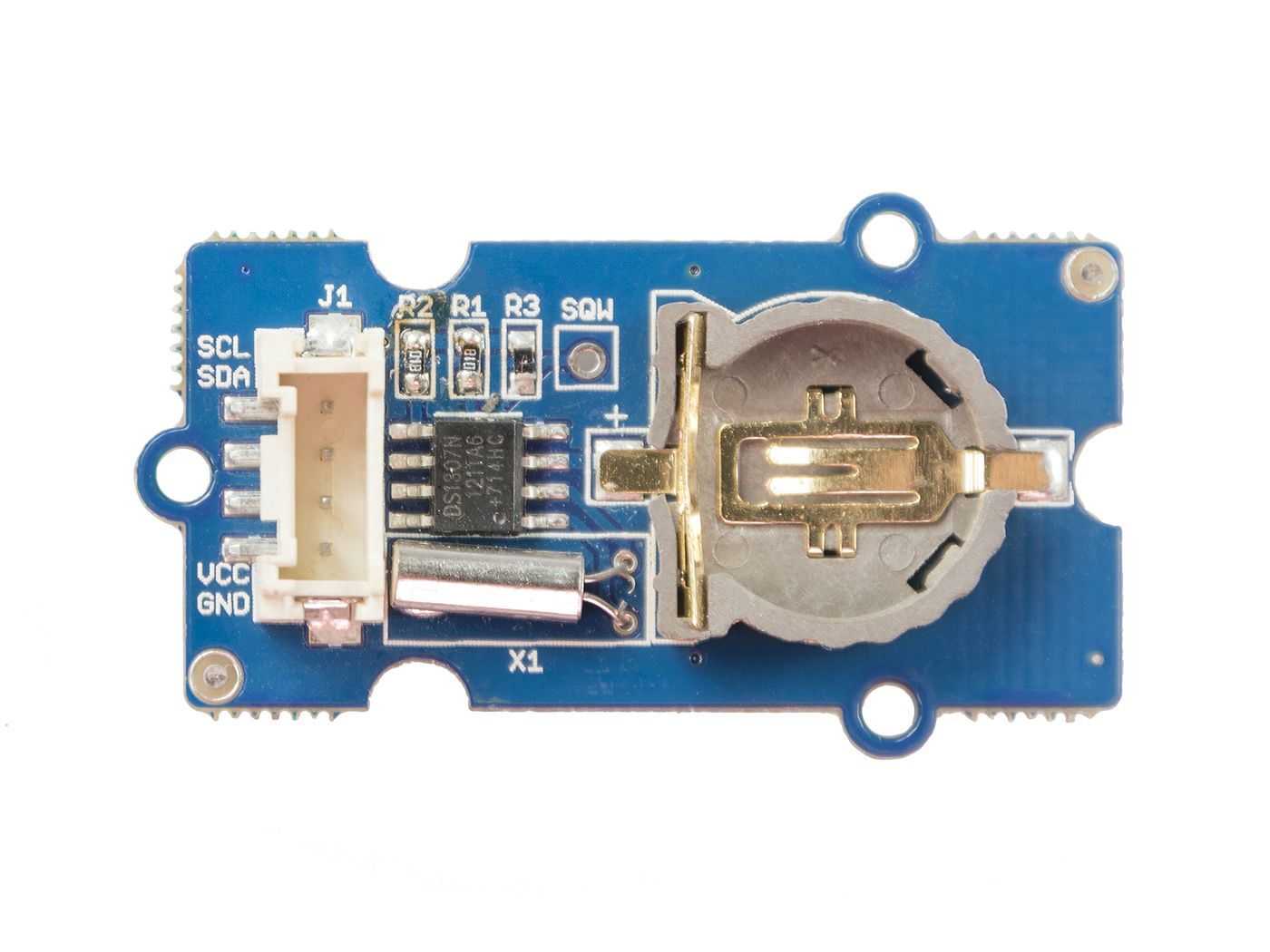

Grove - DS1307 RTC is based on the clock chip DS1307 and supports I2C communication! It uses a Lithium cell battery (CR1225). We choose to use the RTC based on DS1307 as it is low cost and also very energy efficient. It can run for years on a very small coin cell.


Description

Grove - DS1307 RTC is based on the clock chip DS1307 and supports I2C communication! Grove - DS1307 RTC uses a Lithium cell battery (CR1225). We choose to use the RTC based on DS1307 as it is low cost and also very energy efficient. It can run for years on a very small coin cell!

The clock/calendar provides seconds, minutes, hours, day, date, month, and year information. The end of the month date is automatically adjusted for months with fewer than 31 days, including corrections for leap year. The clock operates in either the 24-hour or 12-hour format with AM/PM indicator.

Note: Battery is not included.




Features

  • Real-Time Clock (RTC) counts seconds, minutes, hours, date of the month, month, day of the week, and year with Leap-Year compensation valid up to 2100

  • 56-Byte, Battery-Backed, Nonvolatile (NV)RAM for data storage

  • I2C serial interface

  • 5V DC supply

  • Programmable Square-Wave output signal

  • Automatic Power-Fail detect and switch circuitry

  • Consumes less than 500nA in Battery-Backup Mode with Oscillator Running

Resources

Technical details

Dimensions 130mm x80mm x10mm
Weight G.W 10g
Battery Exclude

Part List

Grove - RTC 1
