Arducam 8MP Synchronized Stereo Camera Bundle Kit for Jetson Nano

Description:

As part of Project Jetvariety, which allows any camera modules to be connected to the high-speed CSI-2 connector on the Jetson Nano. Arducam released this Synchronized Stereo Camera Bundle Kit for Jetson Nano, which allows customers to connect two 8MP IMX219 cameras to a single Jetson Nano board, and takes images or video at the same time, even more important they are fully synchronized. The highlight of this kit is that it incorporates Arducam proprietary ArduChip solution, and extends the usage of the single Jetson Nano camera port, it cheats the board as if only one camera connected.

Key Specifications:

• Two MIPI camera inputs and one MIPI camera output
• Support 1, 2 and 4 lane MIPI cameras input up-to 800Mbps/lane
• Support 2 lane MIPI output
• Support camera side-by-side combine, channel 0 and channel 1 software switching on the fly
• Support digital pan in half resolution combine, programmable pan speed control
• HAT size: 65 x 56 mm

Driver Features:

• Support Standard V4L2 framework, Video Nodes and Controls (Exposure, Gain and depending on camera parameters)
• Support Ardcuam Stereo Camera HAT
• Single Line Driver Installation Command
• OpenCV Friendly and Provides Source Code Demonstration

Application:

• Stereo Vision
• 360° Camera
• Advanced Surveillance Camera
• Enhanced Vision Goggles

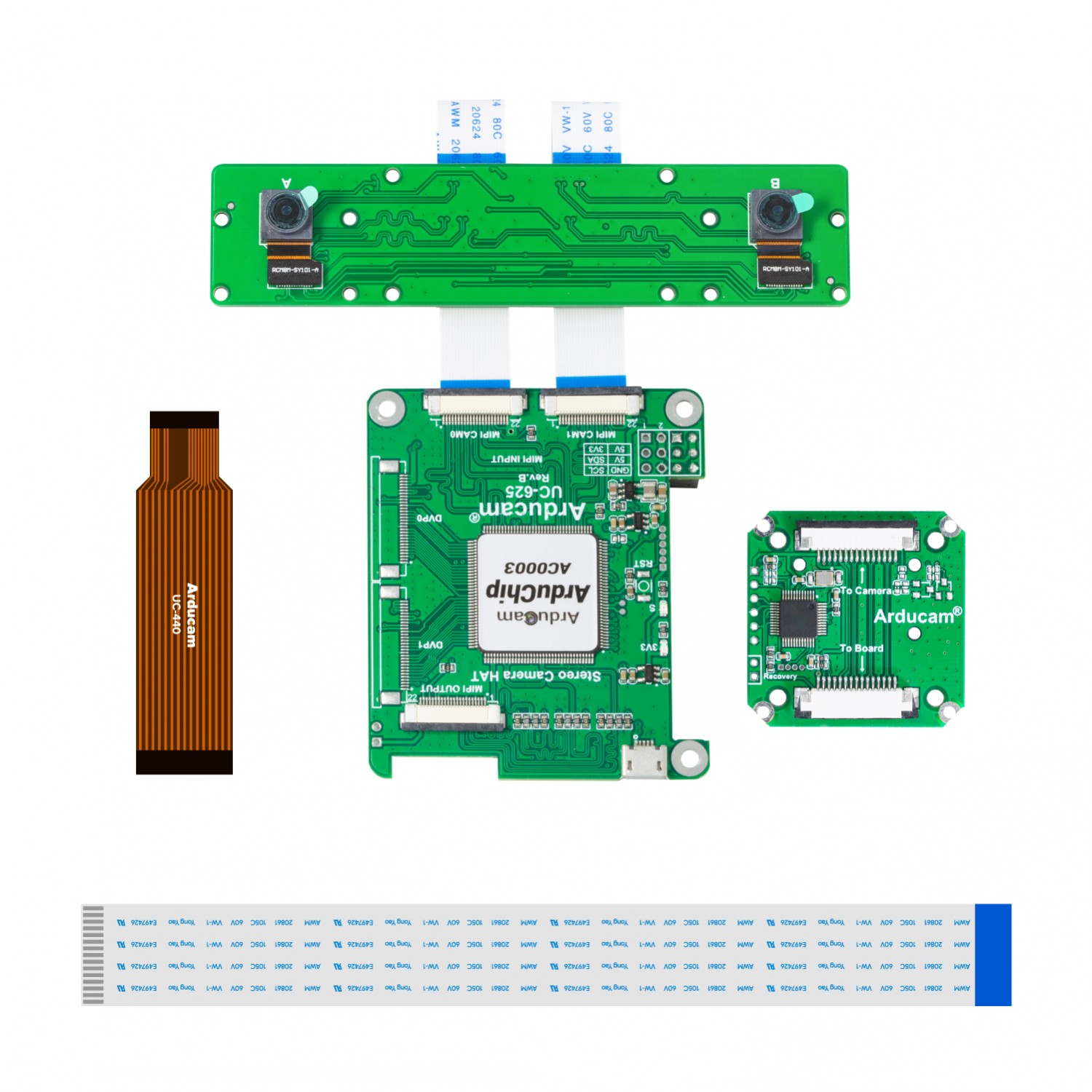

Package Includes:

• 1pcs Arducam Synchronized Stereo Camera HAT
• 1pcs Arducam Adapter Board for Jetson Nano
• 1pcs 8MP Arducam Stereo Camera Board
• 3pcs Arducam 80mm 22pin Ribbon FPC flat Wire Cable
• 1pcs Arducam 73mm 15pin to 22pin Ribbon FPC flat Wire Cable
• 4pcs M2.5*11mm Nylon Hex Standoffs
• 4pcs M2.5 Nylon Nuts
• 3pcs M2.5*6mm Nylon Screws

Additional Resources:

• Arducam Documentation – Arducam Cameras for Jetson Nano
• Video – Arducam MIPI Camera Module for Jetson Nano
• Blog – Arducam MIPI Camera Modules for Jetson Nano
