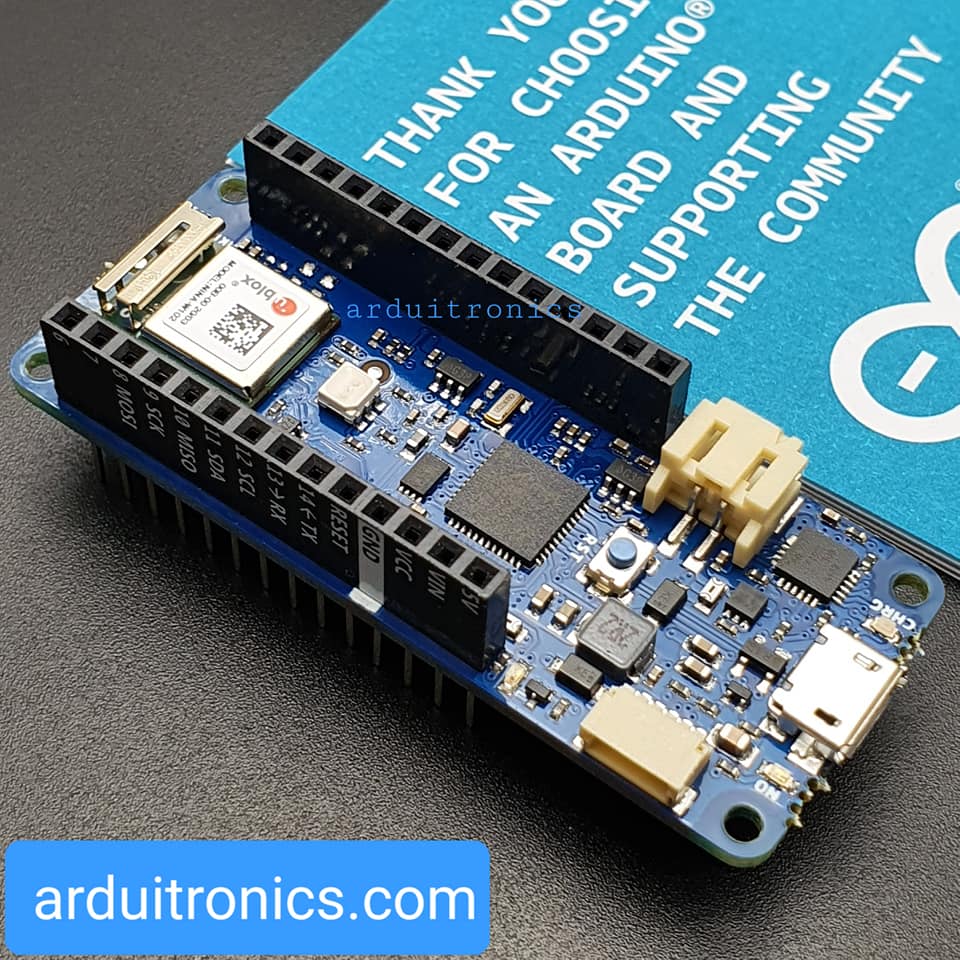

Arduino MKR WIFI 1010 (บอร์ดแท้ Made in Italy)

• ชิพหลัก SAMD21 ARM Cortex-M0+ 32-bit Low Power MCU 48 MHz SRAM 32 KB และ Flash Memory 256 KB มี Digital I/O 8 ขา Analog Input 7 ขา Analog Output 1 ขา UART 1 ชุด SPI 1 ชุด I2C 1 ชุด รองรับ External Interrupt 8 ขา รองรับ PWM 12 ขา แรงดันขา I/O ทำงานที่ 3.3 โวลต์เท่านั้น
• ชิพ ESP32 U-BLOX NINA-W10 Series Low Power 2.4 GHz 802.11 bgn
• ชิพ ECC508 Crypto Authentication

ส่วน Driver ของบอร์ด Arduino MKR WIFI 1010 จะถูกติดตั้งตอนลง Board Support Packages ของ SAMD หากมองไม่เห็น COM Port สามารถติดตั้งโดย Browse ไปที่ไดเรกทอรี Arduino/drivers เพื่อติดตั้ง

The MKR WIFI 1010 is a significant improvement on the MKR 1000 WIFI. It's equipped with an ESP32 module made by U-BLOX. This board aims to speed up and simplify the prototyping of WiFi based IoT applications thanks to the flexibility of the ESP32 module and its low power consumption. The board is composed of three main blocks:

• SAMD21 Cortex-M0+ 32bit Low Power ARM MCU
• U-BLOX NINA-W10 Series Low Power 2.4GHz IEEE® 802.11 b/g/n Wi-Fi
• ECC508 Crypto Authentication.

The MKR WIFI 1010 includes 32-bit computational power, the usual rich set of I/O interfaces, and low power Wi-Fi with a Cryptochip for secure communication using SHA-256 encryption. Plus, it offers ease of use Arduino Software (IDE) for code development and programming. All of these features make this board the preferred choice for the emerging IoT battery-powered projects in a compact form.

Its USB port can be used to supply power (5V) to the board. It has a Li-Po charging circuit that allows the Arduino MKR WIFI 1010 to run on battery power or an external 5 volt source, charging the Li-Po battery while running on external power. Switching from one source to the other is done automatically.

Warning: Unlike most Arduino boards, the MKR WIFI 1010 runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Applying voltages higher than 3.3V to any I/O pin could damage the board. While output to 5V digital devices is possible, bidirectional communication with 5V devices needs proper level shifting.

• Microcontroller SAMD21 Cortex-M0+ 32bit Low Power ARM MCU
• Board Power Supply (USB/VIN) 5V
• Supported Battery(*) Li-Po Single Cell, 3.7V, 700mAh Minimum
• Circuit Operating Voltage 3.3V
• Digital I/O Pins 8
• PWM Pins 12 (0, 1, 2, 3, 4, 5, 6, 7, 8, 10, A3 - or 18 -, A4 -or 19)
• UART 1
• SPI 1
• I2C 1
• I2S 1
• Connectivity WiFi
• Analog Input Pins 7 (ADC 8/10/12 bit)
• Analog Output Pins 1 (DAC 10 bit)
• External Interrupts 8 (0, 1, 4, 5, 6, 7, 8, A1 -or 16-, A2 - or 17)
• DC Current per I/O Pin 7 mA
• Flash Memory 256 KB
• SRAM 32 KB
• EEPROM No
• Clock Speed 32.768 kHz (RTC), 48 MHz
• LED_BUILTIN 6
• Full-Speed USB Device and Embedded Host Included
• LED_BUILTIN 6
• Length 61.5 mm
• Width 25 mm
• Weight 32 gr
