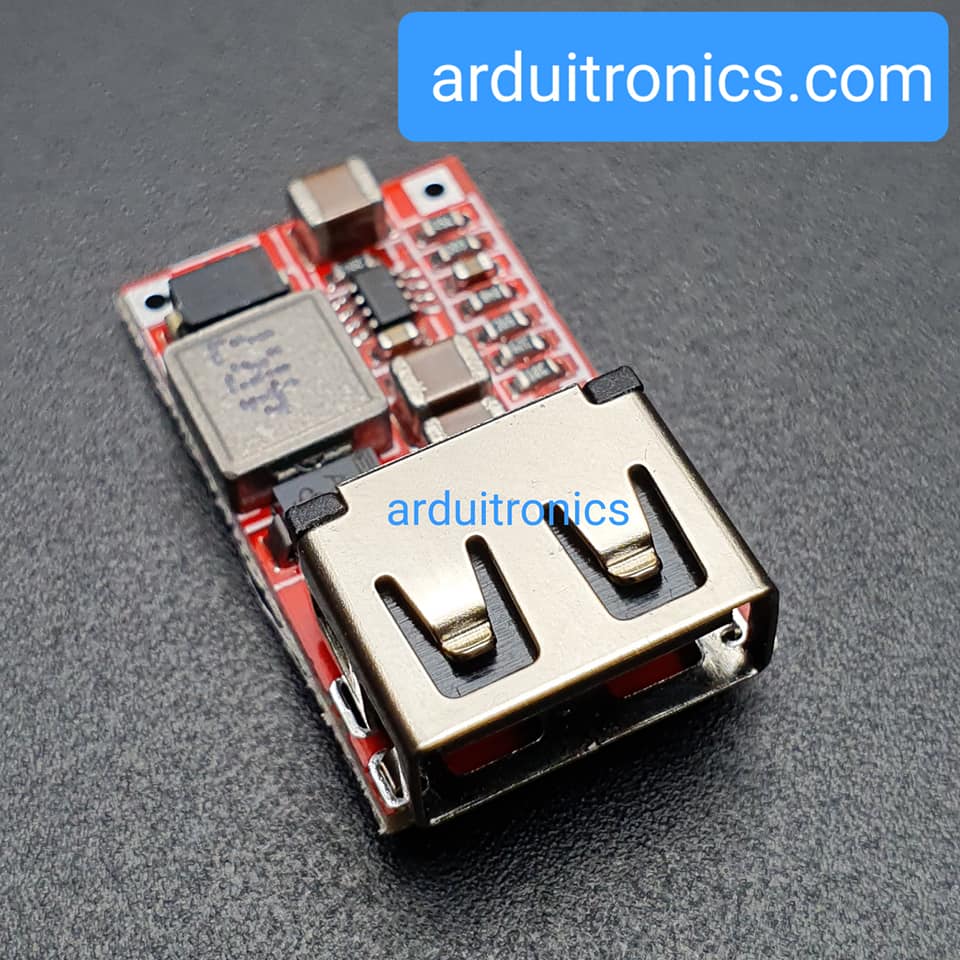

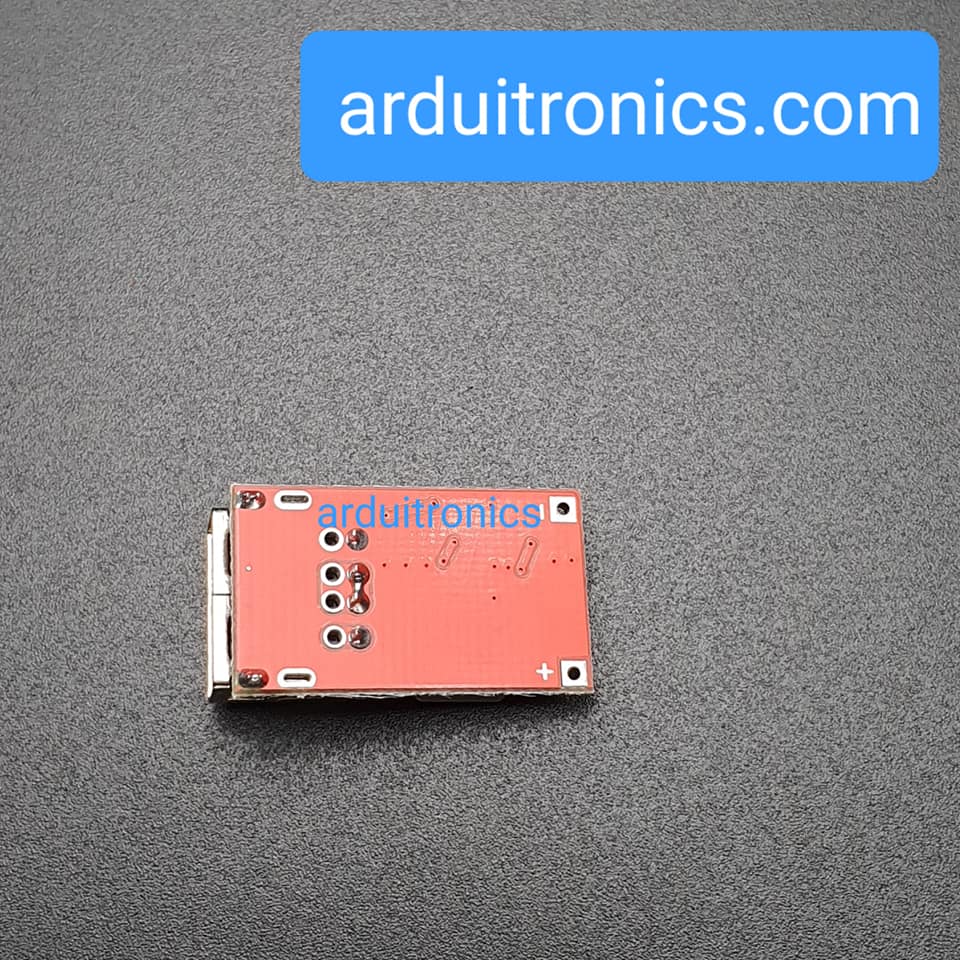

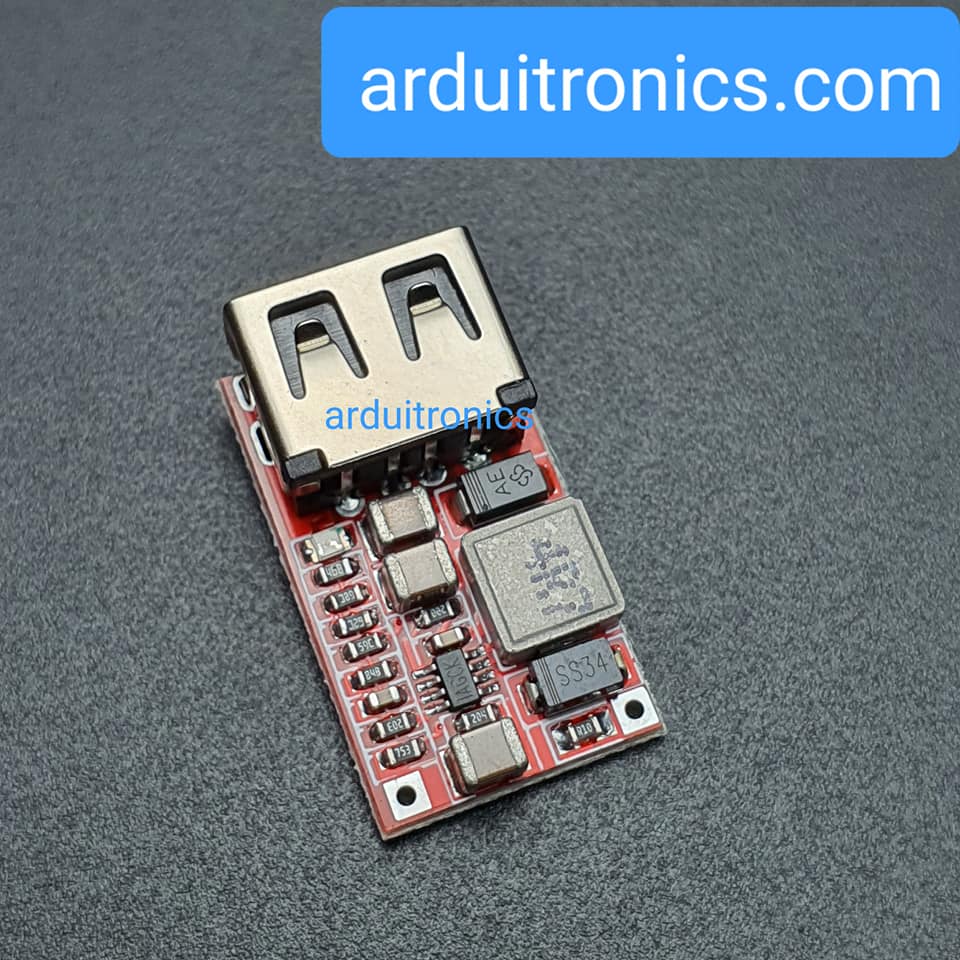

โมดูลแปลงไฟ 6-24V เป็น 5V กระแสสูงสุด 3A แบบ USB Efficiency 98%

โมดูลแปลงไฟ 6-24V เป็น 5V กระแสสูงสุด 3A แบบ USB Efficiency 98%

ข้อมูลโมดูลแปลงไฟ 6-24V เป็น 5V 2A แบบ USB

Module Information

• Adopt new design , circuit design does not require electrolytic capacitors and tantalum capacitors (electrolytic capacitor life is short, tantalum risk of explosion). Now with the use of high-end circuit of large-size solid ceramic capacitors (MCC) 3 Ke .
• Very low ripple, 12V turn 5V 3A only about 10 millivolts, many colleagues have reached a ripple 500 mV or more, the device will result in an invisible injury, a serious cause device is not working or is damaged, the IPHONE but very delicate .
• The new program uses synchronous rectification circuit conversion efficiency is very high, in turn 5V 0.7A 6.5V when efficiency up to% 97.5  , 12V turn 5V 1A, also reached 94%, unlike some peers efficiency is only 60-70%. (Efficiency test removed the input reverse polarity protection diode and fuse drop).
• Using flat copper wire inductance , maximize conversion efficiency. Reduce heat.
• First the whole network with output overvoltage protection , input fuse has 1.5A, 300W output 5V have done the TVS tube voltage clamp protection, to protect USB devices.
• Now the buck peer USB modules do not have overvoltage protection, there is a very big security risk for USB devices, if you think about the step-down module breakdown, 12V directly added to your IPHONE above your IPHONE can survive it?
• Using the latest USB identification circuit, perfectly compatibleIPHONE, the vast majority of Android phones, IPAD .
•  Gold-plated USB boundless short head , long service life, not ordinary USB interfaces can be compared.
• Output voltage indicator ( red )

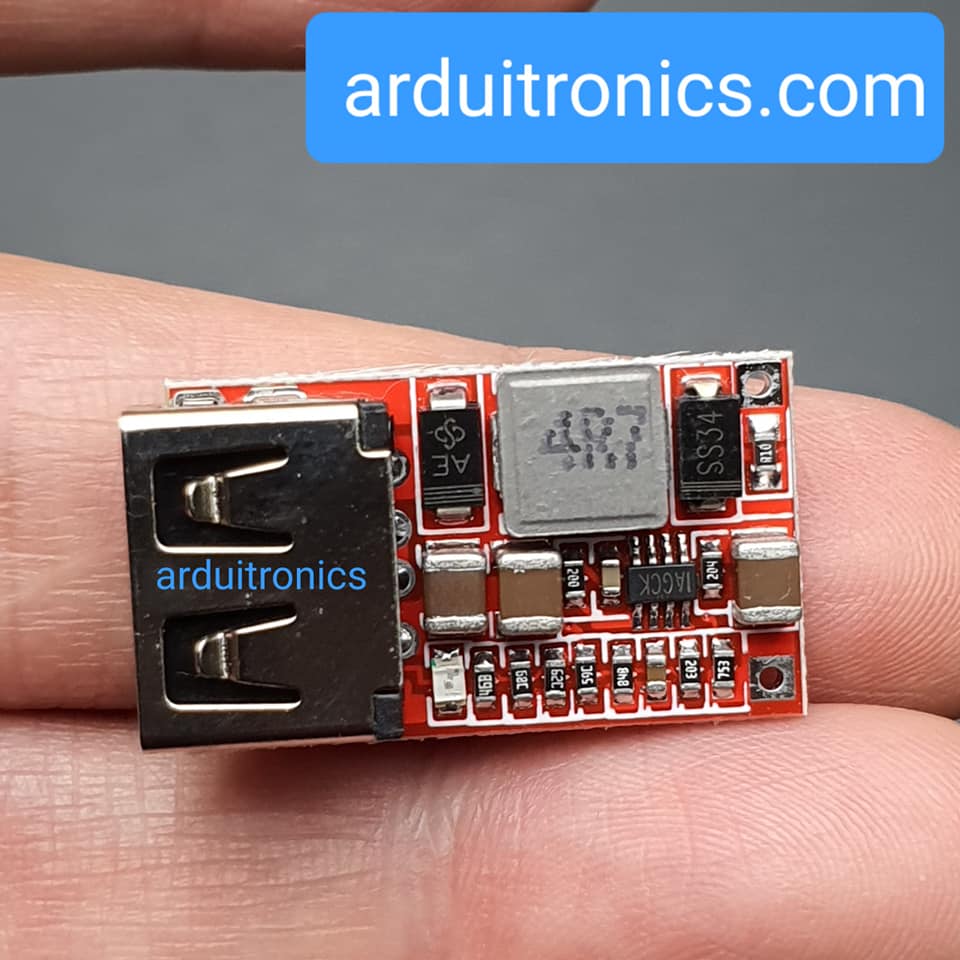

• Ultra-small size, 26.4 ( long ) * 15 ( width ) * 7.4 ( height ) mm, the whole network the minimum .
• Input with reverse polarity protection diode , the positive and negative reversed input will not be damaged, (We ignore the input diode test efficiency and pressure drop fuse)
• Ultra-low quiescent current, quiescent current of 0.85 mA . Connected to the car battery without adding switches can be connected to the cigarette lighter line or the ACC power cable line.

Module parameters

• Module Properties: non-isolated step-down module (BUCK) synchronous rectifier
• Input voltage: the DC 6-24 V
• Output voltage: 5.1-5.2V (You can choose to choose between 3.3-6V, if other voltages Please let the treasurer, the default shipping is 5.1V-5.2)
• Output current:Maximum 3 the A (Please note that full cooling), the actual test input 12V output 2A without special treatment within the heat.
• Conversion efficiency:Up 97.5% (6.5 0.7A switch 5V) (test value after shorting and reverse polarity protection fuse)
• Switching frequency: 5 00KHz
• Output ripple: 10mV around (12V turn 5V3A) 20M-bandwidth
• Output indication: output voltage LED is red
• Operating temperature: Industrial grade (-40 ℃ to + 85 ℃) (the higher the temperature, the smaller the output power)
• Output over-voltage protection: Yes, input fuse 1.5A, 5V output has 300W TVS tube clamp protection.
• Full load temperature rise: 30 deg.] C
• Static current: 0.85 Haoan
• Load regulation: ± 1 %
• Voltage regulation: ± 0.5%
• Dynamic response speed: 5% 200uS
• Output short circuit protection: Yes, do not short-circuit a long time
• Input reverse polarity protection: Yes, there are input reverse polarity protection diode
• Connection: Welding
• Input: Welding
• Output: short head boundless USB
