Adafruit NeoPixel Shield for Arduino - 40 RGB LED Pixel Matrix

Adafruit NeoPixel Shield for Arduino - 40 RGB LED Pixel Matrix
Adafruit NeoPixel Shield for Arduino - 40 RGB LED Pixel MatrixAdafruit NeoPixel Shield for Arduino - 40 RGB LED Pixel MatrixAdafruit NeoPixel Shield for Arduino - 40 RGB LED Pixel MatrixAdafruit NeoPixel Shield for Arduino - 40 RGB LED Pixel MatrixAdafruit NeoPixel Shield for Arduino - 40 RGB LED Pixel Matrix
รหัสสินค้า AG00038
หมวดหมู่ LED / LED Drive
ราคา 1,280.00 บาท
สถานะสินค้า พร้อมส่ง
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

DESCRIPTION

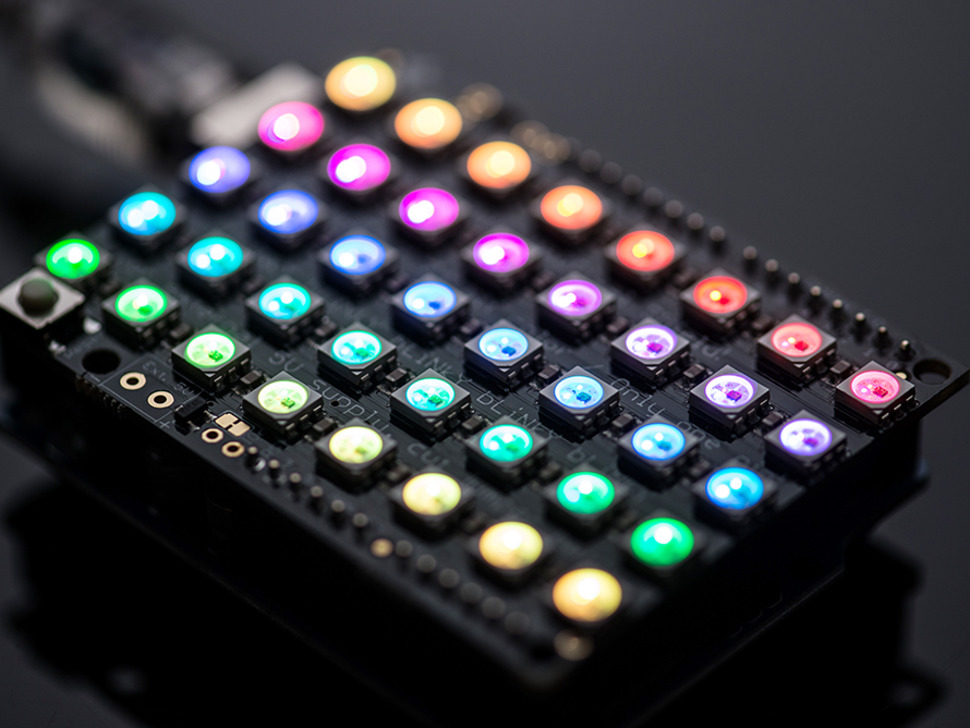

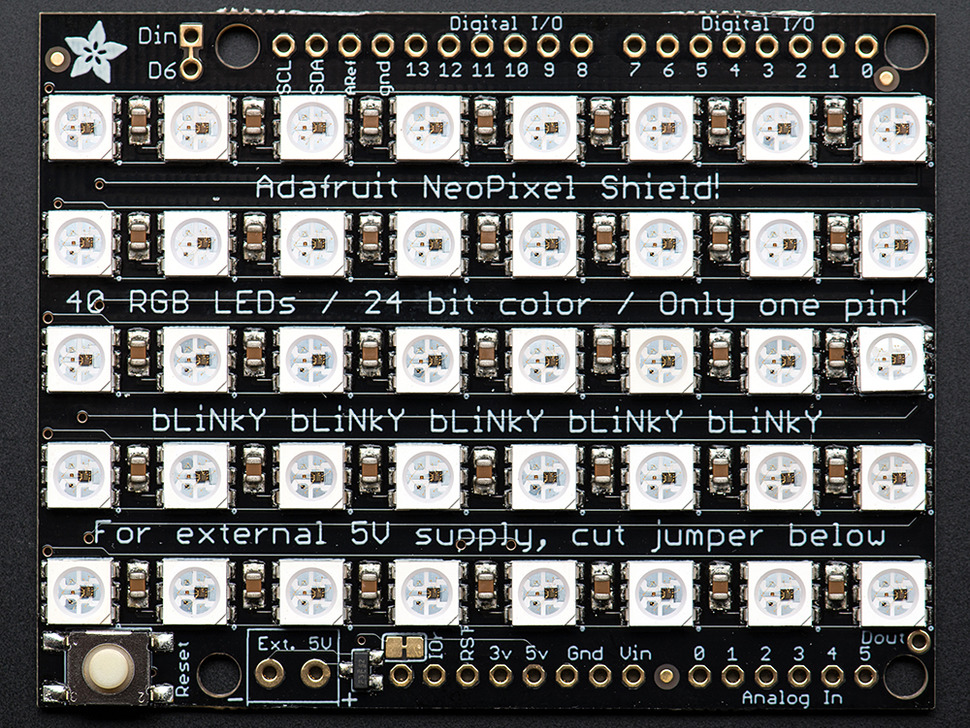

Put on your sunglasses before putting this shield onto your 'duino - 40 eye-blistering RGB LEDs adorn the NeoPixel shield for a blast of configurable color. Arranged in a 5x8 matrix, each pixel is individually addressable. Only one pin (Digital #6) is required to control all the LEDs. You can cut a trace and use nearly any other pin if you need some customization.

To make it easy to start, the LEDs are powered from the 5v onboard Arduino supply. As long as you aren't lighting up all the pixels full power white that should be fine. You can also solder in the included terminal block (pro-tip: put it on the bottom of the board so it doesn't stick up) to attach an external 4-6VDC power supply. There's a polarity protection FET on there in case you wire the power backwards (we would never do that, it was, umm, a friend of ours, yeah that's it!)

If, say, you need MORE blinky, you can chain these together. For the second shield, connect the DIN connection to the first shield's DOUT. Also connect a ground pin together and power with 5V. There you go! You can chain as many as you'd like although after 5 or more shields you may run low on RAM if you're using an UNO.



คลิ๊กที่นี่สำหรับ Library และ ตัวอย่าง Sketch:

https://www.adafruit.com/products/1430
