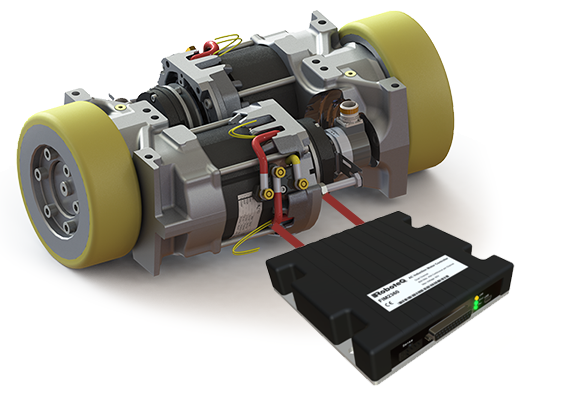

RoboteQ MDC2460 2x 60A 60V Motor Controller

Description

• Datasheet
• ตัวอย่างการ โปรแกรมลงใน controller
• 60A dual channel brushed DC motor controller
• Built-in high-power drivers
• Maximum voltage: 60V DC
• Maximum amps per channel: 60A
• Cables NOT included

The RoboteQ MDC2460 2x 60A 60V Motor Controller is designed to convert commands received from an RC radio, Analog Joystick, wireless modem, PC (via RS232 or USB) or microcomputer into high voltage and high current output for driving one or two DC motors. Designed for maximal ease-of-use, it is ready to use in minutes. The controller features a high-performance 32-bit microcomputer and quadrature encoder inputs to perform advanced motion control algorithms in Open Loop or Close Loop (Speed or Position) modes. The MDC22xx features several Analog, Pulse and Digital I/Os which can be remapped as command or feedback inputs, limit switches, or many other functions. The controller's two motor channels can either be operated independently or mixed to set the direction and rotation of a vehicle by coordinating the motion of each motor.




Specification

Power

• Motor type: Brushed DC
• Number of channels: 2
• Direction: Forward/Reverse
• Maximum amps per channel: 60
• Continuous amps per channel: 50
• ON resistance (mOhm): 6
• Power connections: Fast on

Commands & Feedback

• Analog: Yes
• RS232: Yes
• USB: Yes
• CANbus: Yes
• RC Pulse: Yes
• MicroBasic Scripting: Yes
• Control Loop (ms): 1

I/O

• Maximum analog inputs: 4
• Maximum digital inputs: 6
• Digital outputs: 2
• Maximum pulse inputs: 5
• Encoder: Yes

Mechanical

• Cooling: Conduction plate

• Size: 140mm x 140mm x 25mm
• Weight: 250g
