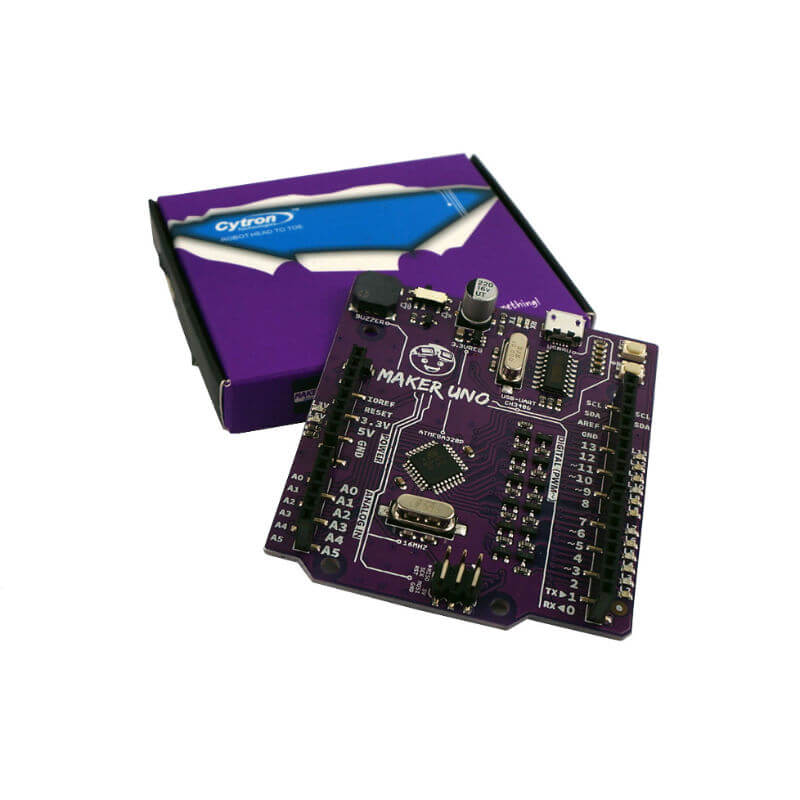

Cytron Maker UNO

บอร์ด Maker UNO จาก Cytron เป็นบอร์ดไมโครคอนโทรเลอร์ ATmega328 ที่ถูกออกแบบมาให้ใช้งานง่าย ใช้ชิพ USB to serial CH340G พร้อมให้ on board LED เพิ่มมาถึง 12 ดวง และยังมี Push Button กับ Piezo Buzzer แบบโปรแกรมคุมคุมได้ เสริมมาให้ เพื่อให้ใช้งานง่ายยิ่งขึ้น

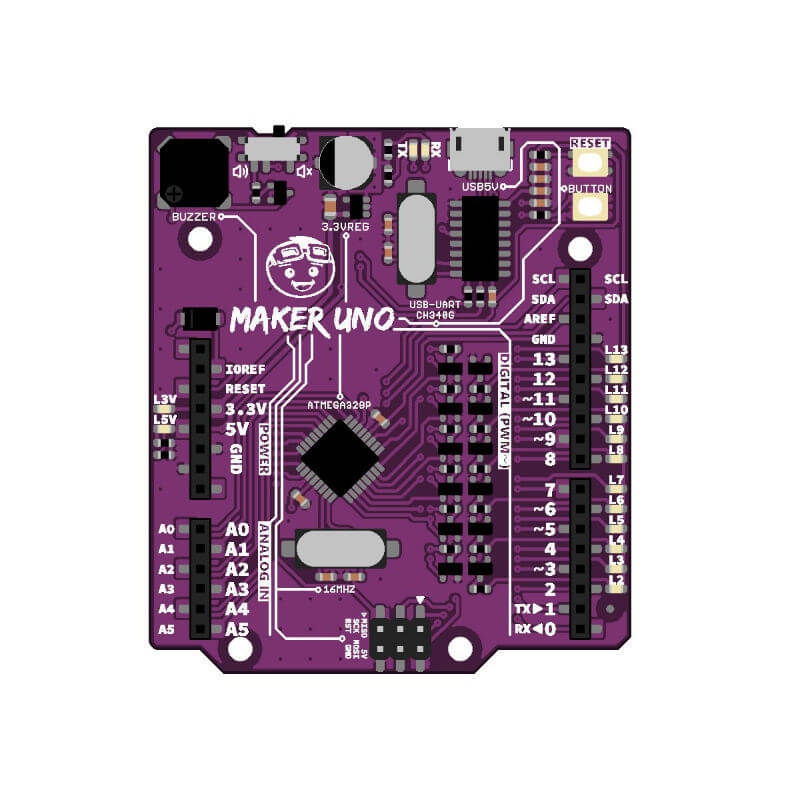

Maker-UNO has all the amazing features Arduino UNO has to offer, 14 Digital I/O pins with 6 PWM pins, 6 Analog inputs, UART, SPI, external interrupts, not to forget the I2C too. The SDA, SCL and IOREF pins which being broken out on UNO R3 are on MAKER-UNO too. We has also populated the ISP header pins (SPI and power). With this, Maker-UNO will be compatible with all Arduino UNO shield.

Product Features:
• SMD ATmega328P microcontroller(the same microcontroller on Arduino UNO) with Optiboot (UNO) Bootloader.
• USB Programming facilitated by the CH340.
• Input voltage: USB 5V, from computer, power bank or standard USB adapter.
• 500mA (maximum) 3.3V voltage regulator.
• 0-5V outputs with 3.3V compatible inputs.
• 14 Digital I/O Pins (6 PWM outputs).
• 6 Analog Inputs.
• ISP 6-pin Header.
• 32k Flash Memory.
• 16MHz Clock Speed.
• R3 Shield Compatible.
• LED array for 5V, 3.3V, TX, RX and all digital pins.
• On board programmable push button (pin 2, need to configure as INPUT_PULLUP).
• On board piezo buzzer (pin 8).
• Utilize USB Micro-B socket.
• PURPLE PCB!

Dimension: 69.09mm(L) x 60.96(W)

Information Support:

• Official Product Page

Documents:

• Maker UNO User's Manual
• Maker UNO Edu Kit Getting Started Module
• Maker-UNO Schematic
• Maker-UNO Fritzing File
• CH341 driver
  • Windows
  • Mac OS
  • Linux (Normally is readily installed)

Tutorial:

• Getting Started with Maker UNO (video)
• Maker UNO Projects
