[คุณภาพสูง] High Quality Soil (Moisture) Sensor Module

• Soil moisture detection kit with adjustable sensitivity and digital analog dual signal output
• Equipped with waterproof sensor probe with high corrosion resistance ensure long lifetime up to 6 months after plugged into the soil
• On-board power and signal indicator to diplay the module working status
• Working Voltage: DC 3.3-12V, Module Size: 36X15X7mm/1.42X0.59X0.28inch (LxWxH)
• Ship it out by USPS with tracking information and 7-17 days delievery time usually

High Quality Soil Moisture Sensor Module

This is a soil moisture detection kit designed for Arduino automatic watering system. When the soil moisture level reach the module setting values(adjustable) it will output low level and analog signal. It is equipped with waterproof sensor probe with high corrosion resistance ensure long lifetime.DC 3.3-12V wide working voltage and digital analog signal dual output ideal for your soil moisture detetion projects.

Specifications:
Working Voltage: DC 3.3-12V
Working Current: <20m(Output Current:<30mA)
Module Size: 36X15X7mm/1.42X0.59X0.28inch(L*W*H)
Sensor Pin Pitch:5mm
Sensor Cable Length:2.2meter/3.94ft
Sensor Connecting Port: XH2.54 2P

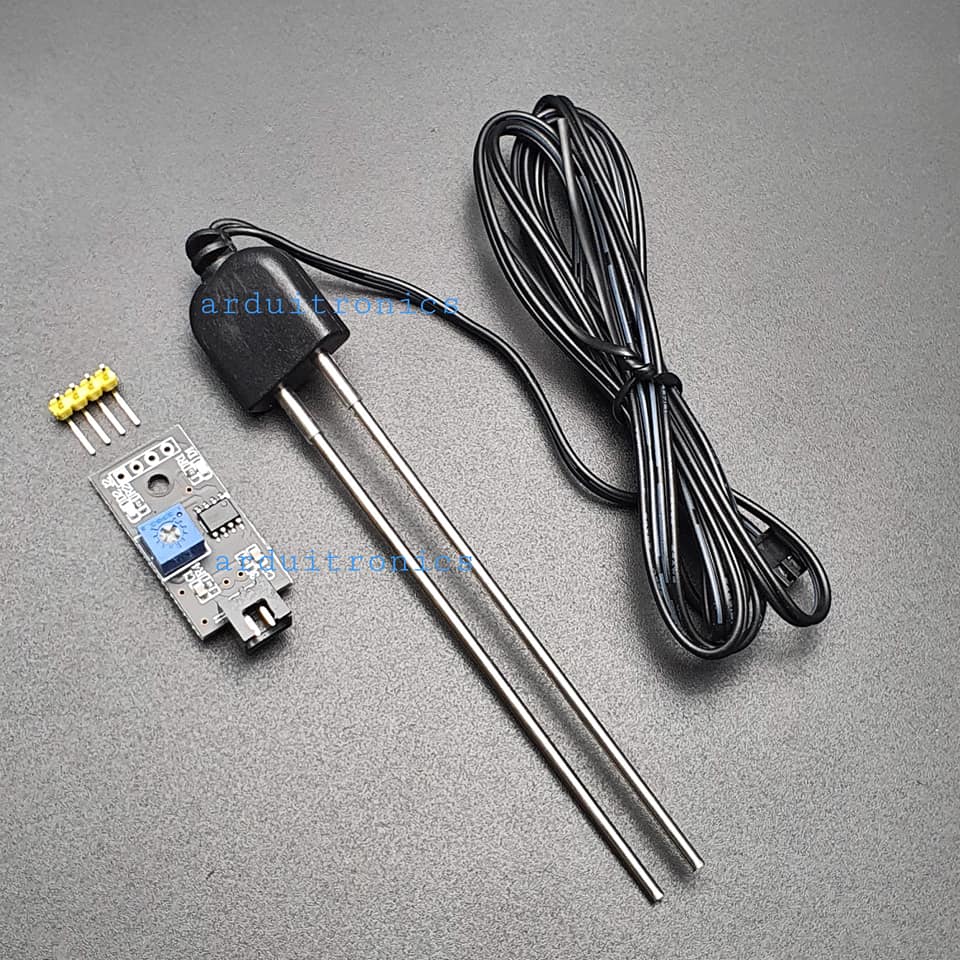

Product includes:
1X Soil Moisture Sensor Module
1X Sensor Probe

Instructions:
+:connect the power supply postive port
-:connect the power supply negative port.
After connected the power supply, the "P" indicator will light up and the module will work.
Regulator the blue potentiometer to regulate the sensor sensitivity. If the set the values as 0.1, regulate it in CW direction means when the moisture is lower than 0.1 will trigger module, if in CCW direction, and detected signal higher than 0.1 will trigger module.
if regulator the potentiometer lead to the "S" indicator light up means the the regulated values is over the testing limit values
