Expansion board Arduino sensor interface (Catalex)

Expansion board Arduino sensor interface module building blocks robot accessories

  เป็น Shield สำหรับใช้งานกับ Arduino UNO R3 โดยออกแบบให้สะดวกในการต่อ Sensor ต่างๆ

*** สินค้าไม่รวม sensor ที่แสดงในภาพประกอบสุดท้ายครับ  ****

The module is compatible with Arduino UNO R3 sensor expansion board substrates, electronic building blocks related to functional modules and compatible with Arduino UNO R3 is connected between the bridge motherboard. SPI interface board led board, UART interface, the part of the digital interface and analog interface, easy DIY enthusiasts, arduino interactive designers will soon be quickly attached to the Arduino module motherboard, accelerate project development progress. Expansion board features are as follows:

1 Suitable for Arduino UNO R3, Catduino and other compatible motherboard.

2 onboard reset circuit, power and reset indicator.

3 other functions can continue stacking Arduino expansion boards.

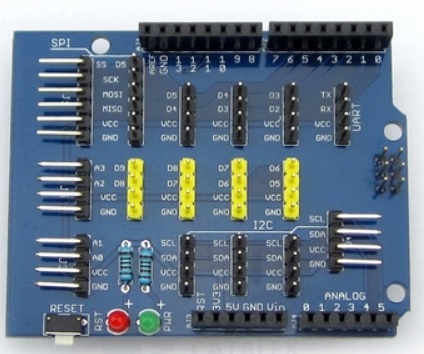

Pin interface leads Resources:

SPI Interface : two SPI interfaces shared SPI bus, chip select pin is not the same, you can enable the board to mount two SPI interface module;

Digital Interface : 7, each interface contains two signal lines and two with the power cord, can be articulated 3-wire or 4-wire module;

UART Interface : TTL serial port, serial port modules can be mounted.

Analog interface : 2, each interface contains two signals and two ADC with power lines, analog signal output can be mounted sensor module can also be used as a common digital interface;

I2C Interface : 4, which can mount four different I2C address of the interface module can also be used as an analog interface, common digital interface (non-I2C interface uses the interface is not reusable);

Reset button : side by the touch of a button, so that the reset operation more convenient;

Indicator : Red LED is reset LED, reset that light; green LED power indicator for the motherboard provides a 5V power supply is normal that lit;

Power Interface : from board 5V, direct power on each interface described above;
