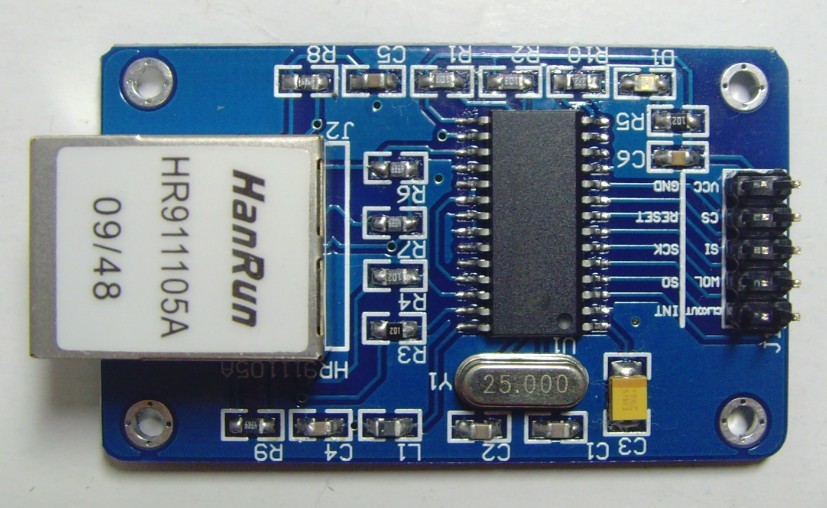

ENC28J60 Ethernet LAN Network Module For Arduino SPI AVR PIC LPC STM32
Product Description:
ENC28j60 network interface module to facilitate the users to quickly assess the MCU Ethernet access solutions and applications. Module uses the SPI bus MicroChip high-performance single-chip network interface chip IEEE 802.3-compliant Ethernet controller integrated MAC and 10 BASE-T PHY, support full and half duplex mode, configure built-in network adapter's RJ45 module HR911102A to further reduce the volume. Using standard 100mil spacing 2 * 5 pin double row easy to connect with mcu users, 3.3V single power supply with LED power indicator, pin-compatible 5V standard.
Specification:
Datasheet | Ethernet ENC28J60 |
Category | Module |
Mounting Style: | SMD/SMT/Through Hole |
Interface Type: | EBI, I2S, SPI, TWI, USART, USB,MSSP, PSP, USART ,I2C |
Family | Interface - Drivers, Receivers, Transceivers |
Protocol | RS232 /RS422 / RS485 |
RoHS: | Yes |
Package | Reel Tube Tray |
วิธีการใช้งาน และ Library ดูตามนี้ครับ
http://nathanhein.com/2013/02/getting-arduino-online-with-an-enc28j60/
