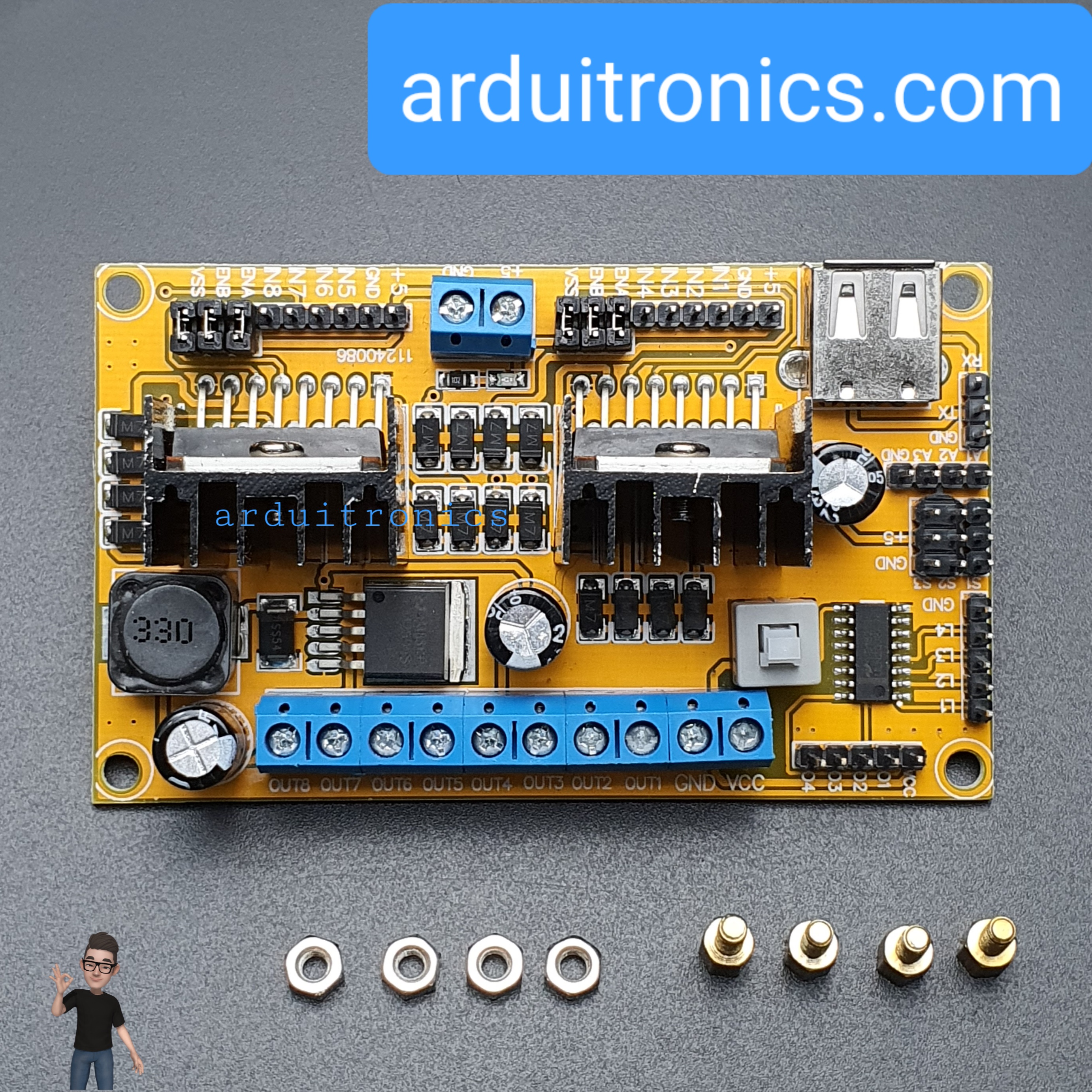

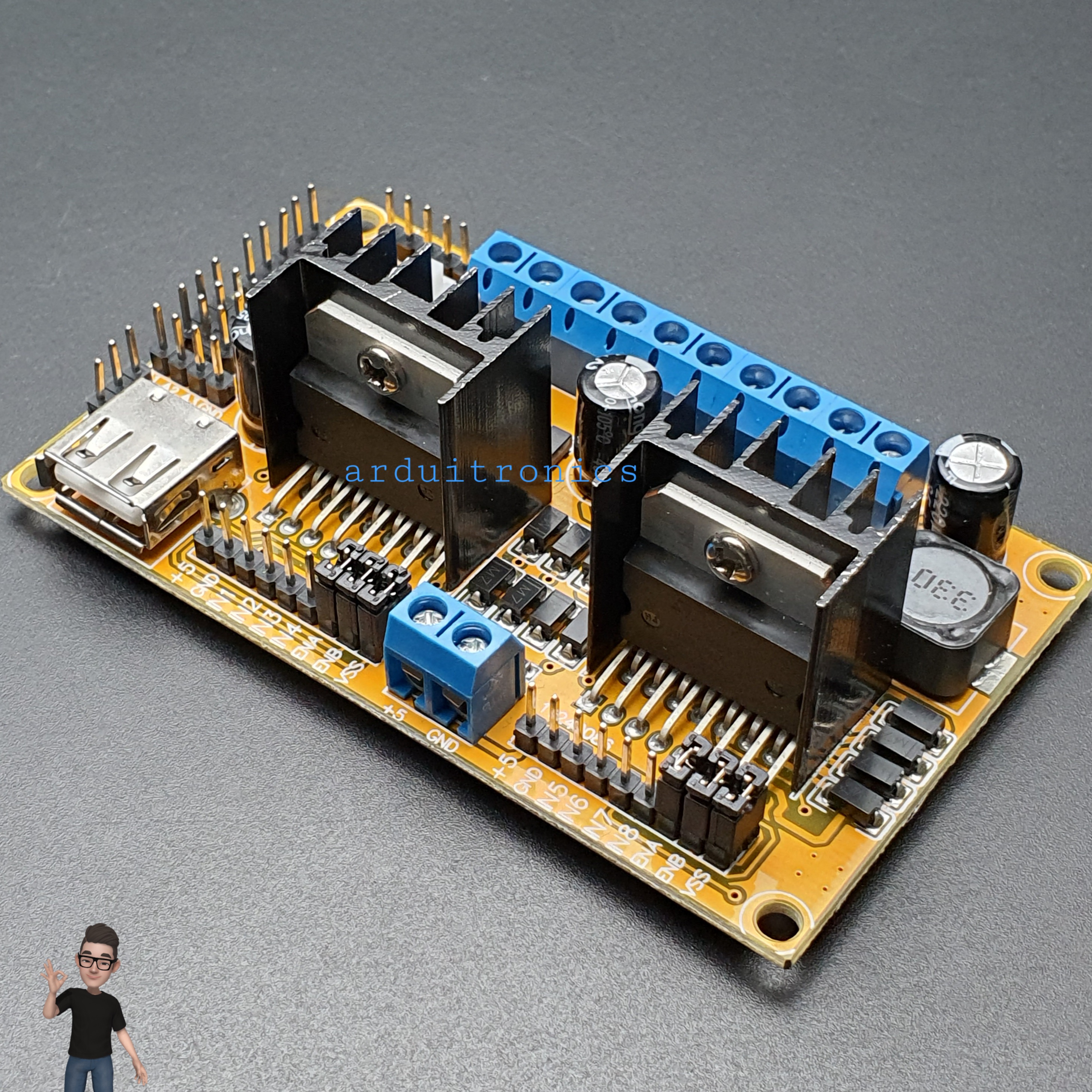

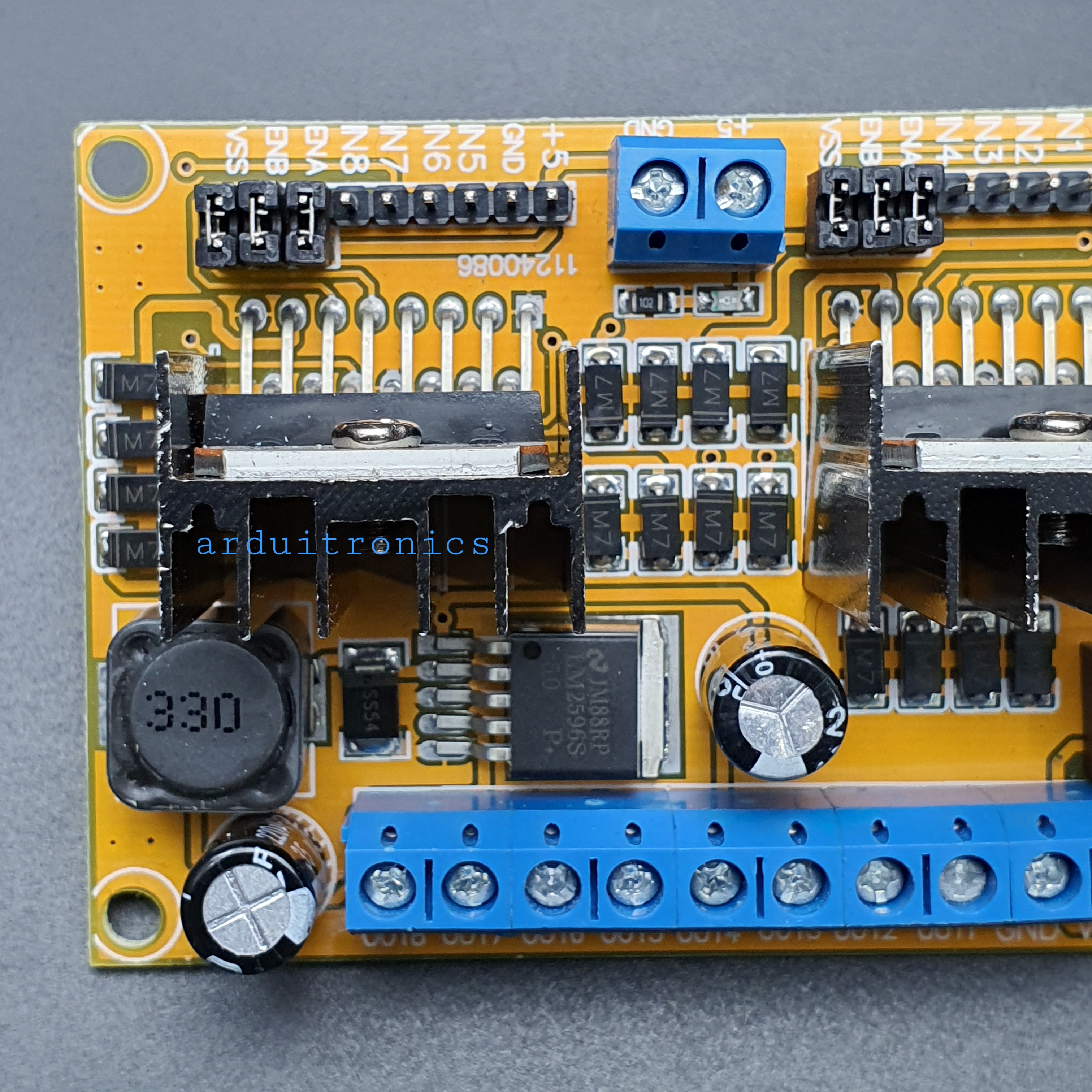

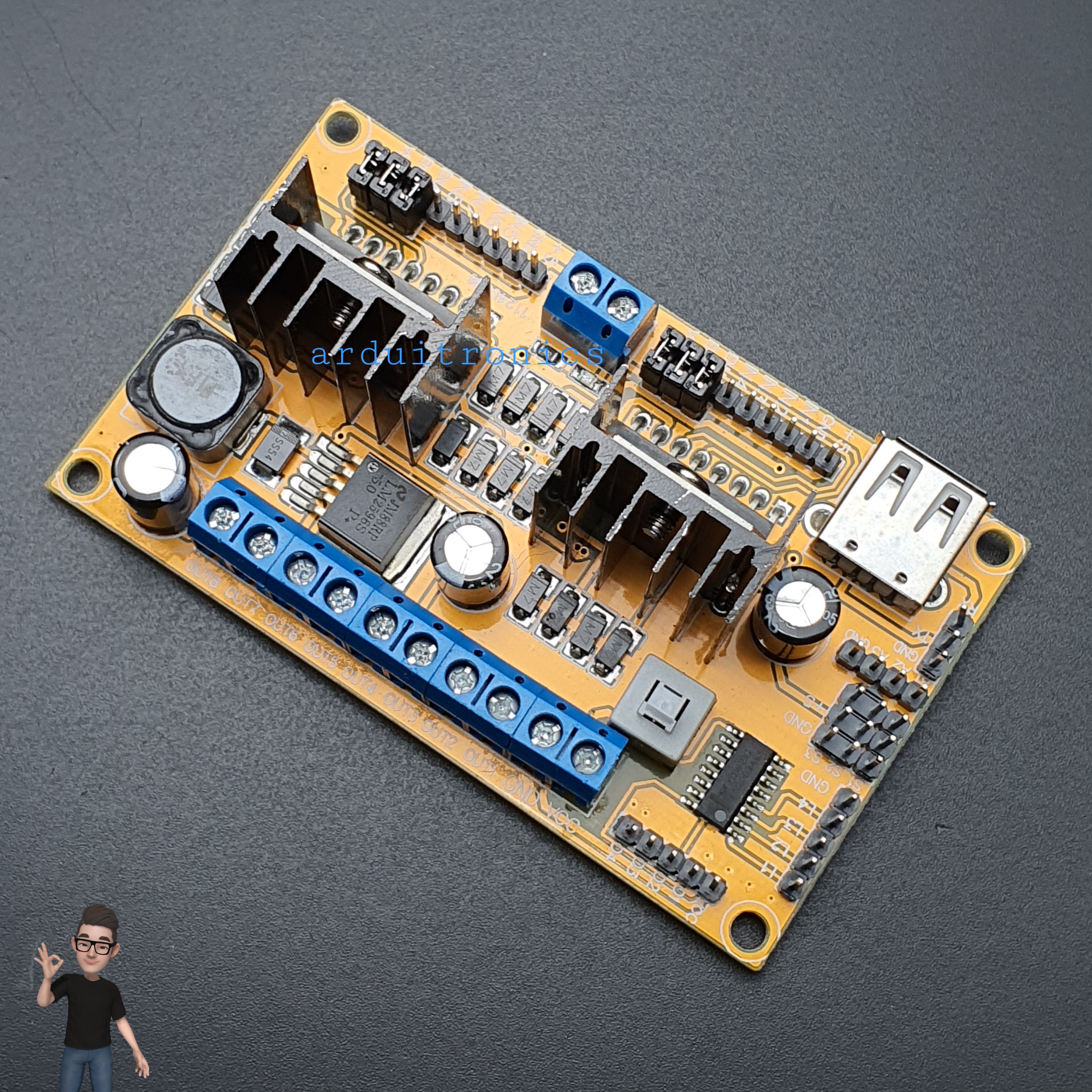

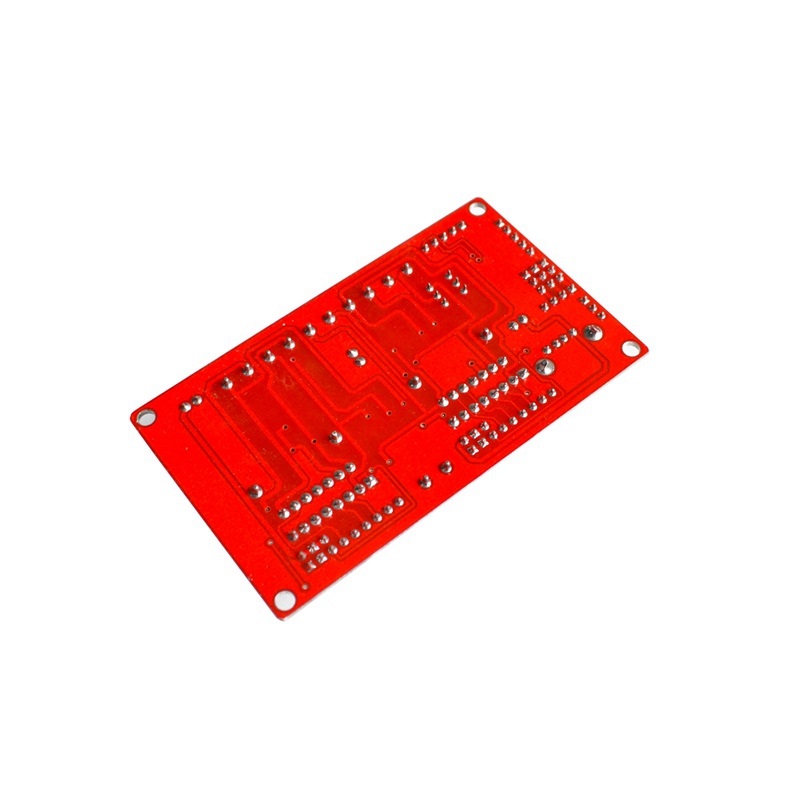

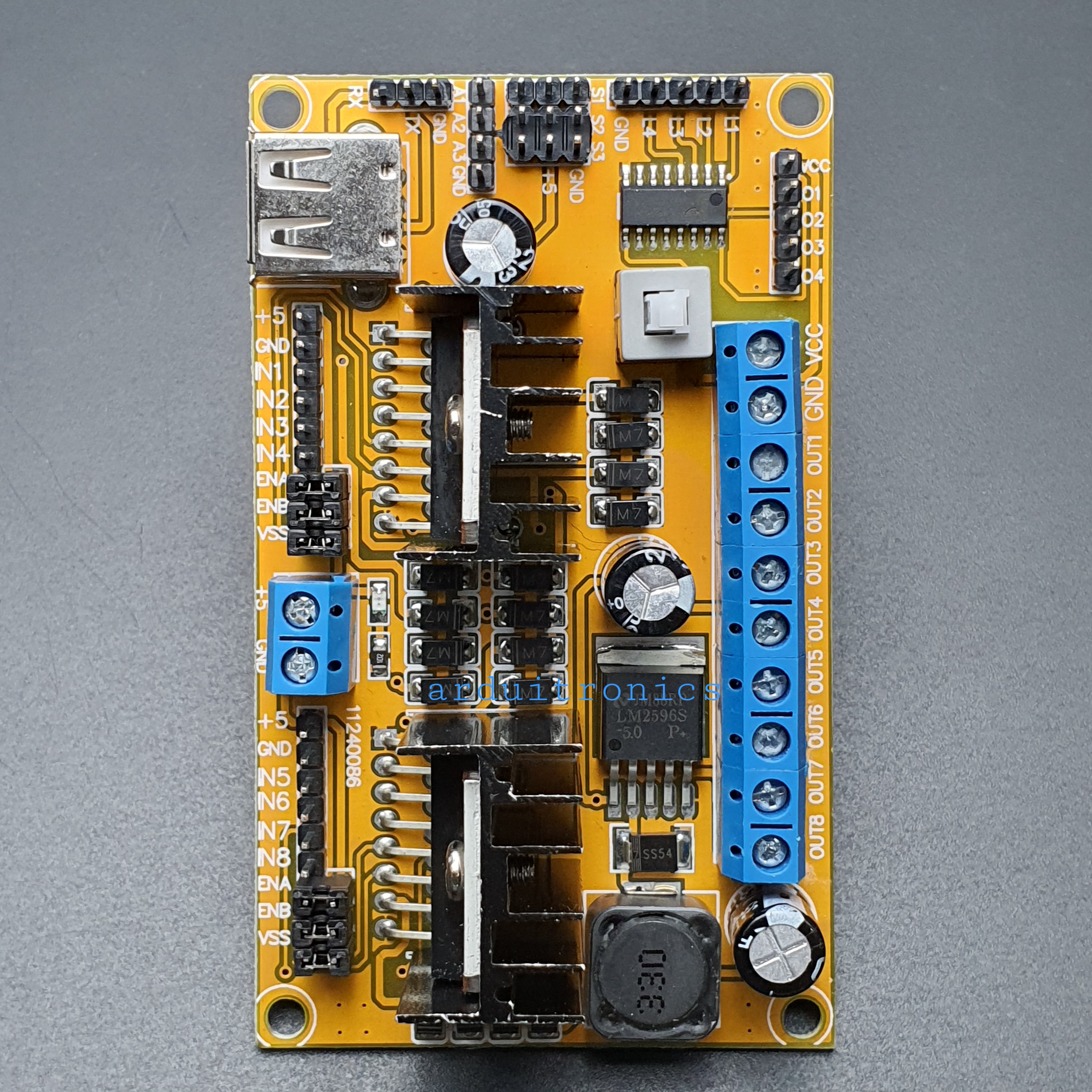

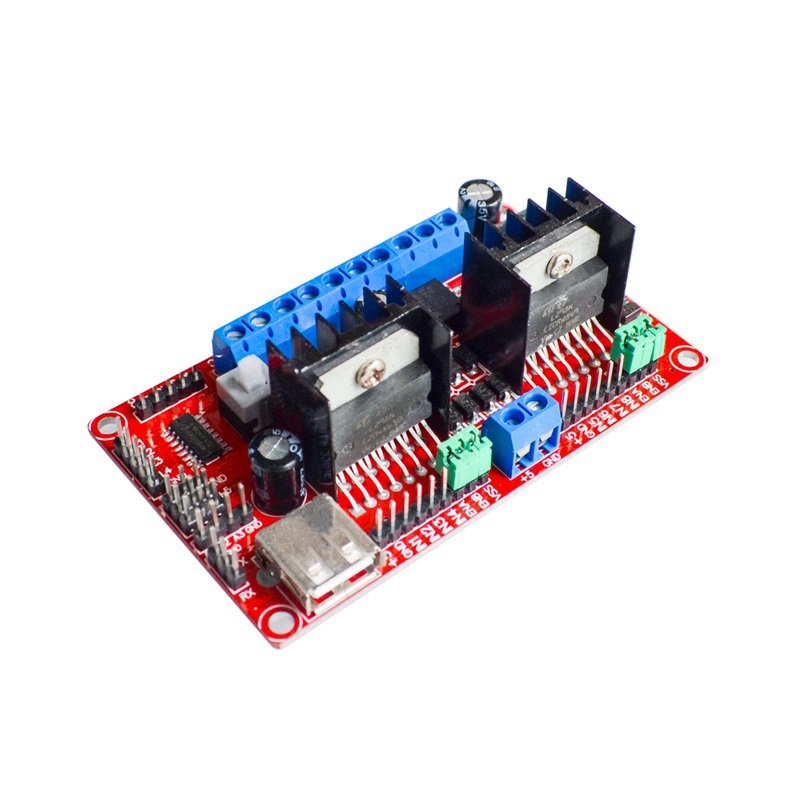

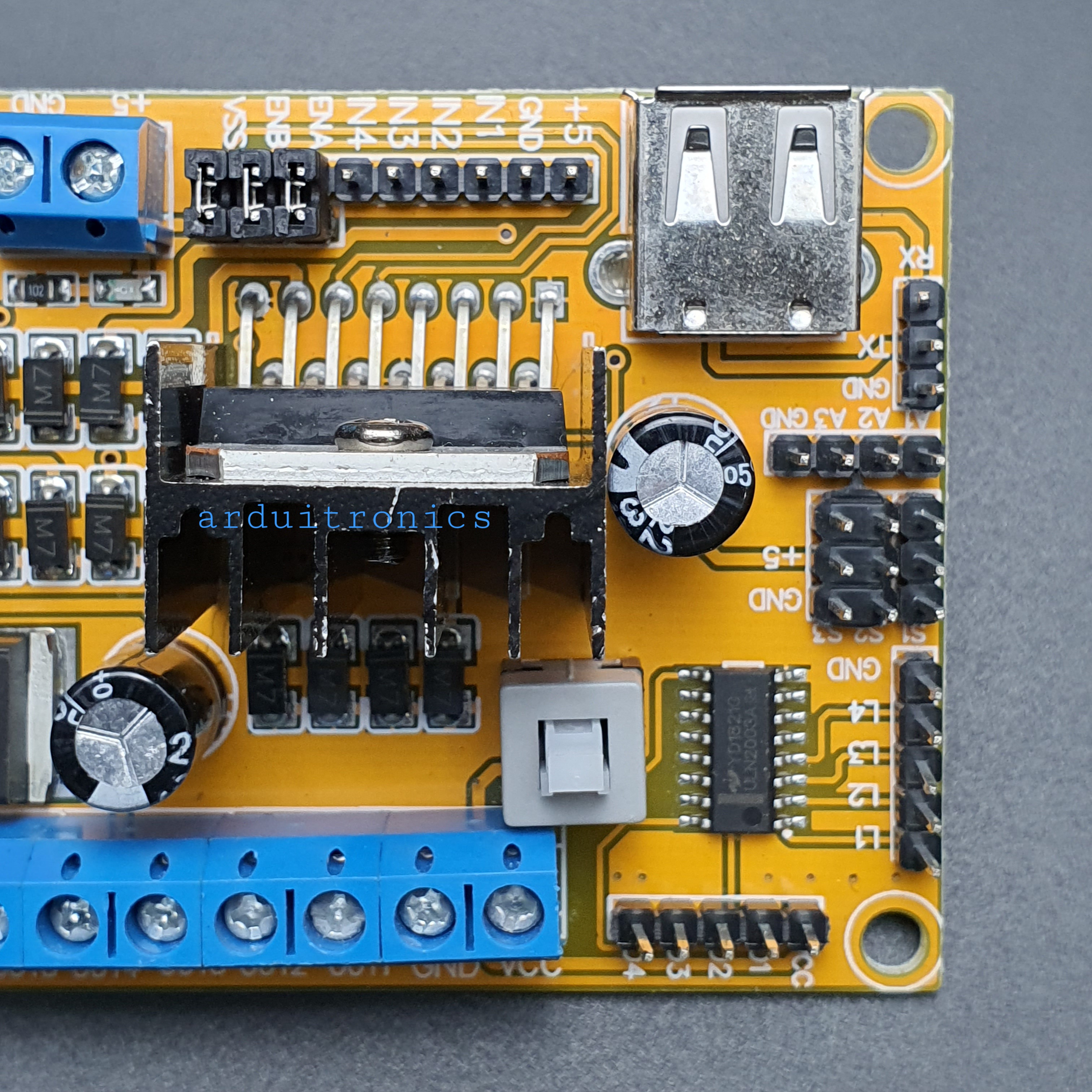

L298N V3 H-Bridge 4 Motor Controller Module (Support W703N, WiFi Router)

L298N V3 H-Bridge 4 Motor Controller Module (Support W703N, WiFi Router)
L298N V3 H-Bridge 4 Motor Controller Module (Support W703N, WiFi Router)L298N V3 H-Bridge 4 Motor Controller Module (Support W703N, WiFi Router)L298N V3 H-Bridge 4 Motor Controller Module (Support W703N, WiFi Router)L298N V3 H-Bridge 4 Motor Controller Module (Support W703N, WiFi Router)L298N V3 H-Bridge 4 Motor Controller Module (Support W703N, WiFi Router)L298N V3 H-Bridge 4 Motor Controller Module (Support W703N, WiFi Router)L298N V3 H-Bridge 4 Motor Controller Module (Support W703N, WiFi Router)L298N V3 H-Bridge 4 Motor Controller Module (Support W703N, WiFi Router)L298N V3 H-Bridge 4 Motor Controller Module (Support W703N, WiFi Router)L298N V3 H-Bridge 4 Motor Controller Module (Support W703N, WiFi Router)L298N V3 H-Bridge 4 Motor Controller Module (Support W703N, WiFi Router)L298N V3 H-Bridge 4 Motor Controller Module (Support W703N, WiFi Router)
รหัสสินค้า AG00325
หมวดหมู่ Motor Drive / Shield
ราคา 385.00 บาท
สถานะสินค้า พร้อมส่ง
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Tags : L298N, Dual Motor Controller Module, Motor Controller, L298N H-bridge, H-bridge

รายละเอียดสินค้า

Description:
L298N is a dedicated driver IC, in H-bridge integrated circuit, and the difference is L293D output current increases, power boost. Output current. 2A, the highest current. 4A, the maximum operating voltage of 50V, can drive inductive loads, such as high-power DC motor, stepper motor, geared motor, servo motor, electromagnetic valve, which in particular can be input directly with the microcontroller joint, thus easily controlled by the microcontroller. When the drive motor, can directly control the stepper motor, and the motor can achieve forward and reverse accomplish this simply by changing the logic level of the input.

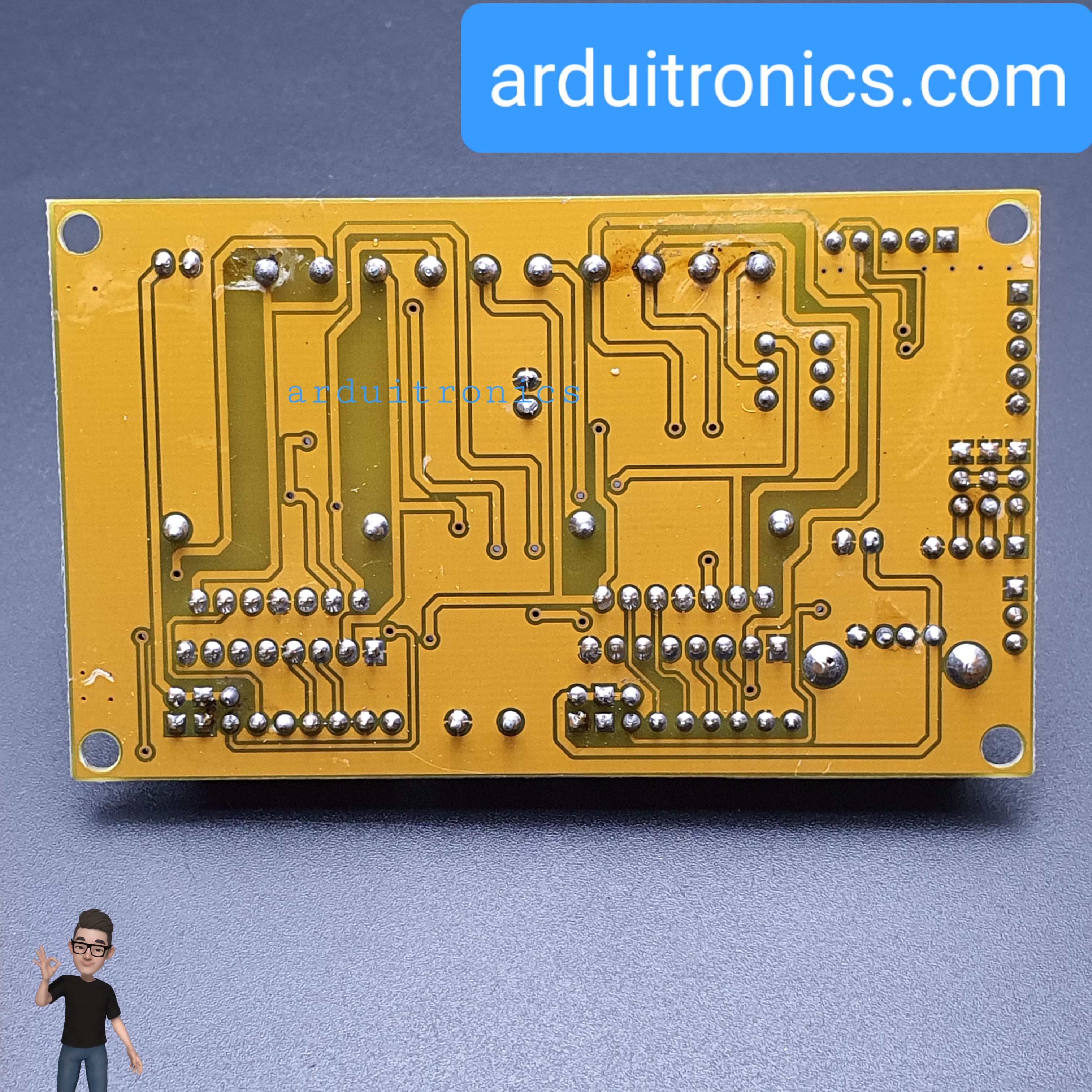

This module has a small size, easy to control characteristics. With this module will give your comfortable motor control, you can respond to the needs of high-power stepper motor problem. This module may control the two-phase, three-phase motor, four phases. It supports two DC motor drive control, four-phase stepper motor control.

Features:

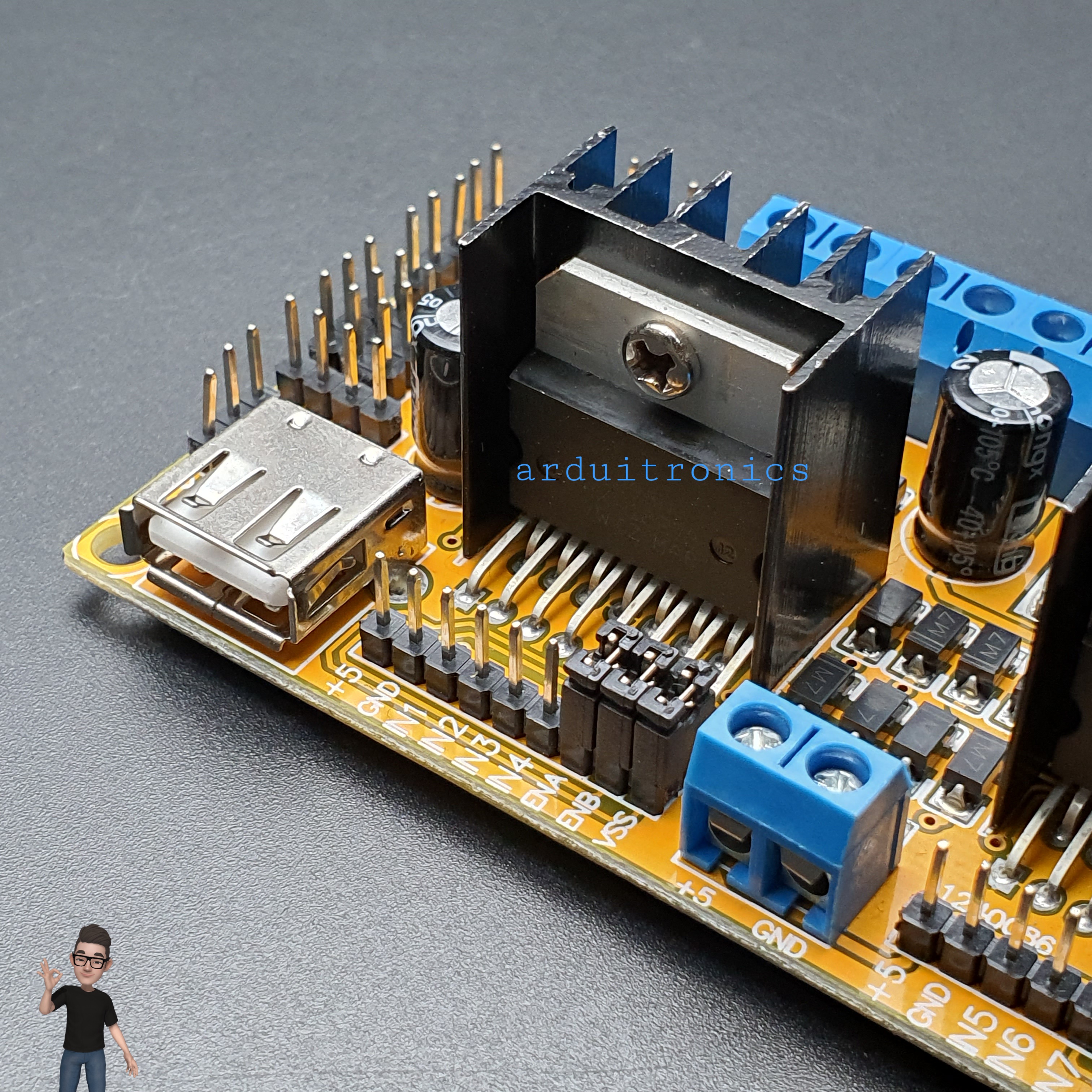

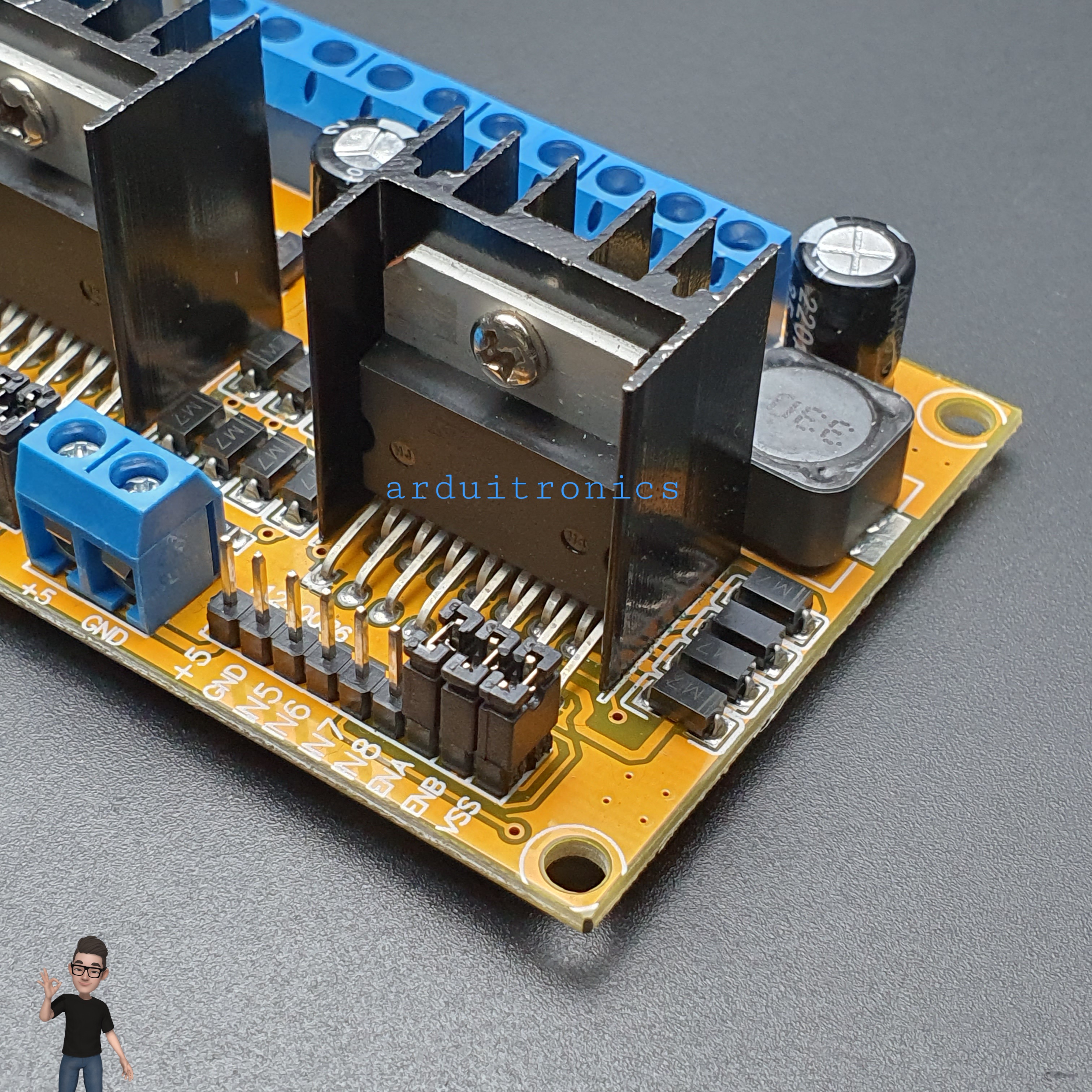

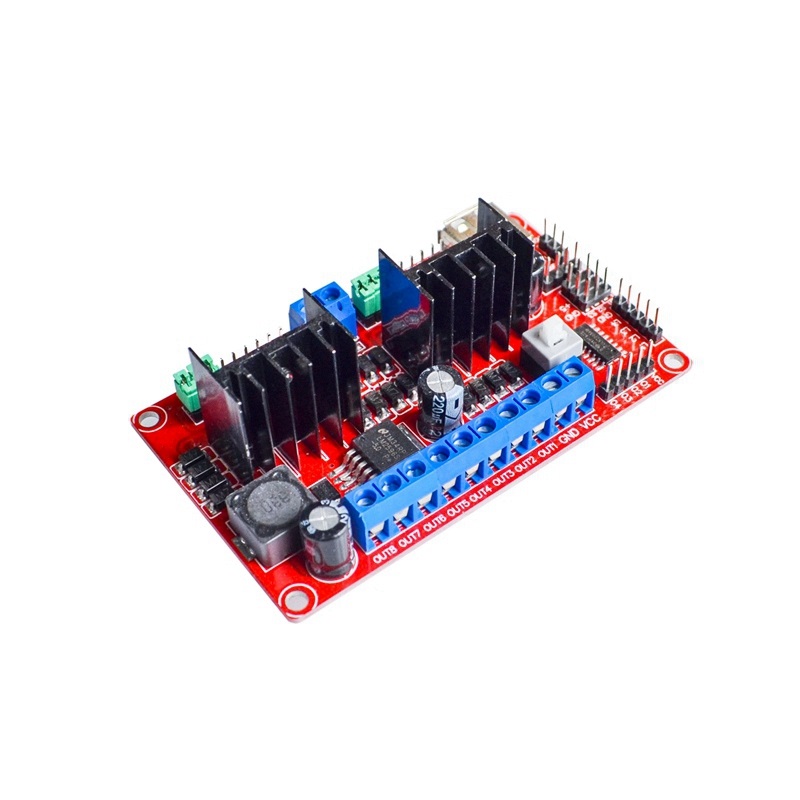

1. Integrated two L298N chip can drive four DC motor (reversible, can be PWM modulation) or two stepper motors
2. Integrated LM2596 DC-DC voltage regulator chip (may output 5V, the microcontroller can give, steering sensor, the router power, up to the battery 2A)
3. In addition to two L298N chip board, and then re-integration can be a ULN2003 driver a stepper motor, DC motor, or four (start and stop, can not forward and reverse), for example, when the robot can be controlled for fire fighting fire fan , no longer need external circuitry.
4. Integrated servo channels, the signal lead-out terminal, and it is convenient docking microcontroller.
5. The integrated USB port, the router power can be directly inserted.
6. Support W703N, WIFI router car without damage modification, insertion USB, can be drawn with RXD TXD pin, it is convenient to communicate with its own microcontroller
7. 5V DC output lead (terminal, pin leading-out), to facilitate the needed external 5V power supply devices

L298N Overview:
This L298N driver module, in ST new original L298N chip, SMT process with high stability, with high-quality aluminum electrolytic capacitors, the circuit stability. Can directly drive two 3-30V DC motor, and provides a 5V output interface (input low as 6V), the microcontroller can 5V power supply circuitry (low ripple factor) to support 3.3V MCU ARM control, can easily control the DC motor speed and direction can be controlled two-phase stepping motor, the stepping motor 5 with 4 lines. Smart car is an essential tool.

Product parameters:

    1. The driver chip: L298N double H-bridge DC motor driver chip
    2. The driving portion of the terminal power supply range Vs: + 5V ~ + 30V; inner panel, if necessary to take power, the power supply range Vs: + 6V ~ + 30V
    3. Peak current driving portions Io: 2A
    4. The logical part of the operating current range: 0 ~ 36mA
    5. The input voltage range of the control signal (IN1 IN2 IN3 IN4):
       Low: -0.3V≤Vin≤1.5V
       High: 2.3V≤Vin≤Vss

    6. The input voltage range of the enable signal (ENA ENB):
       Low: -0.3≤Vin≤1.5V (control signal inactive)
       High: 2.3V≤Vin≤Vss (control signal active)

    7. Maximum Power: 20W (when the temperature T = 75 ℃)
    8. Storage temperature: -25 ℃ ~ + 130 ℃

    9. The driving plate size: 55mm x 45mm x 33mm (with fixed copper pillar and fin height)

    10. Other expansion: the winker control, take electrical interface logic portion within the panel.
