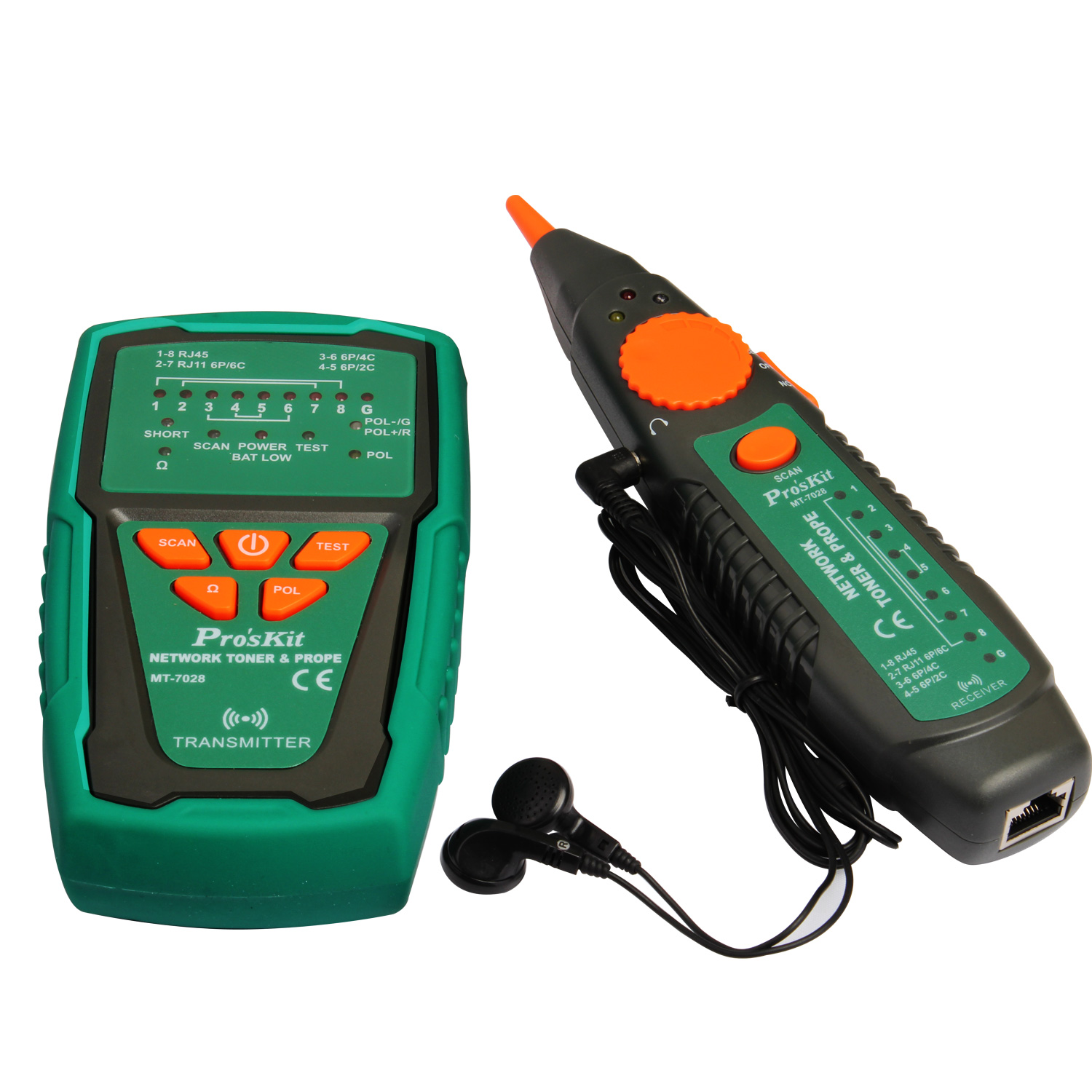

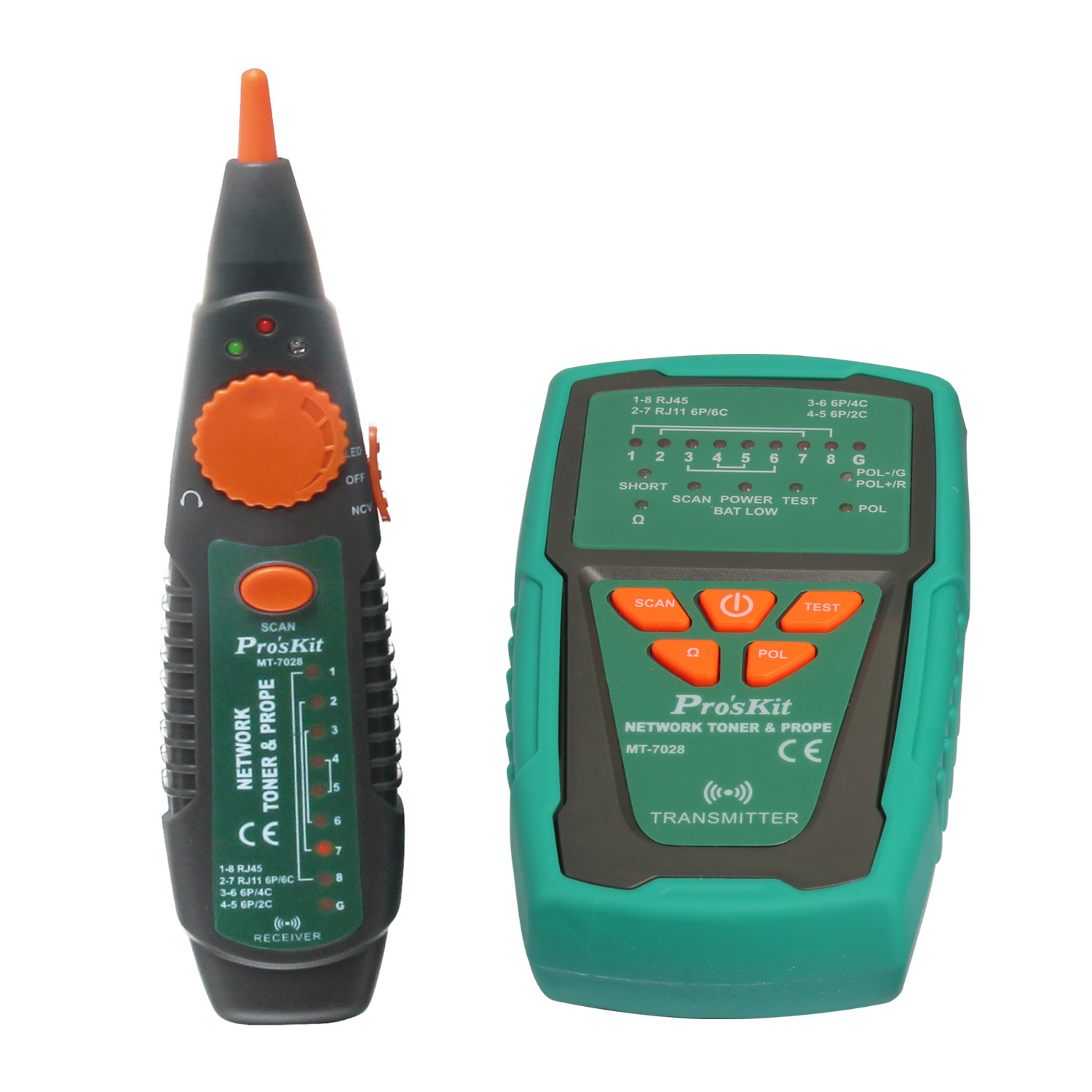

Name: เครื่องเช็คสายระบบสื่อสาร MT-7028 ยี่ห้อ PRO'S KIT
SKU: SM00005
Price: 1950 THB
Availability: InStock

MT-7028 Transmitter specifications
Tone frequency	1kHz
Max. distance of transmission &Cable map	3km &300m
Tone mode	Hi/Low two-note tone
Compatible connectors	RJ45(8 pin)/RJ11(6 pin) compatible connectors for RJ45(8 pin)RJ11/12(6P/2C/4C/6C) cable map and RJ45 toneRJ-11(6 pin) connectors for RJ11/12(6P/2C/4C/6C) tone
Cable types tested	RJ45 Lan cable Cat 55e67 (UTP/STP)RJ11/12 Telephone cable Cat 3 (6P/2C/4C/6C)
Continuity test	1 LED (300Ω), Coaxial cable & normal solid/Stranded wire by alligator clips patch cord.
Cable map & Shielded indication	8 LEDs& 1LED , Fast/Slow dual speed
Phone line polarity indication	1 Dual color LED
Other function Live telecommunication equipment test and router test	Live telecommunication equipment test and router test, Voltage protection AC 60V or DC 48V,Auto power off, Low battery display
MT-7028 Receiver specifications
Frequency	1kHz
Compatible connectors	RJ45(8 pin)/RJ11(6 pin)
Signal status indication	1 LED & Buzzer, building ear jack
Cable map & Shielded indication	8 LEDs & 1LED
NCV indication	1 LED (AC90~1000V)
LED illumination	1 LED
Battery type	DC 9.0V (NEDA 1604/ 6F22 DC9V ×1pcs)
Dimension (L×W×D)	198×45×33 mm
Accessories	RJ45 cable patch cordRJ11 cable patch cordAlligator clips patch cordEarphonepounch bag
