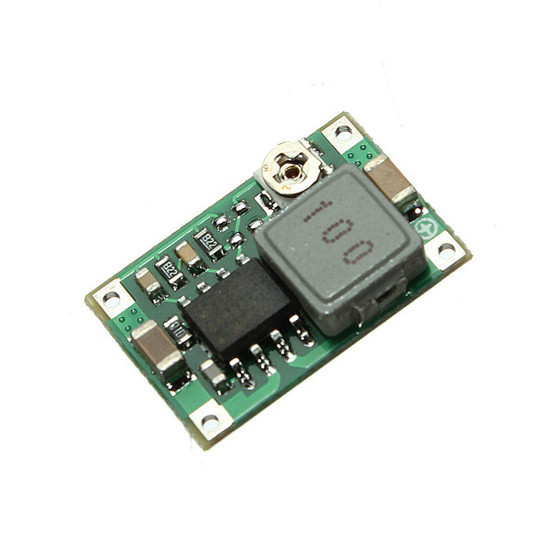

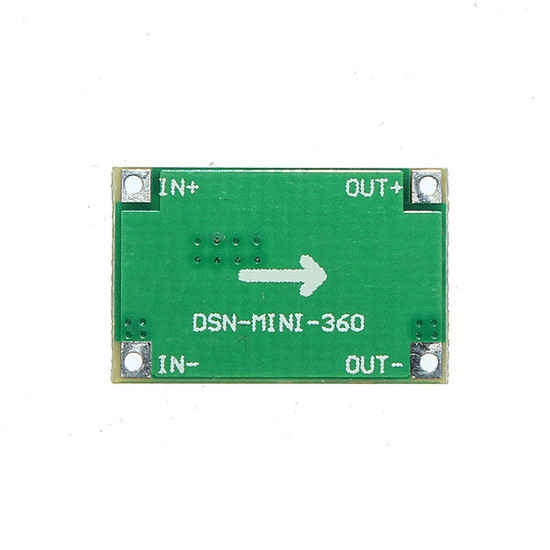

Mini-360 DC-DC Buck Converter DC Step Down (4.75-23V to 1-17V)

โมดูล Mini-360 DC-DC Buck Converter DC Step Down (4.75-23V to 1-17V) แปลงไฟจาก 4.75-23V เป็น 1-17V (จ่ายกระแสสูงสุด 3A) แบบปรับค่าได้

This mini adjustable DC voltage regulator module is suitable for projects where different voltages and currents are required. It has output voltage adjustment, ideal for compact designs, IoT and aeromodelismo, among others. The voltage converter module accepts inputs between 4.75 and 23VDC, and the output can be regulated via trimpot, between 1 and 17VDC.

Specifications:

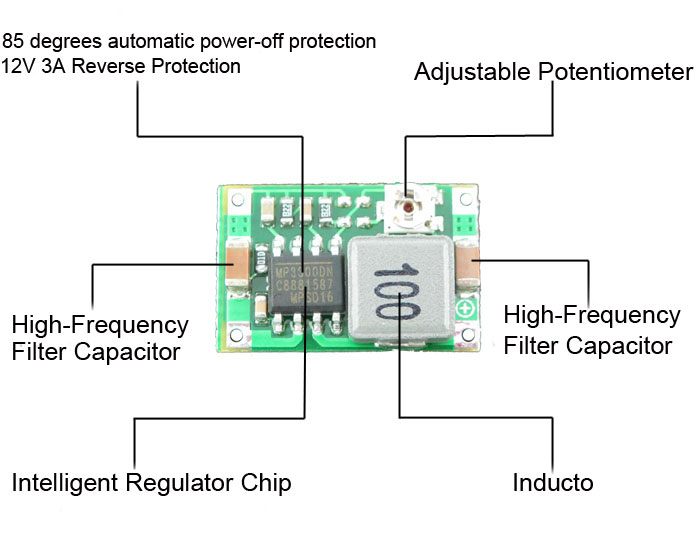

• MPS MP2307DN buck regulator IC
• 4.75 - 23VDC input voltage
• 1.0 - 17VDC selectable output voltage
• 3A surge current, 1.8A continuous rated current
• Maximum conversion efficiency of 95% (5Vin, 3.3Vout ~200mA output)
• 340kHz switching frequency
• 30mV no-load output ripple
• 0.5% load regulation
• 2.5% voltage regulation
• -40 to +85°C operational temperature range
• Built-in 160°C thermal shutdown
• 17x11x3.8mm (0.67x0.43x0.15")

Includes:
Mini Adjustable DC Voltage Regulator
