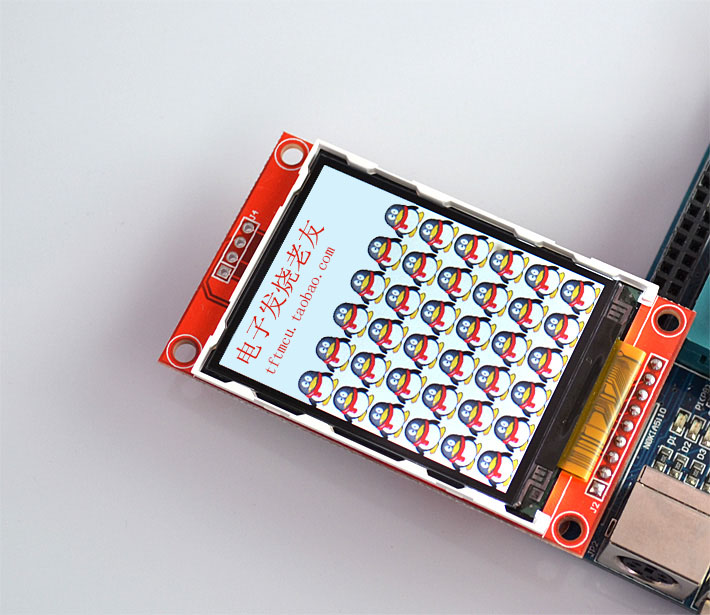

จอแสดงผล TFT LCD ขนาด 2.2" Color module 240x320 พร้อมช่องเสียบ SD Card Driver ILI9341 For Arduino

จอแสดงผล TFT LCD ขนาด 2.2" Color module 240x320 พร้อมช่องเสียบ SD Card Driver ILI9341
ไม่ใช่จอแบบสัมผัส
ต่อเชื่อมโดยใช้ SPI Protocol
ติดตั้ง Library จาก Library Manager ดังนี้

"Adafruit_GFX.h"

"Adafruit_ILI9341.h"

จอแสดงภาพแบบ TFT LCD ขนาด 2.2"

ดูวิธีการใช้งานได้ที่ Clip ของเราค่ะ

Description:

TFT LCD module has always been one of the hot products in DIY industry and LCD is basically the necessary products during all projects, at the same time, serial port modules are also the popular ones, because it takes few IO and the usage is simple. This section of the 2.2S-inch TFT LCD serial SPI integrated features of compact, SPI interface, fully compatible with popular LCD5110 interface cable sequence, and will replace the increasingly reducing LCD5110.

Feature:

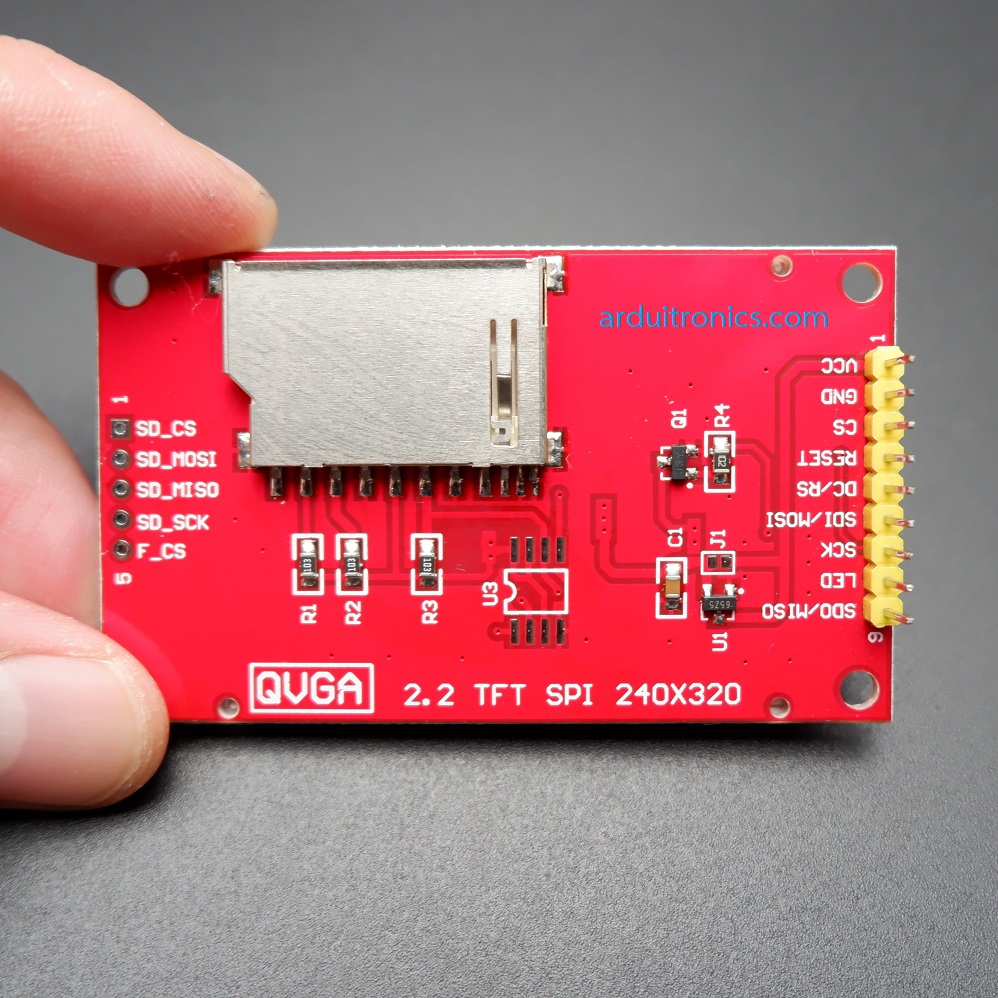

• TFT01_2.2 SP is a 2.2 "SPI TFT LCD Screen Module, 10pins interface, compatible LCD5110 interface. Not just a LCD break but include SD card (2GB),
• The LCD in the TFT01 is ILI9341. It's a 240 * 320 (resolution), 2.2S inch TFT LCD screen.The LCD has a wide viewing angle, the contrast is also very suitable.
• The display interface is serial, it just needs 5 wires (CS, RS, SCL, SDA, RST) for controlling.
• Replace LCD5110, Support direct plug in ElecFreaks Joystick shield, EFCom, Key Pad Shield etc
• SDcard use hardware SPI interface (CS / MOSI / MISO / SCK), Not solder pins.

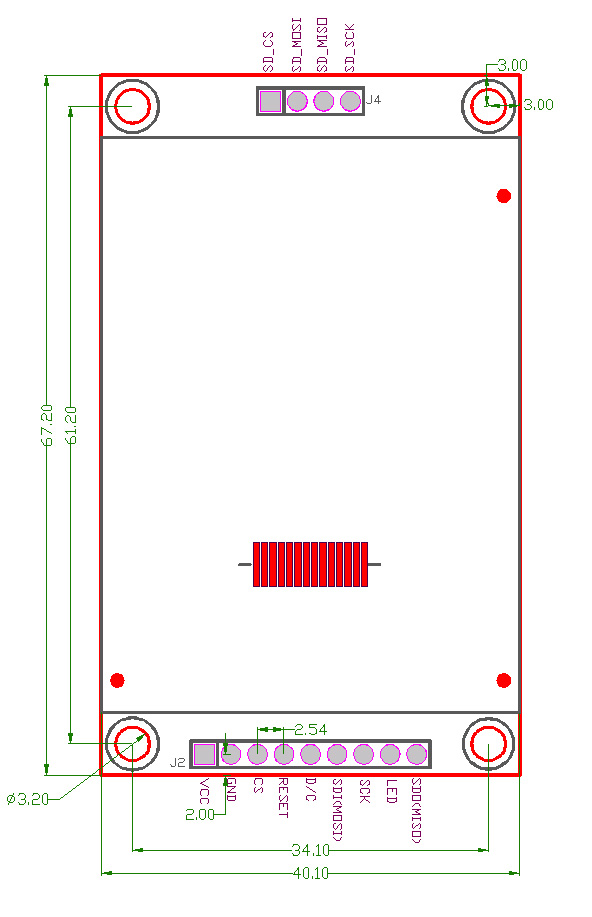

Parameter:

• SDO: Serial clock output
• LED: 3.4V Power Supply pin
• SCL: Serial clock input
• SDA / SDI: Serial data input
• DC: Data / Command selection
• RST: Reset, Low level active
• CS: Chip Selection, Low level active
• GND: Ground
• VDD33: 3.3V Power Supply pin
• UTFT Support

Documents:

• 2.2S TFT LCD
• Video Tutorial
