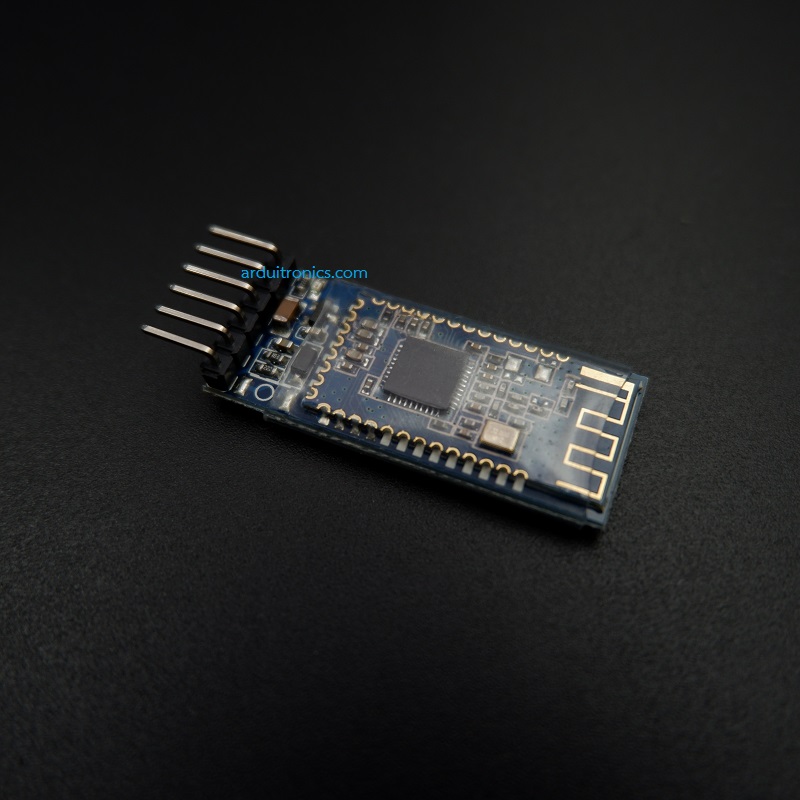

Bluetooth 4.0 BLE Module CC2541 Compatible with Bluetooth iBeacon Module HM-10 Module

Description:

Low-power dissipation BLE CC2541 CC41 Bluetooth 4.0 UART Transceiver Serial Module, used by the U.S. TI's CC2541 chip configuration 256Kb space, follow the Bluetooth specification V4.0 BLE.

Application:

Notice:
1. Avoid use of metal productssurrounding the Bluetooth module to , when the portion of the metal shell, should be let antenna away from the metal part of the section
2. The product of internal metal cables or metal screws, should be kept away from the antenna
3. The bottom of the module try to spread large GND, traces extend to the periphery
4. Use insulating material insulate mount position of the module

Package included:

1 x Bluetooth 4.0 Module

• User manual
• Bluetooth BLE/EDR setting tool
• iPhone test APP
• Android test APP
• 4.0 BLE Android Source code
• 4.0 BLE IOS7 Source code

Bluetooth 4.0 BLE Module

• http://imall.iteadstudio.com/im130614001.html
• http://wiki.iteadstudio.com/SERIAL_PORT_BLE_MODULE_%28MASTER/SLAVE%29:_HM-10
• https://github.com/nickswalker/ble-dev-kit/wiki/HM-10-Pinout
