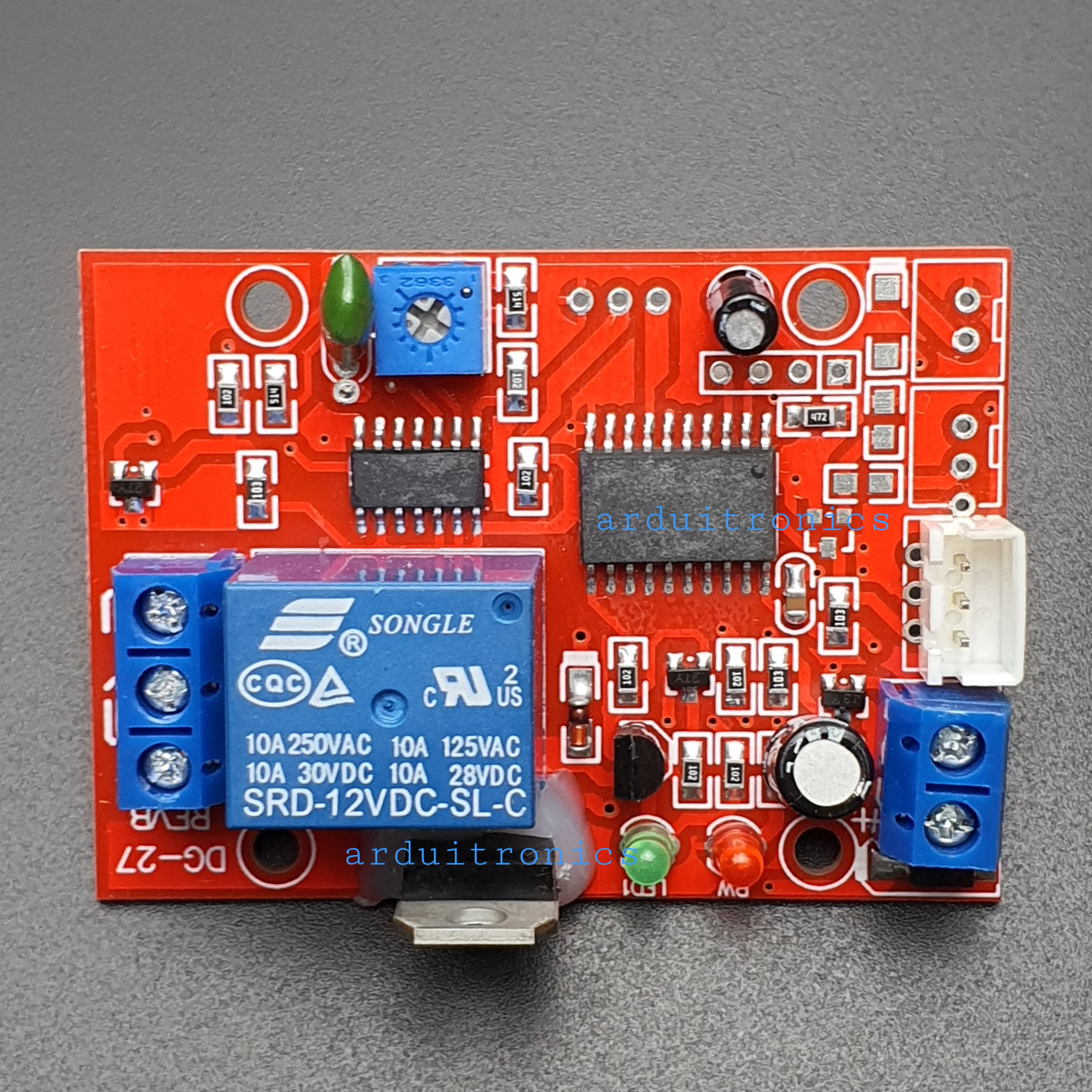

12V Ultra-High Sensitivity Vibration Sensor (Switch Vibration Sensor Relay Module)

12V ultra-high sensitivity vibration delay module plus relay module plus delay three-in-one module, vibration switch module alarm trigger

Uses:
vibration trigger alarm delay, can be directly used for automotive alarm, vibration switch, and a variety of high current, high voltage applications.

Module Features:

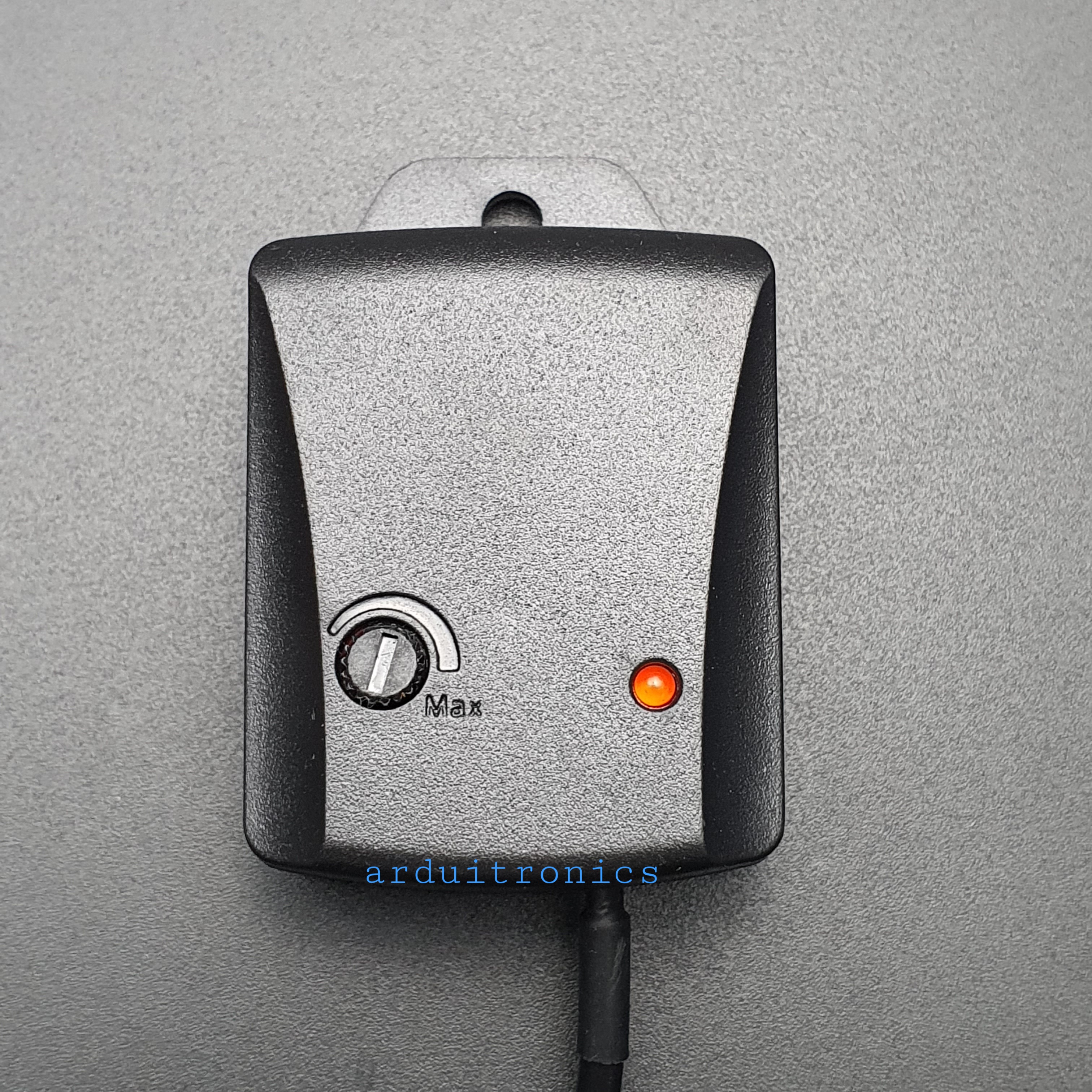

1. with high sensitivity shock sensor;

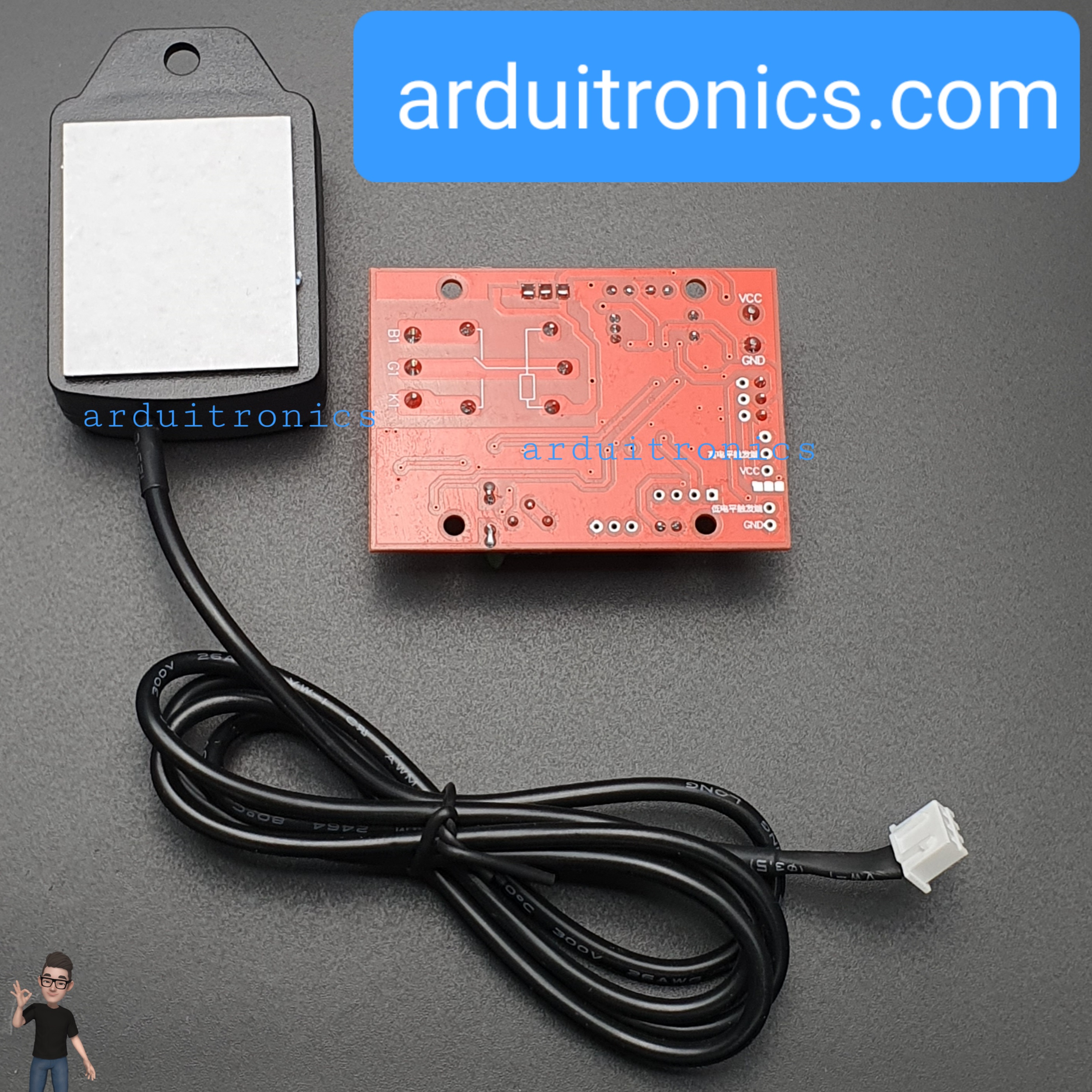

2. shock sensor may be detected at the external position, the line length up to 10 meters no effect on the sensitivity of
3. To provide more power input wiring, to meet various needs;
4 having Anti-power protection reverse diodes, effective protection products;
5. With a regulated IC, to provide a stable power supply;

6, the use of high-performance timing CPU design, double PCB;

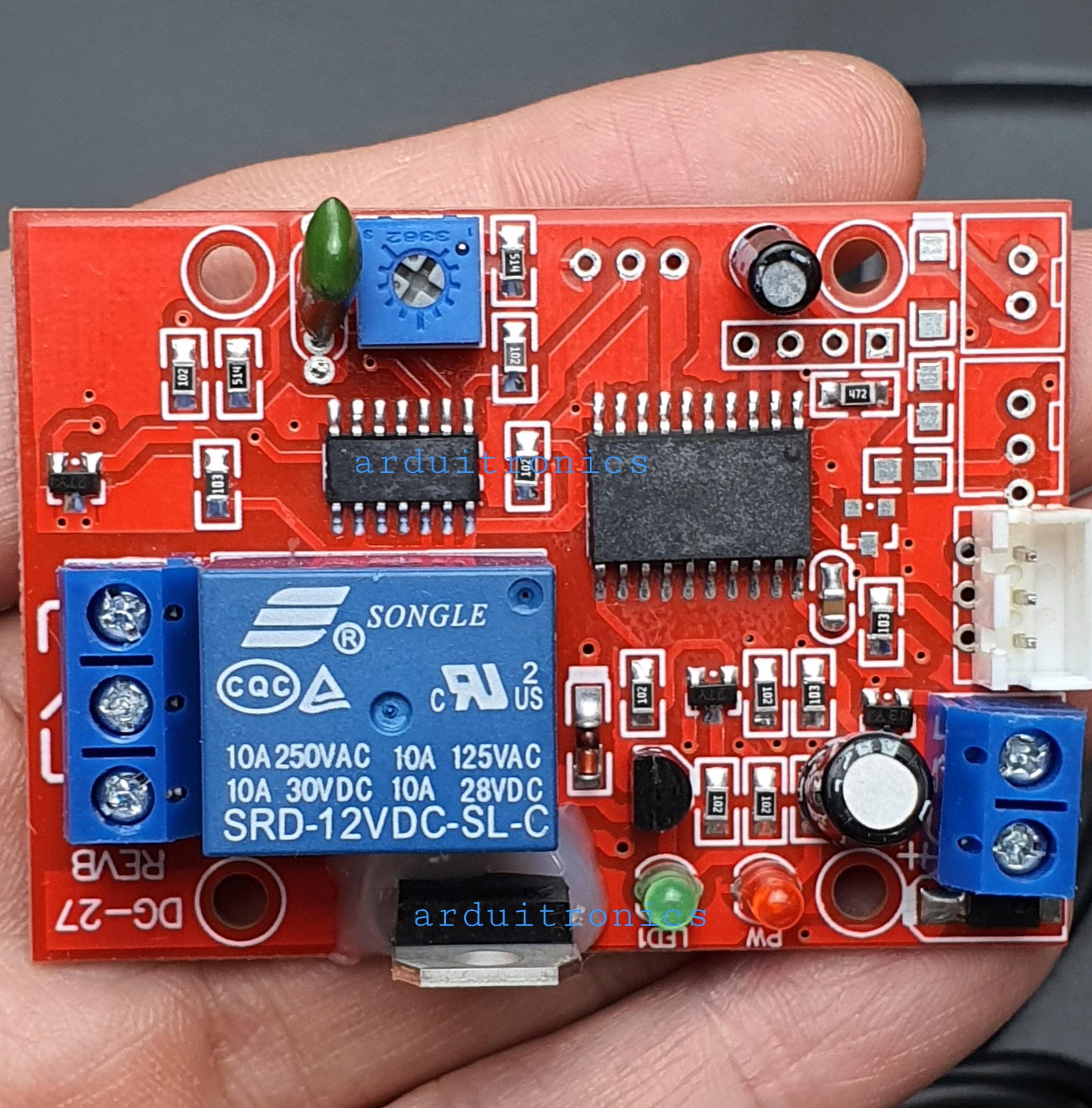

7, with power indicator (red LED) and switch trigger timing indicator (green LED);

8, the output can be connected to AC 250V 10A or DC 30V 10A load;

9, the module is normally open vibration sensor , when the vibration sensor vibration , the module began to time , light green LED, relay pull, the end of time, green LED off, the relay release, return to the normally closed side;

10, the trigger side can be normally open type vibration sensor, other normally open switch, or access to electrical modules ;

11, the trigger side, such as in the time, continue to receive a trigger signal, the module will be delayed, the relay will not break and flash, until the stop trigger, will stop the time;

12, there are timing potentiometer adjustment time, the product design for the 1-180 seconds adjustable, can also customize the time range ;

13, the timing of the error in the 5%

Module instructions:
the vibration sensor is sensitive to vibration, the relay pull , delay time to start, this time, the green light, that is, the common and normally open end , common and normally closed End off.

Applications:

1, with a variety of other sensors plus relay module, you can do a variety of delay switch, with direct communication 220V products;

2, corridor delay switch, delay energy-saving products;

3, then the vibration sensor can do a variety of alarm delay trigger, such as earthquake alarm, burglar alarm

4, then the vibration sensor can also be used in auto start automatic trigger control related products;

5, the machine equipment to stop the delay alarm trigger.

Electrical parameters:
Supply voltage: 12VDC
Current: more than 100mA
Load: 250V 10A AC or 30V 10A DC

Delivery list:

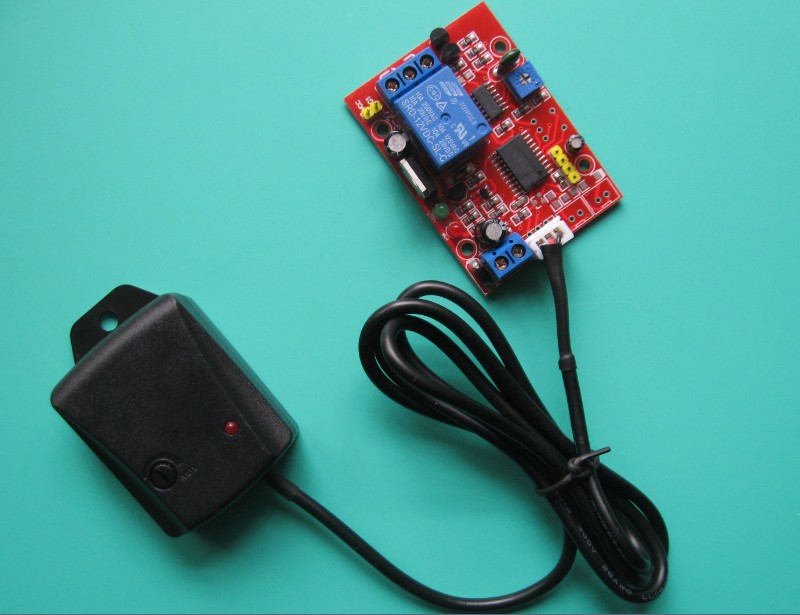

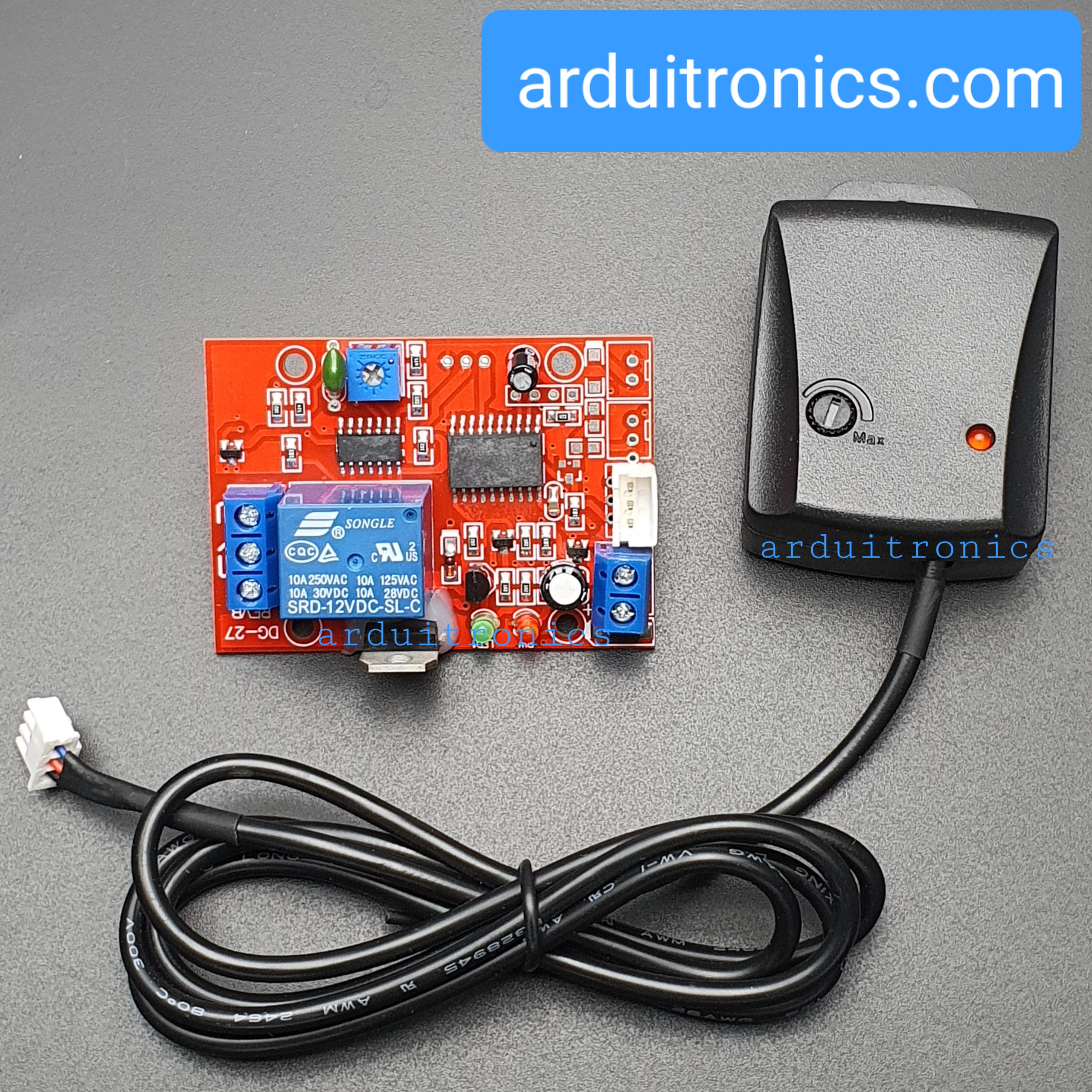

12V vibration sensor module plus relay module plus delay three-in-one module with ultra-high sensitivity vibration sensor.
