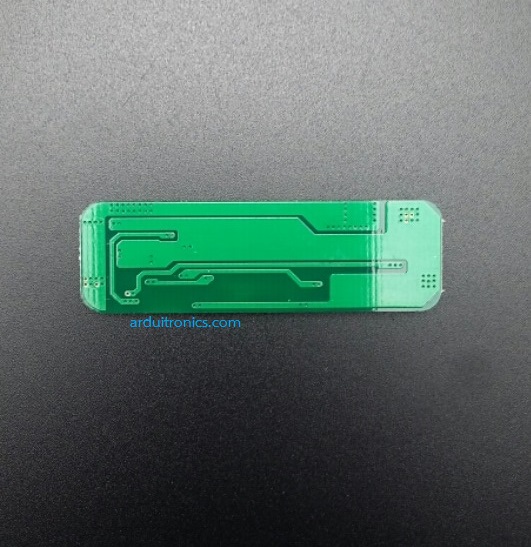

4-Series 18650 Lithium Battery Protection Module 14.8V 16.8V (max. Working Current 3A and max. Transient Current 6A)

Overview:
With overcharge, over discharge, overcurrent, short circuit protection, for a variety of various shapes 3.7V lithium batteries. The Japanese Seiko Protection IC, VISHAY, AOS, IR and other high-quality MOSFET, FR-4 low temperature coefficient sheet, well-designed, fine workmanship, comprehensive test. Small size, suitable for many requirements of high integration, low cost of the occasion, to meet a wide range of performance requirements to ensure that the battery pack is absolutely safe and reliable.

The lithium battery protection board properties:

Model: HH-P3-10.8
Size: 48 x 15 x 3.5mm
Over-charge voltage range: 4.25 - 4.35V ± 0.05V

Over-discharge voltage range: 2.5 - 3.0V ± 0.05V

Maximum operating current: 3A Operating temperature: -40 --- +50 ℃

Maximum instantaneous current: 4 - 6A Storage conditions: -40-- +80 ℃

Quiescent current: less than 6uA Effective life: more than 50,000 hours

Internal resistance: less than 45mΩ Short circuit protection: can protect the disconnect load or charge recovery

Equalization: Unbalanced Size: 48 * 15 * 3MM

Note: If the battery is connected to the output terminal without voltage, please activate the protection board.

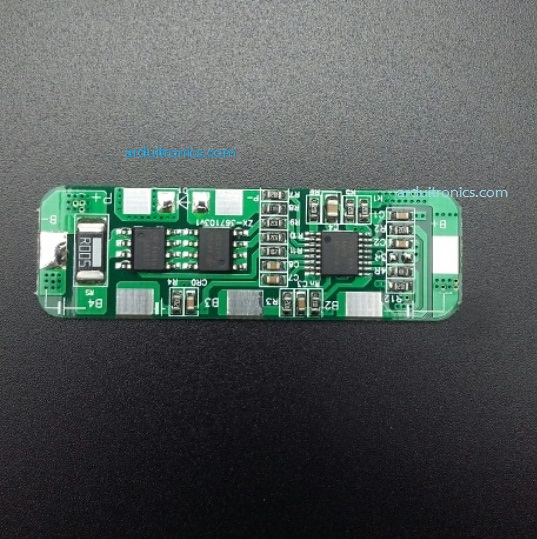

Product appearance: simple link drawings
