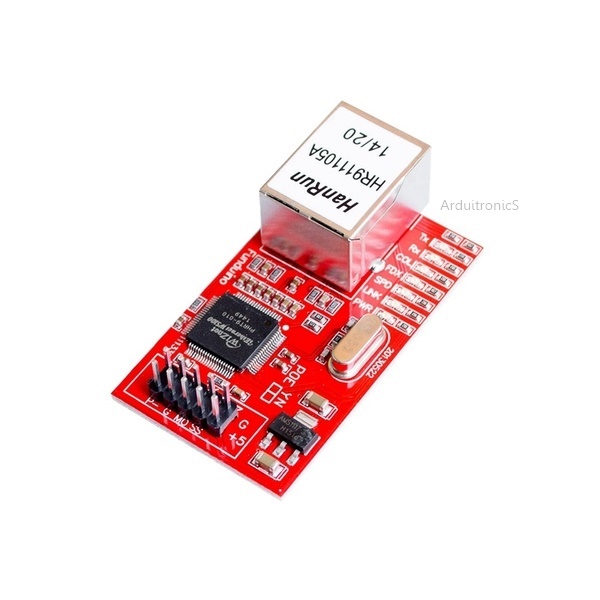

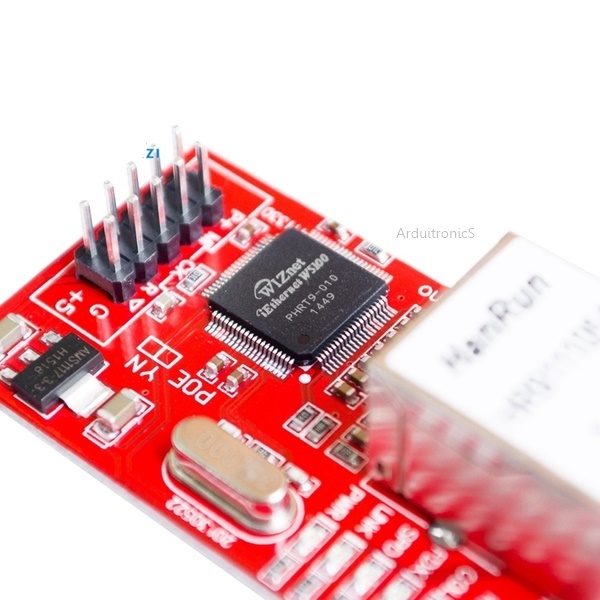

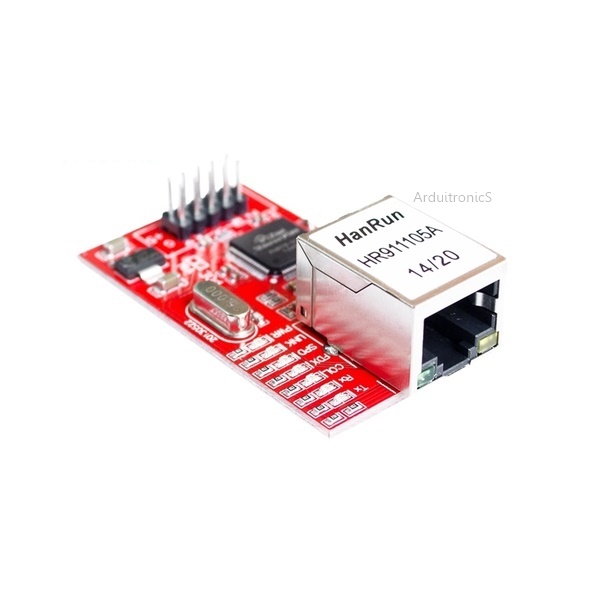

Red Board W5100 Ethernet Module

Introduction:

The W5100 is a versatile single-chip network interface chip with an integrated 10/100 Ethernet controller for use in highly integrated, highly stable, high-performance and low-cost embedded systems. Use the W5100 to implement an Internet connection without an operating system . The W5100 is compatible with IEEE802.3 10BASE-T and 802.3u 100BASE-TX . The W5100 integrates the entire hardware, and after years of market-proven TCP / IP stack, Ethernet media transport layer ( MAC ) and physical layer ( PHY ). The use of W5100 does not need to consider the control of Ethernet, only need a simple port ( Socket ) programming.

Product characteristics
• A variety of interfaces can be selected: direct bus, indirect bus and SPI bus;
• Support hardware TCP / IP protocol stack, support TCP, UDP, ICMP, IGMP, IPv4 , ARP, PPPoE
• Up to 4 independent ports;
• Internal integration 16KBYTE transceiver cache;
• information indicates a plurality of outputs, comprising the RX, the TX, Full / Duplex, Colision, Link, Speed;
• Support Autopolarity ( the DMI / MDIX );
• 3.3V power supply, IO signal compatible 5V voltage;
• Built-in network port, double 2 * 14 2.0mm pin;

 Compatible with Arduino 's official Ethernet library.
