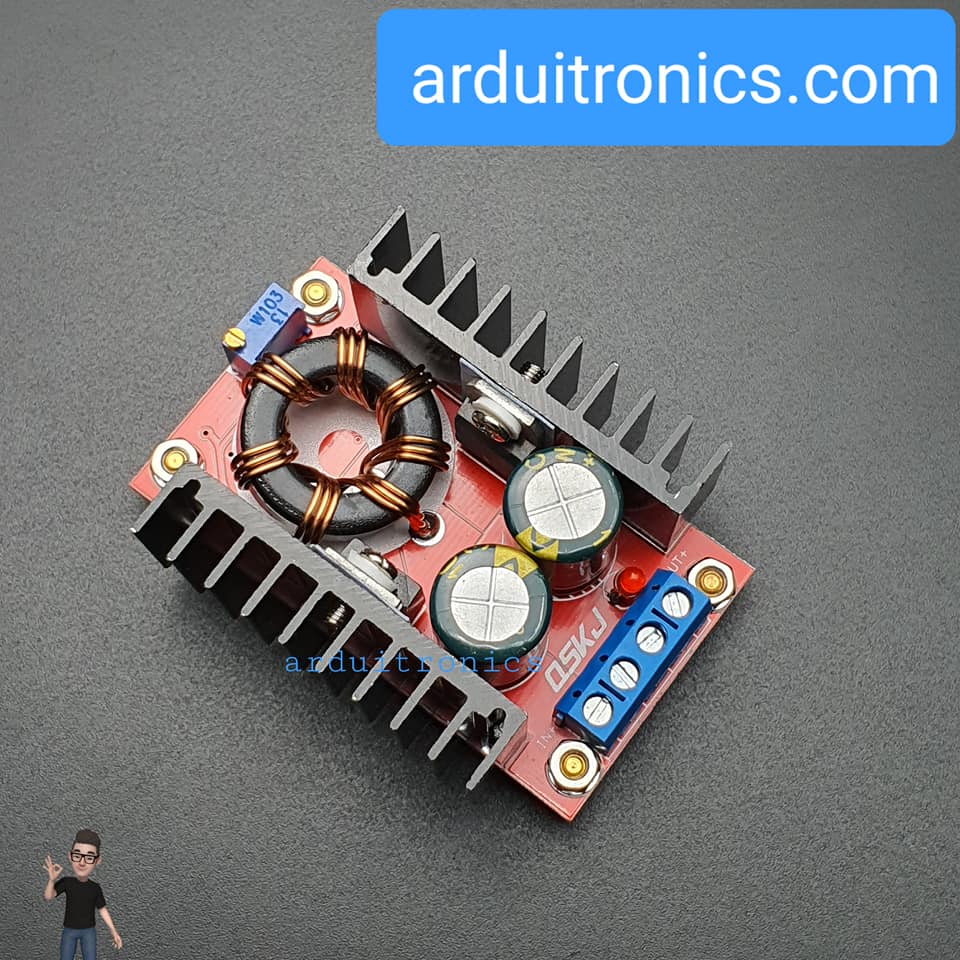

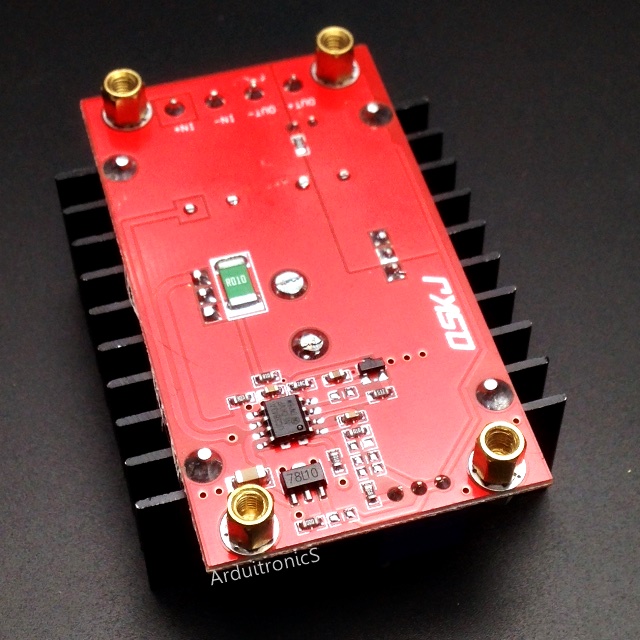

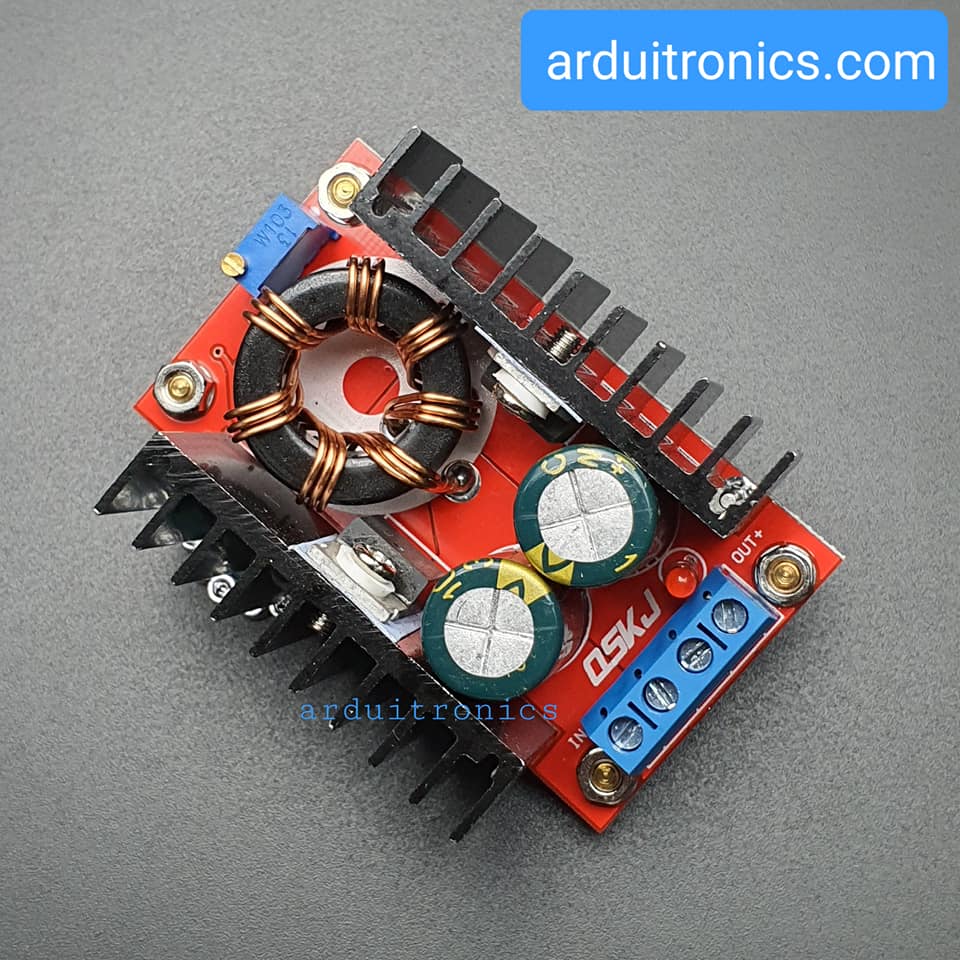

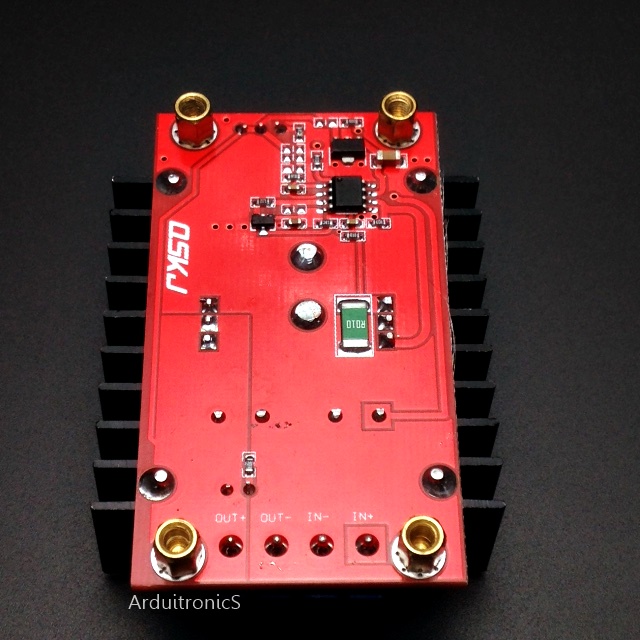

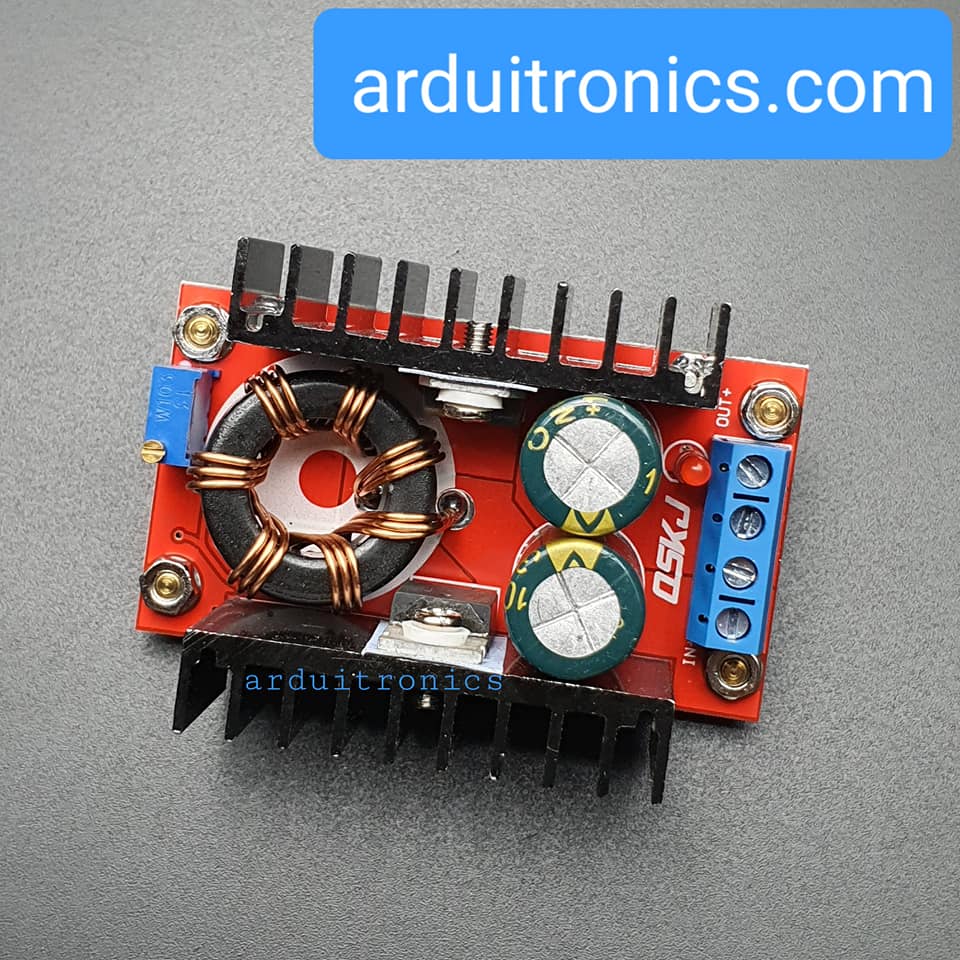

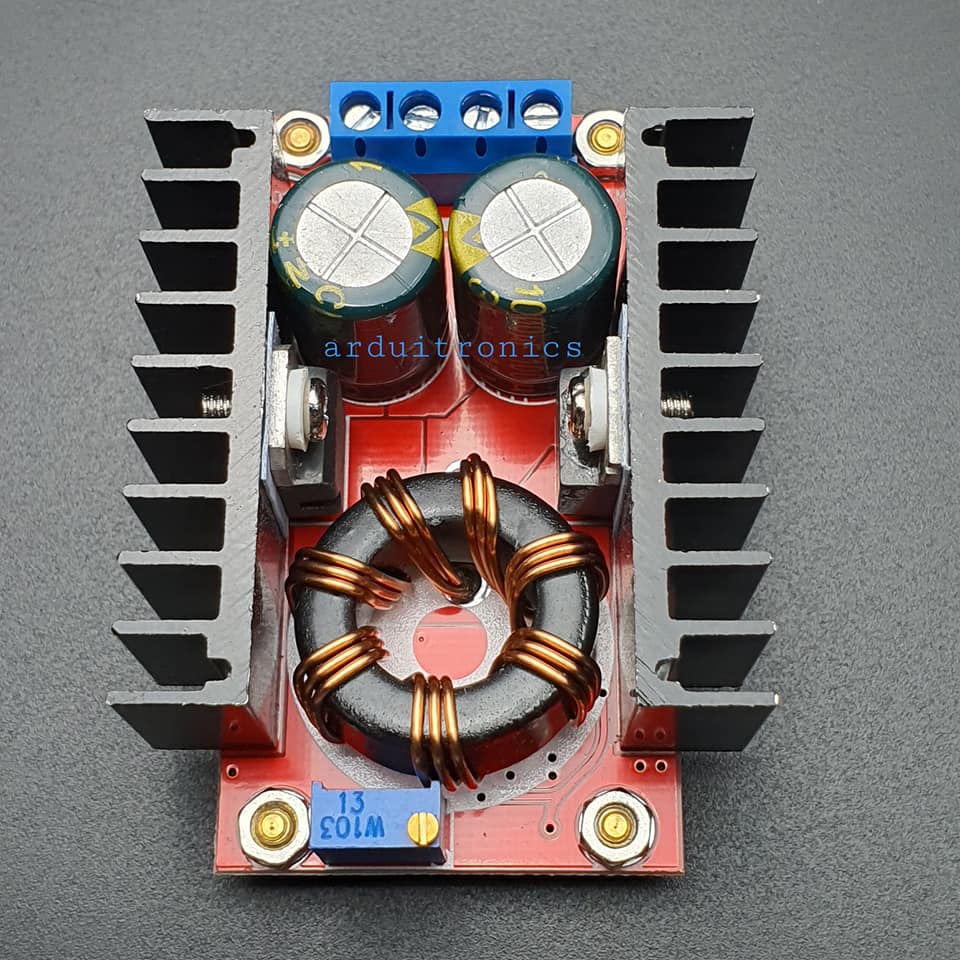

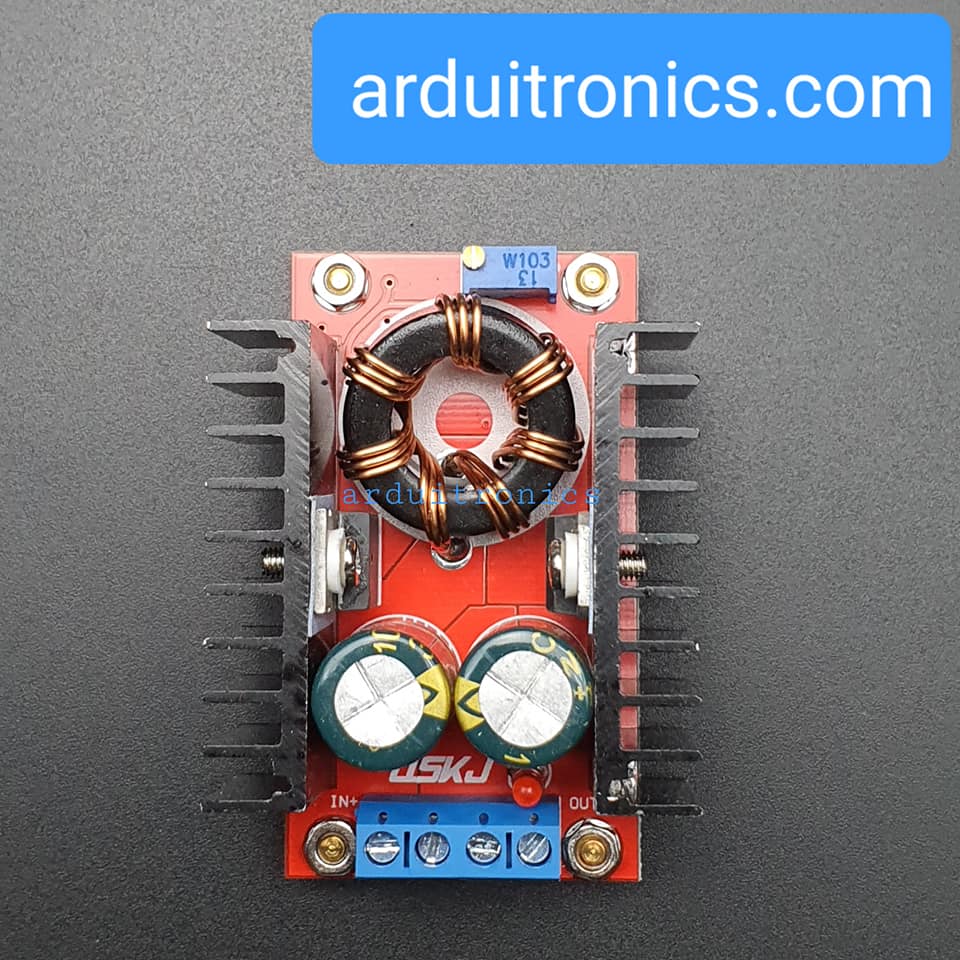

DC-DC Step Up Module (10-32V to 12-35V)

Properties: non-isolated step-up module (BOOST)

• 65mm x 56.5mm x 23mm (length x width x high)
• Input voltage :10-32V
• Output voltage: 12-35V (adjustable)
• Output Current: 6A (MAX)
• Input Current: 10A (MAX) (Please enhance heat dissipation if more than 10A)
• Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)

Easy to drive 65W 90W dual-core notebook.

• Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45°c
• Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)
• Output Ripple: 2% (MAX) 20M-bandwidth
• Operating Temperature: Industrial (-40°c to +85°c) (ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
• Full load temperature rise: 45°c
• No-load current: 25mA typical
• Voltage regulation: ± 0.5%
• Dynamic response speed: 5% 200uS
• Short circuit protection: None (Please Install fuses and protection circuits at Input port)
• Input Reverse Polarity Protection: None (Please Series diode at the input port)

Applications:
1. DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V(adjustable freely), However, the output voltage can not be less than the input voltage.
2. Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need.
