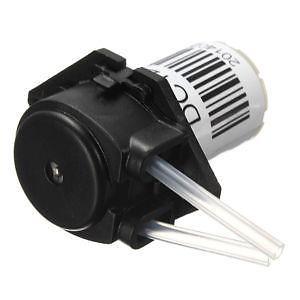

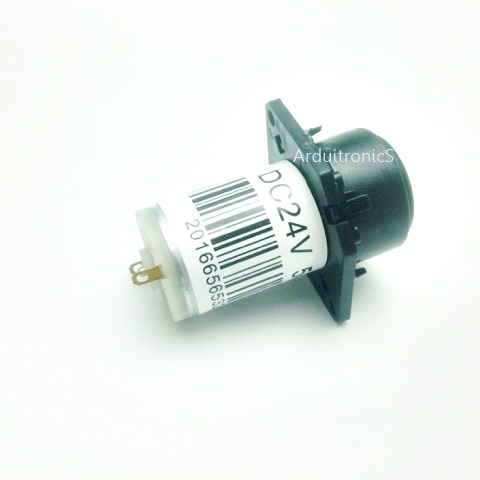

Peristaltic Pump - 24V

Description:

Using snap design, just hand touch you can remove the head, very easy to replace and clean-up pump tubing, compact design both the tablet-style convenience, but also to avoid the pressure hose pump head piece walking and many other issues.

ดูตัวอย่างโปรเจค ได้ที่ Click

ดูคำอธิบาย Peristaltic pump

Specification:

• Power supply: DC 24V
• Working environment: temperature 0-40 degrees Celsius, relative humidity <80%
• Medium flow: flow peristaltic pump depends on the power of positive and negative level connection, the positive and negative terminals can be arbitrarily chosen level
• Flow range: 0-100 ml / min
• Speed range: 0.1-100 rpm
• Drive Size (Φx H): 27.6 x diameter high 37.9 (mm)
• Pump head size (Φx H): 31.7 x diameter high 20.1 (mm)
• Equipped with a pump tube (IDxOD): 2.5 x outer diameter inner diameter 4.7 (mm)
