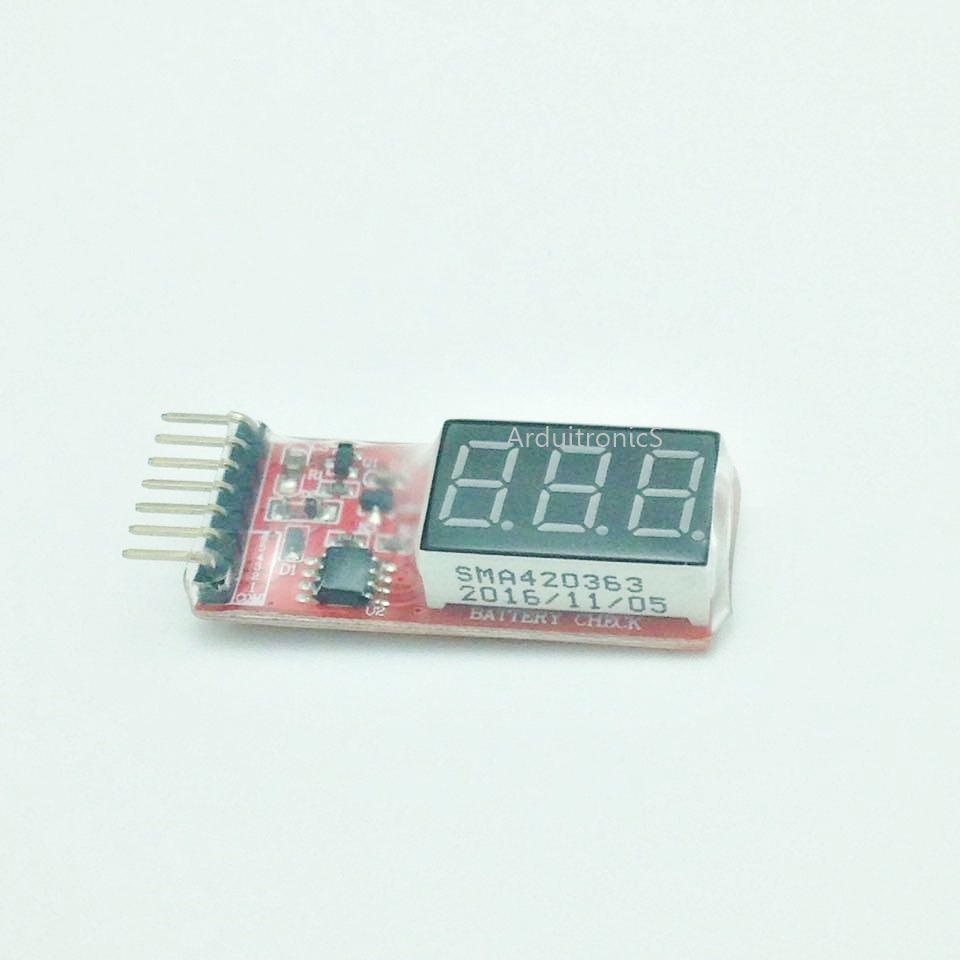

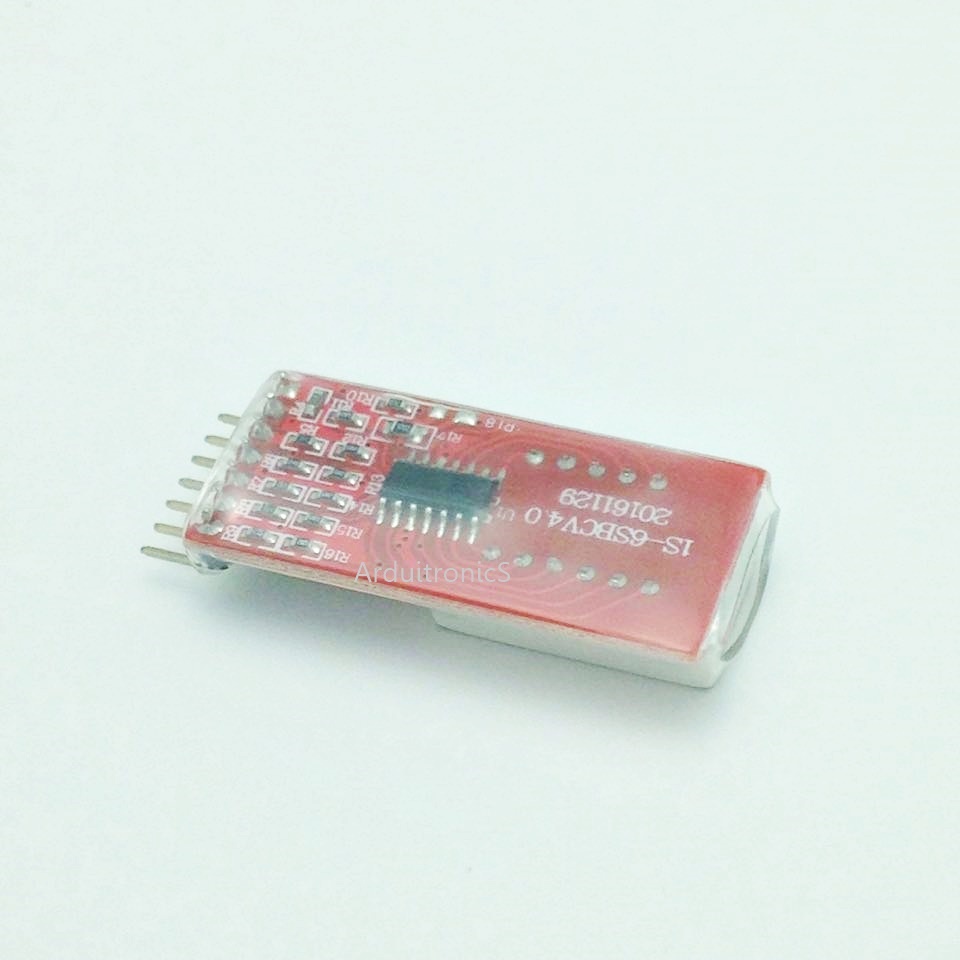

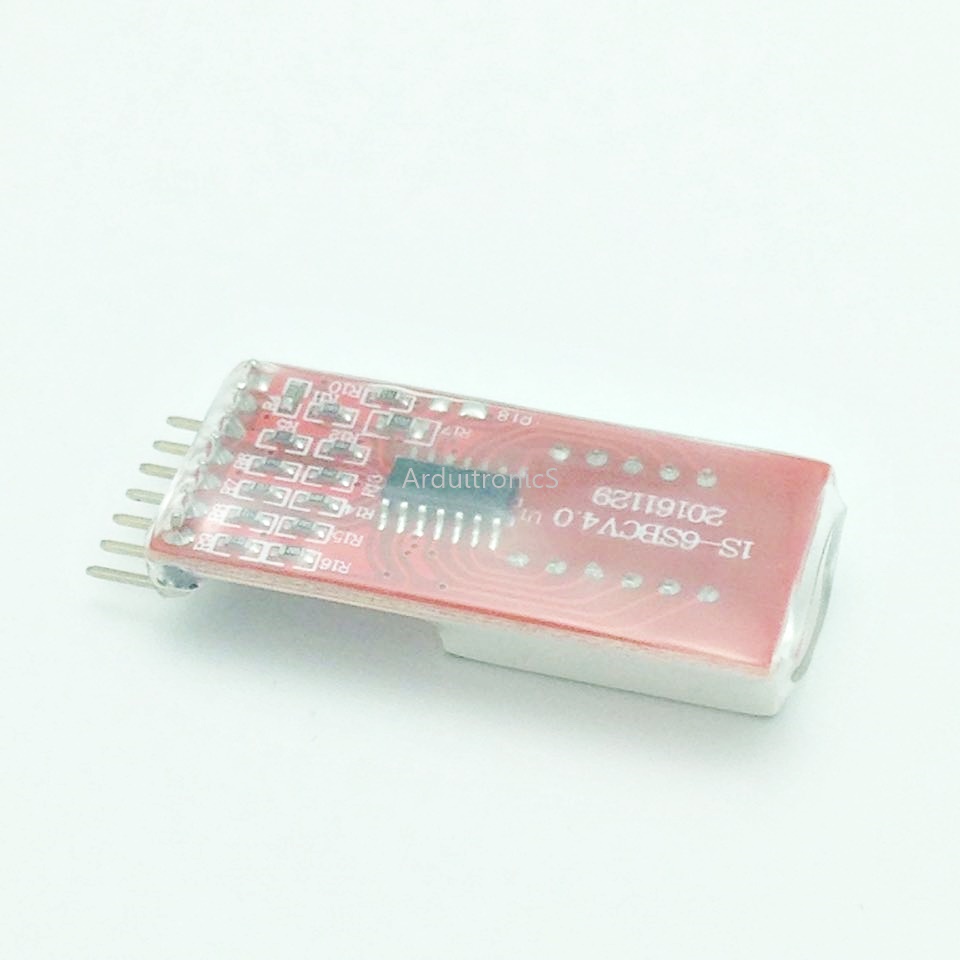

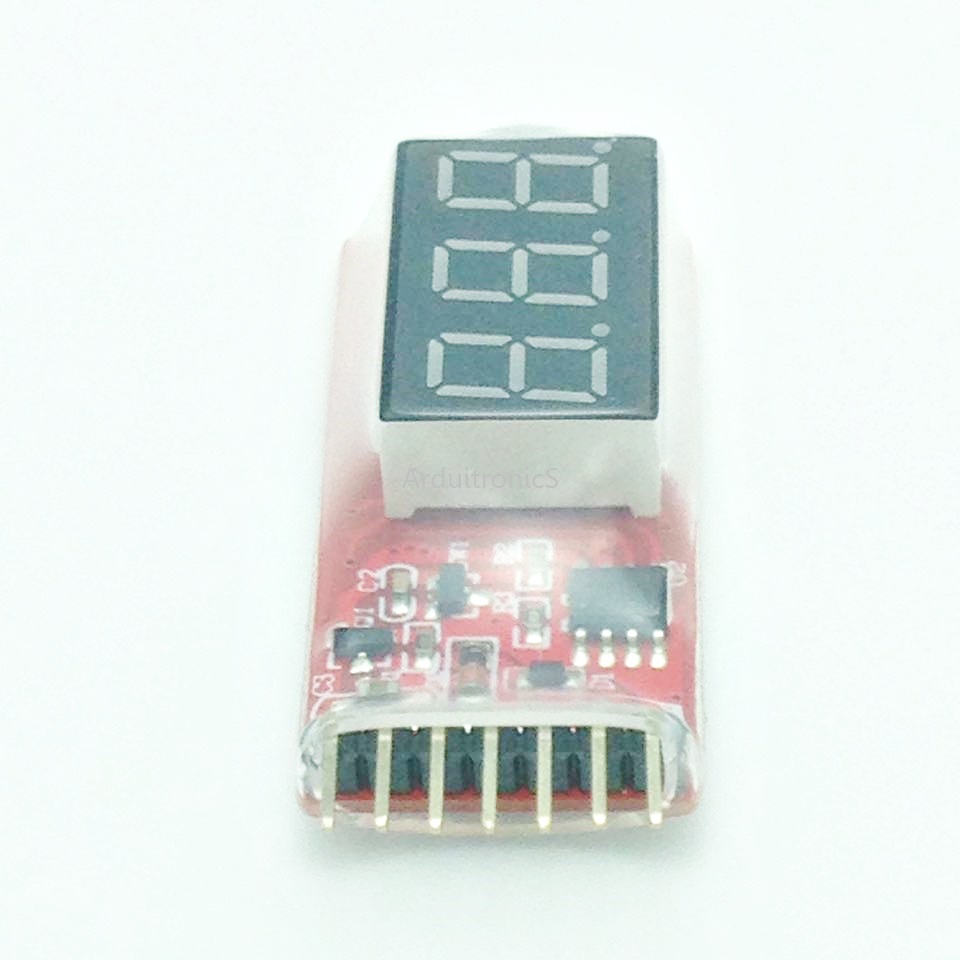

1S-6S Lipo Battery Voltage Checker / Meter

Product Name: model aircraft and a variety of toys lithium battery electric display
Product Specifications: 6S
Measurement accuracy: ± 0.01V
Voltage measurement range: 0.5 ~ 25.2V
Size: length × width × height: 48 × 20 × 8mm
Weight: 8g ± 0.1g

Product Features :

1. ultra-high precision! Display accuracy of ± 0.01V
2. Support 1S voltage test, 1S measurement voltage 3.6-4.5V
3. Reverse protection
4. Waterproof short circuit, small size, light weight, compact structure.

Instructions:

1 . Connected to the battery pack, the first three LED digital tube will be Happy way to show.
2 . 8.8.8 is displayed, then N cE (N is the number of battery nodes), and then "ALL" is displayed. The following shows the total battery voltage XX.X (for example, "23.2", indicating that the total voltage is 23.2V).
3 . And then display "No1", suggesting that the following section to display the first section of voltage, and then shows the first section of the actual measurement of the battery voltage. For example, "3.32" is displayed, it means that the measured first section voltage is 3.32V.
4 . "No2" and the corresponding voltage, "No3" and the corresponding voltage, "No4" and the corresponding voltage, "No5" and the corresponding voltage, "No6" and the corresponding voltage, Three, four, five, six of the voltage.
5 . If there is a problem with a battery contact, the corresponding channel will flash. If the channel voltage is below 3.6V, the channel voltage will flash.
