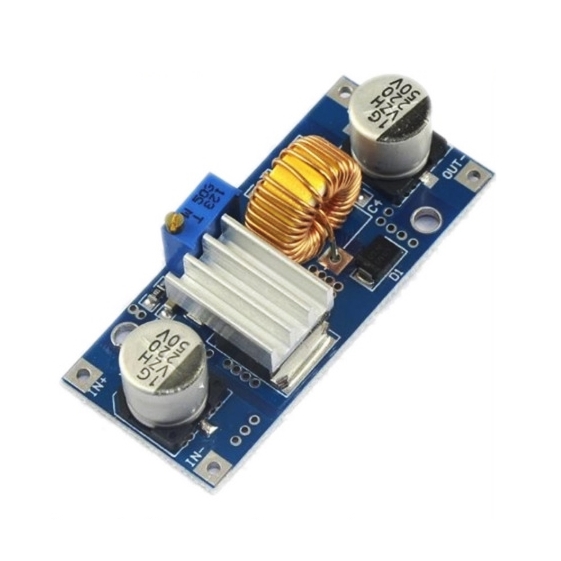

DC-to-DC Step Down XL4015 Module (5A)

ข้อมูล โมดูลเรกูเลต XL4015 DC-DC Step Down 5A Adjustable Power Supply Module XL4015 Step down (Buck)

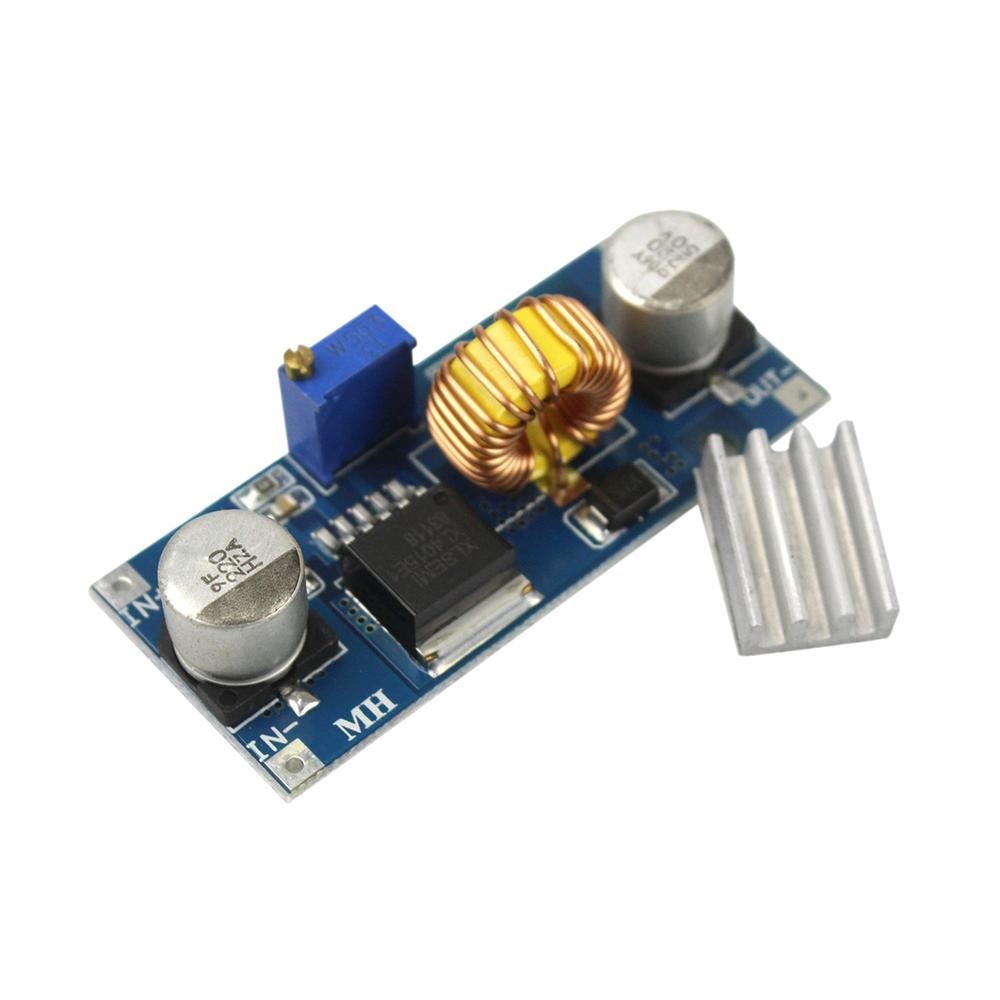

The DC-DC module based on LM2596 advocate current to 3.0A, but only to 1.8A.However, being introduced module adds a heatsink, using high-power devices.This module can easily reach 4A, 50W, add heat sink circumstances can reach 75W, has a high price!!

Module highlights: 5A high power.high efficiency and low ripple with power indicator !!!

• 1.Input voltage range:4-38VDC(Note:input voltage not exceeding 38V)

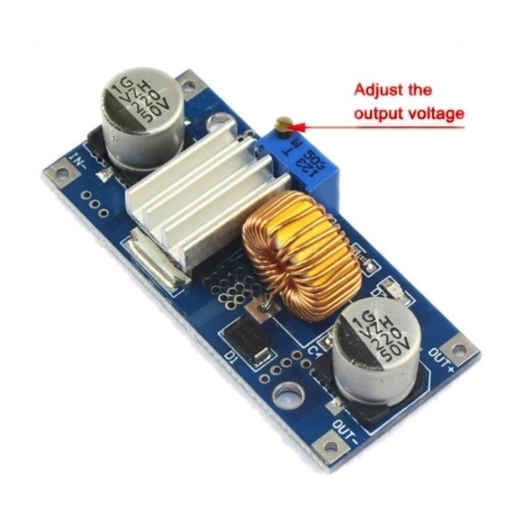

• 2.Output voltage range:1.25-36VDC adjustable
• 3.Output current: 0-5A, recommended for use in 4.5A.
• 4.Output power: 75W
• 5.Working temperature: -40~+85 degrees
• 6.Operating frequency: 180KHz
• 7.Efficiency:96%(max)
• 8.Short circuit protection: yes(limit current 8A).
• 9.Over temperature protection
• 10.Input reverse polarity protection: None (if required, high current diode in series with the input).
• 11.L x W x H = 54 * 23 * 18mm

Application:

 The DC/DC buck module applications the input voltage is higher than the output voltage of the buck field, such as battery, power transformer, DIY adjustable regulated power supply, 24V Vehicle notebook power supply,industrial equipment buck.12V buck to 3.3V, 12V buck to 5V, 24V buck to 5V,24V buck to 12V, 36V buck to 24V etc.

ข้อมูลเพิ่มเติม

• ข้อมูล DataSheet XL4015 คลิกที่นี่
